CSF Toyota GR Supra / BMW G20 / G29 40i Heat Exchanger

After six months of development and testing with some of the best Supra tuners across the world, CSF is proud to announce its new high-performance all-aluminum charge cooler Front Mount Heat Exchanger upgrade for the A90/91 Toyota Supra (including some BMW G-Series fitment).

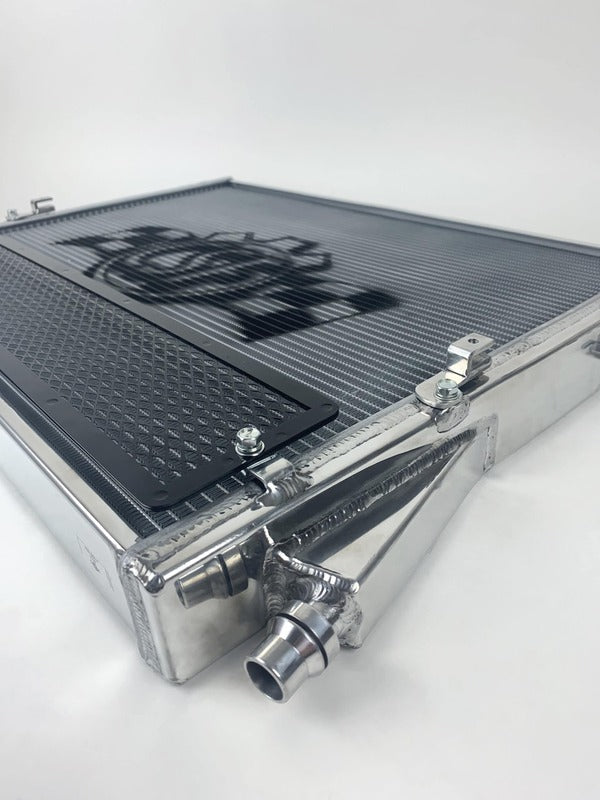

CSF's new High-Performance Heat Exchanger for the A90/91 Supra, BMW Z29 Z4 (and other BMW G-Series models). Complete with transmission oil cooler mounting hardware and rock guard.

Since the vehicle was released in 2019, enthusiasts have been looking for performance upgrades to unleash the full potential of the BMW-sourced B58 engine. It didn't take long for weak points of the vehicle to become chatter across the internet, in facebook groups, and at race tracks. One of the most apparent problems (and one that was quickly identified by anyone taking the car to a track day): the liquid-cooled charge air cooler system would quickly heat soak with no ability to recover. This would cause the intake air temperatures (IATs) to spike, resulting in the ECU cutting the power output of the vehicle, and eventually putting the car into limp mode.

CSF engineers witnessed the overheating issue first-hand as they were in attendance at the Global Time Attack Finals at Buttonwillow Raceway in November 2019. Several new heavily modified Supra racecars could barely go two or three laps in moderate ambient conditions without having the car go into limp mode, forcing drivers to take a cool down lap (or two), with some even coming into the pits to have their front mount heat exchangers sprayed down with cold water.

Even factory-backed teams, such as HKS, were having tremendous overheating issues and would have to periodically come into the pits to spray down through the front grille.
Since then, many aftermarket tuning companies have developed bolt-on performance upgrades, software tunes, as well as upgraded hybrid-turbos. Several companies have already pushed the limitations of the engine introducing fully upgraded turbo kits, with some pushing close to 800whp. The increase in horsepower also tremendously increases the heat generated from the engine, and puts further stress on an already flawed charge-air cooling system. When upgrading the vehicle's power, the ECU can also start to pull timing and decrease the car's power output " even just during spirited driving, not necessarily only on the track.

How the Charge Cooling System Works
Because of CSF's industry-leading reputation and deep knowledge of high-performance BMW cooling systems, its engineers immediately knew what had to be fixed in order to maximize and maintain consistent performance with the B58 engine. The engine is very similar to the S55 in the latest F8X M3/M4 " both feature a liquid-to-air charge cooler mounted on the top of the engine, along with a front mount heat exchanger (water radiator) that first cools the fluid that then cycles through the charge cooler, dissipating heat from the charge air before it enters the engine.

The difference is that the B58 liquid-to-air charge cooler is integrated into the intake manifold, rather than being a stand-alone unit that can be easily replaced (like in the F8X S55 variant). Because the charge cooler is built into the manifold, it's extremely difficult to replace with a high-performance solution, with currently no aftermarket support available. The only solution to keeping intake air temperatures in control on a modified or track-ready Supra is to upgrade with the CSF Front Mount Heat Exchanger.

CSF's Asian distributor and R&D partner, Unlimited Performance, took their stage-2 track-spec G29 BMW Z4, fitted with a prototype unit, to Tianma Raceway in Shanghai to help validate the performance of CSF's B58 High-Performance Heat Exchanger. The report back from our development team was that IATs remained consistently 10-150F (5.5-8.30C) lower than with the stock heat exchanger installed, with maximum temperature delta proving a 400F (22.20C) reduction between the CSF and OEM cooler. Most importantly, the test Z4 was able to stay on the track longer due to maintained IATs, as well as the CSF Heat Exchanger helping improve airflow to the rest of the cooling system for both lower engine water and engine oil temperatures.

High-Performance Heat Exchanger (CSF#8154) Features:
Significantly Reduces Intake Air Temperature (IAT) for Maximum Performance (with Faster Heat Soak Recovery)
Improves Air Flow to the Rest of the Cooling System for Both Lower Engine Water and Engine Oil Temperatures
2-Row, 42mm Ultra High Performance Core
6.5mm Tall Multi-Louvered Fin with CSF's Exclusive B-Tube Technology

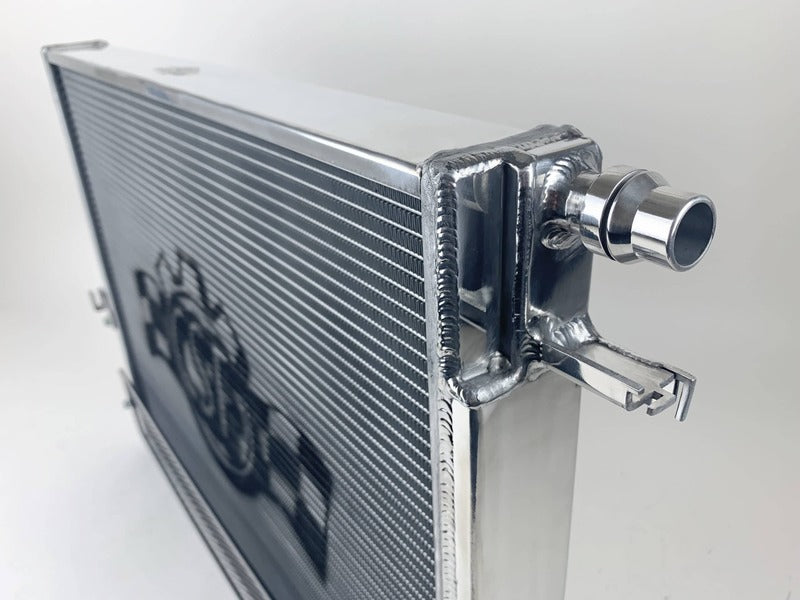

CNC Machined Mounting Brackets and OEM Style "Quick Connect" Inlet/Outlet
100% All Aluminum TIG-Welded Construction
Includes Rock Guard & Transmission Oil Cooler Mounting Kit (Industry Exclusive)
"Drop-in" Fit
2-Year Limited Warranty
1-Hour "Mirror Finish" Hand Polish
Tested and Proven by CSF's Global Network of R&D Partners, Including Leading Time Attack Teams, Tuners, and Turbo Kit Manufacturers
Fits:
2019+ Toyota Supra (A90/A91)
& 2018+ BMW Models:
G29 Z4 20i, 30i & M40i
G20 3-Series (320i, 330i, 330iX, M340i, M340iX)
G21 3-Series Touring (330i, 330iX, M340iX)
OEM#: 16400-WAA03 & 17118666811

Evolve Automotive's road testing further enforced the track testing that Unlimited Performance had given to CSF three weeks prior. The log above also indicates a consistent 100F (5.50C) reduction in IATs during a third through fifth gear wide open throttle (WOT) pull, even in higher ambient conditions, when testing the CSF cooler.

We did another set of road logs and that was a third, fourth, and fifth gear pull. Even thought the ambient was slightly higher when we tested the CSF, at the beginning of the third gear pull, the IAT is 1.50C (2.70F) lower. By the end of the fifth gear, that is reduced to 4.50C (8.10F). So the CSF Heat Exchanger is working pretty well, and the more you put it under load, the more efficiently it's working.

When we bought this car, it was one of the things we raised pretty early on during our tuning and data logging sessions, that the IATs on this car were pretty high and we were waiting for CSF to come along and make a product that actually worked on the Supra. So, from our testing, it shows that it works really, really well.

Imran Arshad, Owner of Evolve Automotive
