About this product

Outstanding performance, improved handling, and enhanced style are just a few of the upgrades you gain when swapping your OE suspension for BelltechÕs 2015Ð2020 Ford F-150 lowering kit. With a front height adjustment of -1" to -3" and the rear -5.5", you improve the appearance and deliver the ride quality you have been dreaming of.

The front suspension includes our robust Belltech lowering adjustable damping coilovers designed using high-quality, multi-functional components that are built to last. Each coilover includes a finely tuned Belltech damper with independently adjustable rebound and compression damping forces. The dampers feature a large, 2.4" (60mm) gold zinc galvanised damper housing for added longevity. The external threads and spring perch offer height adjustability from -1" to -3". We feature a large main spring and smaller helper spring. Both the main spring and the helper spring are made of cold-formed tensile steel and are powder-coated to prevent rust and wear. The coilover uses a progressive rate polymer, open-cell, bump stop for ideal bump stop engagement, and OE style top mounts for simplified installation.

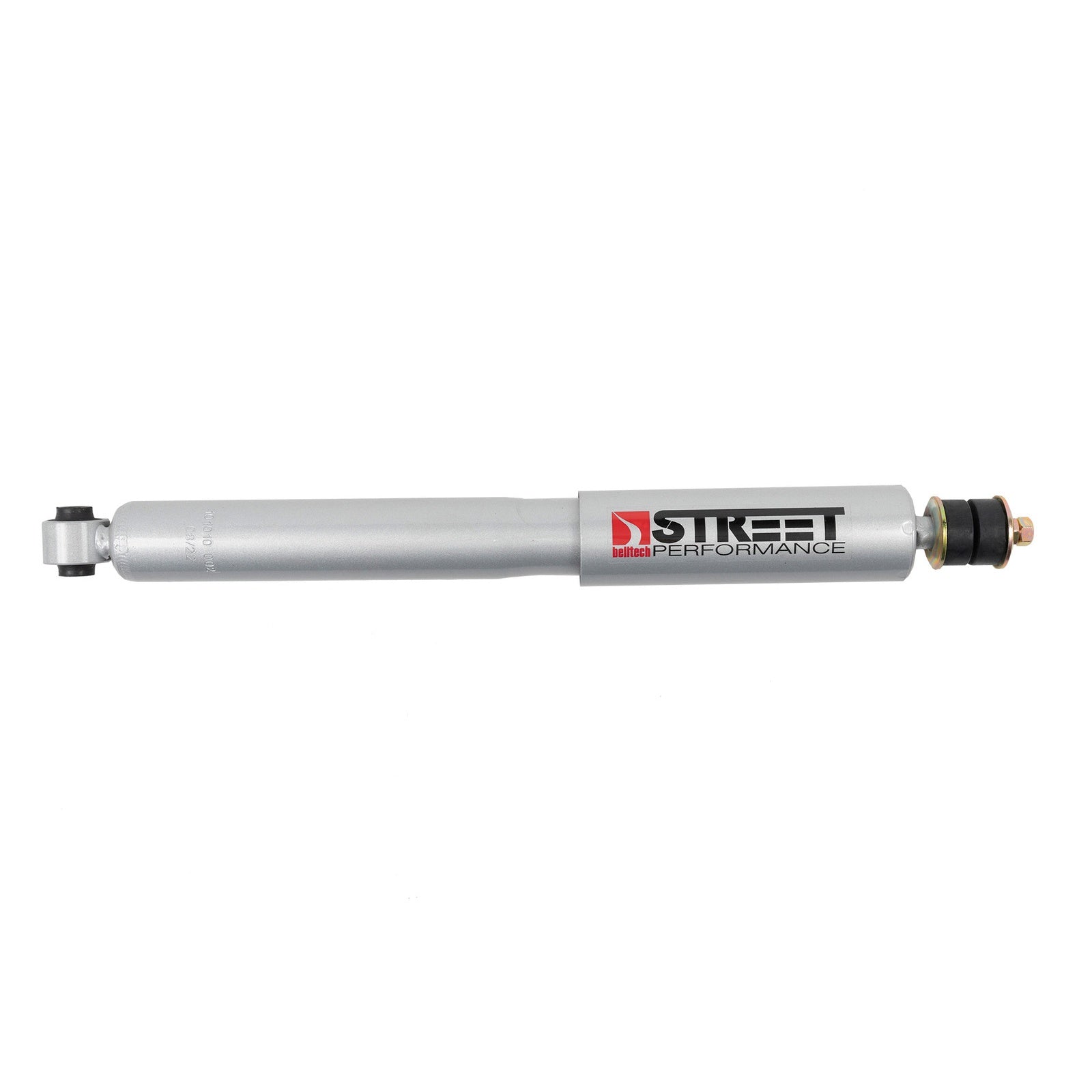

The rear end of the vehicle showcases Belltech Street Performance adjustable damping shocks that are perfectly tuned for increased, customisable refinement of your F-150Õs ride quality. Belltech Street Performance adjustable shocks feature an advanced low-friction design and are effortlessly tuned with easy-to-set rebound and compression knobs. The rebound adjustment features 18 precise clicks of rebound stage tuning, while the compression showcases 12 clicks of compression stage tuning. With independent adjustments, you can directly influence steering behaviour, directional stability, grip, and handling characteristics, producing an individualised and perfected ride.

Like the coilover dampers, our shocks are made with a 2" (55mm) gold zinc galvanised damper housing to increase their lifespans. To achieve -5.5" in lowering, Belltech includes an easy-to-install bolt-on flip kit. The flip kit contains high-quality hardware and durable finished components. It seamlessly repositions your axle without cutting or interfering with any OE parts.

Give your truck an eye-catching, high-performance upgrade with the Belltech 2015Ð2020 Ford F-150 Performance Handling Kit Plus.

• Lowering range: -1" to -3" front and -5.5" rear
• Complete "ready to install" front height adjustable coilovers
• 18 clicks of rebound stage adjustment (TVR-A) Twin Valve Rebound Adjustable Technology
• 12 clicks of compression stage adjustment (TVC-A) Twin Valve Compression Adjustable Technology
• Coilovers contain large 2.4" (60mm) Street Performance dampers
• Rear Street Performance 2" (55mm) adjustable shocks
• Galvanised steel shock bodies
• High-quality bolt-on flip kit
• Customisable performance and handling
• Reduced body roll
• Lowers centre of gravity
• Easy installation
