ST Coilover XA Kit for Cupra (KL) Leon ST / Seat (KL) Leon ST 2.0L
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

ST Coilover XA Kit for Cupra (KL) Leon ST / Seat (KL) Leon ST 2.0L
Sale price$2,036.30
Regular price$2,909.00 (/)
ST XA coilovers add adjustable rebound damping to height-adjustable ST struts, with up to 16 clicks adjusted at the top of the chrome-plated piston rod. More rebound force gives more stability and less body roll; less gives a more comfortable ride. Height is set on a continuous thread on the galvanised strut, and the twin-tube dampers are manufactured by KW Automotive. This kit is developed for the Cupra Leon ST / Seat Leon ST (KL) 2.0.
Key Features
- Rebound damping adjustable in up to 16 clicks
- Continuous thread height adjustment
- Galvanised coilover struts
Specifications
- Version: XA
- Damping: Adjustable rebound
- Material: Galvanised steel
- Front lowering: 35–60 mm
- Rear lowering: 35–60 mm
- Front axle load: 1,036–1,090 kg
- Rear axle load: up to 1,050 kg
- Front strut diameter (vehicle): 50 mm

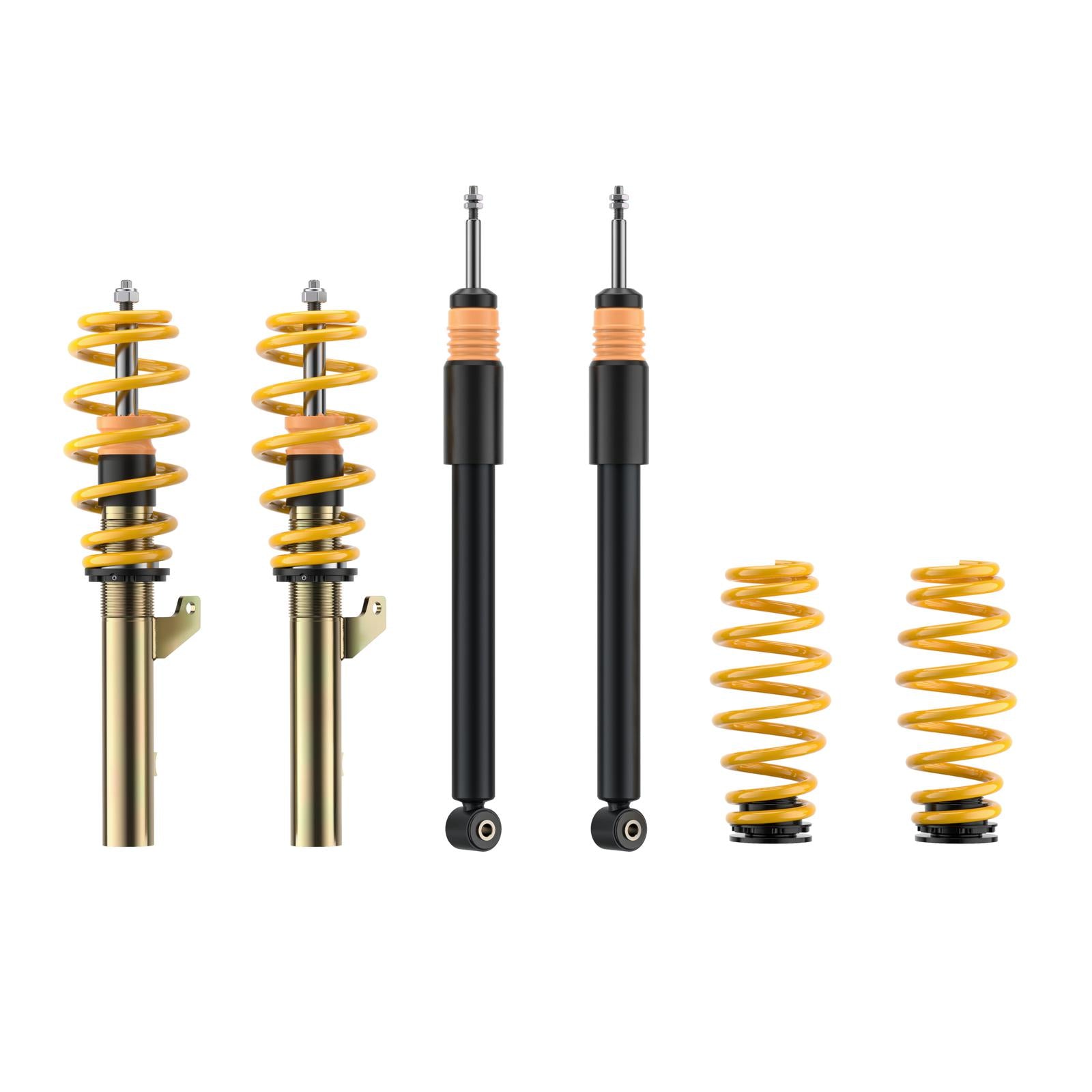

- Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Front axle load 1,036–1,090 kg; Rear axle load up to 1,050 kg.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 2020+ | Seat | Leon Sportstourer (KL8, KLD) | 2.0 TDI | Diesel · 110 kW · 2.0L · 4-cyl | Front-Wheel Drive | 6, 72 |
| 2020+ | Seat | Leon Sportstourer (KL8, KLD) | 2.0 TDI | Diesel · 85 kW · 2.0L · 4-cyl | Front-Wheel Drive | 6, 72 |
| 2020+ | Cupra | Leon Sportstourer (KL8, KU8, KUD) | 2.0 TSI | Petrol · 180 kW · 2.0L · 4-cyl | Front-Wheel Drive | 6, 72 |
| 2020+ | Cupra | Leon Sportstourer (KL8, KU8, KUD) | 2.0 TSI | Petrol · 221 kW · 2.0L · 4-cyl | Front-Wheel Drive | 6, 72 |
| 2020+ | Cupra | Leon Sportstourer (KL8, KU8, KUD) | 2.0 TSI | Petrol · 140 kW · 2.0L · 4-cyl | Front-Wheel Drive | 6, 72 |
| 2020+ | Cupra | Leon Sportstourer (KL8, KU8, KUD) | 2.0 TDI | Diesel · 110 kW · 2.0L · 4-cyl | Front-Wheel Drive | 6, 72 |
- Note 6: Not for vehicles with electronic damper control.
- Note 72: Only for cars with a clamp diameter of 50 mm on the front axle.
