CSF Heavy-Duty Aluminium Radiator for Jeep Wrangler (2005-2006) - Auto/Manual
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

CSF Heavy-Duty Aluminium Radiator for Jeep Wrangler (2005-2006) - Auto/Manual
Sale price$827.10
Regular price$919.00 (/)

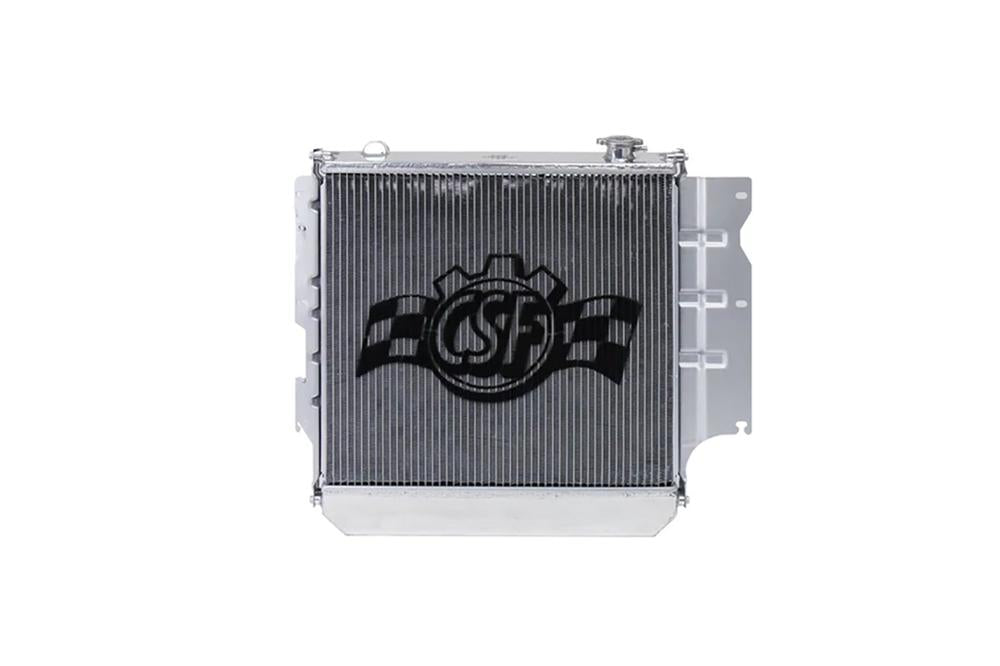

The CSF Heavy-Duty High-Performance All-Aluminium Radiator is designed for the 2005-2006 Jeep TJ Wrangler with automatic or manual transmission. Supplied applications cover the 2.4L L4 and 4L L6 engines.
Its core uses CSF's B-Tube Technology, with seam-brazed tubes and multi-louvred fins. The radiator has a hand-polished mirror finish and a drop-in design requiring no modifications to install.
Key Features
- Core featuring CSF B-Tube technology
- Multi-louvred fins
- CNC-machined quick-connect inlet and outlet connections
- CNC-machined brackets and fittings
- All-aluminium race-style drain plug
- One-hour mirror-finish hand polish
- The B-Tube design increases the heat transfer surface area of the tubes by approximately 15% over regular tubes

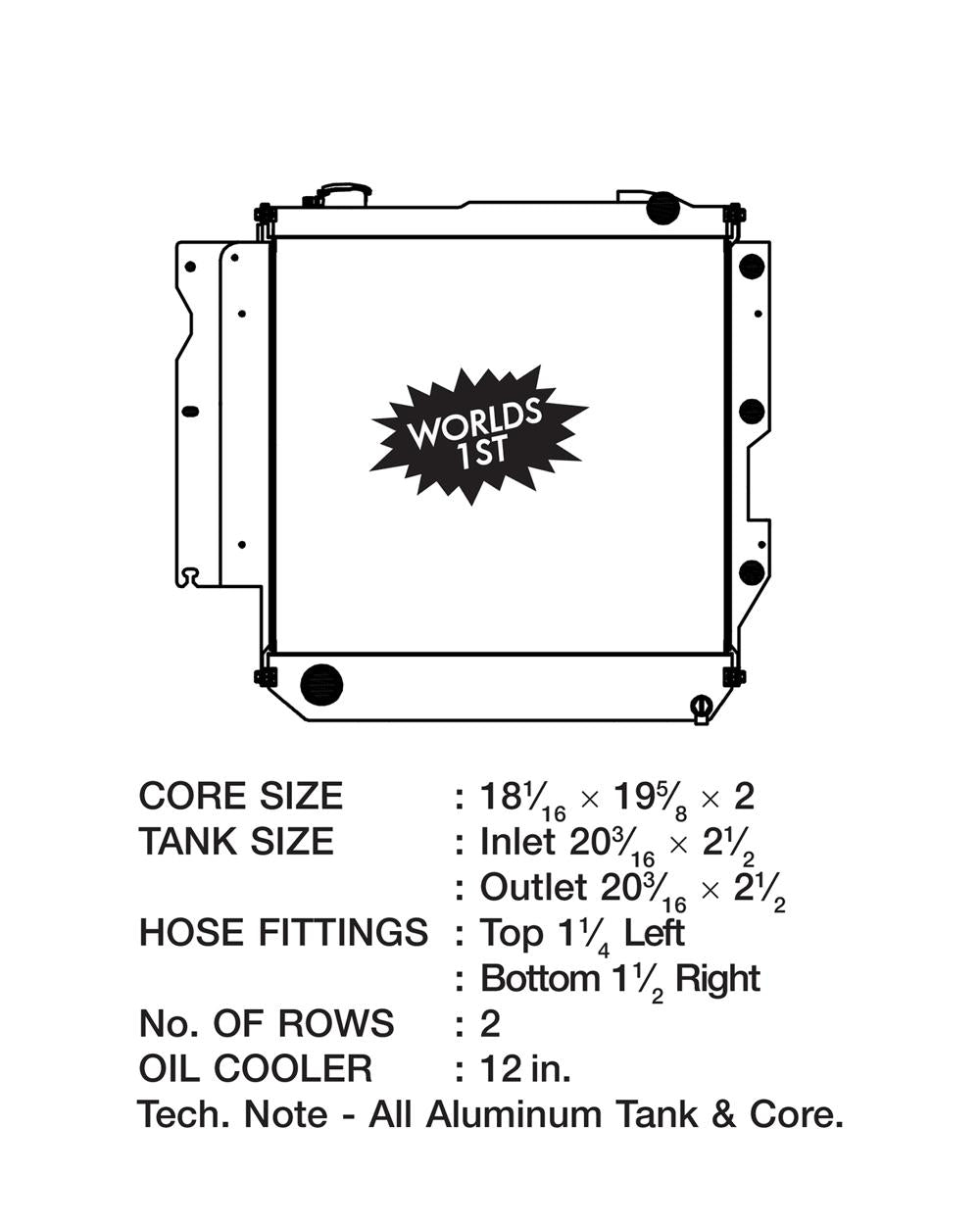

Specifications
- Core: Two-row, 42 mm
- Fin height: 6.5 mm
- OEM part numbers: Jeep: 55037652AA, 55037653AC
Important The radiator accepts attaching OEM components, including quick-connect hoses, the air conditioning condenser, mounting brackets and fan shroud.
Vehicle compatibility
- Jeep Wrangler (TJ) 2005–2006; 2.4L L4
- Jeep Wrangler (TJ) 2005–2006; 4.0L L6
