CSF Aluminium Radiator for Ford Mustang V6/V8 (2005-2014) - Auto/Manual
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

CSF Aluminium Radiator for Ford Mustang V6/V8 (2005-2014) - Auto/Manual
Sale price$1,115.10
Regular price$1,239.00 (/)
The CSF High-Performance All-Aluminium Radiator is designed for 2005-2014 Ford Mustang V6 and V8 applications with automatic or manual transmissions. It features a drop-in design requiring no modifications to install.
Key Features
- Core featuring CSF B-Tube technology
- Multi-louvred fins

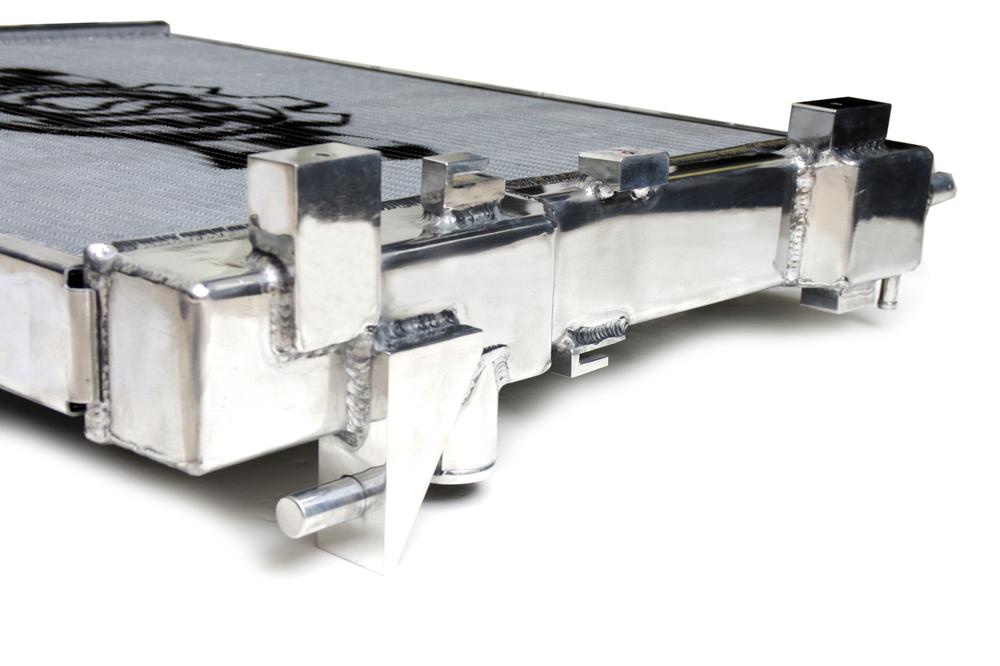

- CNC-machined quick-connect inlet and outlet connections
- CNC-machined brackets and fittings
- All-aluminium race-style drain plug
- Hand-polished mirror finish
- The B-Tube design increases the heat transfer surface area of the tubes by approximately 15% over regular tubes
The B-shaped tubes are formed and seam-brazed, while the multi-louvred fins are aligned to support airflow through the core. The inlet and outlet connections match the OE connections.

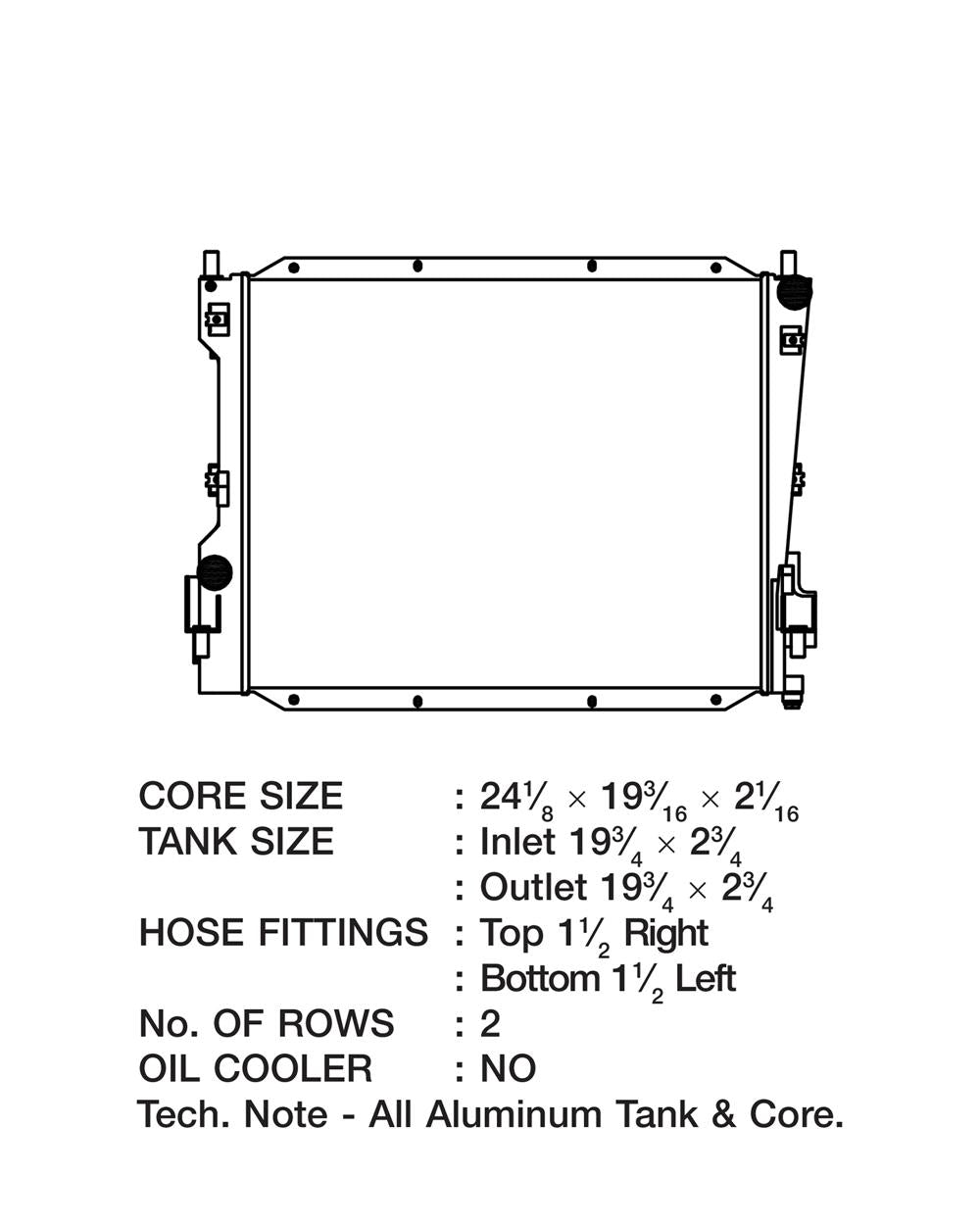

Specifications
- Core: Two-row, 42 mm
- Fin height: 6.5 mm
- OEM part numbers: Ford: H2MZ 8005 T, BR3Z 8005 A
- Warranty: 2-year
Important The radiator accepts attaching OEM components, including quick-connect hoses, the AC condenser, mounting brackets and fan shroud.
Vehicle compatibility
- Ford Mustang Boss 302 (S197) 2012–2013; 5.0L V8
- Ford Mustang GT (S197) 2005–2010; 4.6L V8
- Ford Mustang GT (S197) 2011–2014; 5.0L V8
- Ford Mustang (S197) 2011–2014; 3.7L V6
- Ford Mustang (S197) 2005–2010; 4.0L V6
