CSF Heavy-Duty Aluminium Radiator for Ford F-150 Raptor (2nd Gen) / F-150 (13th/14th Gen)
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

CSF Heavy-Duty Aluminium Radiator for Ford F-150 Raptor (2nd Gen) / F-150 (13th/14th Gen)
Sale price$1,142.10
Regular price$1,269.00 (/)
The CSF High-Performance Radiator for the 2017-2020 Ford Raptor and 2015-2025 F-150 features all-aluminium construction and a drop-in design requiring no modifications.
Key Features
- Core featuring CSF B-Tube technology and multi-louvred fins

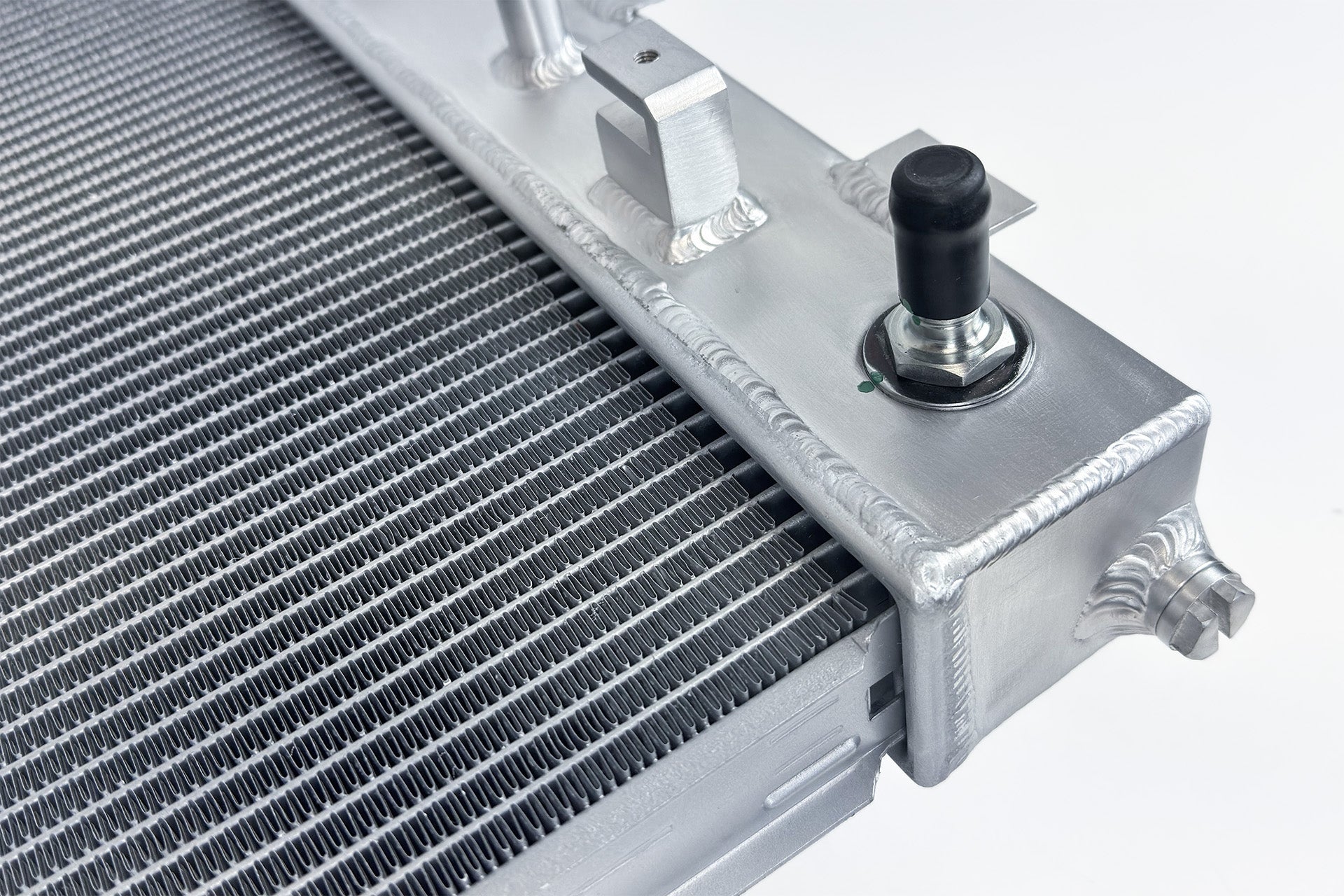

- 100% TIG-welded construction with core straps for added rigidity

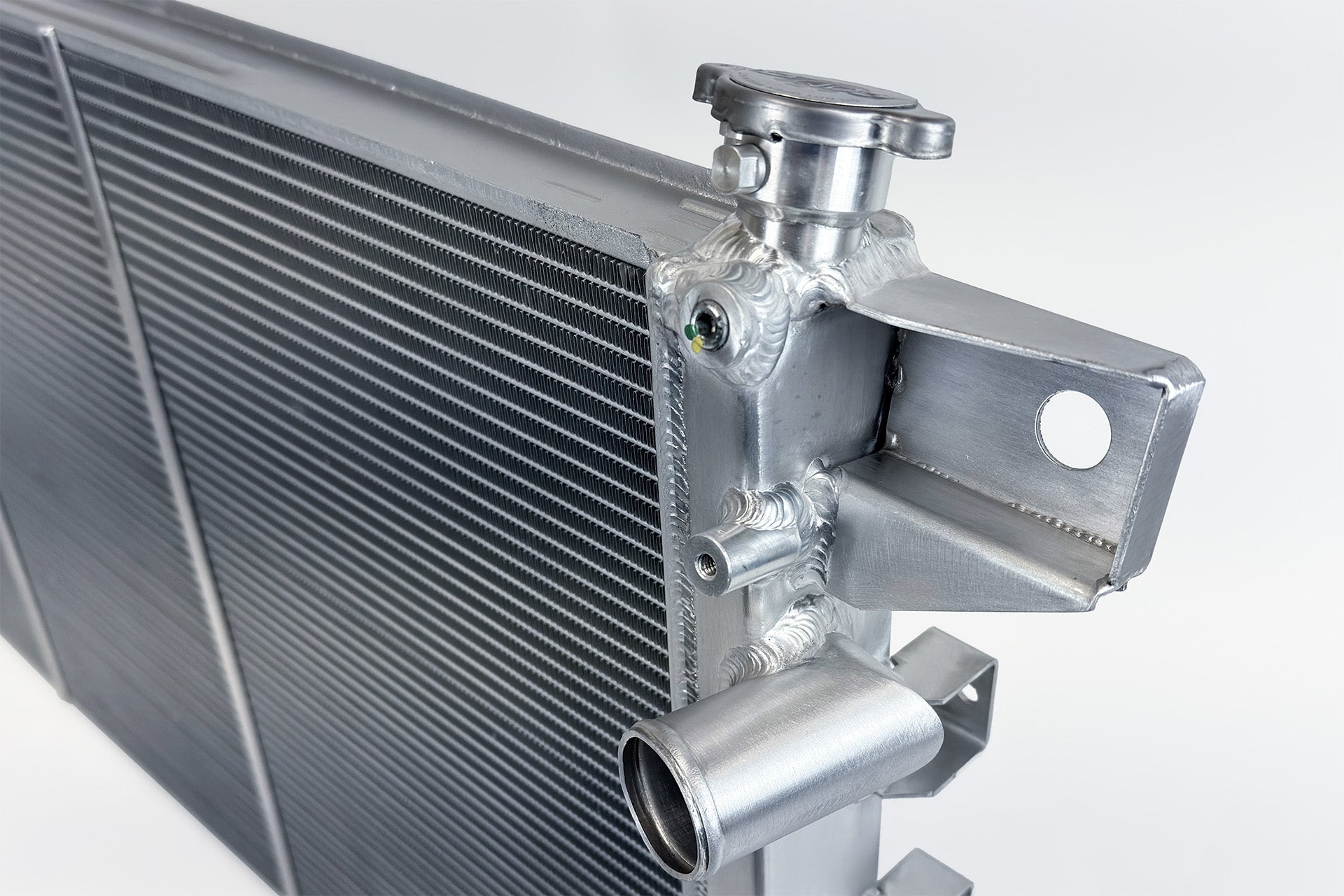

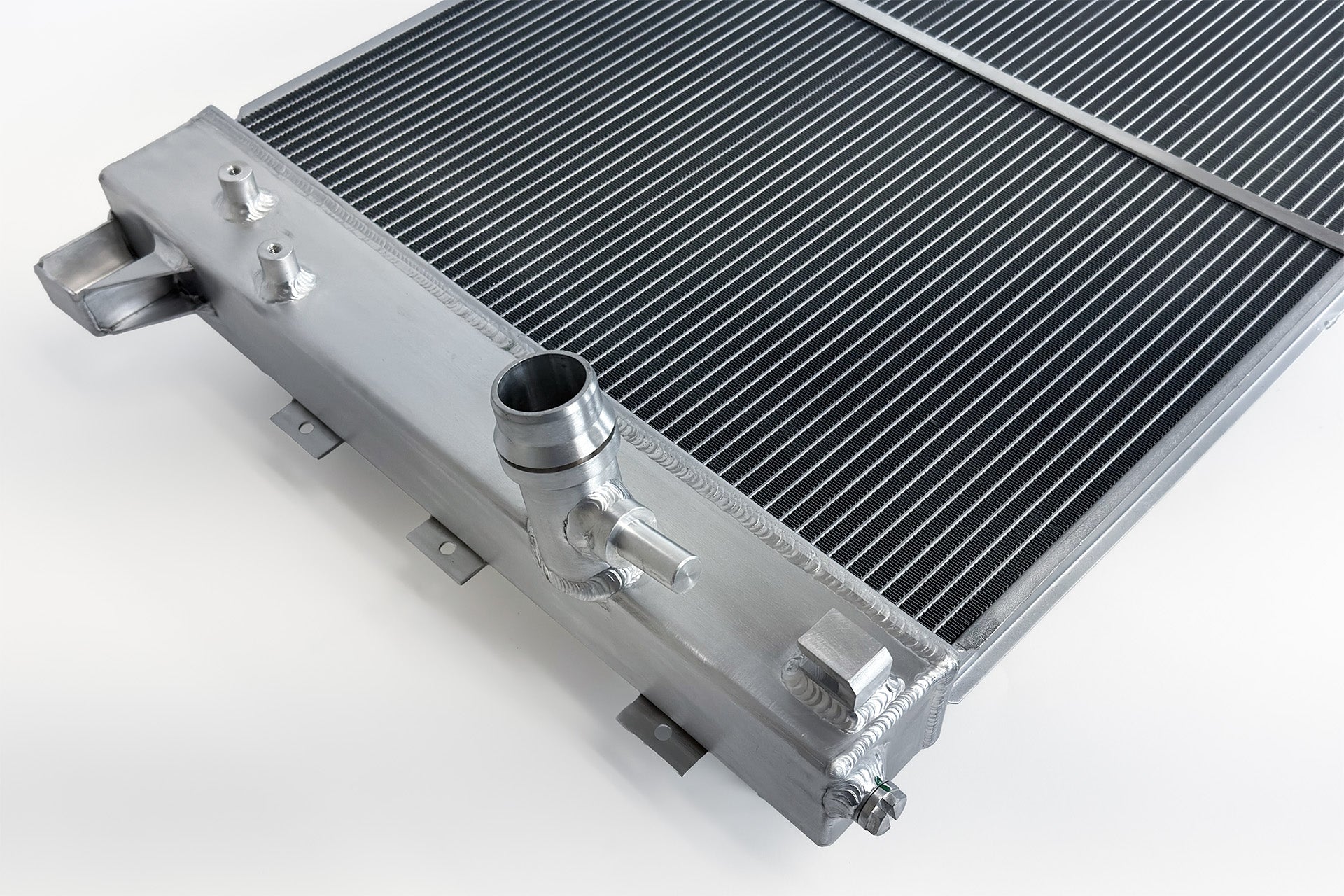

- CNC-machined mounting pins and brackets with factory-style inlet/outlet connections

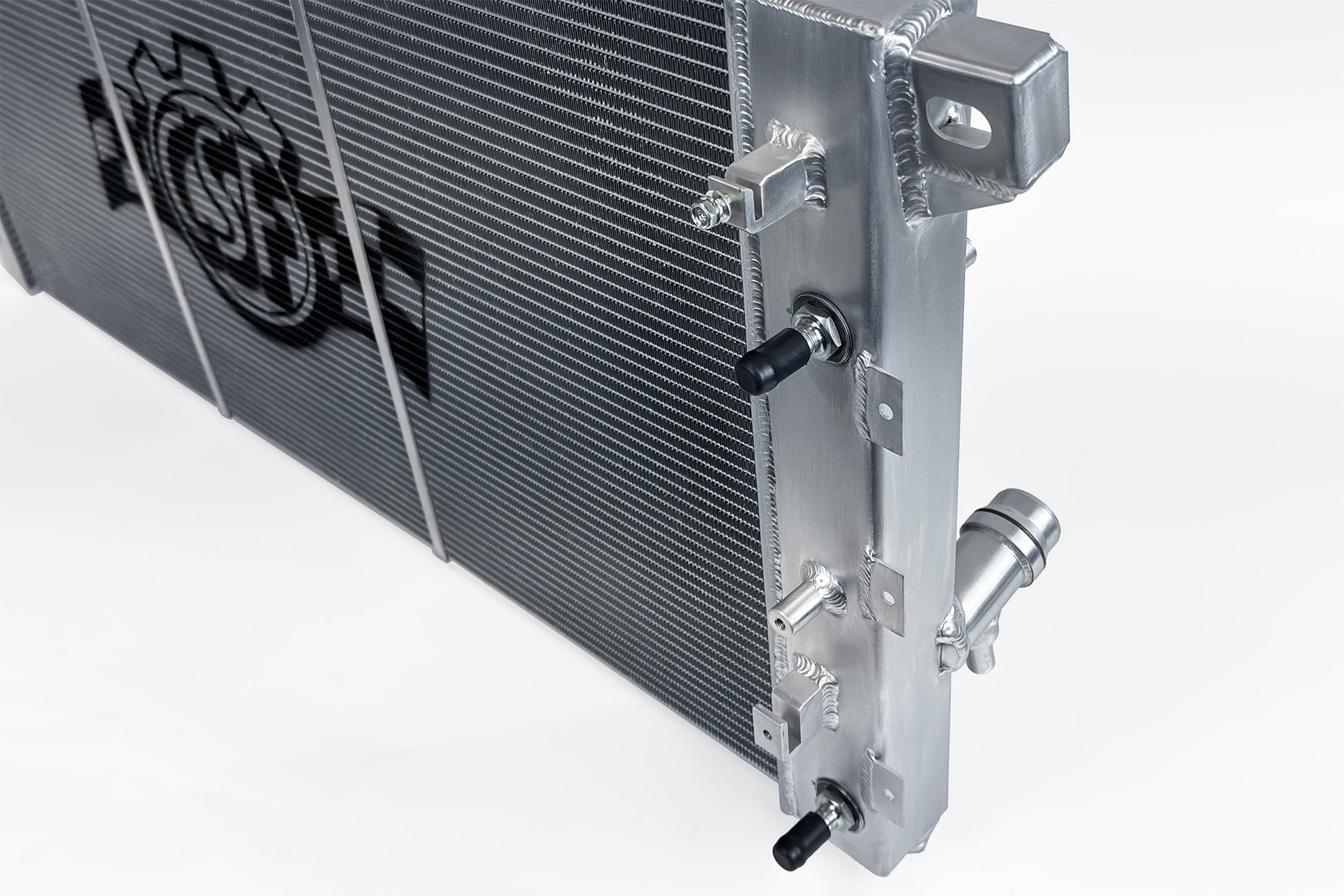

- Two barb fittings for pre-plugged ports accommodate different coolant overflow/expansion tank arrangements
- Individually leak and pressure tested

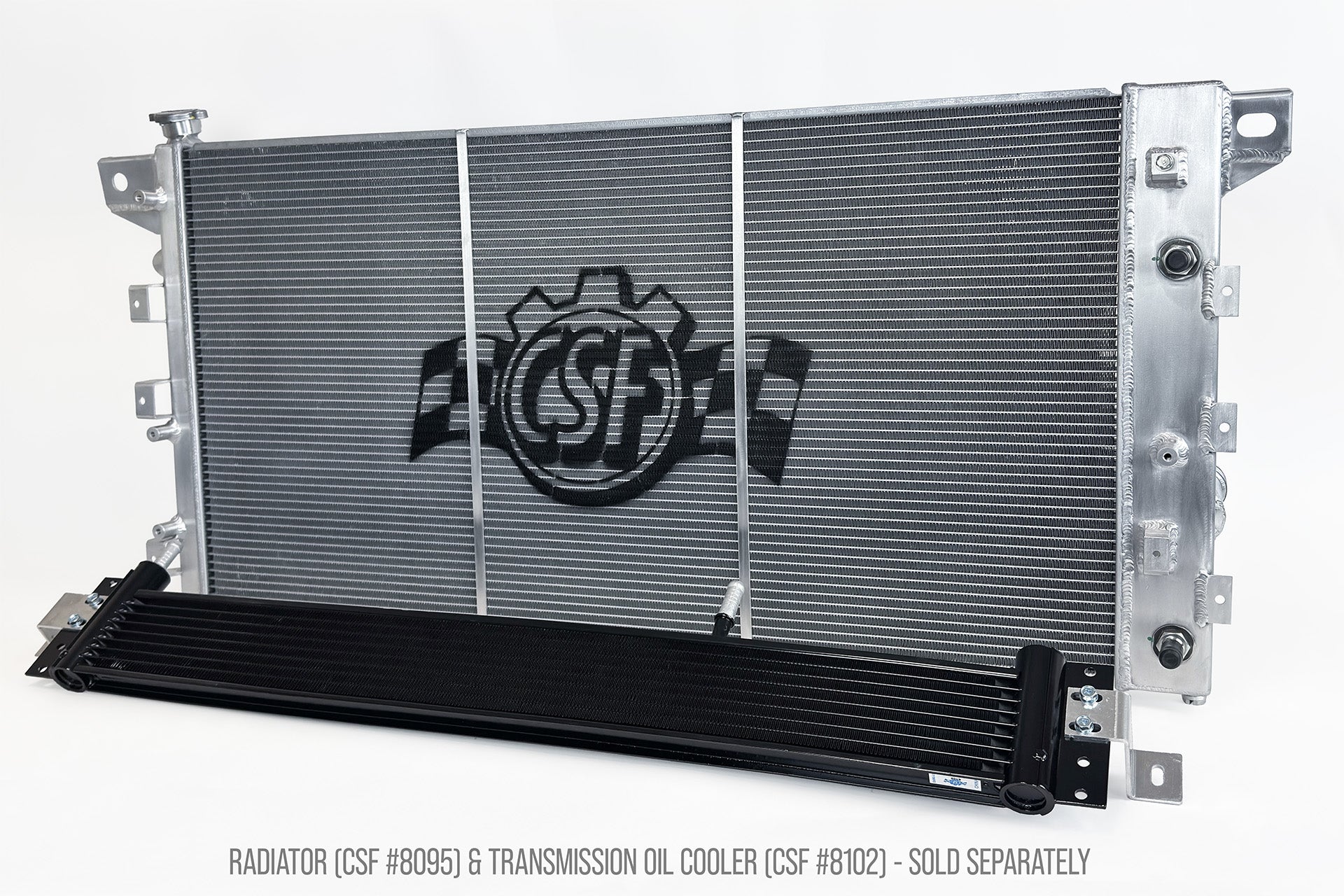

- Compatible with factory or aftermarket transmission coolers and intercoolers
- CSF B-Tube technology increases heat transfer by approximately 15% over regular oval welded tubes
- 15-25% increase in heat transfer efficiency using CSF B-Tube technology
Specifications
- Core: 2-row, 42 mm
- Fin height: 6.5 mm
- OEM part numbers: Ford: HL3Z 8005 B, HL3Z 8005 C, FL3Z 8005 A, FL3Z 8005 B, ML3Z 8005 A
Vehicle compatibility
- Ford Expedition (U324) 2018–2021; Turbocharged 3.5L V6
- Ford F-150 (P552) 2015–2020; Turbocharged 2.7L V6
- Ford F-150 (P702) 2021–2025; Turbocharged 2.7L V6
- Ford F-150 (P552) 2018–2020; Turbocharged Diesel 3.0L V6
- Ford F-150 (P552) 2018–2020; 3.3L V6
- Ford F-150 (P702) 2021–2023; 3.3L V6
- Ford F-150 (P552) 2015–2020; 3.5L V6
- Ford F-150 Raptor (P552) 2017–2020; Turbocharged 3.5L V6
- Ford F-150 (P552) 2015–2020; Turbocharged 3.5L V6
- Ford F-150 (P702) 2021–2025; Turbocharged 3.5L V6
- Ford F-150 (P552) 2015–2020; 5.0L V8
- Ford F-150 (P702) 2021–2025; 5.0L V8
- Lincoln Navigator 2018–2021; Turbocharged 3.5L V6
