CSF Heavy-Duty Aluminium Radiator for Ford F-150 Raptor (1st Gen) / F-150 (12th Gen)
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

CSF Heavy-Duty Aluminium Radiator for Ford F-150 Raptor (1st Gen) / F-150 (12th Gen)
Sale price$1,052.10
Regular price$1,169.00 (/)

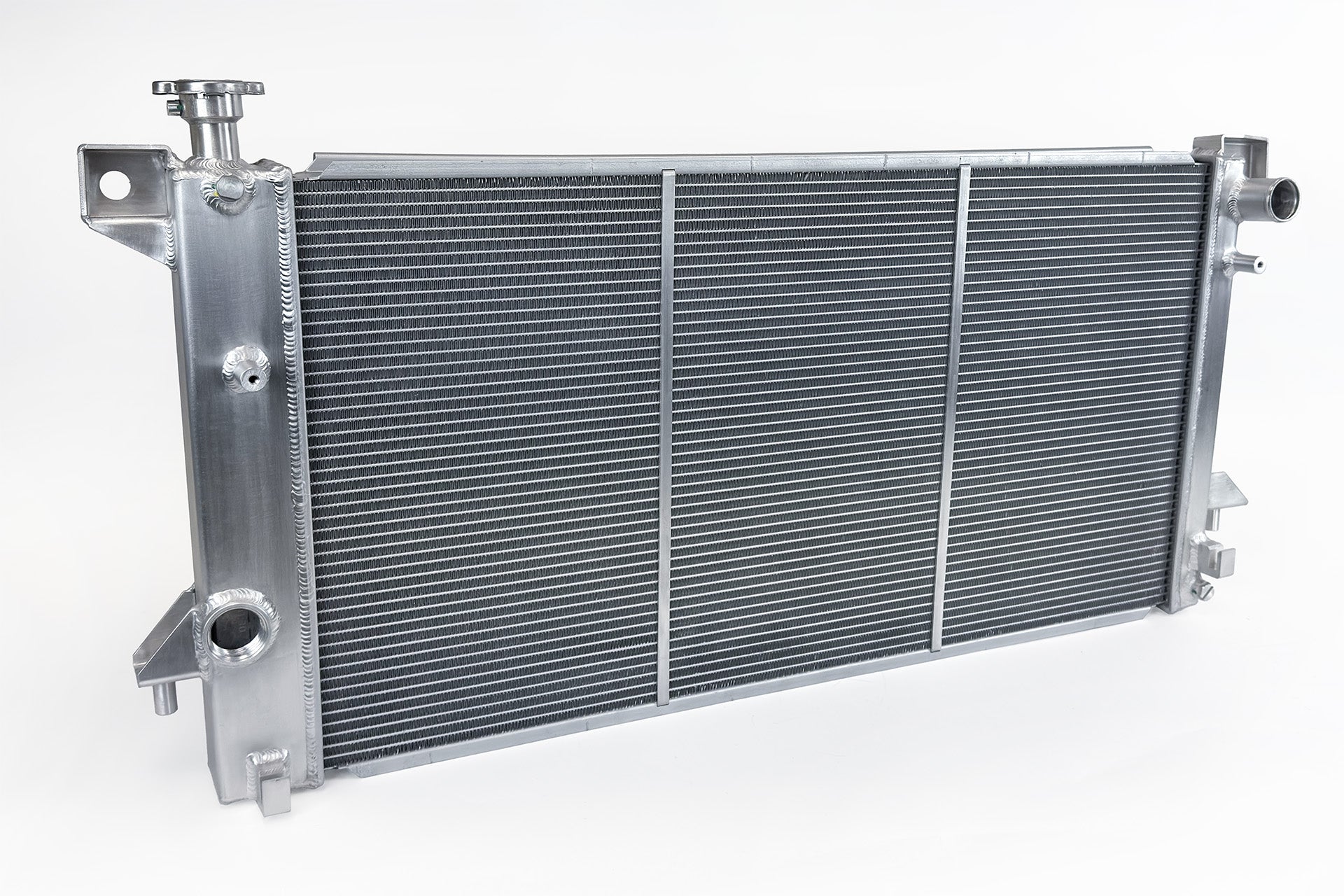

The CSF Heavy-Duty All-Aluminium Radiator is designed for selected 1st Gen Ford F-150 SVT Raptor and 12th Gen F-150 applications.
A two-row, 42 mm core uses CSF B-Tube technology and 6.5 mm multi-louvred fins. Modular connections accommodate different factory lower radiator and reservoir configurations.
Key Features

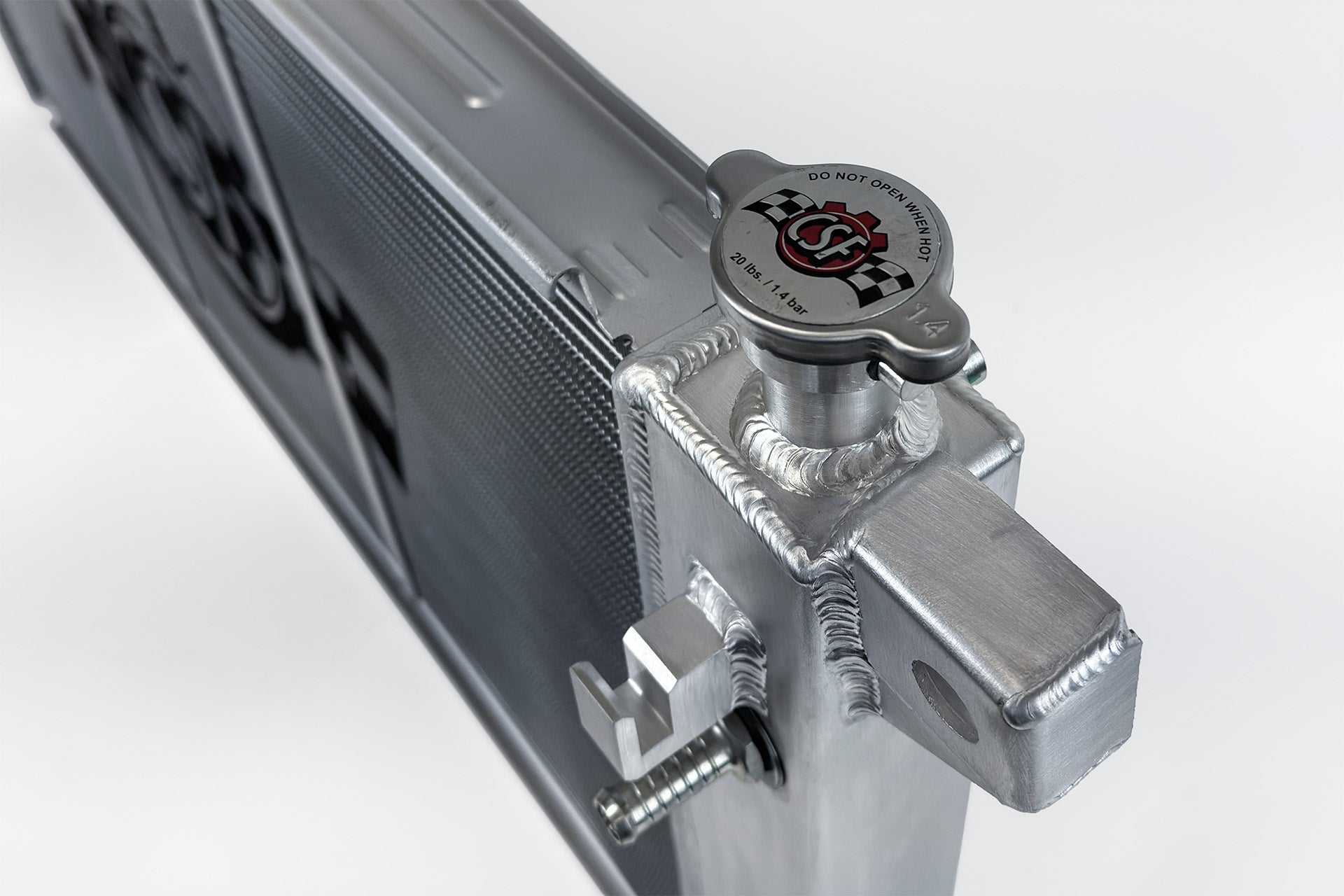

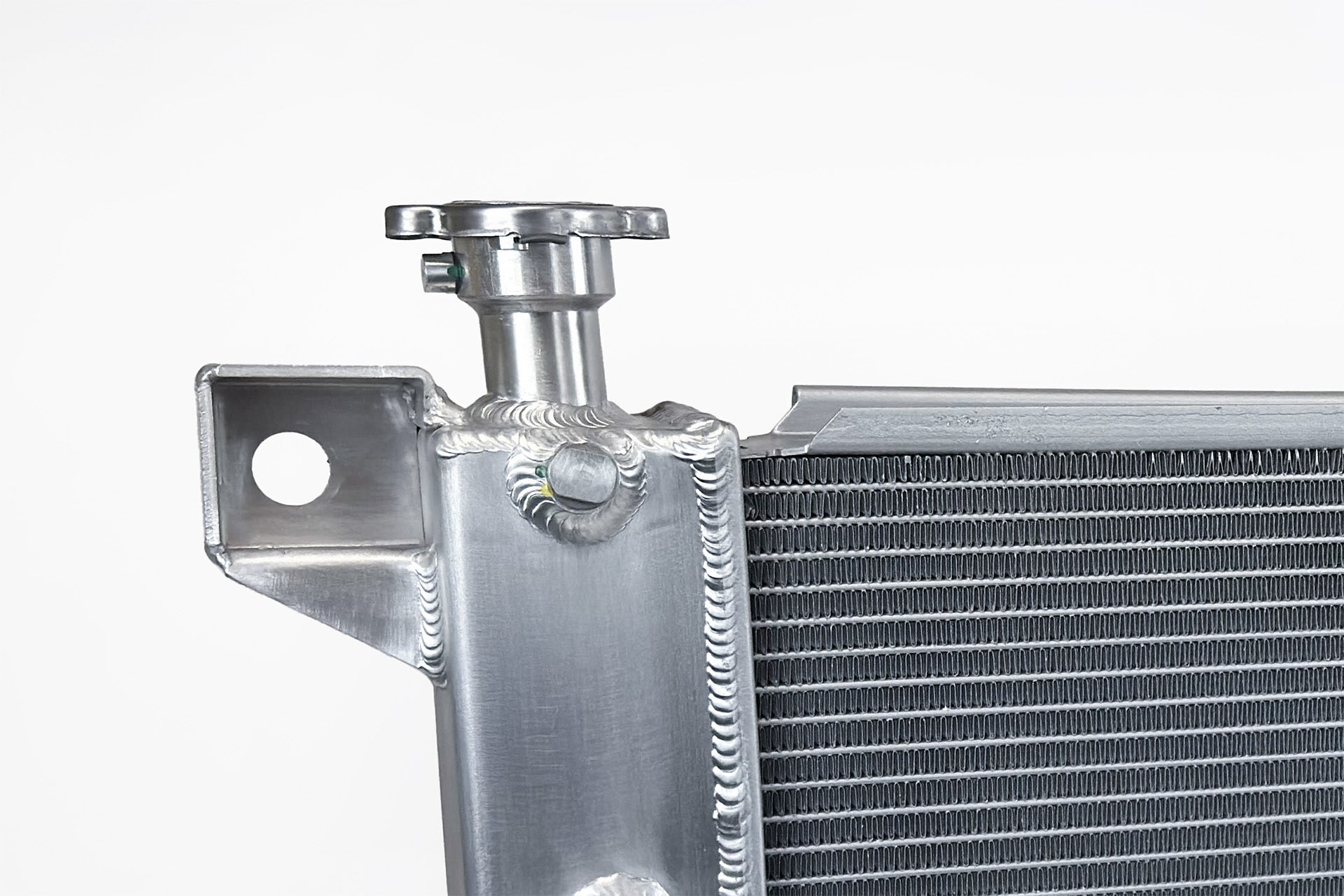

- All-aluminium TIG-welded construction with reinforcing core straps
- 48 cooling tubes and 49 cooling fin rows
- CNC-machined mounting pins and brackets

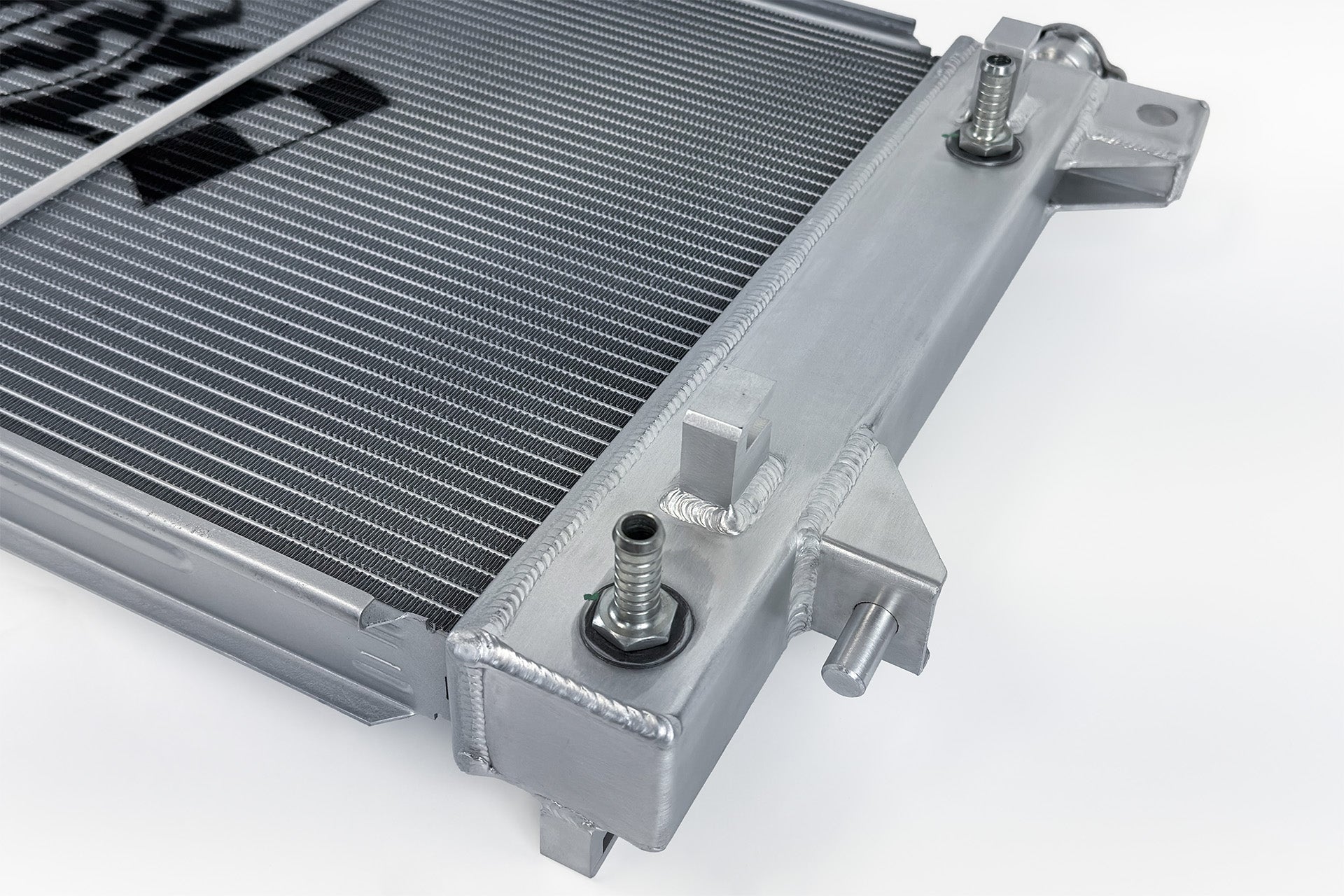

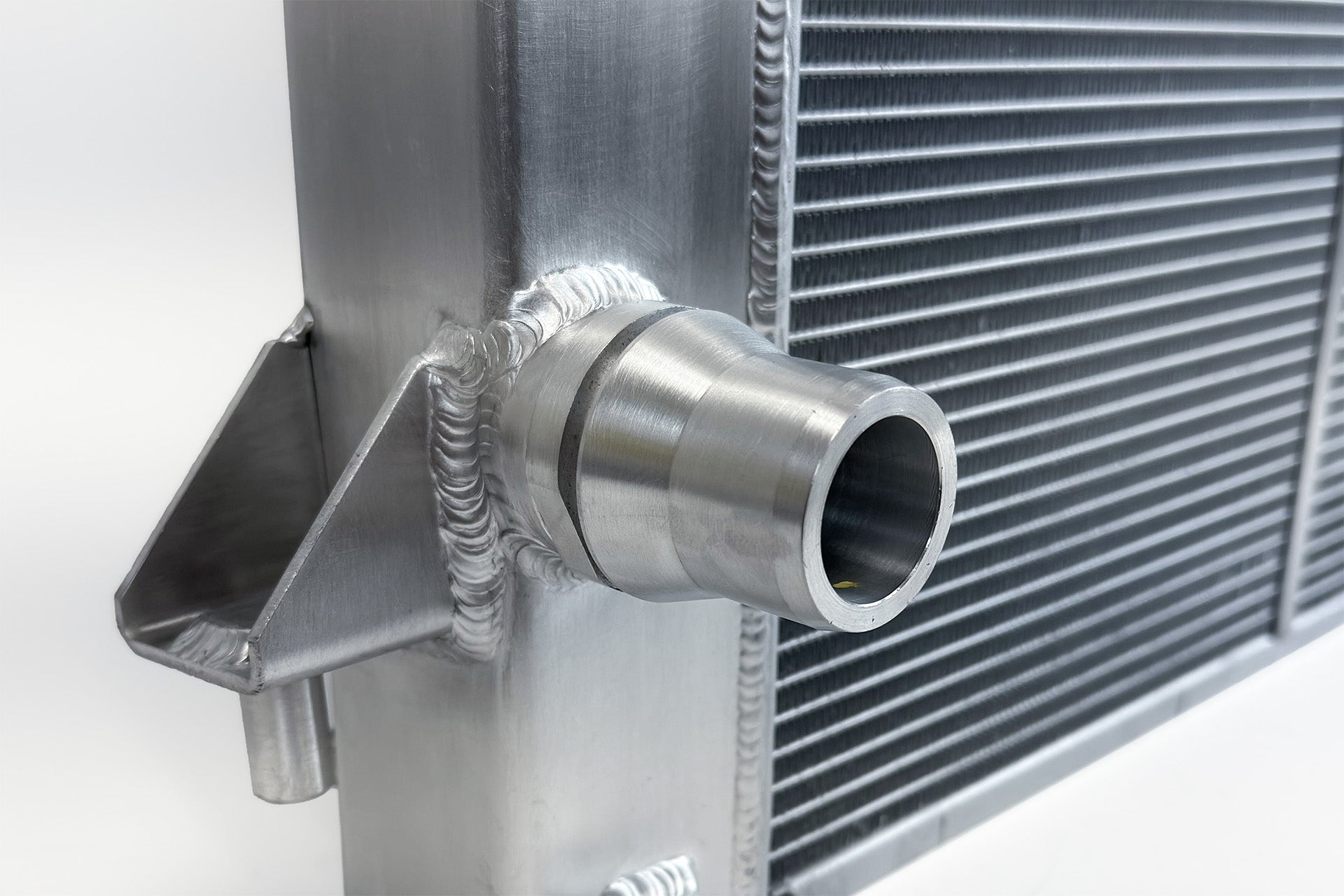

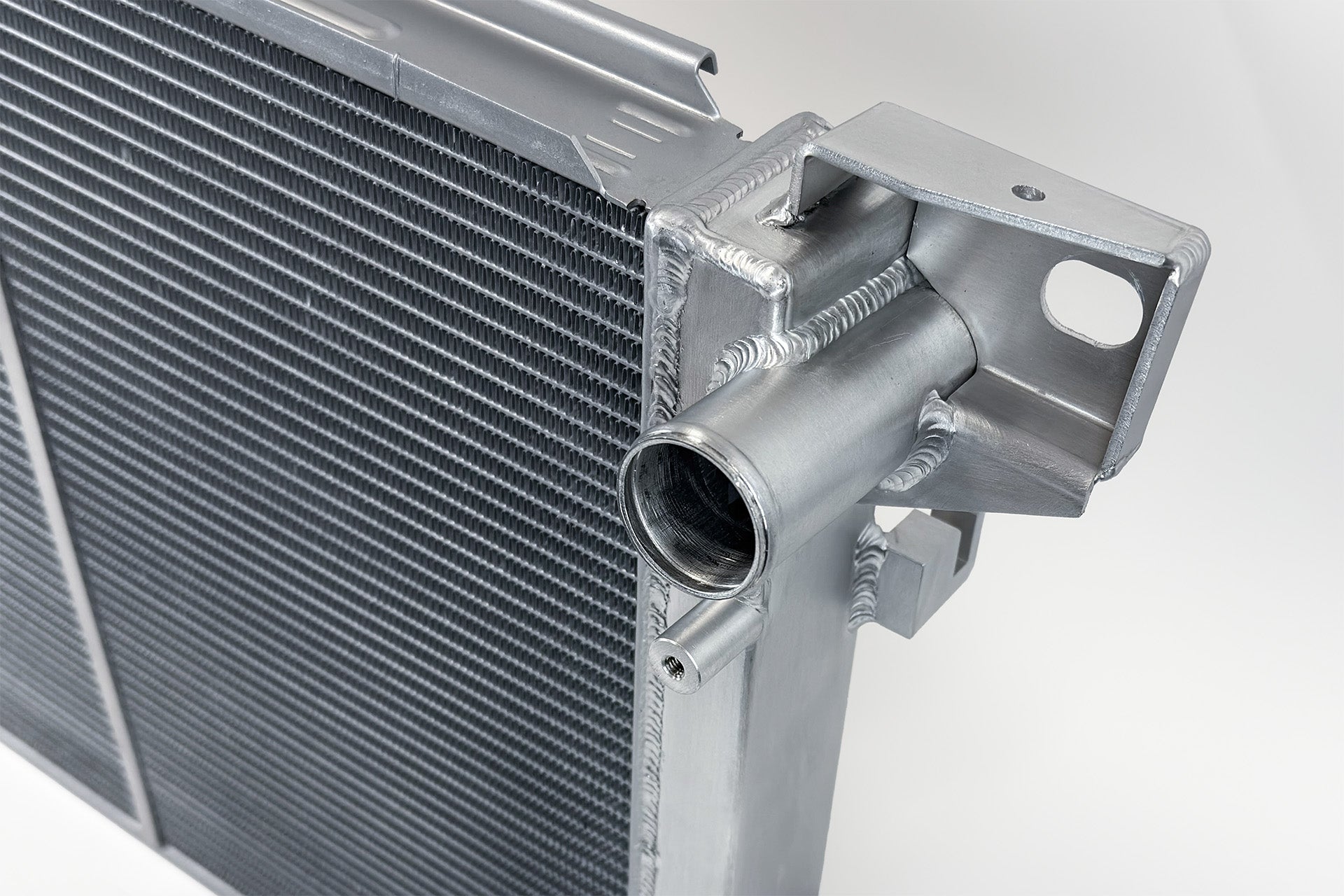

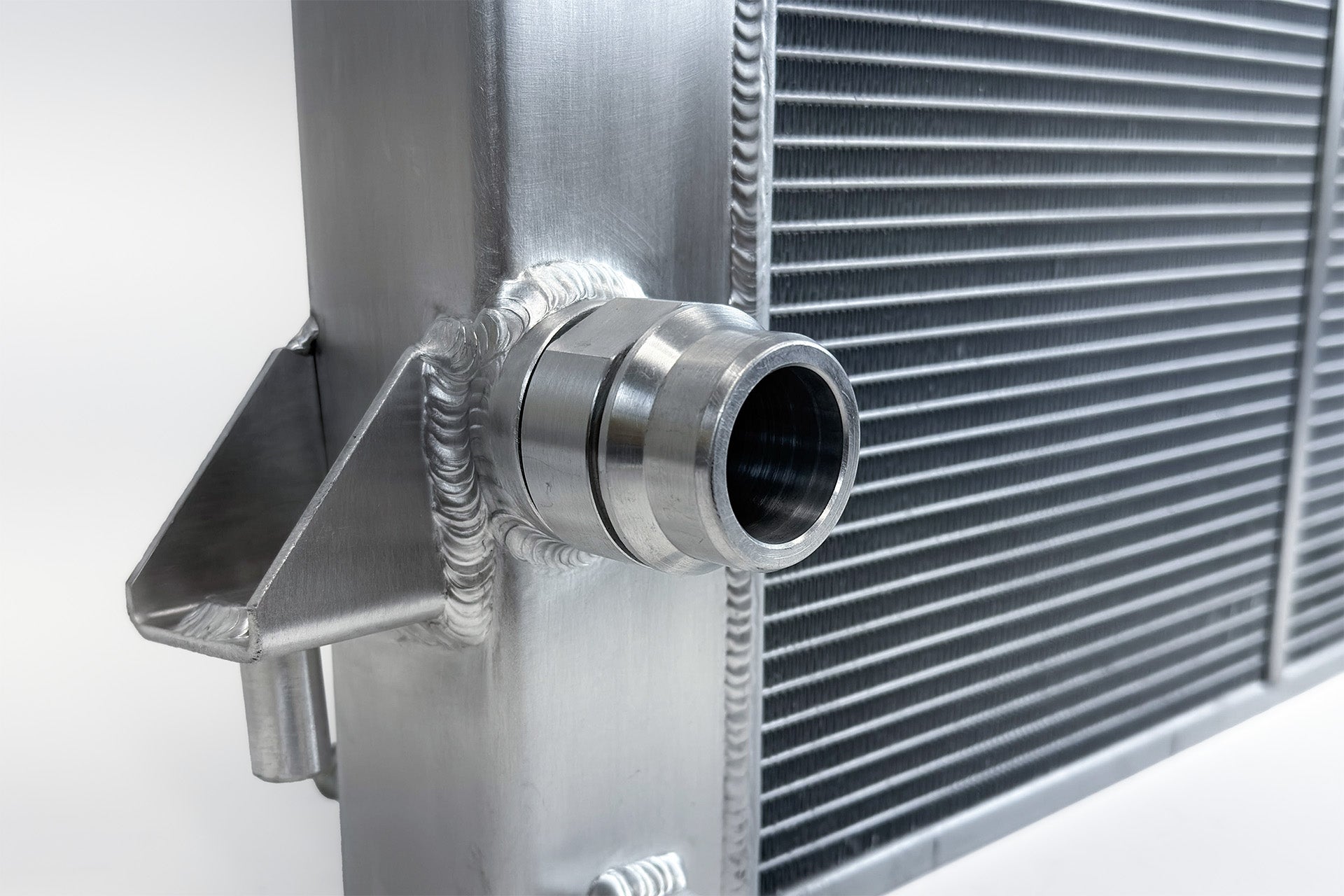

- OEM-style inlet and outlet with modular fittings
- Drop-in installation without modifications
- Individually leak and pressure tested
Specifications
- Core: 2-row, 42 mm (OEM Raptor/Super Cooling 1-row 32 mm; standard 1-row 22 mm)
- Core volume: 30-90% larger than OEM
- Cooling tubes: 48 (OEM 51 / 41)
- Fin height: 6.5 mm (OEM about 6 mm / 8 mm)
- Tanks: Aluminium, 100% TIG-welded (OEM plastic, crimped gasket)

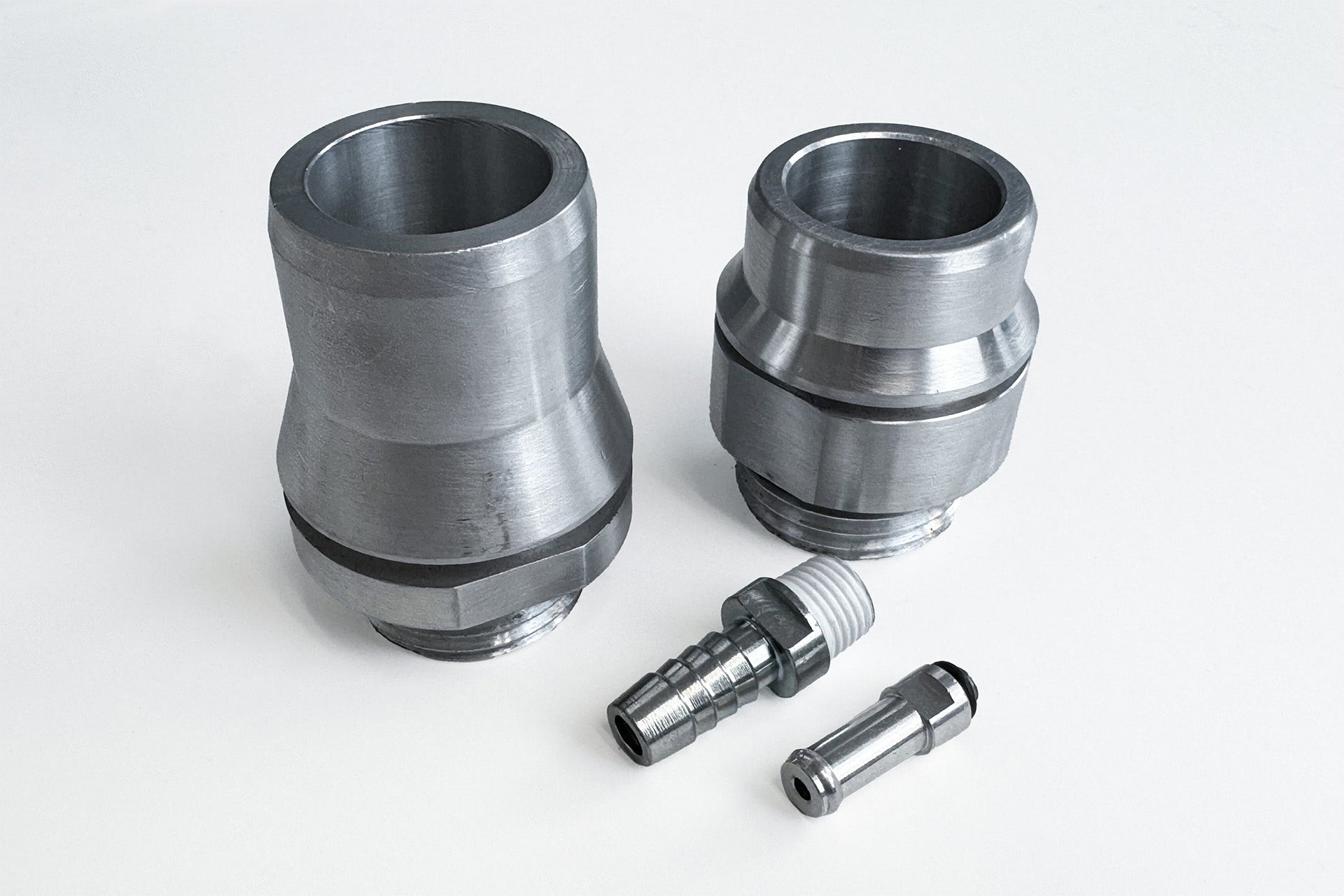

Important The lower connection must use the matching fitting from the two supplied options. Two plugs and barb fittings accommodate the two reservoir designs.
Vehicle compatibility
- Ford Expedition (3rd Gen) 2015–2017; Turbocharged 3.5L V6
- Ford F-150 SVT Raptor (12th Gen) 2010–2014; 6.2L V8
- Ford F-150 (12th Gen) 2011–2014; Turbocharged 3.5L V6
- Ford F-150 (12th Gen) 2010–2014; 6.2L V8
- Ford F-150 (12th Gen) 2011–2014; 3.7L V6
- Ford F-150 (12th Gen) 2011–2014; 5.0L V8
- Lincoln Navigator (3rd Gen) 2015–2017; Turbocharged 3.5L V6
