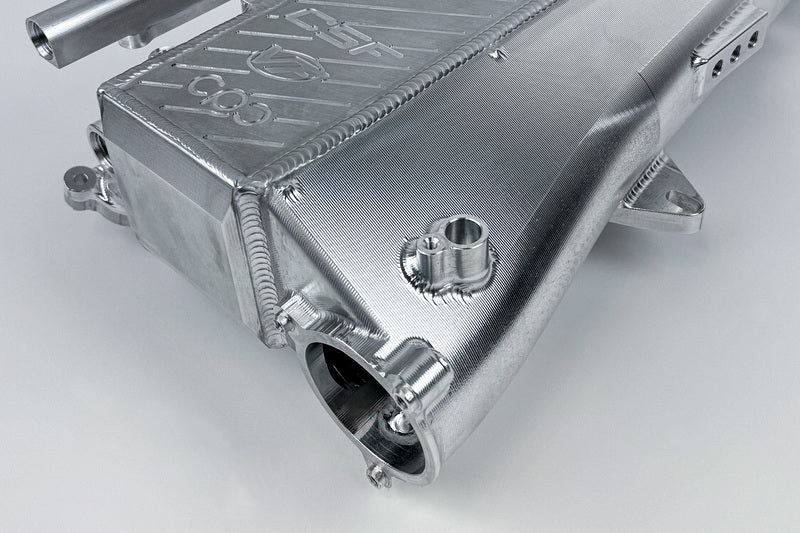

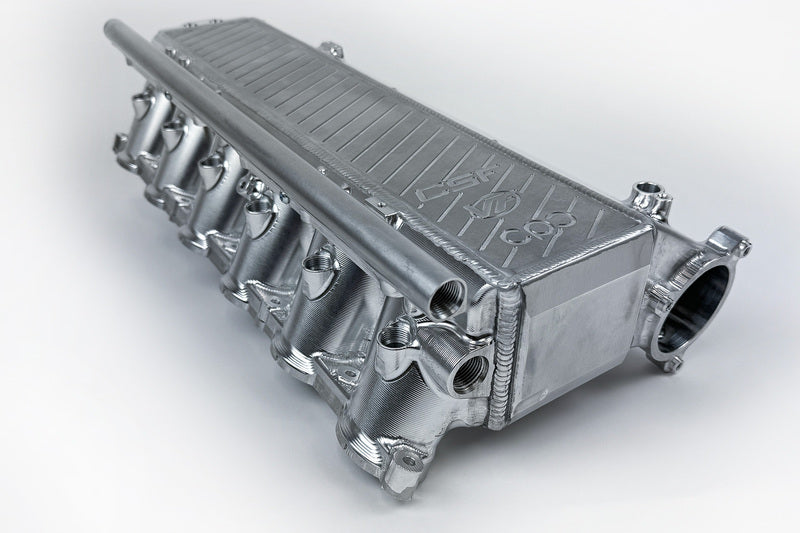

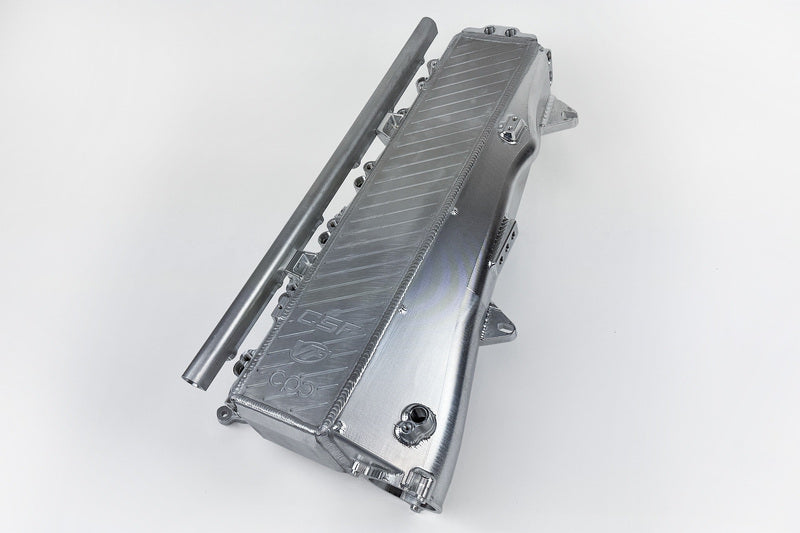

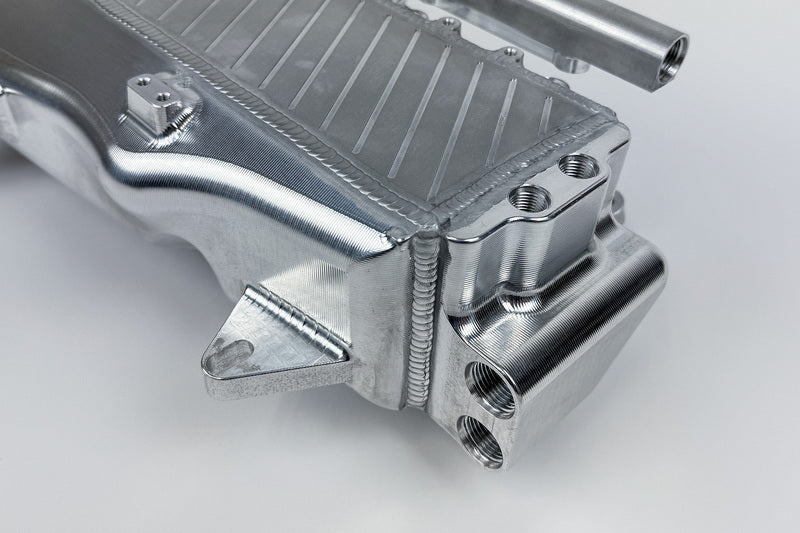

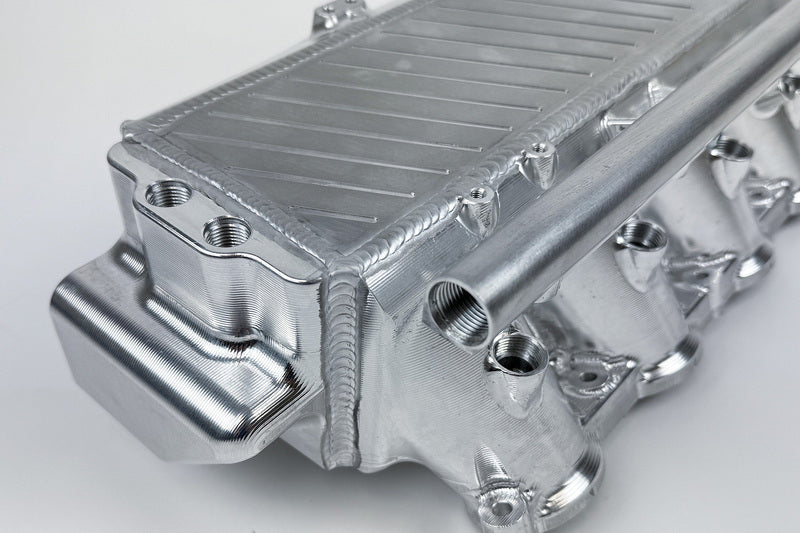

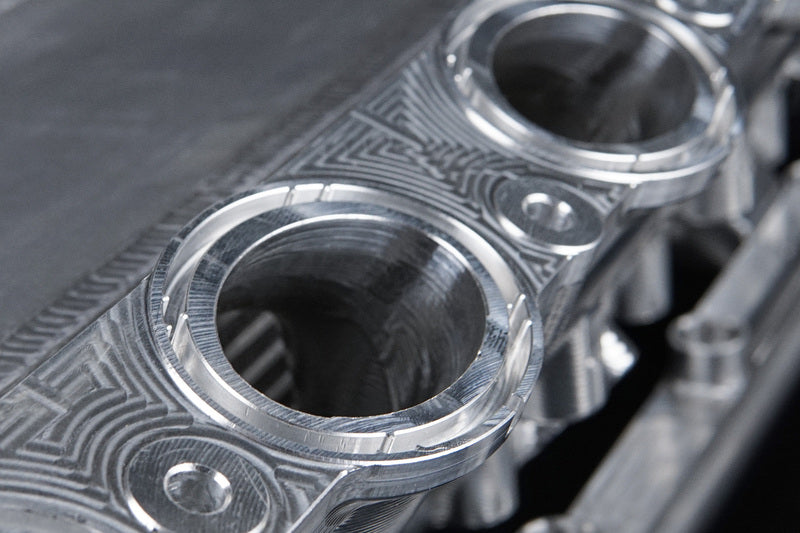

CSF Charge Air Cooler Manifold for BMW B58 (Gen 1)

SKU: CSF8300
Sale price$6,739.00
Finish: Raw Billet Aluminium

Finish

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


The CSF Charge Air Cooler Manifold for the BMW Gen 1 B58 combines an air-to-water intercooler with a TIG-welded billet aluminium manifold. Use the dropdown to choose the finish (Raw Billet, Thermal Dispersion Black or Custom Finish).

Key Features

  • Bar-and-plate core with 12 water-cooling rows, compared with six in the OEM core
  • Integrated inlet air divider and a recessed section for spin-off oil filter access without removing the manifold
  • Included AN-8 fuel rail for top-feed port injection and six injector hats for short injectors

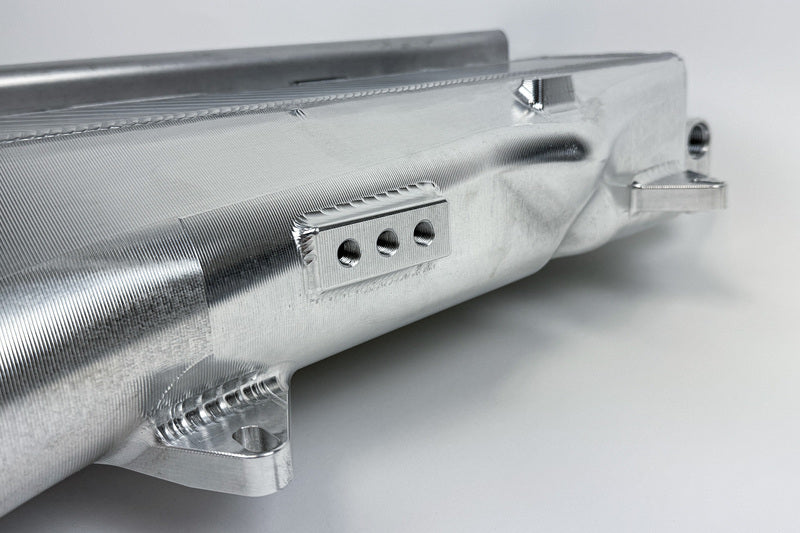

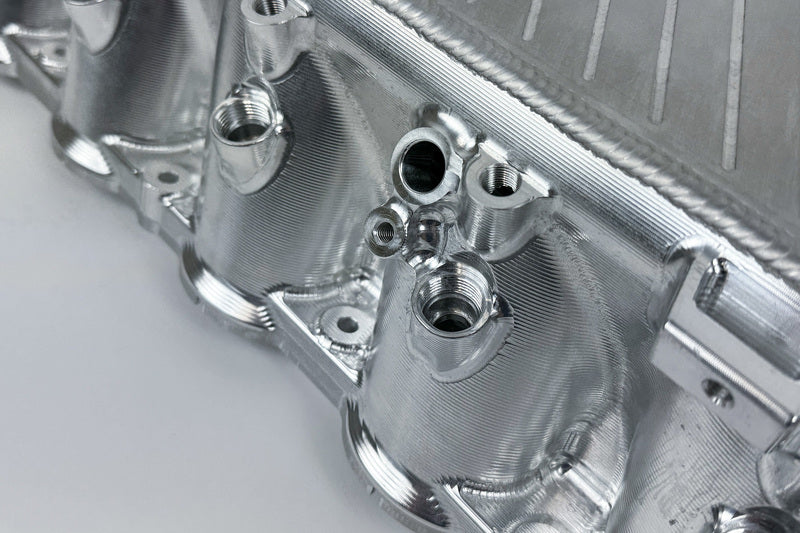

  • Individual 1/8" NPT ports on each runner for nitrous or methanol, plus a sensor pad with three NPT ports
  • Raw option has a raw billet aluminium finish; Black option has a Thermal Dispersion Black Cerakote finish
  • Included KIYLEX thermal rejection spacer, installation hardware and illustrated instructions
Note The OEM BMW bleeding procedure must be followed after installation. The manifold cannot be anodised.

Vehicle compatibility

Engine: Turbocharged 3.0L L6

  • BMW 340i (F3X) 2016–2018
  • BMW 340i GT xDrive (F3X) 2017–2019
  • BMW 340i xDrive (F3X) 2016–2018
  • BMW 440i (F3X) 2017–2020
  • BMW 440i Gran Coupe (F3X) 2017–2020
  • BMW 440i xDrive (F3X) 2017–2020
  • BMW 440i xDrive Gran Coupe (F3X) 2017–2020
  • BMW 540i (G30) 2017–2019
  • BMW 540i xDrive (G30) 2017–2019
  • BMW 640i xDrive Gran Turismo (G32) 2018–2019
  • BMW 740i (G11/G12) 2017–2019
  • BMW 740i xDrive (G11/G12) 2017–2019
  • BMW M240i (F22/F23) 2018–2021
  • BMW M240i xDrive (F22/F23) 2017–2021
  • BMW X3 M40i (G01) 2018–2019
  • BMW X4 M40i (G02) 2017–2019
CSF 8300 Easy Access to Spin-Off Oil Filter With Counter Balanced DesignCSF 8300 Easy Access to Spin-Off Oil Filter With Counter Balanced DesignCSF 8300 B58 Manifold Air Inlet DividerCSF 8300 B58 Manifold Air Inlet DividerCSF 8300 B58 Intake Flow DiagramCSF 8300 Breather Ports for Inlet/Outlet of Water TanksCSF 8200S Thermal Rejection Competition SpacerCSF 8200S Thermal Rejection Competition SpacerCSF 8200S Thermal Rejection Competition SpacerCSF 8200S Thermal Rejection Competition Spacer Infographic
