CSF Aluminium Radiator for BMW M5 (E60) / M6 (E6X)

SKU: CSF7218
Sale price$1,178.10 Regular price$1,309.00
Save $130.90

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

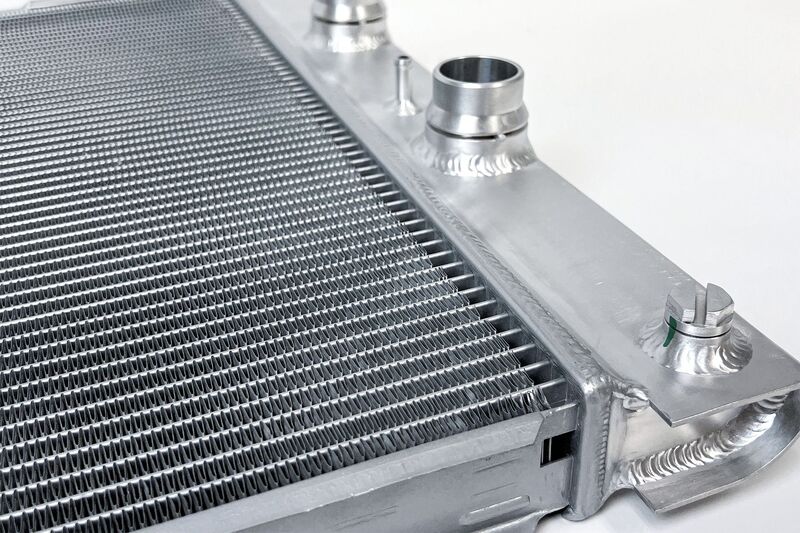

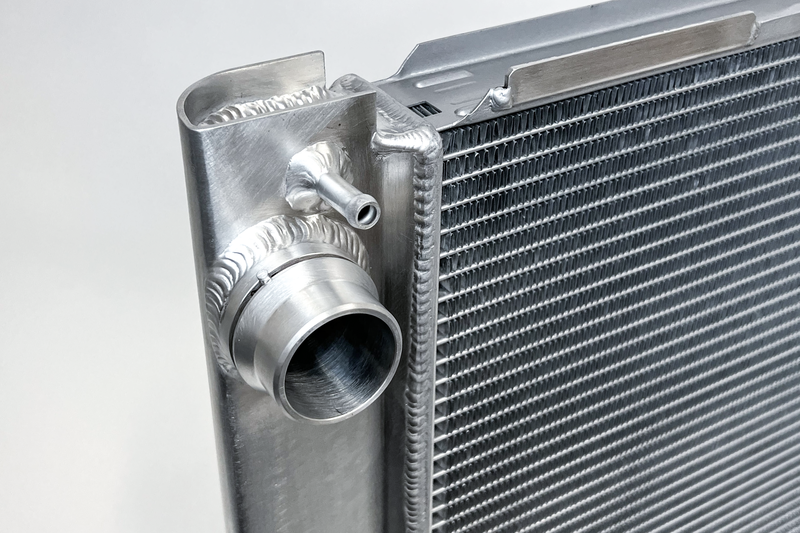

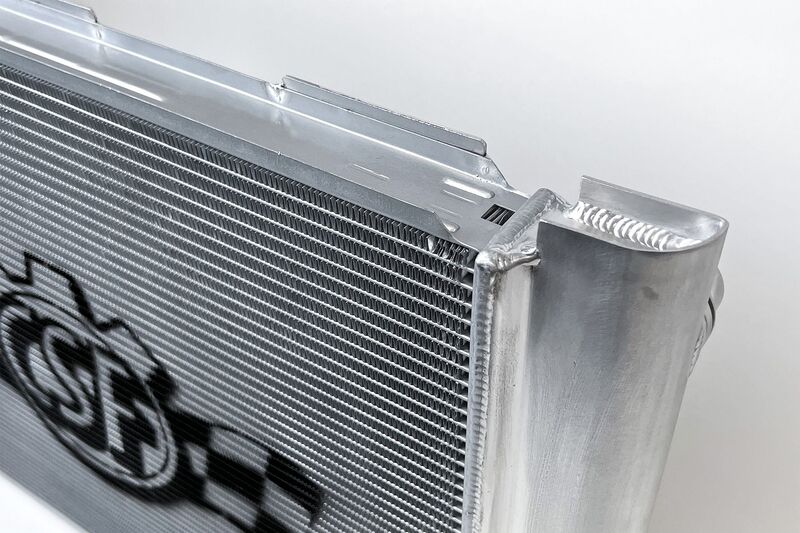

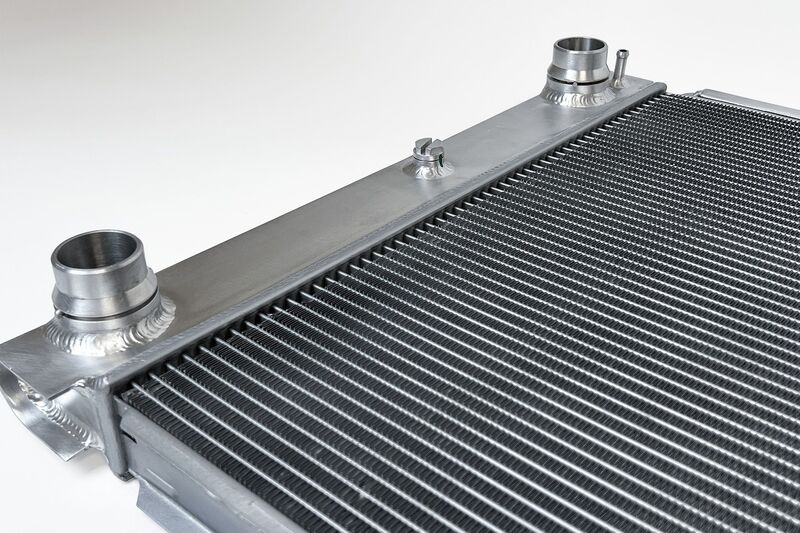

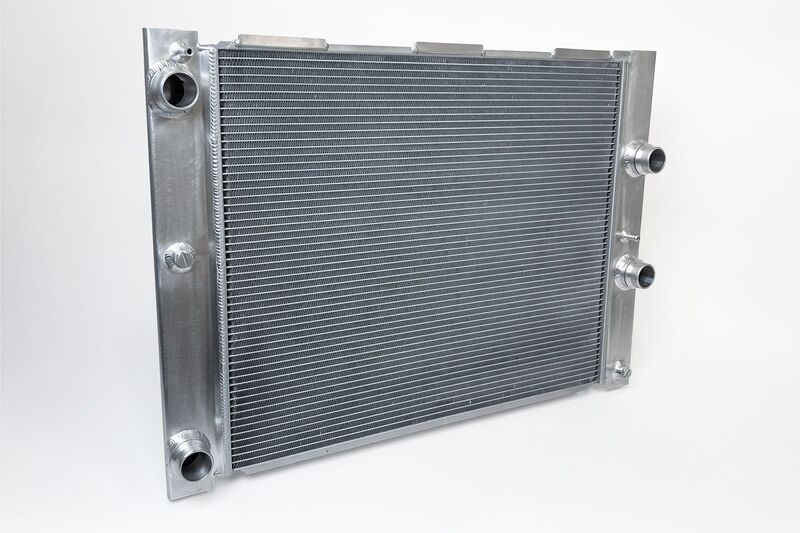

The CSF High-Performance All-Aluminium Radiator is designed for the 2006–2010 BMW E60 M5 and E63/E64 M6 with the 5.0L S85 V10 engine. It features a satin finish.

The 2-row, 42 mm core uses CSF B-Tube technology and multi-louvred fins. It mounts in the factory location without cutting or modifications, with CNC-machined brackets and OEM-style quick-connect inlet and outlet connections.

Key Features

  • All-aluminium TIG-welded construction
  • 54 cooling tubes and 55 cooling fin rows
  • 6.5 mm-tall multi-louvred fins
  • Drop-in installation using factory mounting locations
  • Individually leak and pressure tested

The S85 cooling arrangement divides the radiator into upper and lower systems serving separate cylinder banks. OEM reference: 17112282732.

Specifications

  • Core: 2-row, 42 mm (OEM 1-row)
  • Cooling tubes: 54 (OEM 48)
  • Fin rows: 55 (OEM 49)
  • Fin height: 6.5 mm (OEM 8 mm)
  • Construction: 100% TIG-welded (OEM brazed)

Vehicle compatibility

Engine: 5.0L V10

  • BMW M5 (E60) 2006–2010
  • BMW M6 (E63/E64) 2006–2010
CSF #7218 E60 M5/E6X M6 High-Performance RadiatorBMW OE 17112282732CSF #7218 E60 M5/E6X M6 High-Performance RadiatorBMW OE 17112282732BMW S85 E60 M5 E6X M6 Cooling System Diagram
