CSF Race-Spec Oil Cooler for BMW M5 (E60) / M6 (E6X)

SKU: CSF8275
Sale price$1,007.11 Regular price$1,119.00
Save $111.89

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

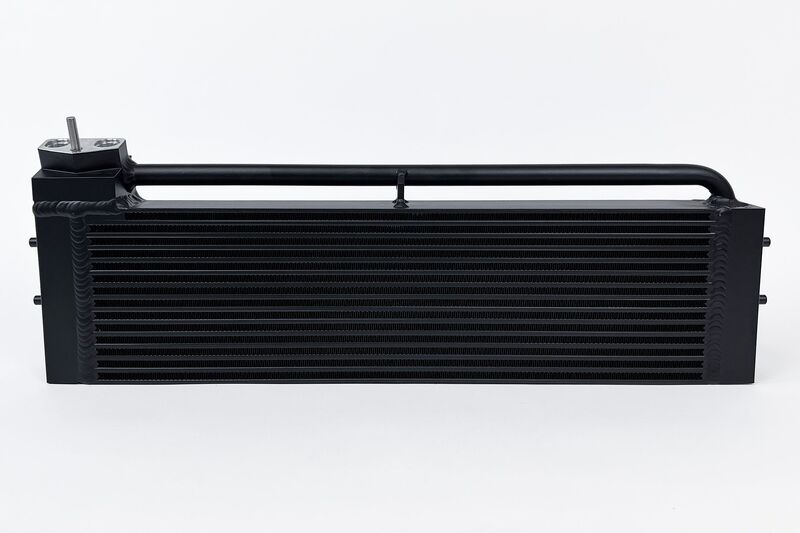

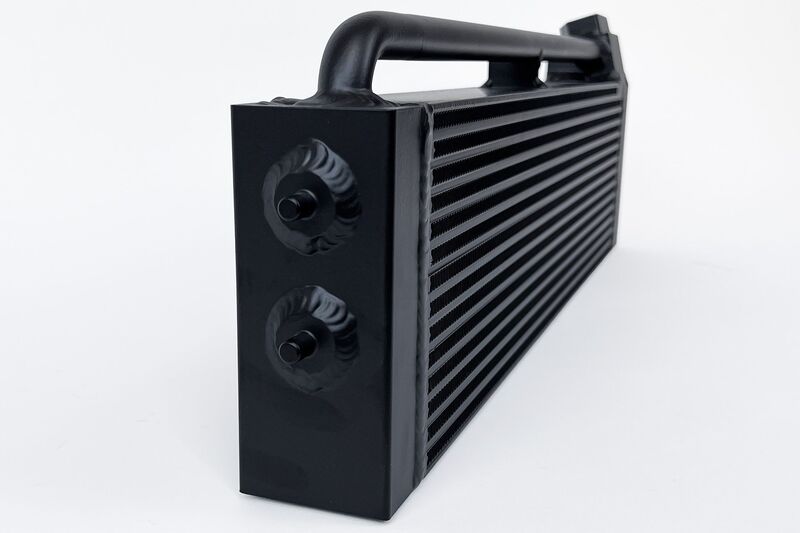

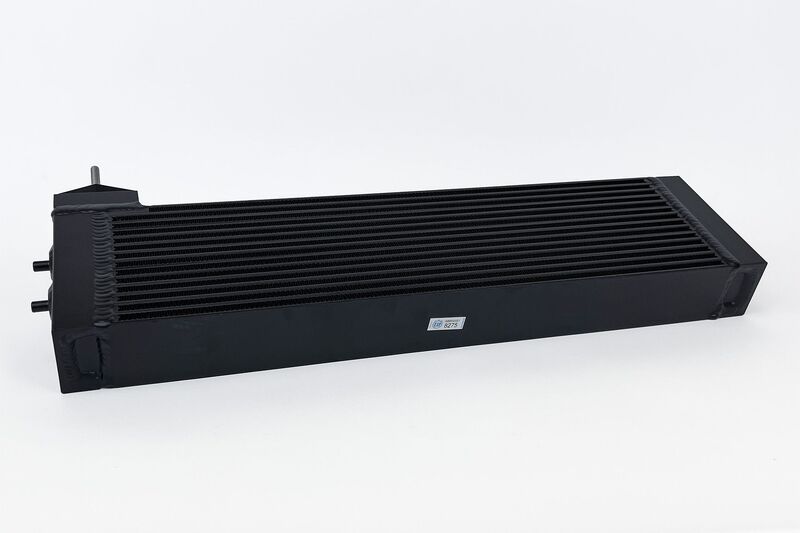

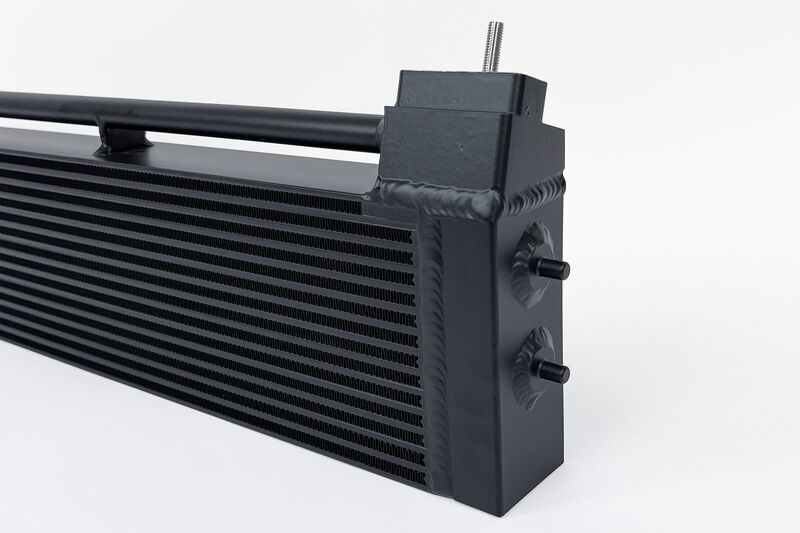

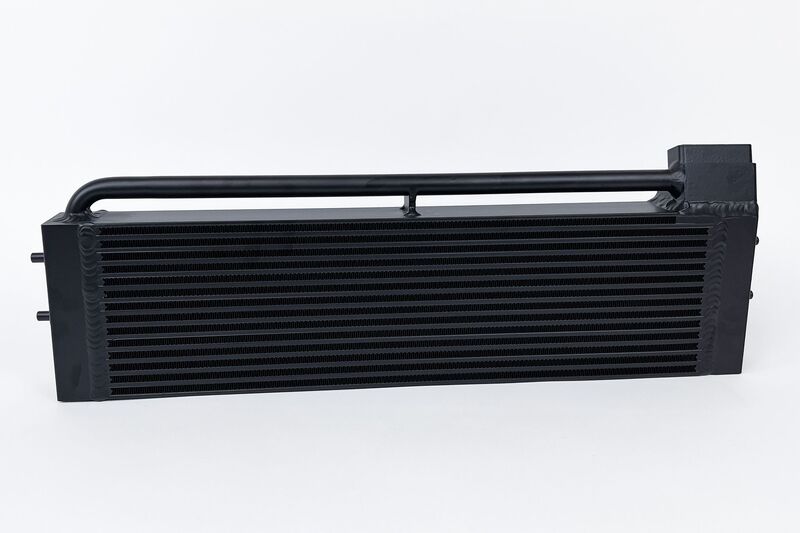

The CSF Race-Spec Engine Oil Cooler is designed for the 2006–2010 BMW E60 M5 and E63/E64 M6 with the 5.0L S85 V10 engine. It has a satin black finish.

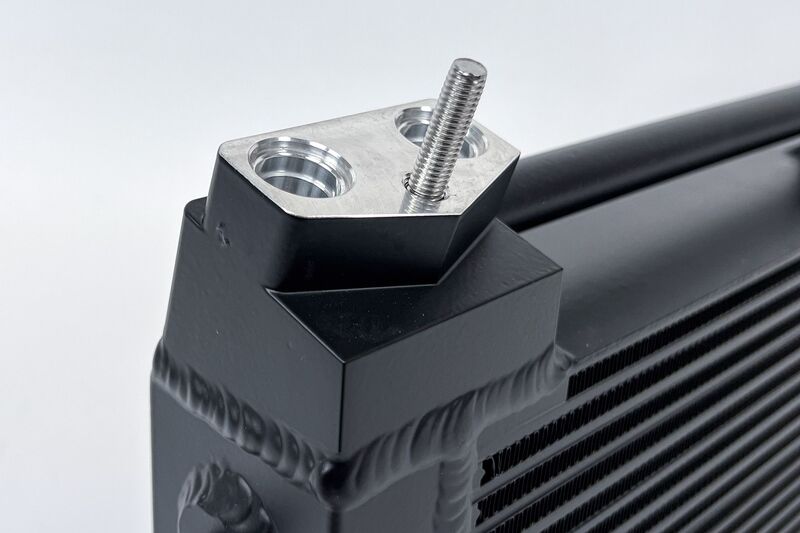

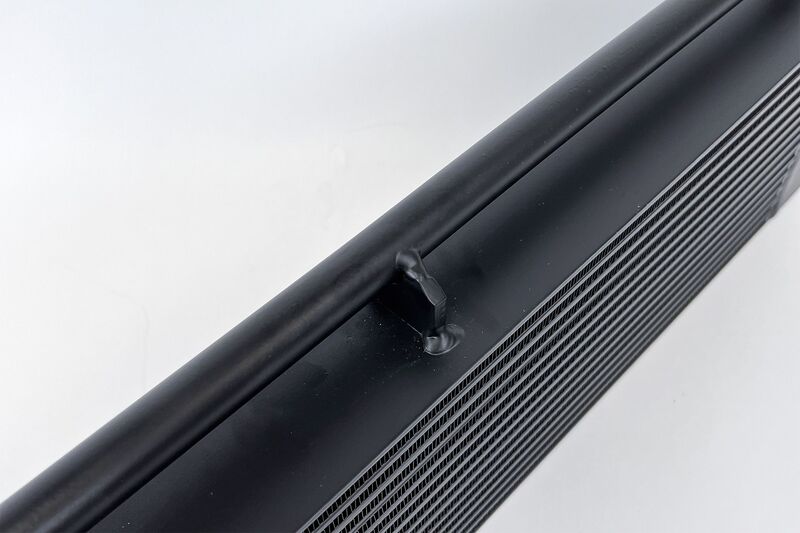

The aluminium bar-and-plate core is 63 mm thick, with 13 cooling tubes and 14 cooling fin rows. A solid line connection block and reinforced, braced return tube strengthen the feed and return areas.

Key Features

  • Aero-Flow bar construction
  • Cast end tanks with TIG-welded construction
  • CNC-machined mounting brackets and OEM-style inlet and outlet connections
  • Satin black coating for protection against corrosion and debris
  • Individually leak and pressure tested

Specifications

  • Core thickness: 63 mm (OEM 45 mm)
  • Cooling tubes: 13 (OEM 11)
  • Fin rows: 14 (OEM 12)
  • Fin height: 6.5 mm (OEM 8 mm)
  • Construction: 100% TIG-welded (OEM brazed)
Installation requires minor trimming of the plastic shroud; instructions are included. OEM references: 17222282499 and 17222282699.

Vehicle compatibility

Engine: 5.0L V10

  • BMW M5 (E60) 2006–2010
  • BMW M6 (E63/E64) 2006–2010
