CSF Auxiliary Radiator for BMW M2 (F87) / 340i / 440i (F3X) / M240i / M140i (F2X)
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

The CSF High-Performance Auxiliary Radiator suits the BMW F87 M2 (N55), F3X 340i/440i and F2X M240i/M140i, including Gen 1 B58 cooling applications. It is suitable for professional racing, street performance or OEM replacement.
Key Features
- Core with CSF B-Tube technology and multi-louvred fins

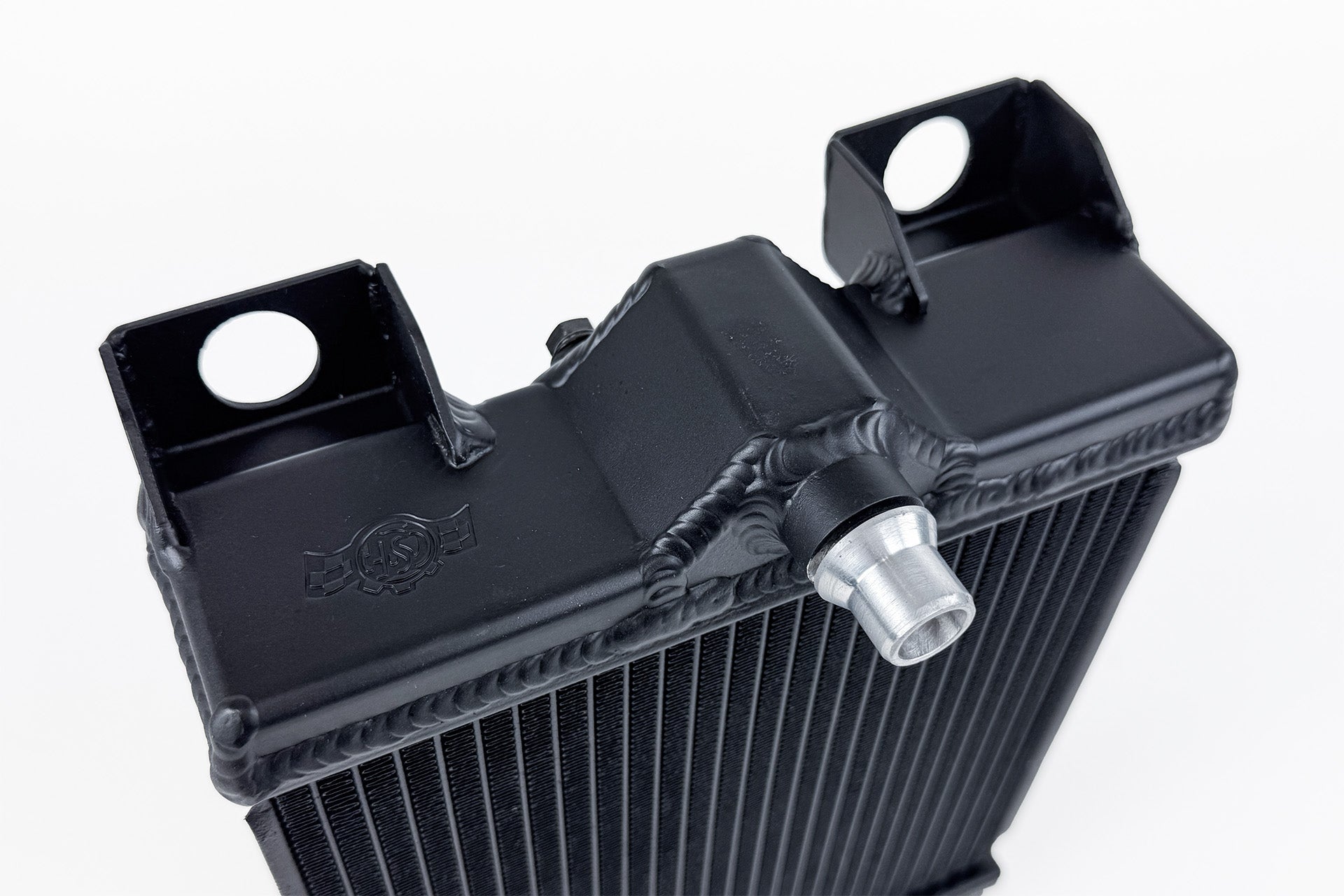

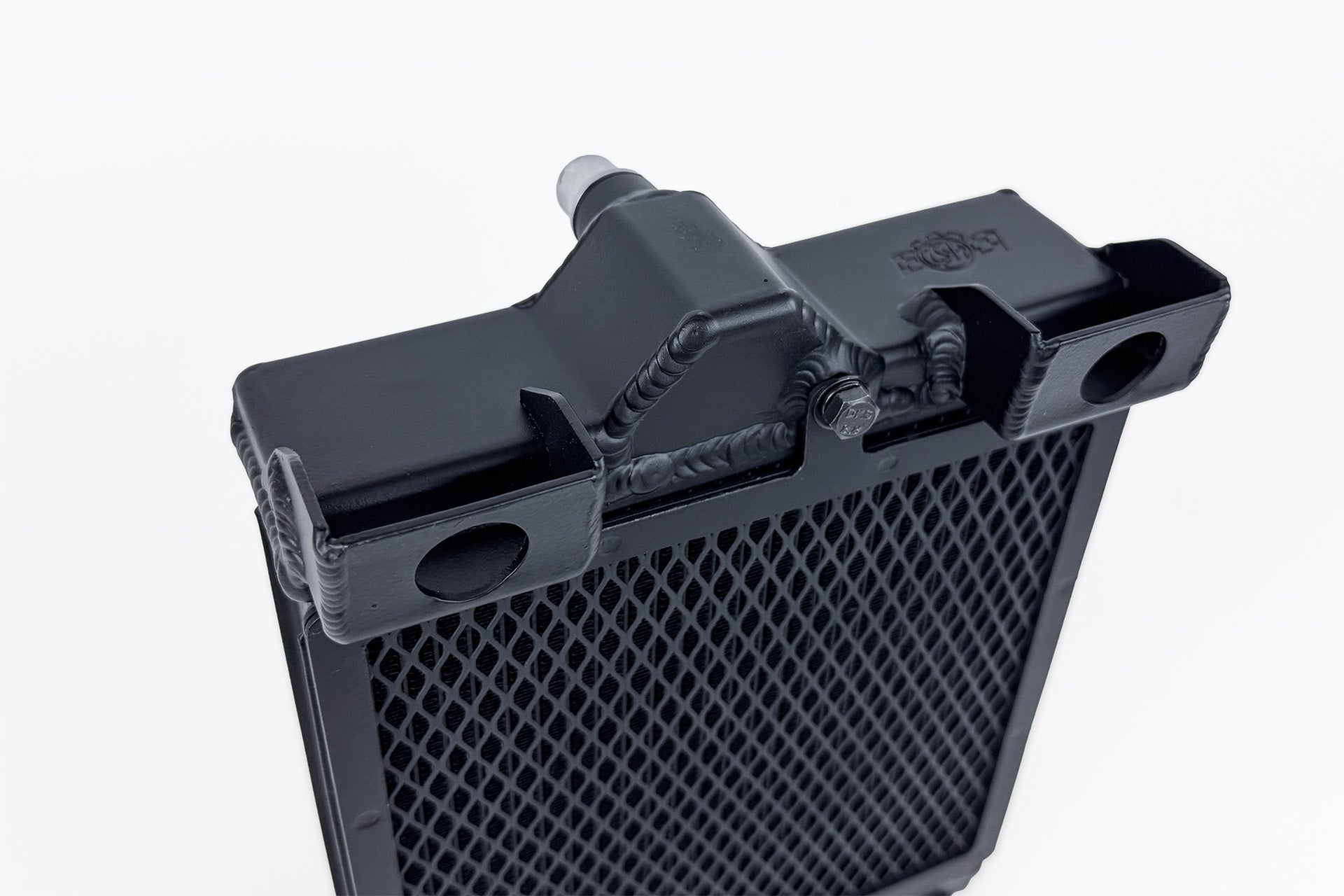

- Increased tank volume and core size, with 100% all-aluminium TIG-welded construction
- Integrated mounting frame and satin black finish for protection and corrosion resistance

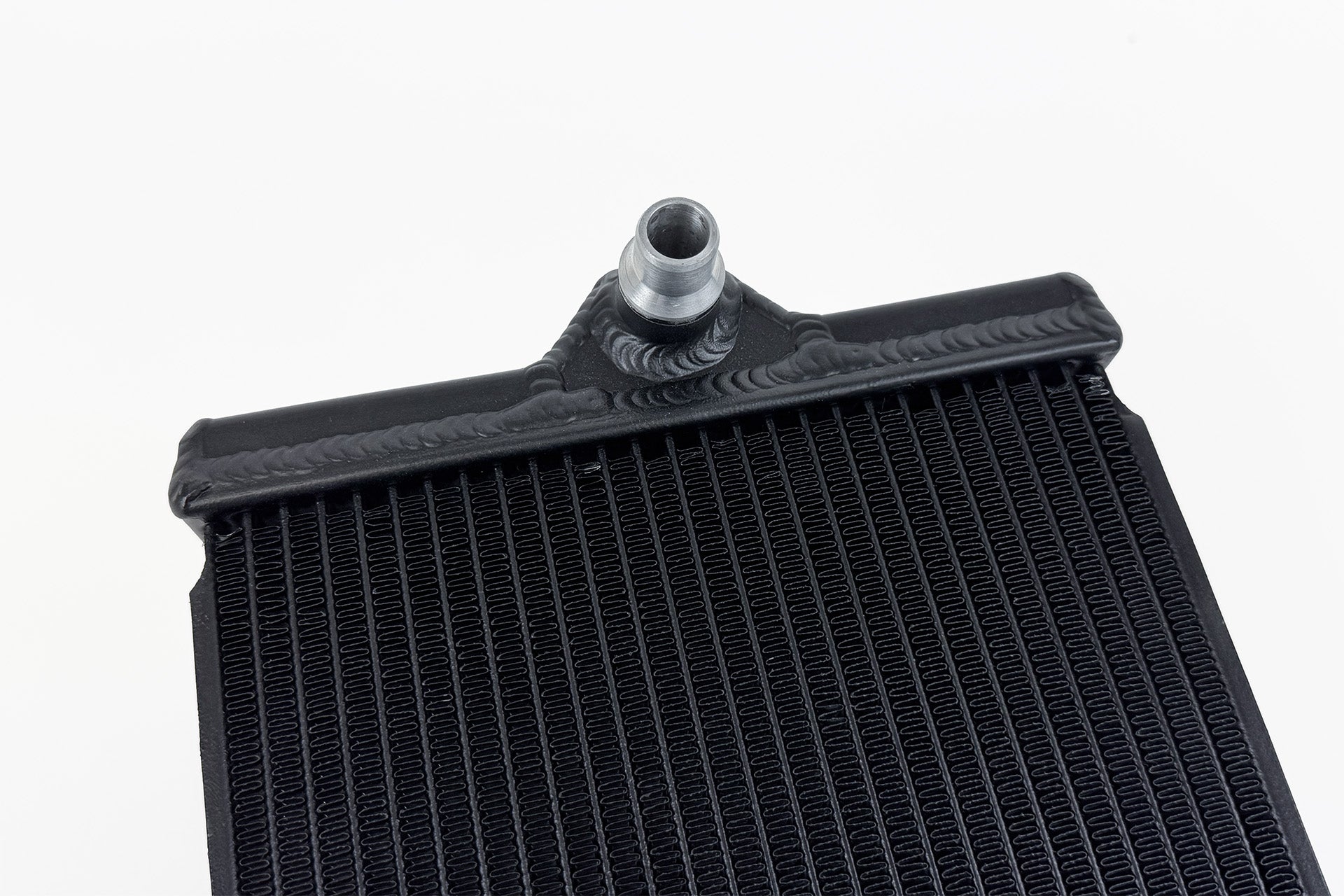

- OEM-style quick-connect inlet and outlet, with factory-location mounting

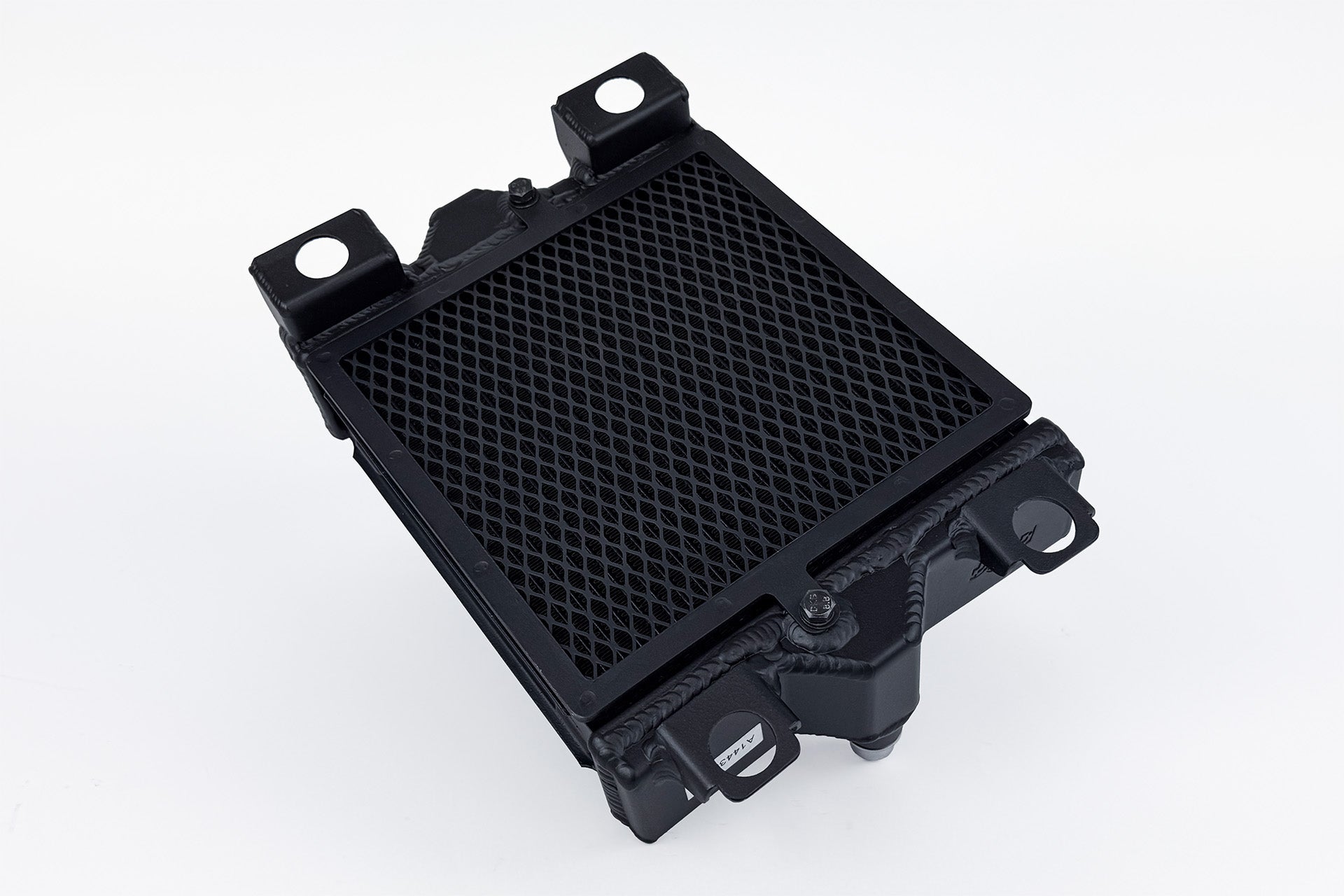

- Includes a detachable bolt-on rock guard
- Individually leak and pressure tested
Specifications
- Core: 2-row, 42 mm
- Fin height: 5 mm
- Finish: Satin black

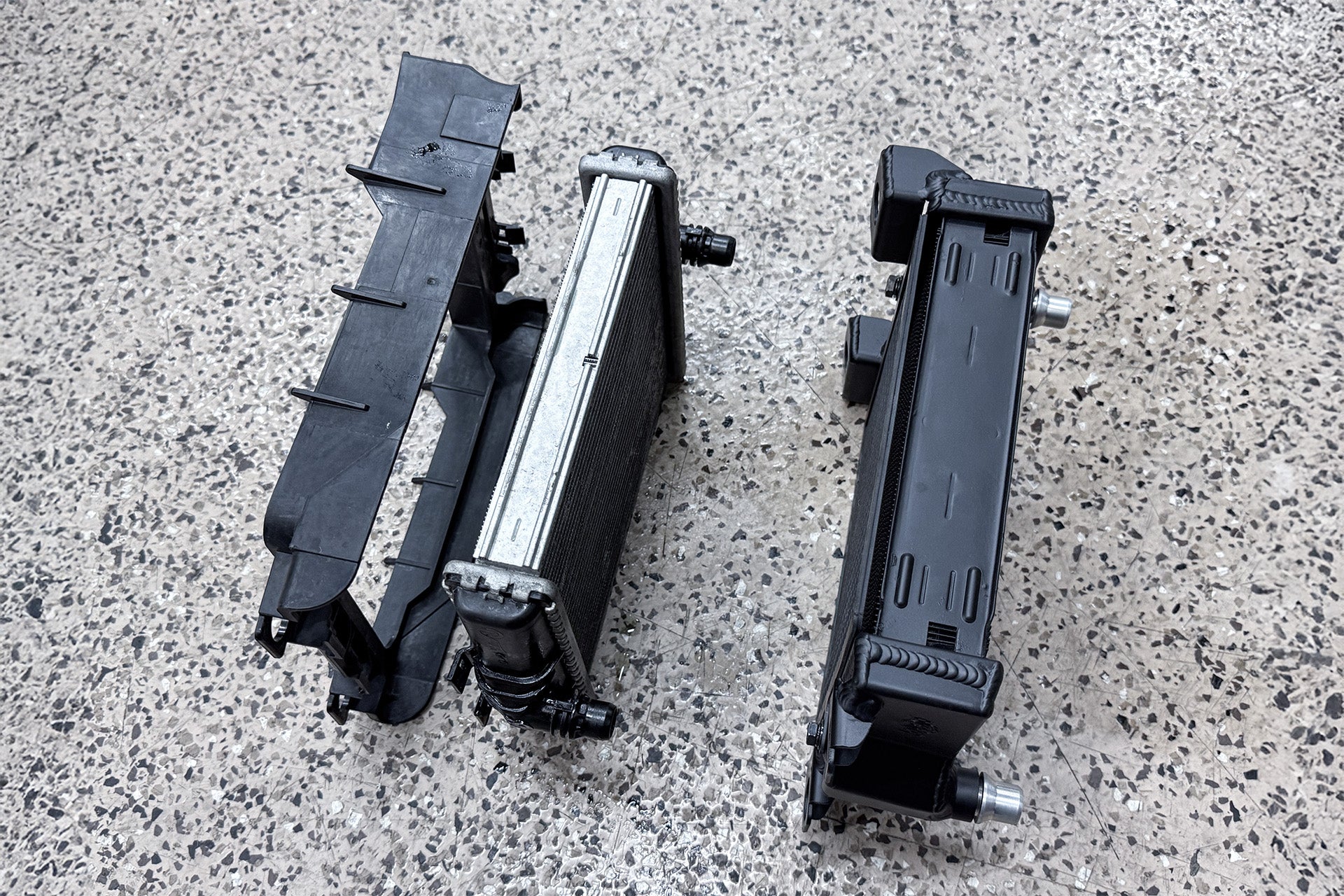

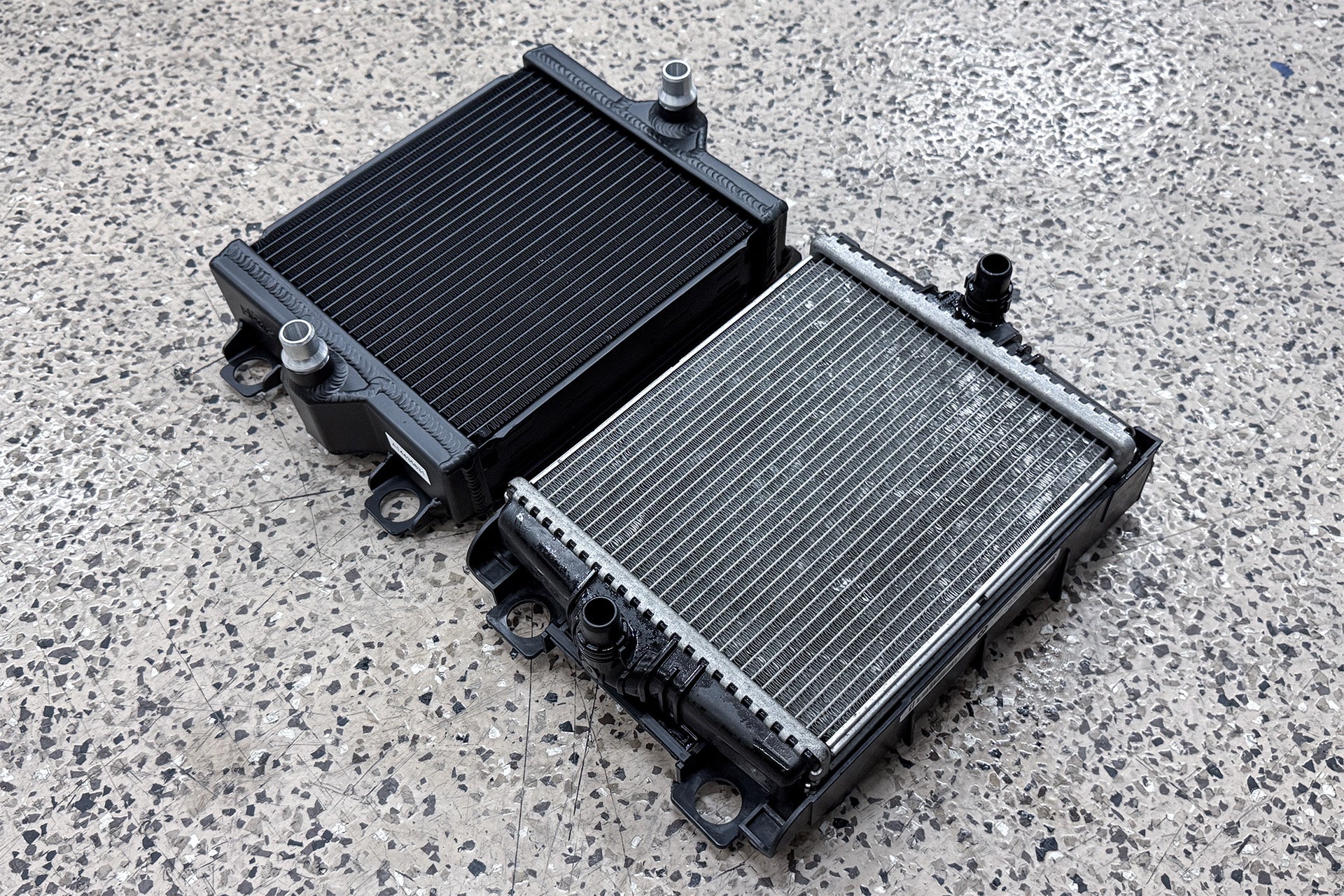

- Replaces OEM auxiliary radiator: BMW 17-11-8-625-447
- Replaces OEM frame: BMW 17-21-8-625-445
- Warranty: 2-year limited

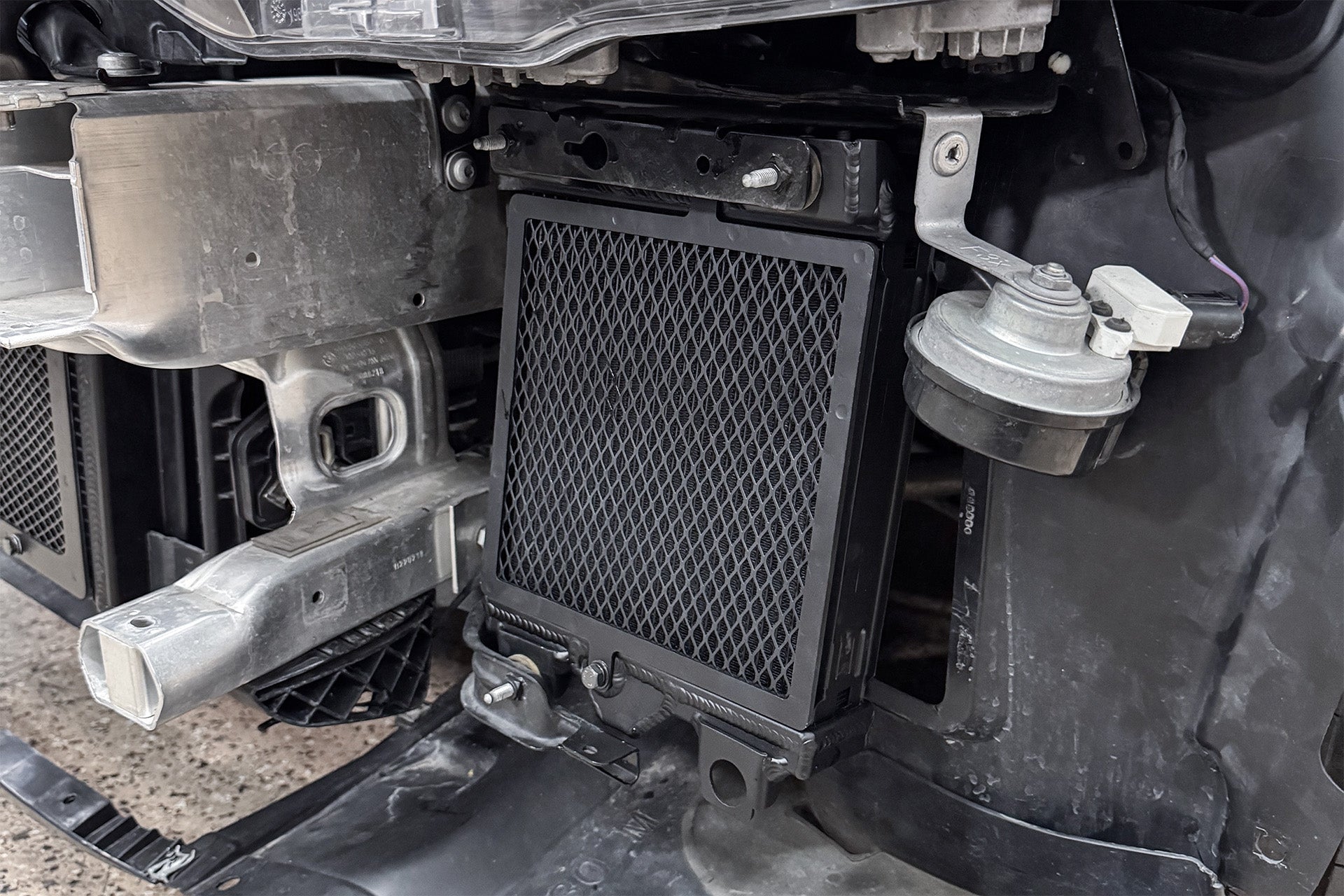

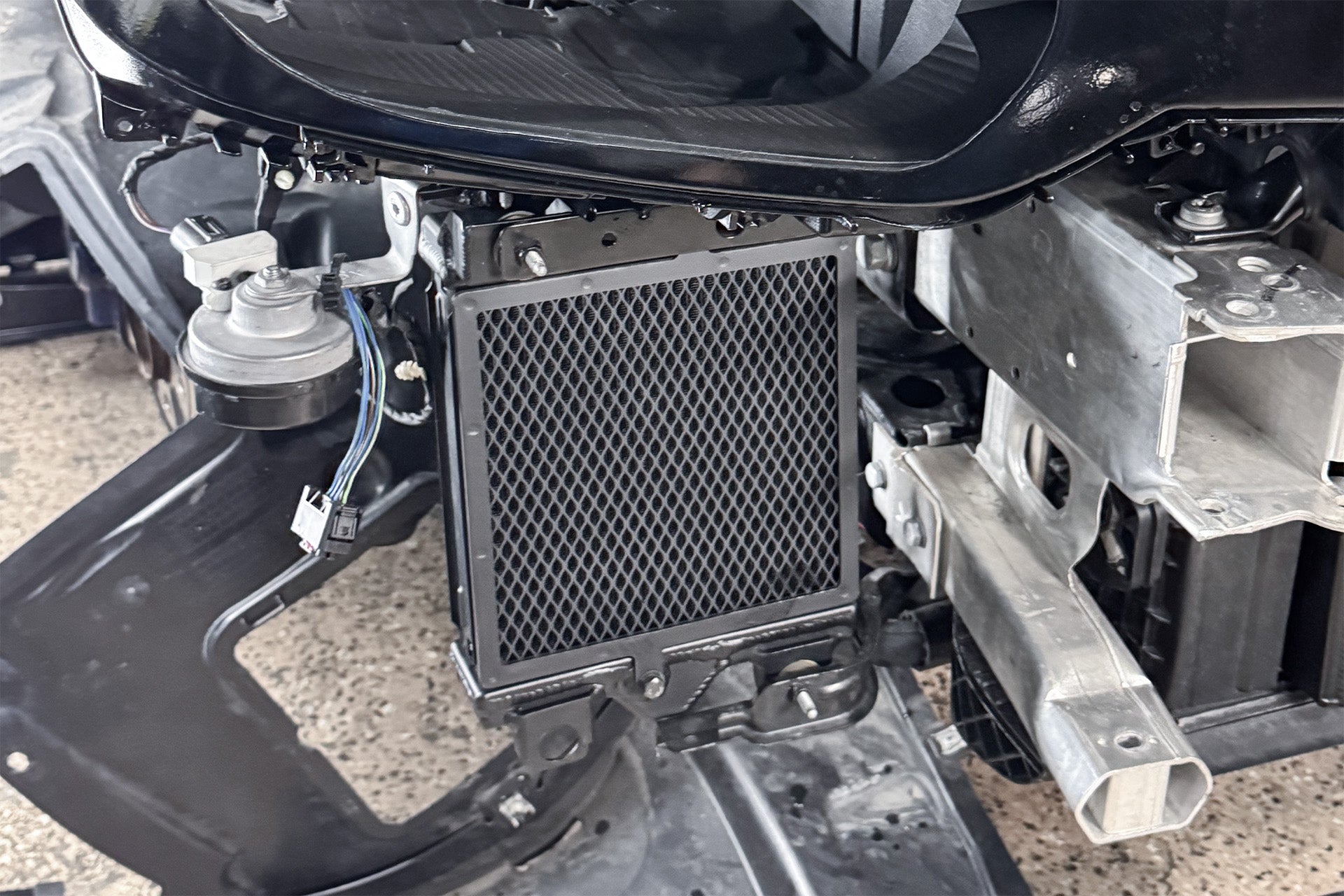

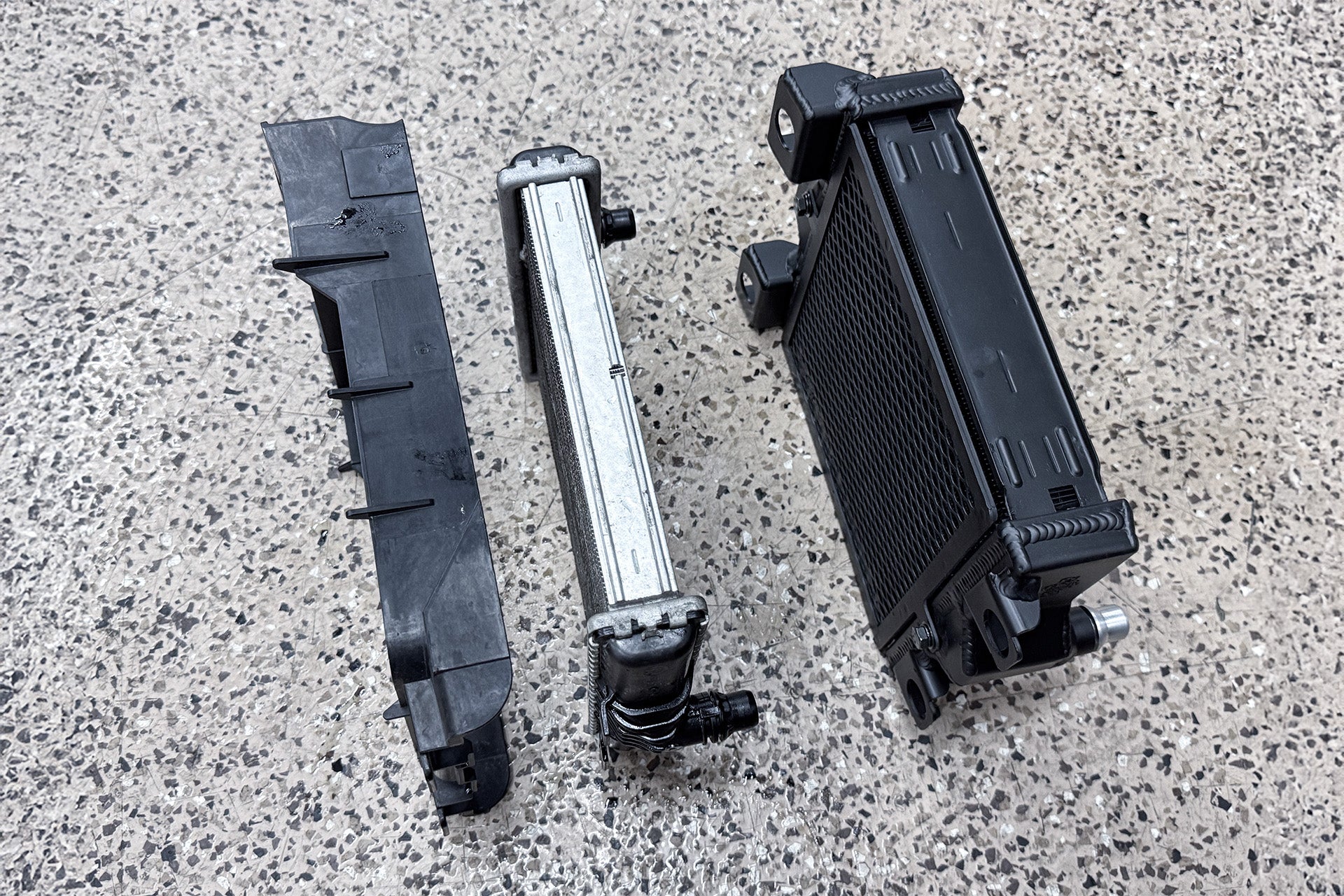

Direct, no-modification replacement; the integrated frame means a separate frame or cradle is not required.
BMW OEM auxiliary radiators 17-11-7-628-057 and 17-11-7-600-697 can also be replaced with the correct mounting brackets. Upper brackets are common to all three radiator versions. The lower brackets for BMW 17-11-8-625-447 are 1 lower-left bracket, BMW 51-74-7-389-931, and 1 lower-right bracket, BMW 51-74-7-389-932.
⚠ Fitment Notes
F3X 340i/440i and F2X M240i/M140i
Some trim levels have no auxiliary radiators; check by VIN how many the vehicle has before ordering. This radiator is a drop-in replacement for BMW 17-11-8-625-447 and can replace BMW 17-11-7-628-057 and 17-11-7-600-697 with the correct mounting brackets. Cars not fitted with 17-11-8-625-447 from the factory may need minor trimming of the air ducting. Models with the M Sport package and M Sport brakes should use 17-11-8-625-447 (verify by VIN with a dealer).
Upper brackets are common to all three versions; the frame (BMW 17-21-8-625-445) is built into the CSF radiator. Lower brackets for 17-11-8-625-447: lower left 51-74-7-389-931, lower right 51-74-7-389-932.
F87 M2 (N55)

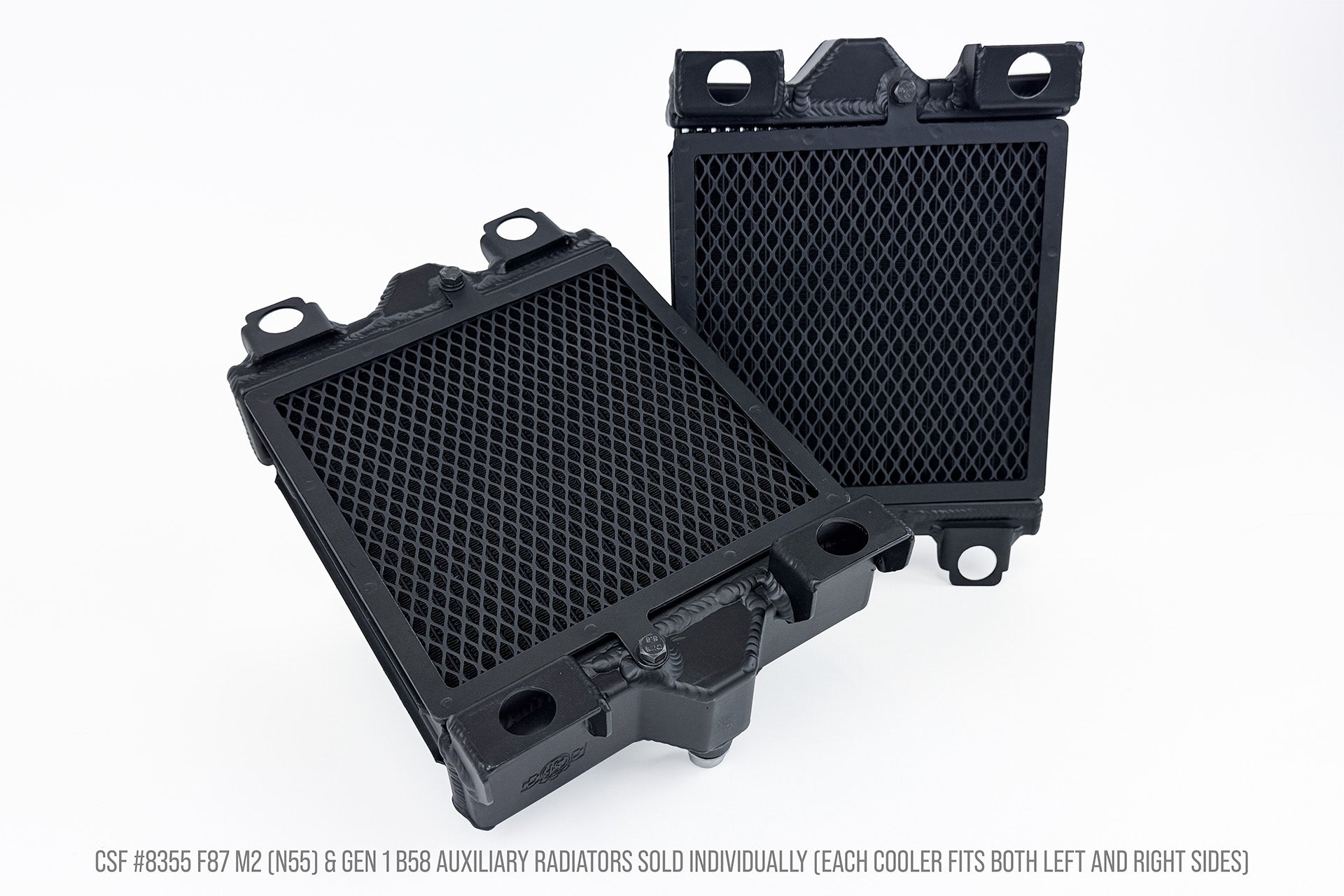

Does not fit the F87 M2 Competition, which uses the S55 auxiliary radiators (CSF #8258). The N55 F87 M2 uses a single CSF #8355 on the left side; the right side uses the CSF #8104 Race-Spec engine oil cooler.
Vehicle compatibility
- BMW M2 (F87) 2016–2018; Turbocharged 3.0L L6; Only Requires 1
- BMW 340i (F30) 2016–2018; Turbocharged 3.0L L6; BMW: 17-11-8-625-447 Only - See Fitment Notes
- BMW 340i xDrive (F30) 2016–2018; Turbocharged 3.0L L6; BMW: 17-11-8-625-447 Only - See Fitment Notes
- BMW 340i GT xDrive (F34) 2017–2019; Turbocharged 3.0L L6; BMW: 17-11-8-625-447 Only - See Fitment Notes
- BMW 440i (F32/F33) 2017–2020; Turbocharged 3.0L L6; BMW: 17-11-8-625-447 Only - See Fitment Notes
- BMW 440i xDrive (F32/F33) 2017–2020; Turbocharged 3.0L L6; BMW: 17-11-8-625-447 Only - See Fitment Notes
- BMW 440i Gran Coupe (F36) 2017–2020; Turbocharged 3.0L L6; BMW: 17-11-8-625-447 Only - See Fitment Notes
- BMW 440i xDrive Gran Coupe (F36) 2017–2020; Turbocharged 3.0L L6; BMW: 17-11-8-625-447 Only - See Fitment Notes
- BMW 430i (F32/F33) 2017–2020; Turbocharged 2.0L L4; BMW: 17-11-8-625-447 Only - See Fitment Notes
- BMW 430i xDrive (F32/F33) 2017–2020; Turbocharged 2.0L L4; BMW: 17-11-8-625-447 Only - See Fitment Notes
- BMW 430i Gran Coupe (F36) 2017–2020; Turbocharged 2.0L L4; BMW: 17-11-8-625-447 Only - See Fitment Notes
- BMW 430i xDrive Gran Coupe (F36) 2017–2020; Turbocharged 2.0L L4; BMW: 17-11-8-625-447 Only - See Fitment Notes
- BMW M240i (F22/F23) 2017–2021; Turbocharged 3.0L L6; BMW: 17-11-8-625-447 Only - See Fitment Notes
- BMW M240i xDrive (F22/F23) 2017–2021; Turbocharged 3.0L L6; BMW: 17-11-8-625-447 Only - See Fitment Notes
