CSF Euro-Spec Oil Cooler for BMW M3 / 3-Series (E36)

SKU: CSF8301
Sale price$827.10 Regular price$919.00
Save $91.90

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


The CSF Euro-Spec Engine Oil Cooler for BMW E36 was developed with BimmerWorld as a replacement for the discontinued factory cooler mounted beneath the radiator. It retains the original mounting points, hardware and oil-line connections.

Key Features

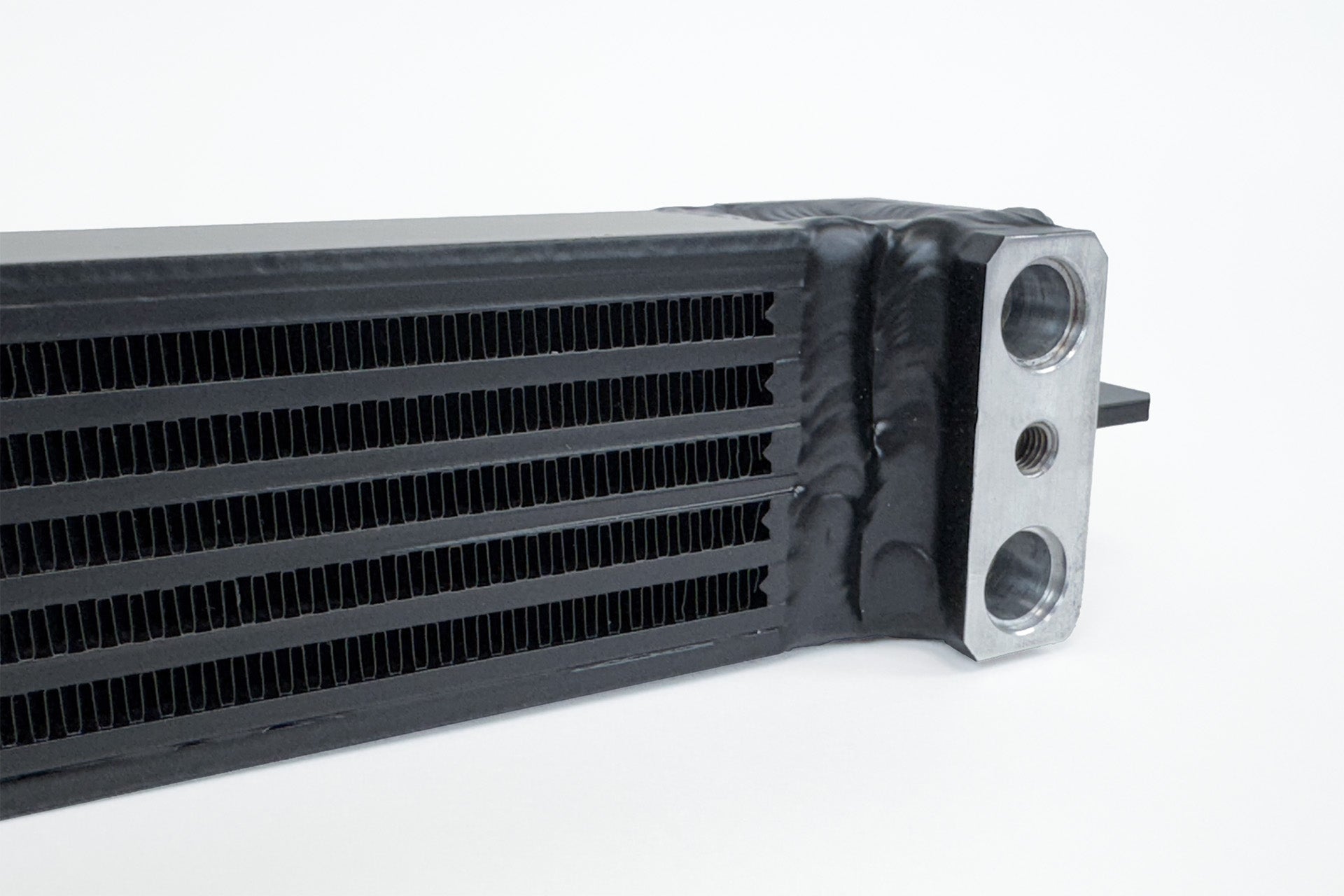

  • Heavy-duty bar-and-plate core with a top/bottom dual-pass design

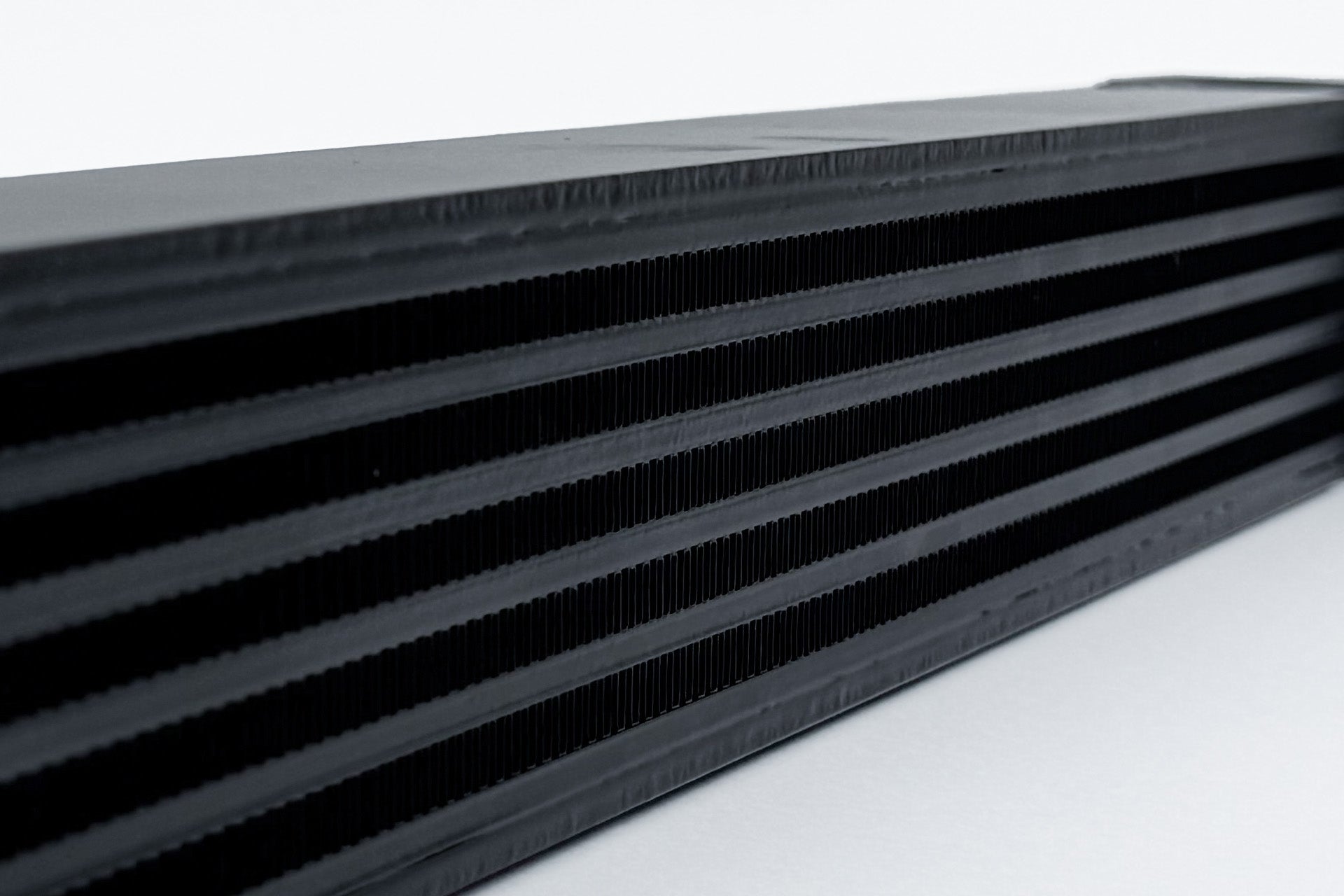

  • 6 rows with high-density, turbulated multi-louvred fins and Aero-Flow bars

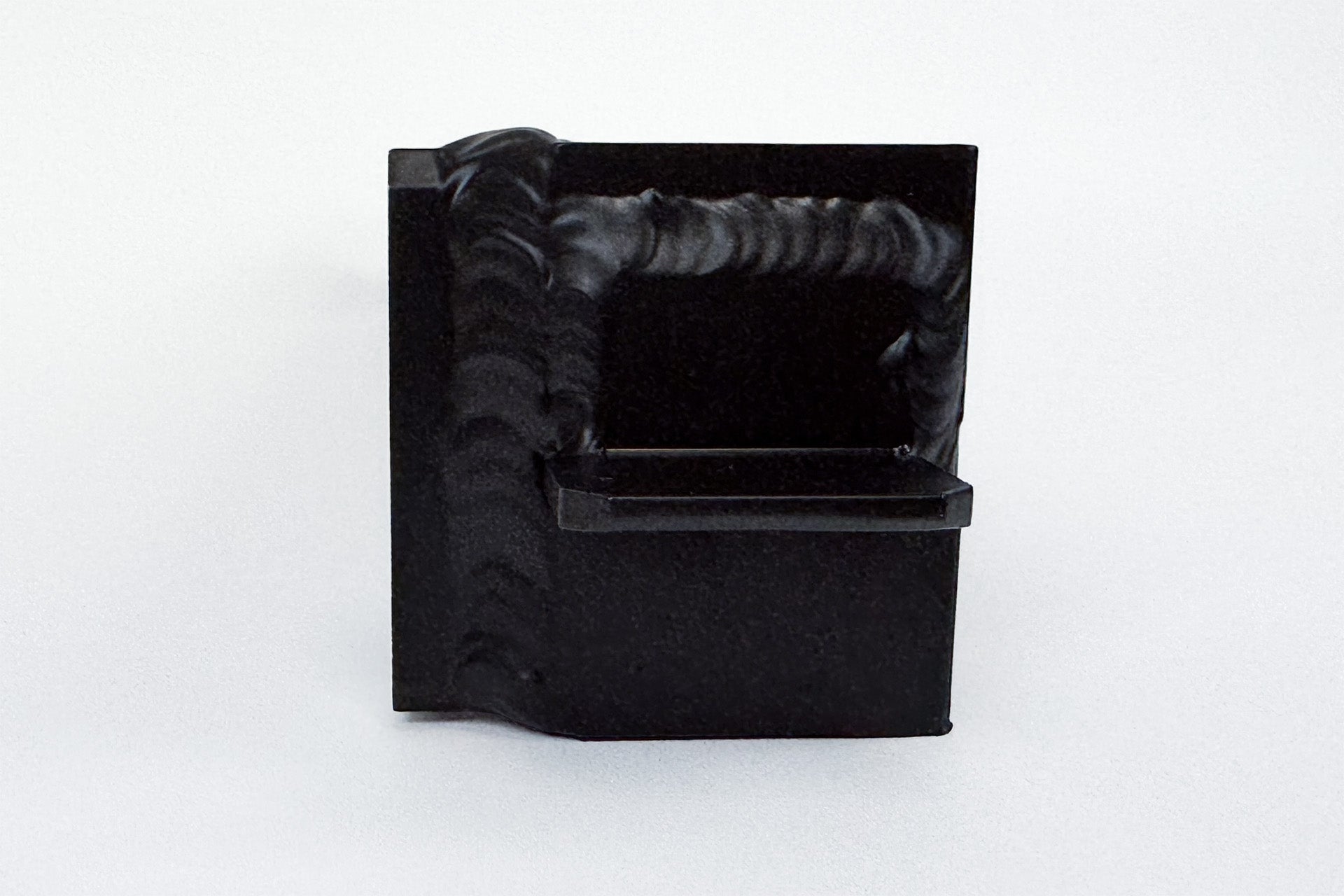

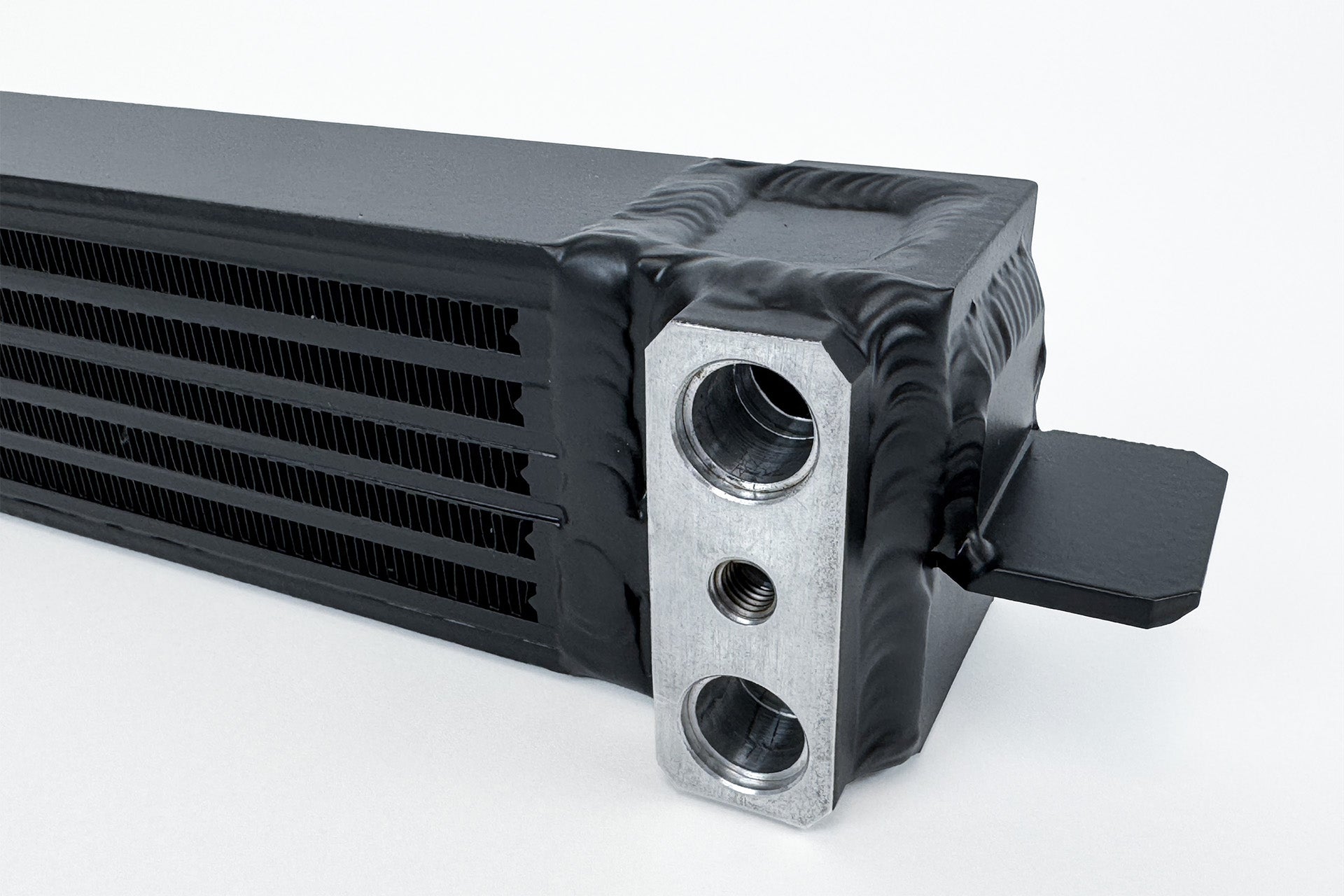

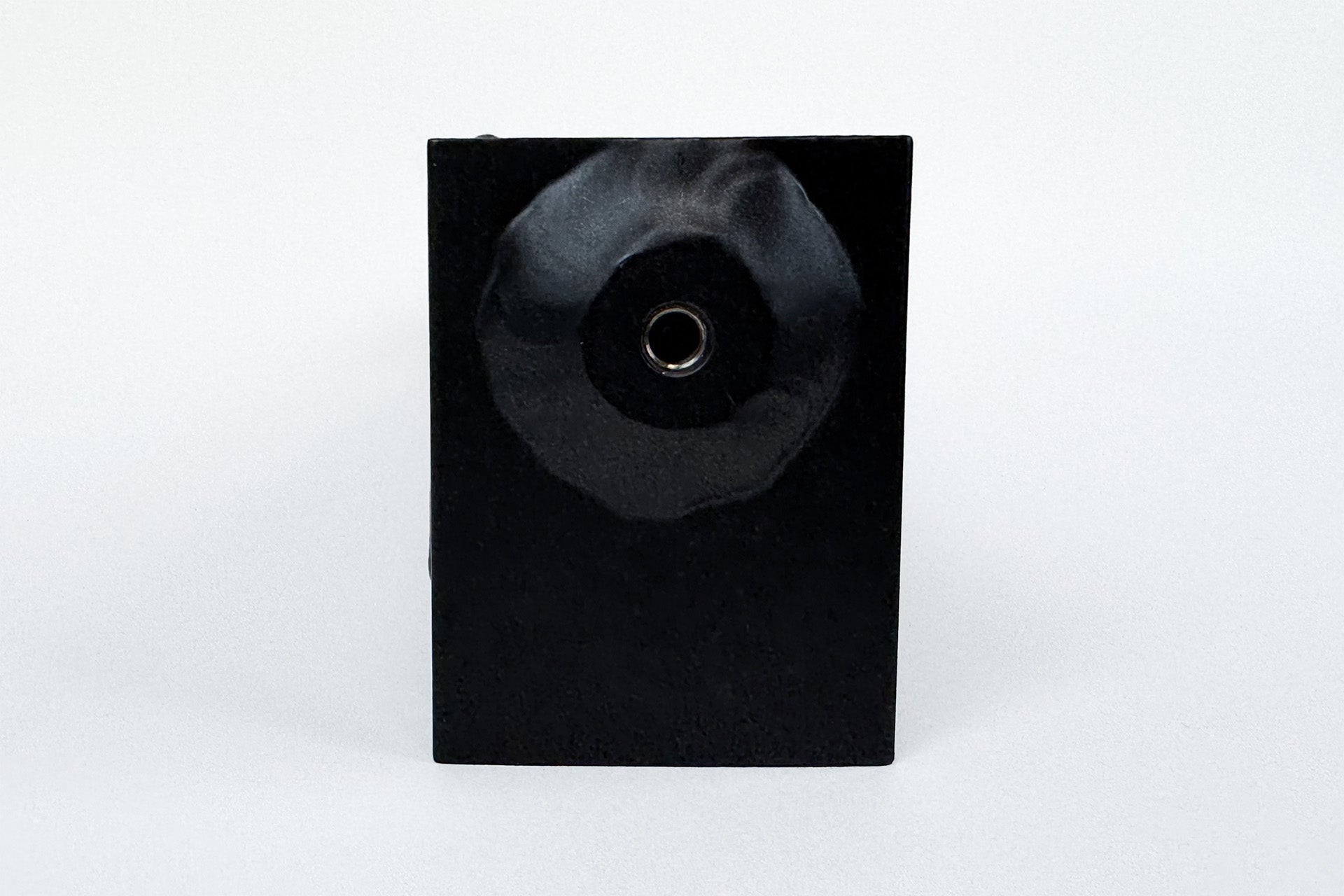

  • Fully TIG-welded extruded end tanks
  • OE-style black finish

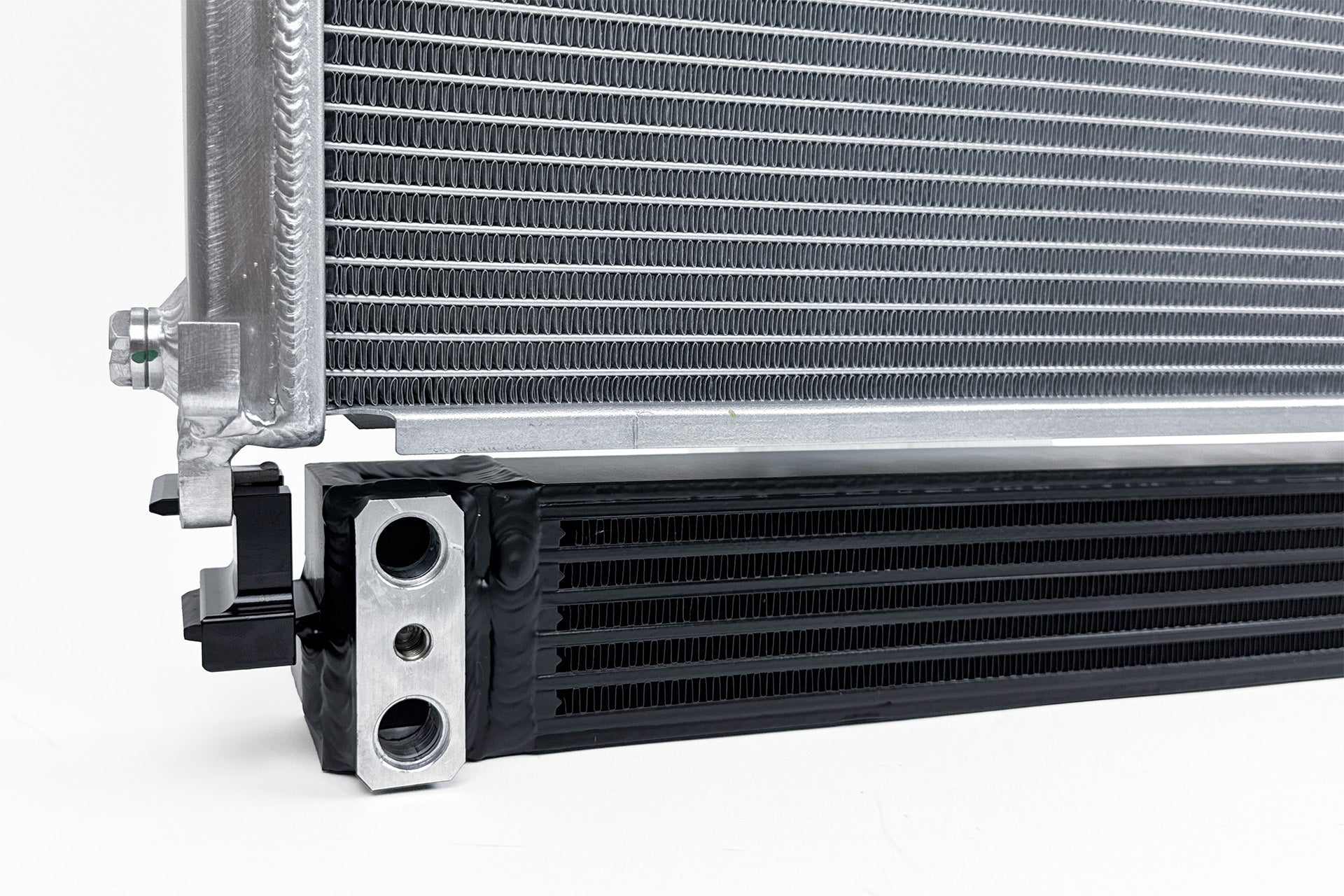

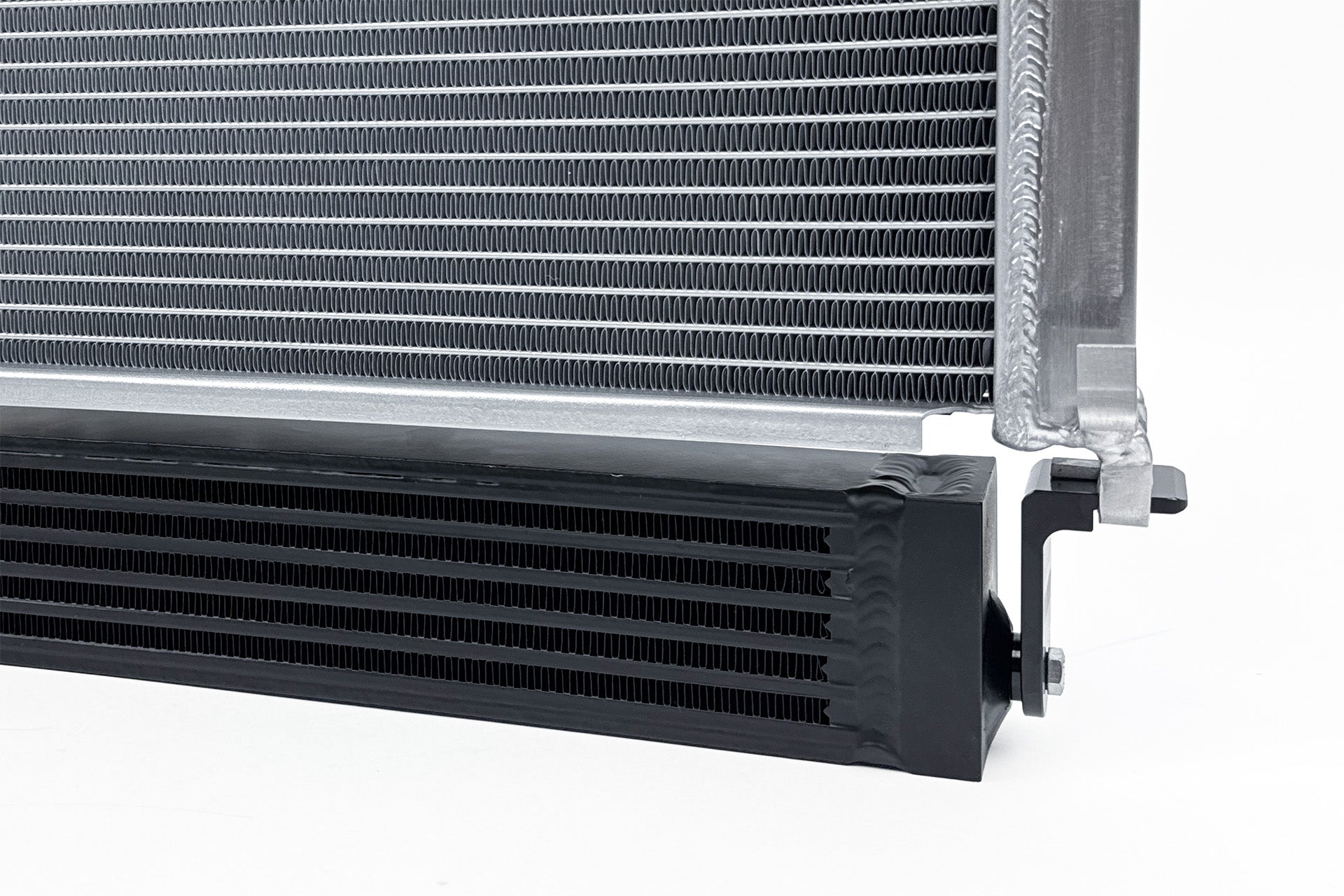

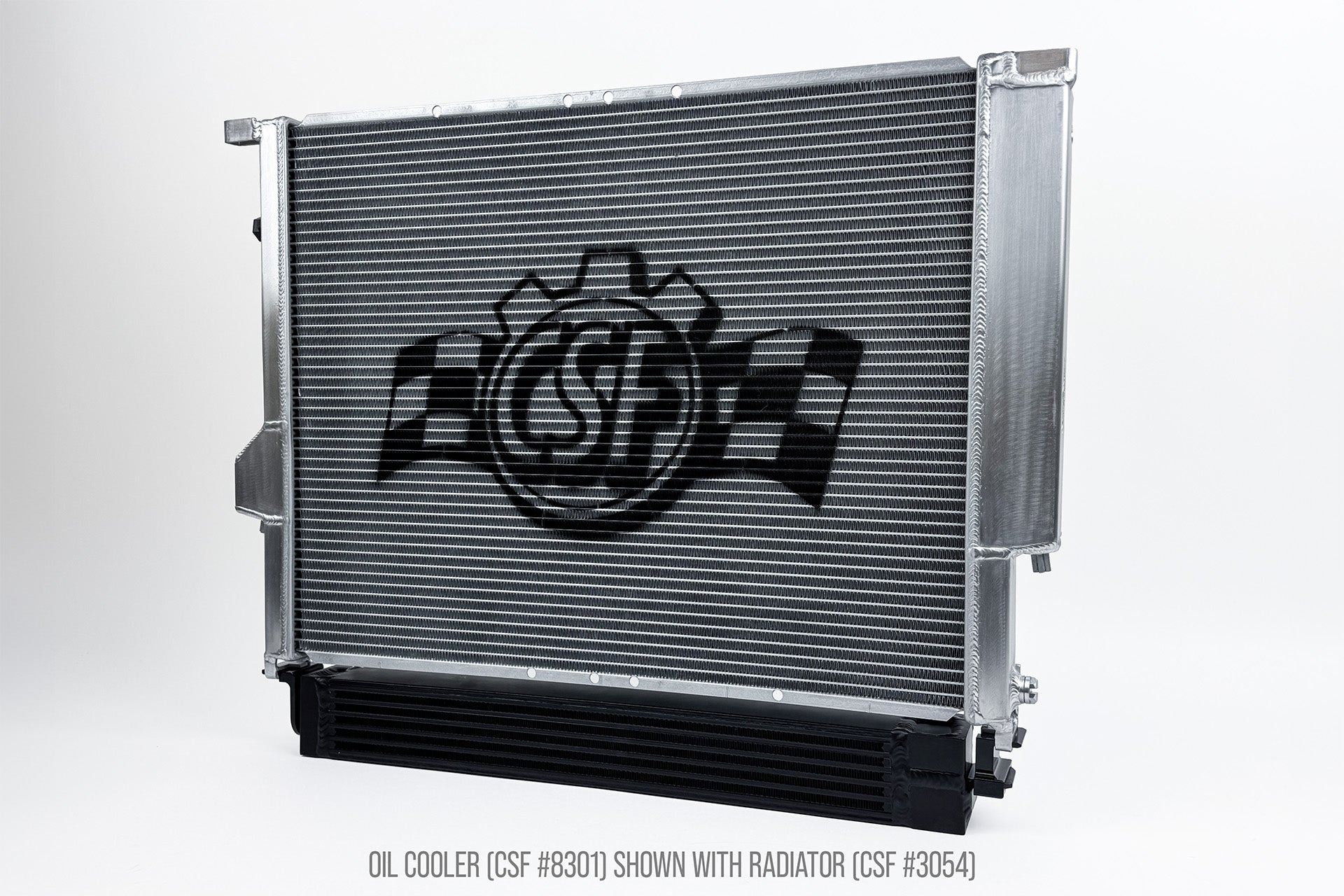

  • Designed to work with an OE radiator or CSF all-aluminium radiator
  • Uses OE E36 Euro Spec oil cooler lines and mounts with OE brackets or the BimmerWorld bracket kit
Important Installation is a drop-in fit for the EU E36 M3 or USMD Z3M. E36 models without a factory oil cooler need additional installation components and can use the BimmerWorld Euro Oil Cooler Bracket Kit, which attaches to an OE-spec radiator or CSF all-aluminium radiator.
Important Custom installations can use an oil cooler cap and CSF -10AN fitting adapter with standard -10AN lines. CSF recommends the BimmerWorld Euro Oil Cooler Bracket Kit for this installation method.

Vehicle compatibility

  • BMW 323i (E36) 1998; 2.5L L6
  • BMW 323is (E36) 1998–1999; 2.5L L6
  • BMW 325i (E36) 1992–1995; 2.5L L6
  • BMW 325is (E36) 1992–1995; 2.5L L6
  • BMW 328i (E36) 1996–1998; 2.8L L6
  • BMW 328is (E36) 1996–1999; 2.8L L6
  • BMW M3 (E36) 1995; 3.0L L6
  • BMW M3 (E36) 1996–1999; 3.2L L6
  • BMW Z3 Coupe (E36/8) 1999–2000; 2.8L L6
  • BMW Z3 Coupe (E36/8) 2001–2002; 3.0L L6
  • BMW Z3 M Coupe (E36/8) 1999–2002; 3.2L L6
  • BMW Z3 M Roadster (E36/7) 1998; 3.2L L6
  • BMW Z3 M Roadster (E36/8) 1999–2002; 3.2L L6
  • BMW Z3 Roadster (E36/7) 1997–1998; 2.8L L6
  • BMW Z3 Roadster (E36/8) 1999–2000; 2.8L L6
  • BMW Z3 Roadster (E36/8) 2001–2002; 3.0L L6

Fitment requirements

  • Manual-transmission E36 six-cylinder application with a complete Euro oil-cooling conversion installed: oil-filter housing 11427839858, oil-cooler pipes 17212227235 and under-radiator hangers mounted to compatible lower radiator tabs. The cooler is supplied alone; housing, pipes, adapter bolt, seals and brackets are separate. Confirm clearance for the installed radiator and any turbo or supercharger plumbing.
  • BMW Z3 M 236kW/3201cc S50 application retaining the matching Euro oil-cooler installation. Confirm installed cooler OE 17212244083, 17212244084 or 17218854489, matching factory oil-line connections and under-radiator mounting hardware before replacement. The cooler is supplied alone.
