CSF Race X Charge Air Cooler Manifold for Toyota GR Supra (A90) / BMW B58 (Gen 2) - Custom Colour Finish

SKU: CSF8400C
Sale price$10,009.00

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

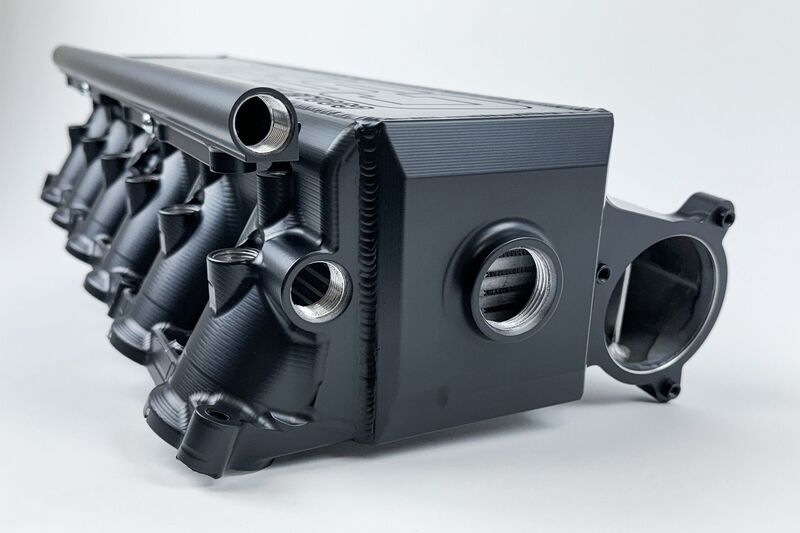

The CSF BMW Gen 2 B58 Race X Charge Air Cooler Manifold - Custom Finish is designed for motorsport competition and racing applications.

Key Features

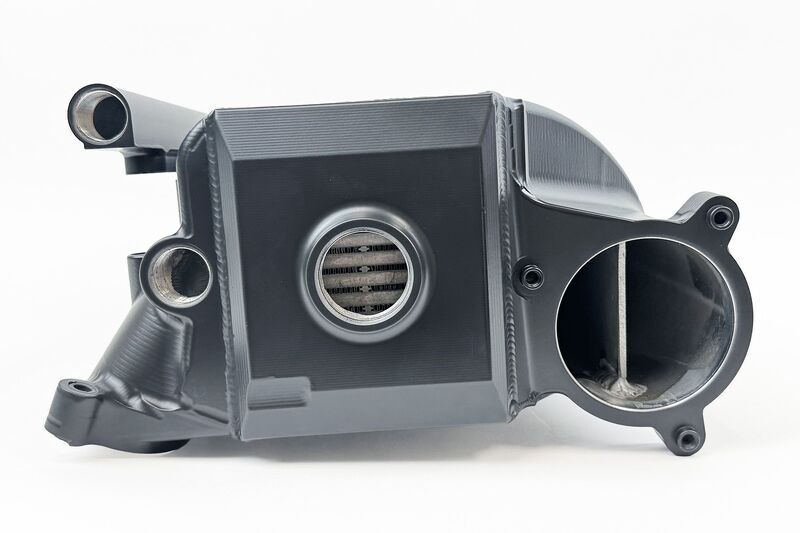

  • Bar-and-plate air-to-water intercooler core with 15 cooling rows, 25% larger than the CSF #8200 core
  • Single- or dual-pass configuration, with a -16 ORB front port for ice-box setups and an included dual-pass plug

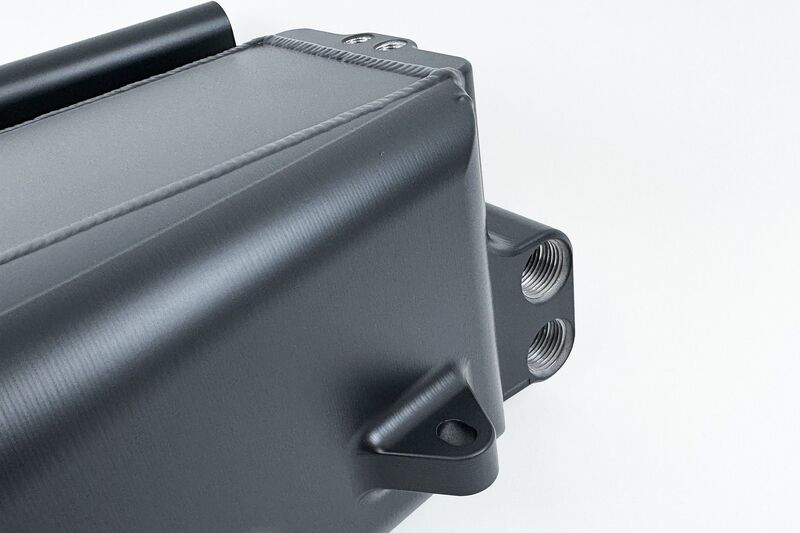

  • Billet aluminium construction with TIG welding

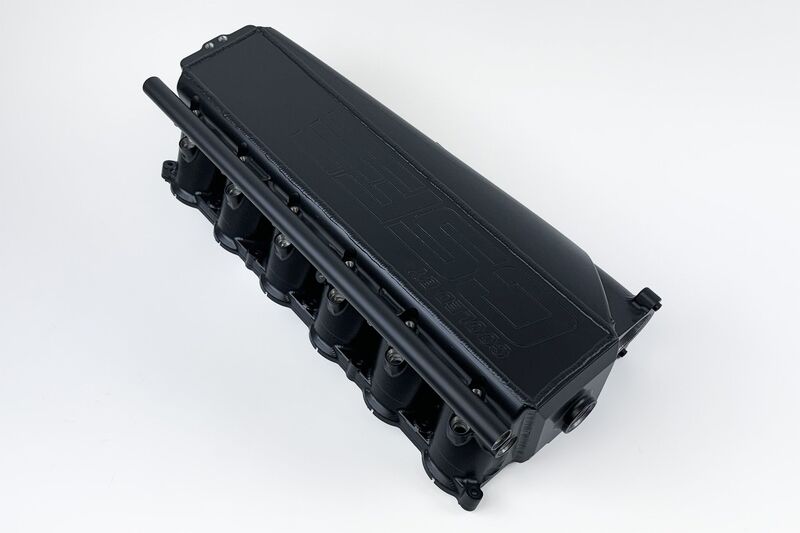

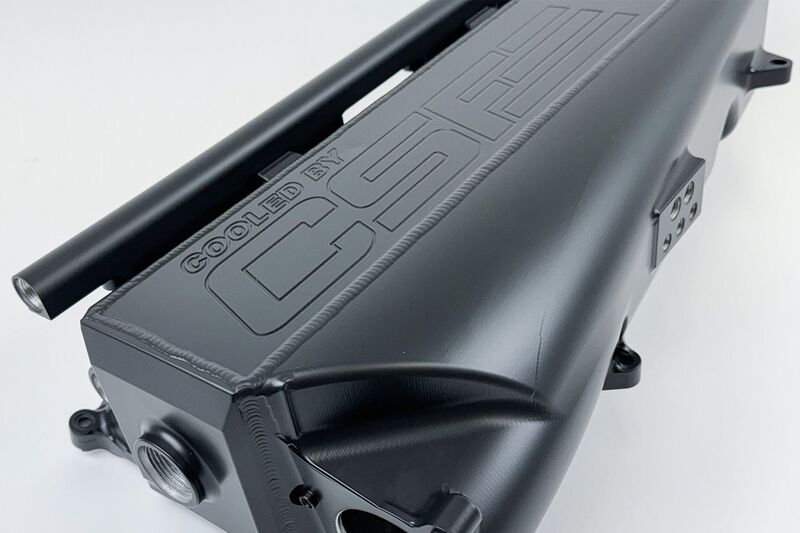

  • Includes a top-feed port injection fuel rail, KIYLEX thermal rejection spacer, installation hardware and instructions
Important Not compatible with B58N (B58TU2 / B58B30M2) engines. Mild hybrid models with 48V systems require significant modifications: an additional 8200S spacer (sold separately), shaving cylinder-head casting humps and shaving the alternator.
Important This racing product requires installation by a skilled technician familiar with the B58 platform. Port injection is assumed; six port injection block-off bungs are not included and are sold separately.
Important The manifold cannot be anodised.
Note Made to order in a custom colour

⚠ Fitment Notes

The CSF #8400 will NOT fit the B58N (B58TU2 / B58B30M2). The B58N uses the BMW 11-61-7-952-861 Charge-Air-Cooler Manifold which is not interchangeable with the OE 11-61-8-647-977 or CSF #8400.

Mild Hybrid Models (48V systems) will require modifications to the alternator.

CSF assumes that all users of this specific manifold will be running port injection. Because of this, the (qty. 6) port injection block-off bungs that come with the standard CSF 8200 / 8300 manifolds are not included in this kit.

Mild Hybrid Models (48V systems) will require significant modifications to install. This includes an additional 8200S spacer (sold separately), shaving down the humps in the casting on the cylinder head, and shaving down the alternator.

Vehicle compatibility

Engine: Turbocharged 3.0L L6

  • BMW 540i (G30) 2020–2023
  • BMW 540i xDrive (G30) 2020–2023
  • BMW 740i (G11) 2018–2022
  • BMW 740i xDrive (G11) 2018–2022
  • BMW 745e (G11) 2020–2022
  • BMW 745e xDrive (G11) 2020–2022
  • BMW 840i (G14/G15) 2020–2025
  • BMW 840i Gran Coupe (G14/G15) 2020–2025
  • BMW 840i xDrive (G14/G15) 2020–2025
  • BMW 840i xDrive Gran Coupe (G14/G15) 2020–2025
  • BMW M240i (G42) 2023–2026
  • BMW M240i xDrive (G42) 2022–2026
  • BMW M340i (G20) 2020–2024
  • BMW M340i xDrive (G20) 2020–2024
  • BMW M440i (G22/G23) 2021–2024
  • BMW M440i Gran Coupe (G26) 2022–2024
  • BMW M440i xDrive (G22/G23) 2021–2024
  • BMW M440i xDrive Gran Coupe (G26) 2022–2024
  • BMW X3 M40i (G01) 2020–2024
  • BMW X4 M40i (G02) 2020–2025
  • BMW X5 sDrive40i (G05) 2020–2023
  • BMW X5 xDrive40i (G05) 2019–2022
  • BMW X5 xDrive45e (G05) 2021–2023
  • BMW X6 sDrive40i (G06) 2020–2021
  • BMW X6 xDrive40i (G06) 2020–2023
  • BMW X7 xDrive40i (G07) 2019–2023
  • BMW Z4 M40i (G29) 2019–2026
  • Toyota GR Supra 45th Anniversary Edition (A90) 2024
  • Toyota GR Supra A91-MT Edition (A91) 2023
  • Toyota GR Supra (A91) 2023
  • Toyota GR Supra (A90) 2020–2026
  • Toyota GR Supra Premium (A91) 2023
  • Toyota GR Supra Premium (A90) 2024–2026
  • Toyota GR Supra Premium 45th Anniversary Edition (A90) 2024
  • Toyota GR Supra (A90) 2026
  • Toyota GR Supra MkV Final Edition (A90) 2026
  • INEOS Grenadier 2024–2026
  • INEOS Grenadier Fieldmaster 2024–2026
  • INEOS Grenadier Trialmaster 2024–2026
  • INEOS Grenadier Quartermaster 2025–2026
  • INEOS Grenadier Quartermaster Fieldmaster 2025–2026
  • INEOS Grenadier Quartermaster Trialmaster 2025–2026
