CSF Aluminium Radiator for Chevrolet Corvette Z06 / 427 / Grand Sport / Base (C6) 2005-2013
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

The CSF Chevrolet C6 Corvette High-Performance All-Aluminium Radiator features built-in engine oil and automatic transmission coolers. Developed with A&A Corvette, it mounts in the factory location without modifications.
The engine oil and automatic transmission coolers use independent cooling circuits. Their connections can remain unused on cars not equipped with the corresponding cooler.
Key Features
- 100% TIG-welded aluminium construction, including the core and tanks
- CSF B-Tube technology with multi-louvred fins
- Reduced core height provides clearance for supercharger installations without trimming the radiator, modifying the core support or lowering the radiator. Compatible with all OEM and aftermarket intake systems, including ram air intakes

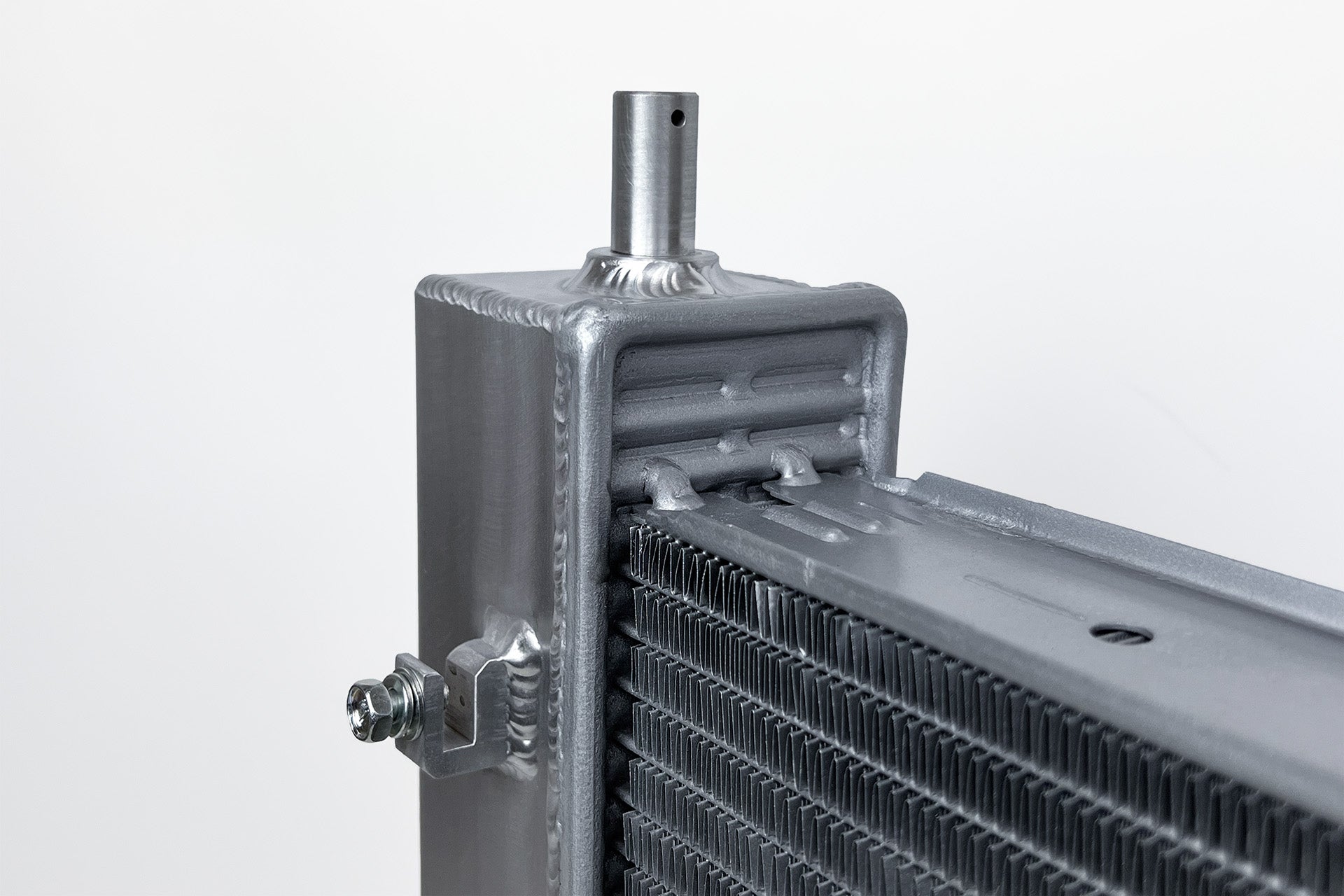

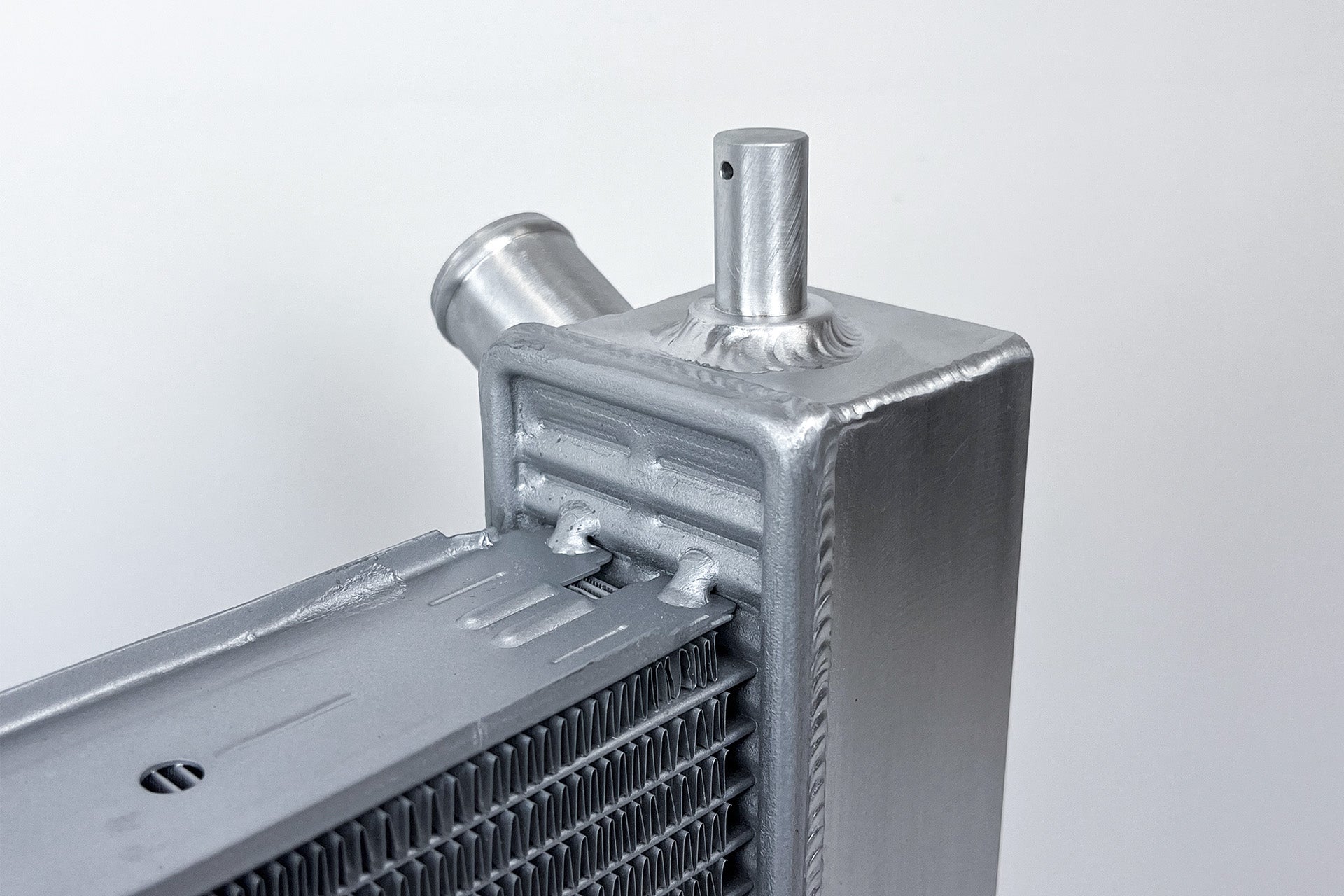

- CNC-machined mounting brackets, fan shroud mounting points and radiator mounting pins. Mounting points accommodate all OE fan configurations, while cotter pin holes secure the A&A Corvette Top Shroud

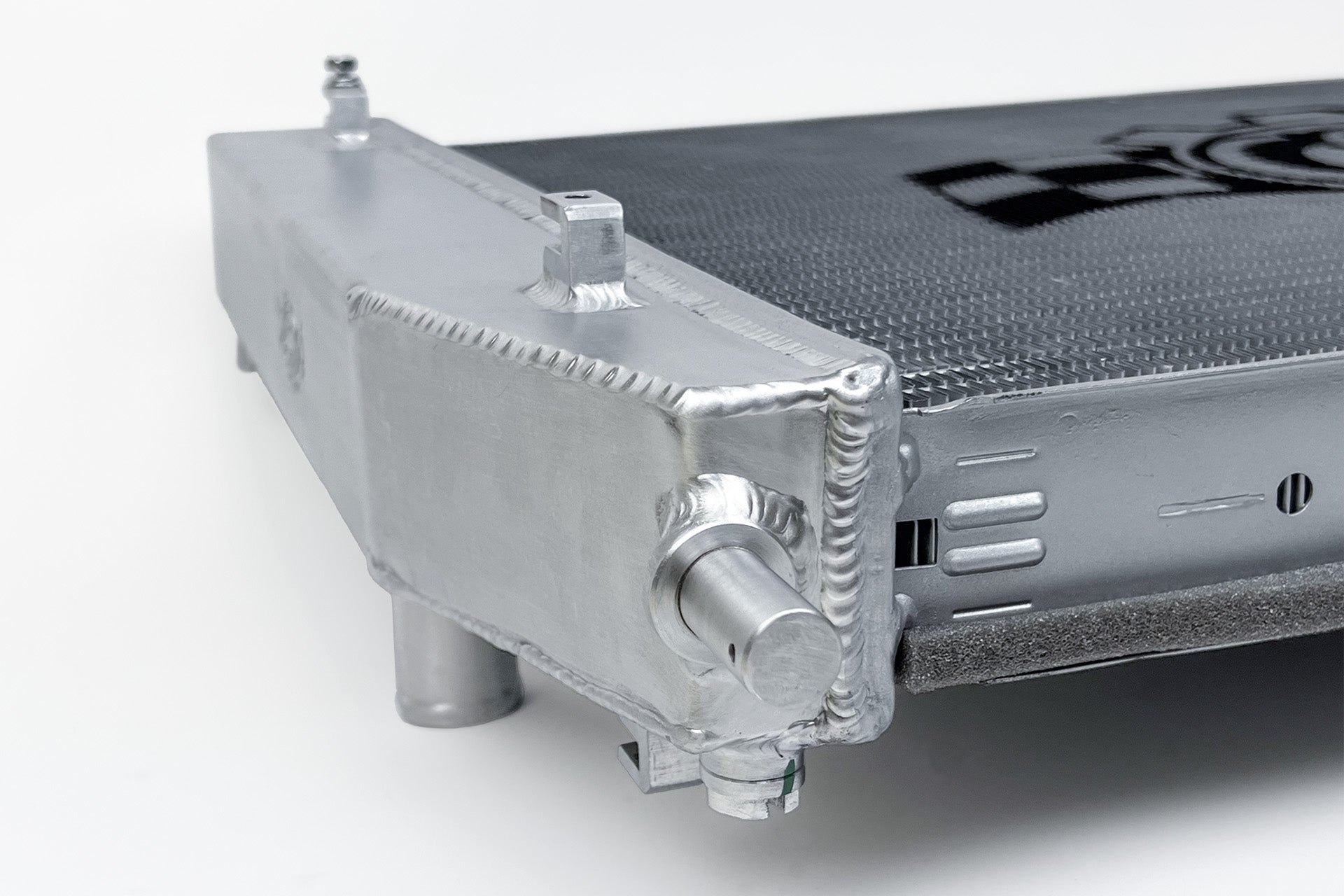

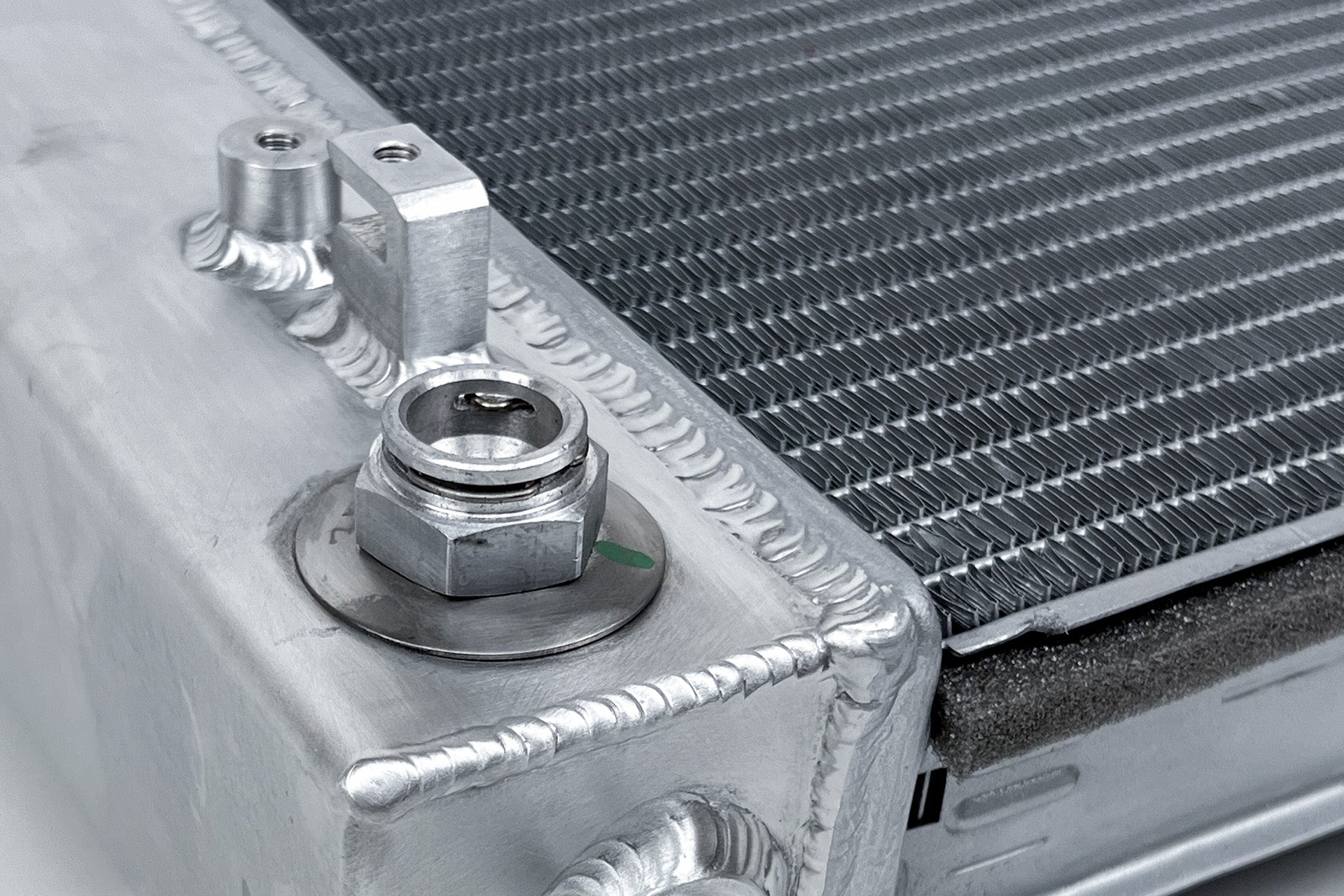

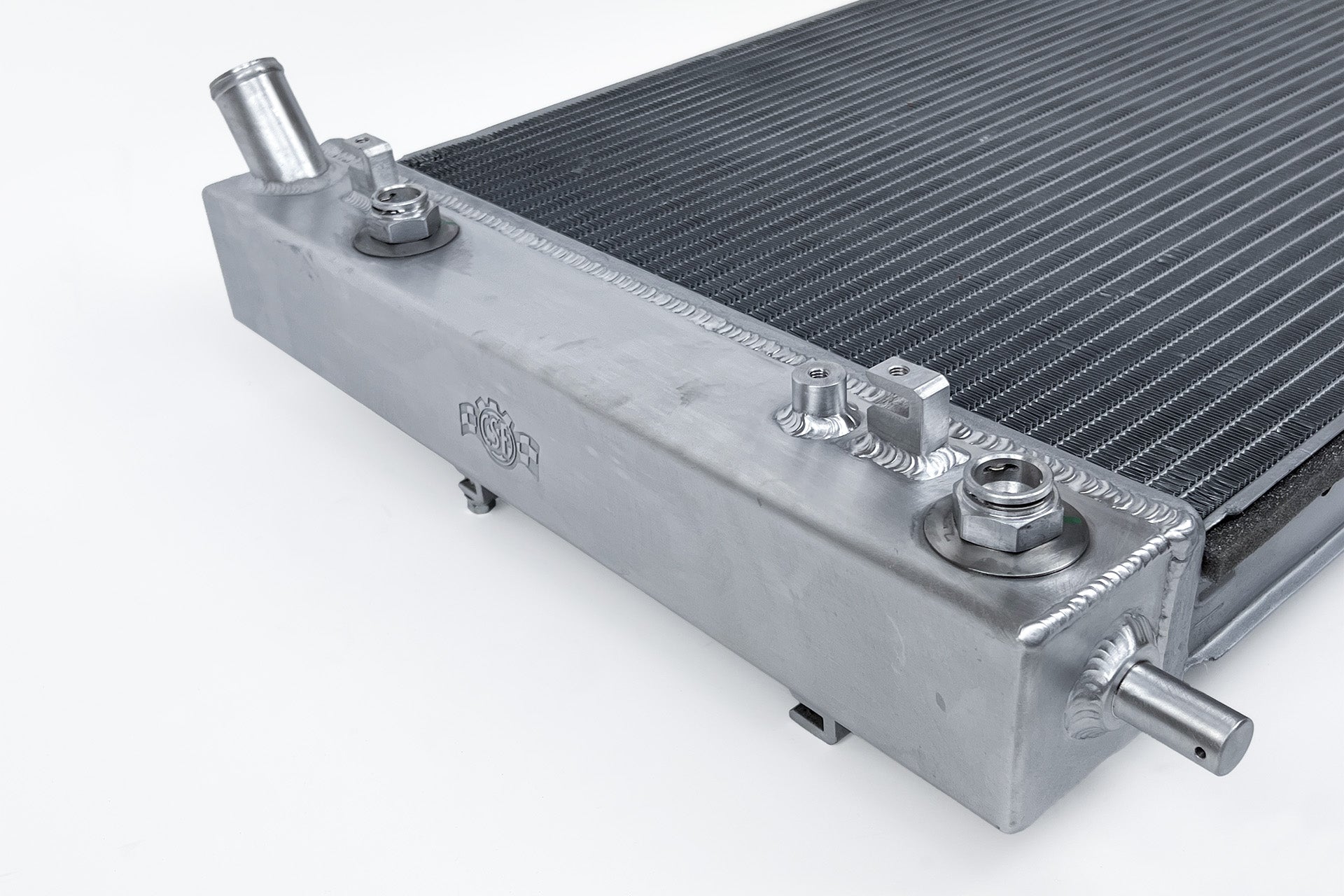

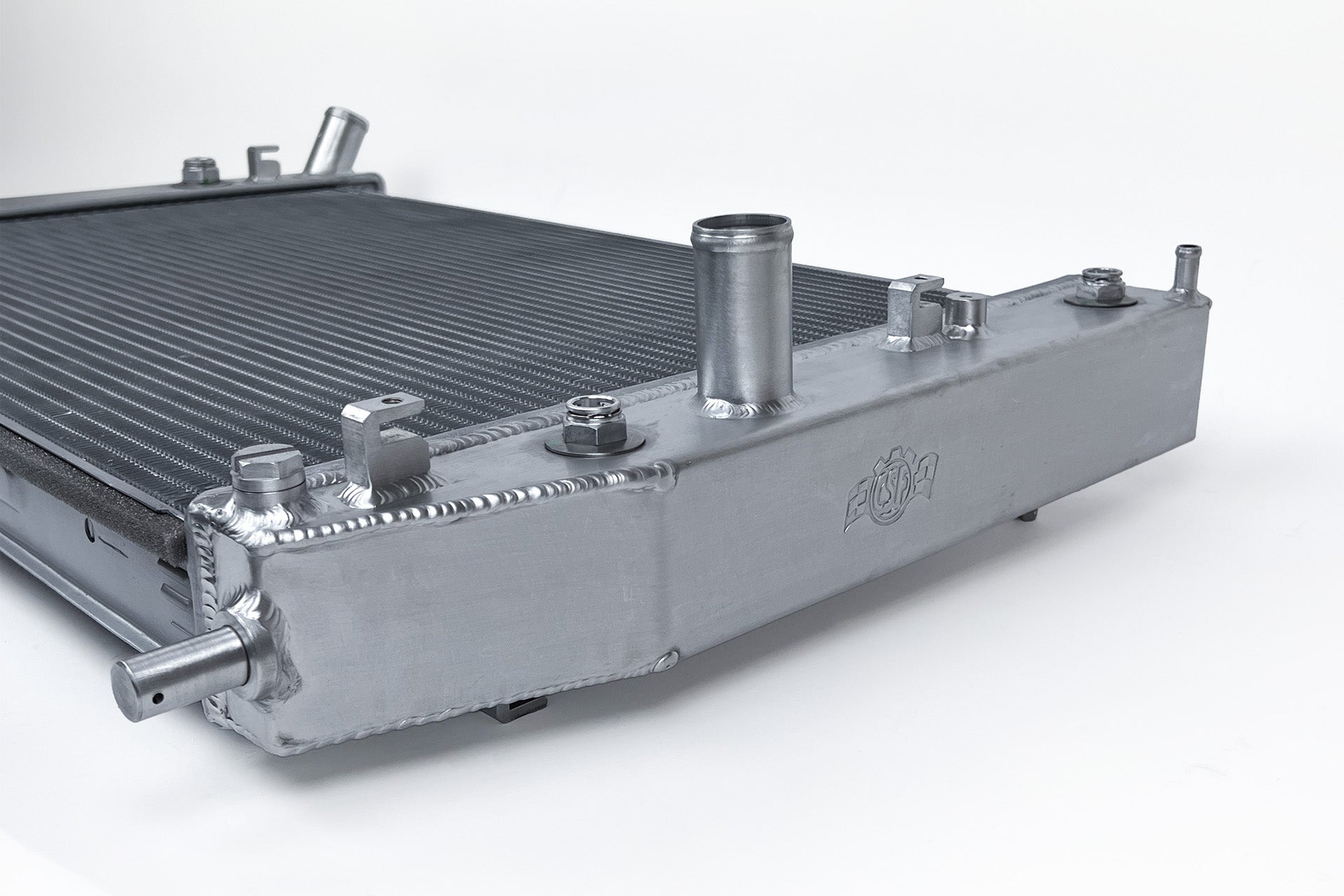

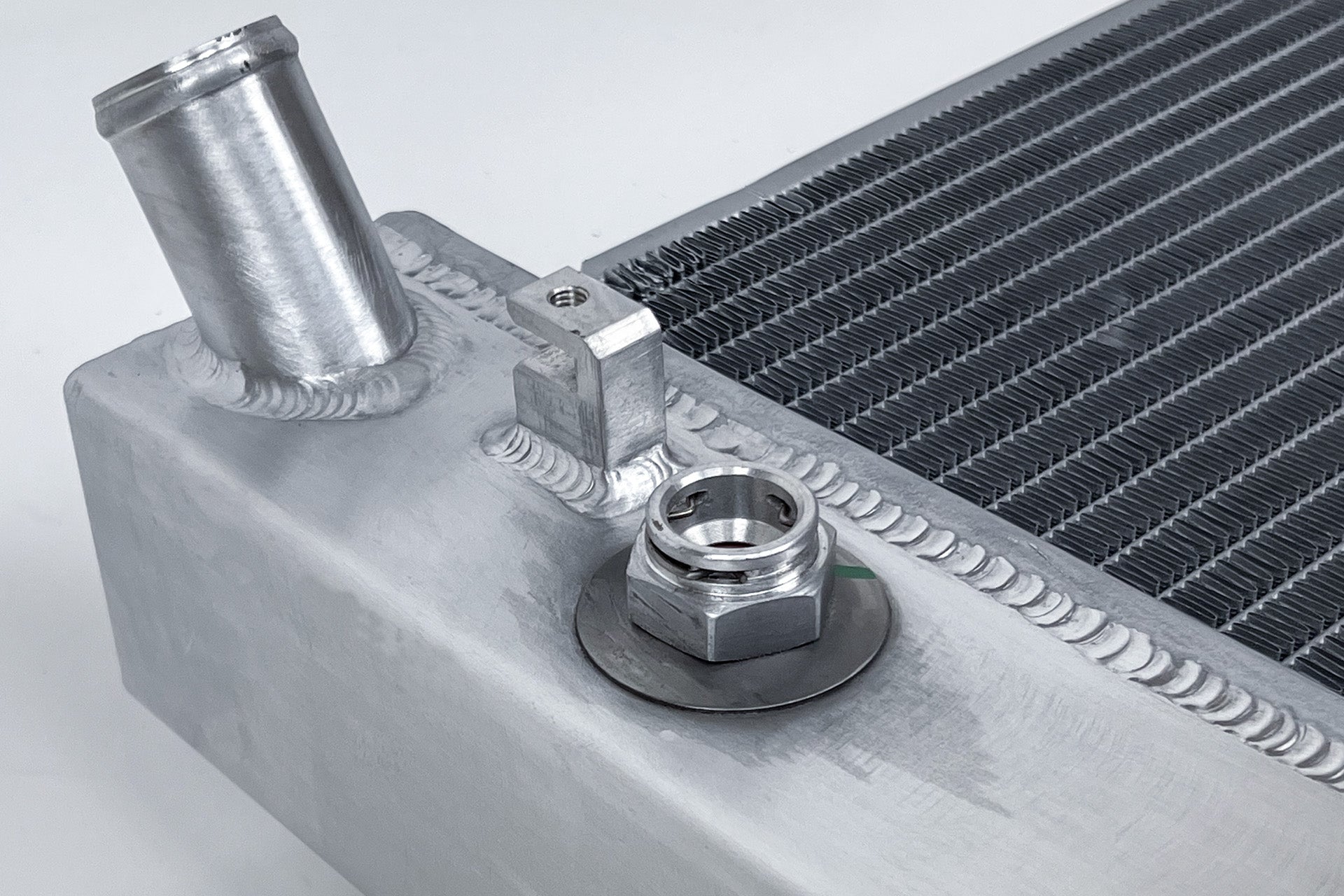

- OEM-style inlet/outlet and factory-style quick-connect fittings. Integrated high-flow, low-pressure-drop engine oil cooler and automatic transmission cooler suitable for track, drift and drag applications
- Drop-in installation with no modifications; individually leak and pressure tested
Specifications
- Core: 2-row, 52 mm
- Cooling tubes: 40
- Fin rows: 41
- Fin height: 8 mm
- Finish: Hand-brushed satin
- Engine oil cooler: 4-plate
- Automatic transmission cooler: 6-plate
- OEM part numbers: Chevrolet 10353889, 15145946, 21996495, 10353890, 20873508 and 25861236
- Warranty: 2-year limited
Vehicle compatibility
- Chevrolet Corvette 427 Limited Edition Z06 (C6) 2008; 7.0L V8
- Chevrolet Corvette (C6) 2005–2007; 6.0L V8
- Chevrolet Corvette (C6) 2008–2013; 6.2L V8
- Chevrolet Corvette Grand Sport (C6) 2010–2013; 6.2L V8
- Chevrolet Corvette Z06 (C6) 2006–2013; 7.0L V8; 11-13 w/ Z07 Package Only
Supplier application notes
The core height is slightly lower than OEM to suit supercharger installations, which often require trimming the radiator core or header plate, or lowering the radiator. Developed with A&A Corvette to avoid the header plate trimming needed to run the induction piping. Also works with aftermarket ram-air intake systems.
