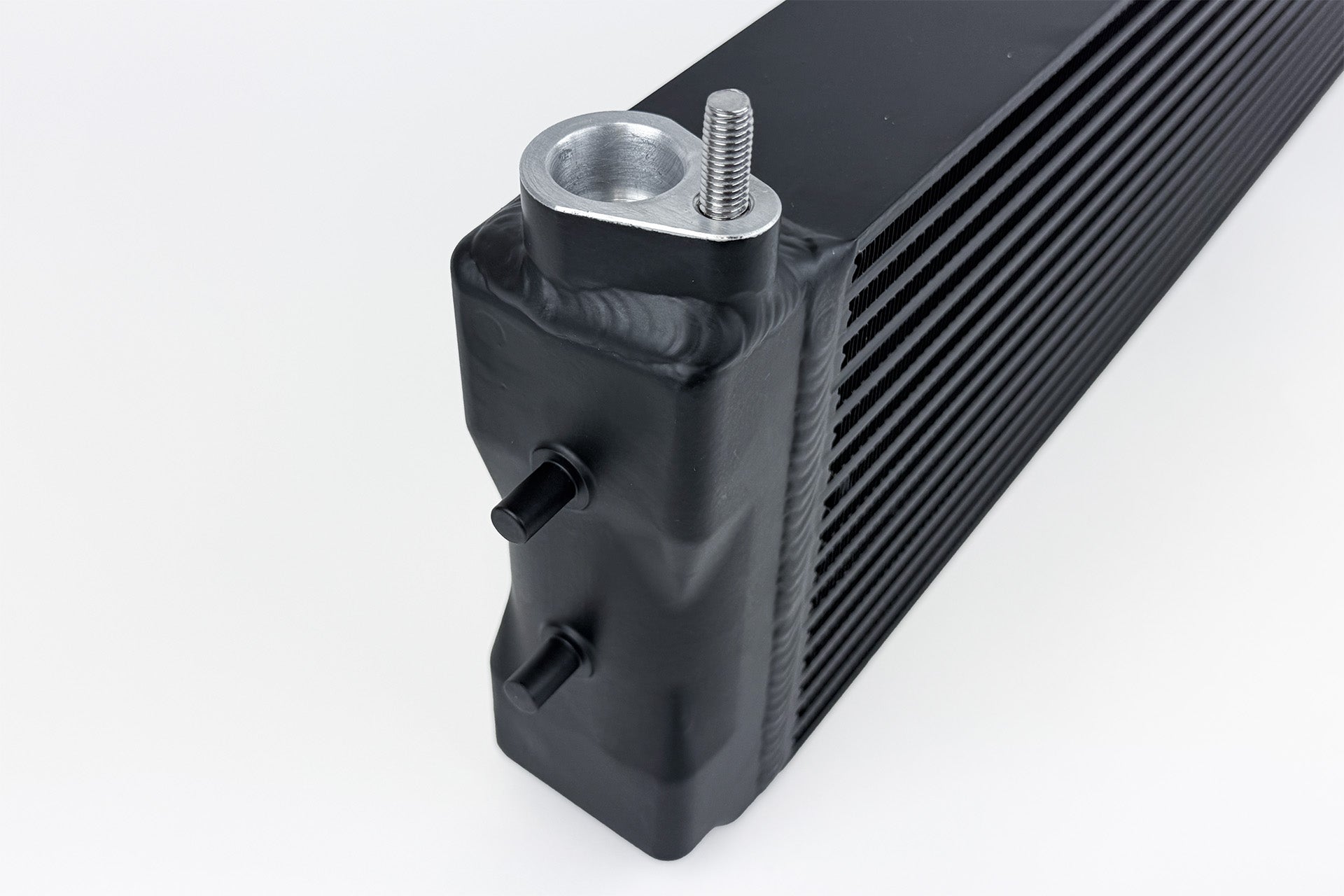

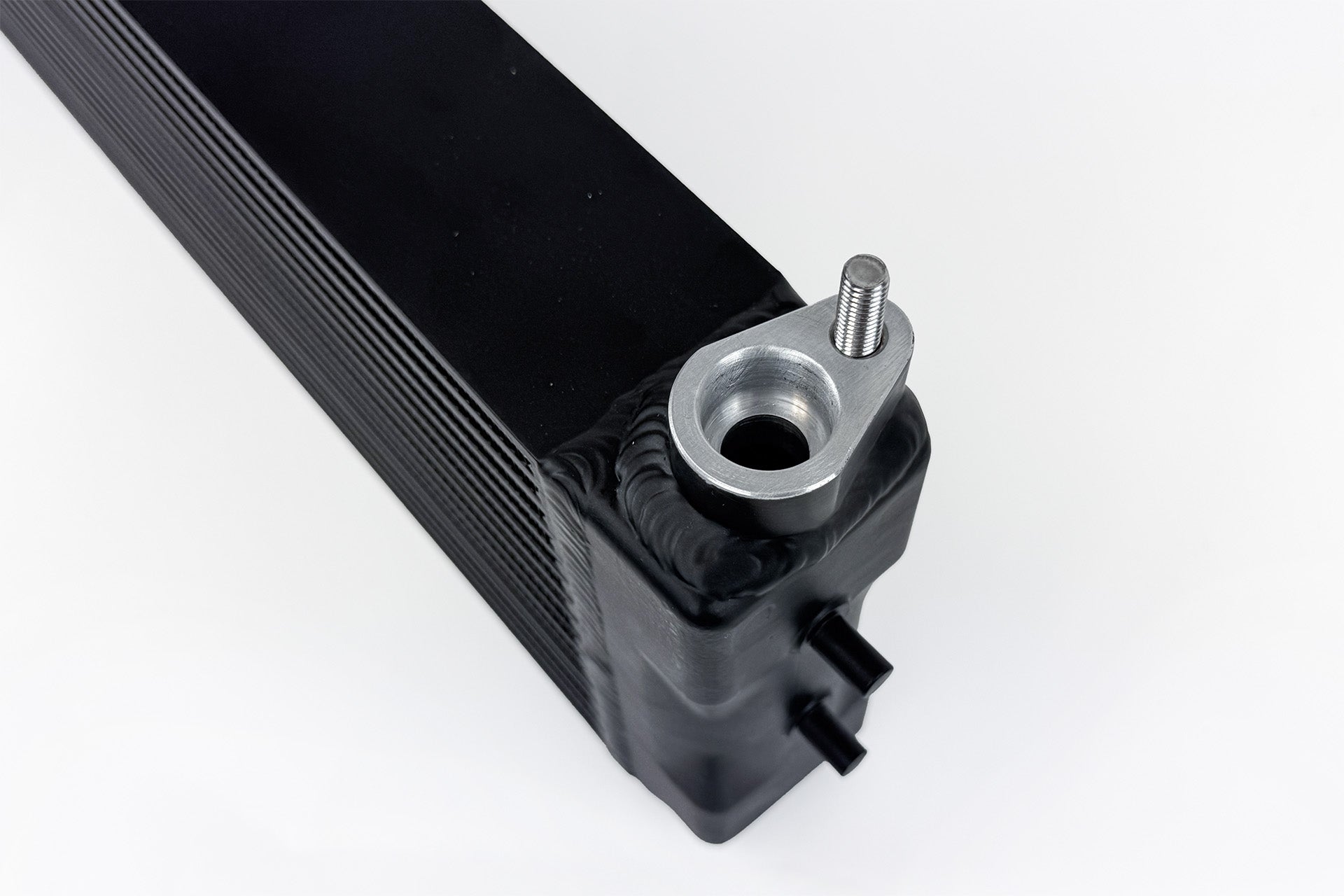

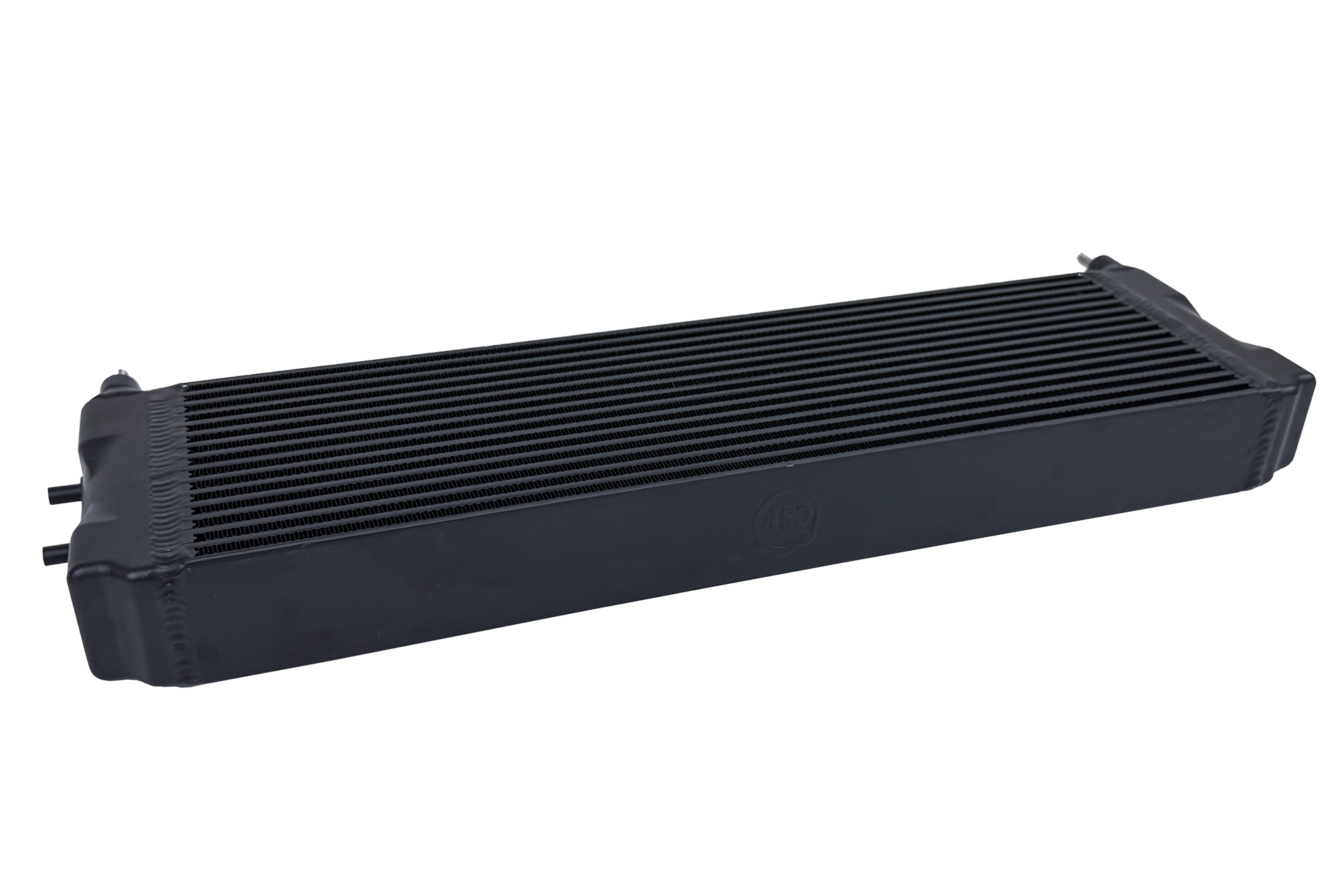

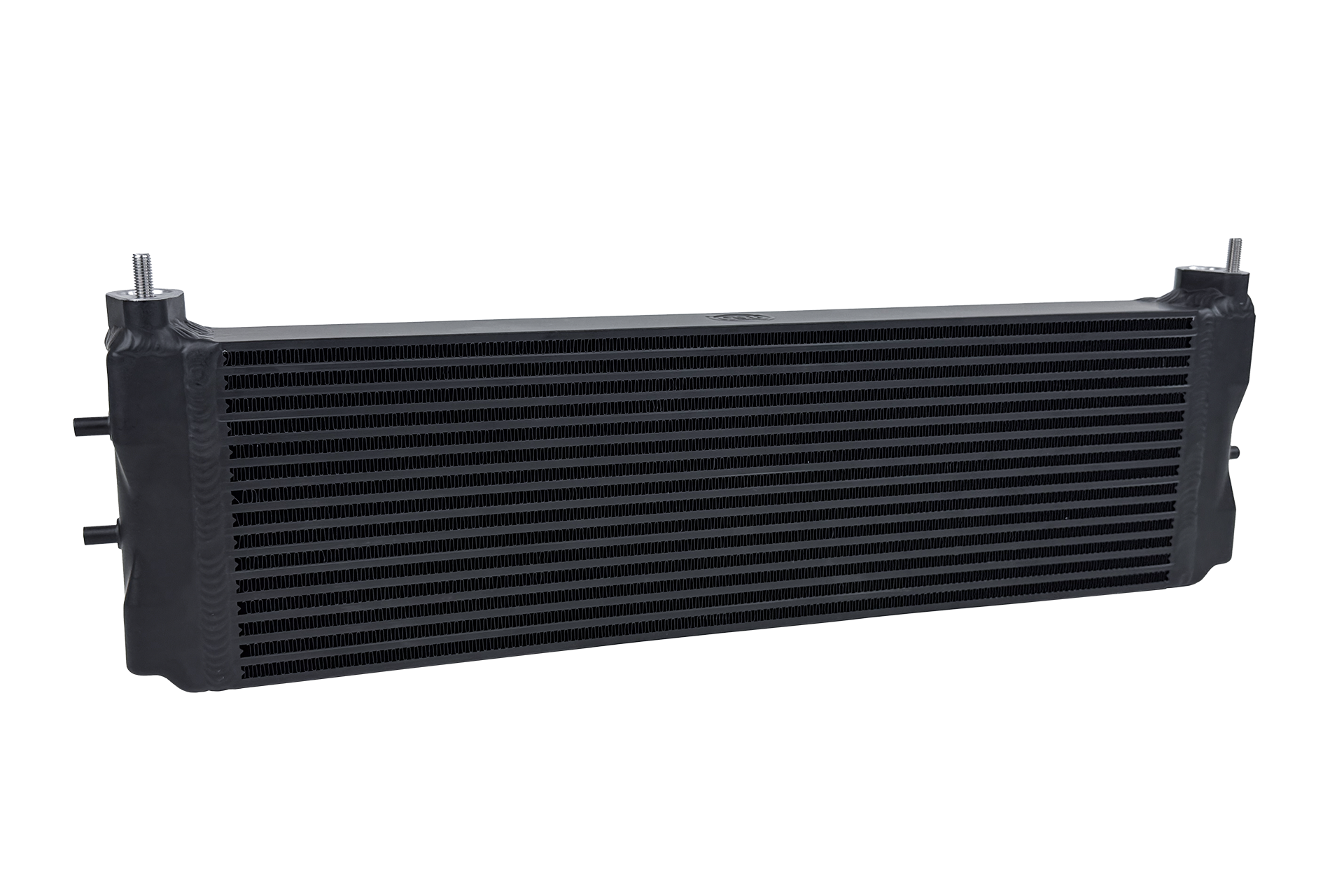

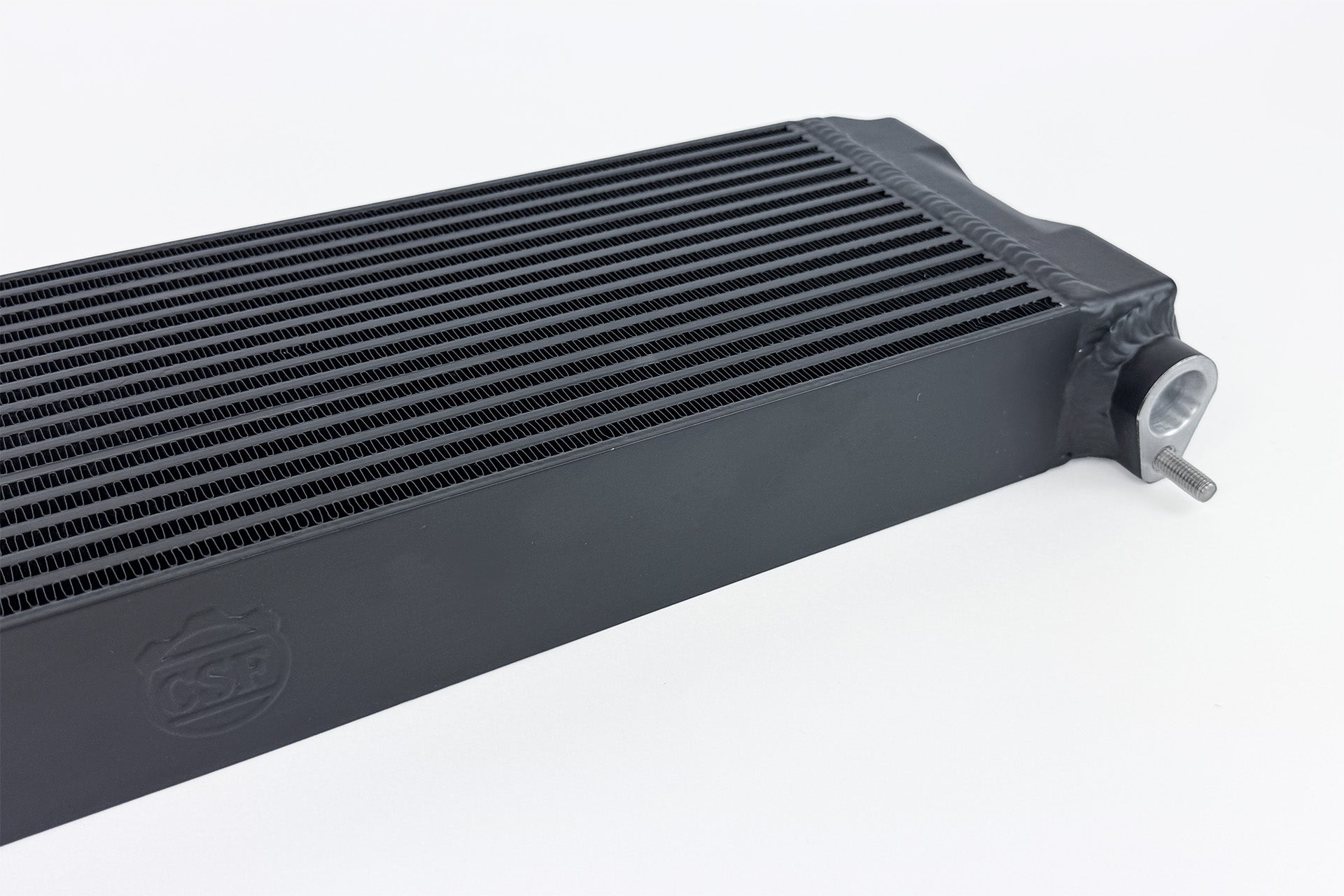

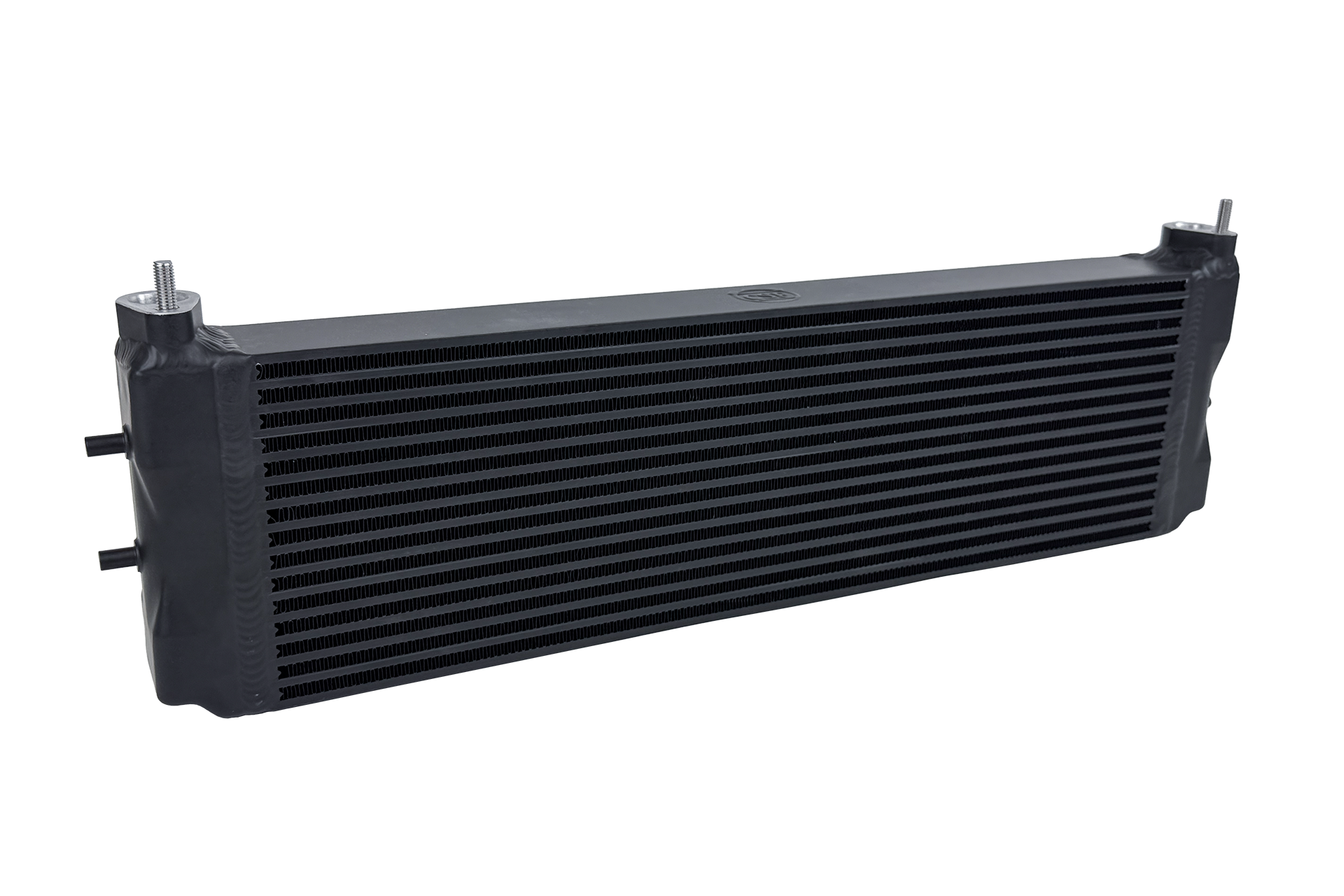

CSF High-Performance Engine Oil Cooler for BMW G9X M5, F9X M5/M8, & F1X M5/M6
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.
CSF High-Performance Engine Oil Cooler for BMW G9X M5, F9X M5/M8, & F1X M5/M6
Sale price$1,249.00
Regular price (/)
Description
- High Efficiency & Rugged Durability Bar/Plate Design
- “Aero-Flow” Bar Lightweight Construction for Strength and Maximum Flow
- Cast End Tanks with 100% TIG-Welded Construction
- Finished in CSF’s Thermal Dispersion Black Cerakote
- CNC Machined Mounting Brackets and OEM Style Inlet/Outlet Connection
- Individually Leak and Pressure Tested
- True Plug-and-Play “Drop-in Fit” Installation. It is recommended to trim the OE Ducting and Lower Radiator Cradle for better fitment.
- 2-Year Limited Warranty
| Feature | CSF | OEM |
|---|---|---|
| # Cooling Tubes | 14 | 11 |
| # Cooling Fin Rows | 15 | 12 |
| Fin Height/Width | 6.5mm | 8mm |
| Core Thickness | 60mm (2.36 inches) | 45mm (1.77 inches) |
| Core Material | Aluminum | Aluminum |
| Core Construction | Bar & Plate | Tube & Fin |
| Tank Material | Aluminum | Aluminum |
| Construction | 100% TIG Welded | Brazed |
