CSF Heat Exchanger for McLaren 675LT / 650S / MP4-12C
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

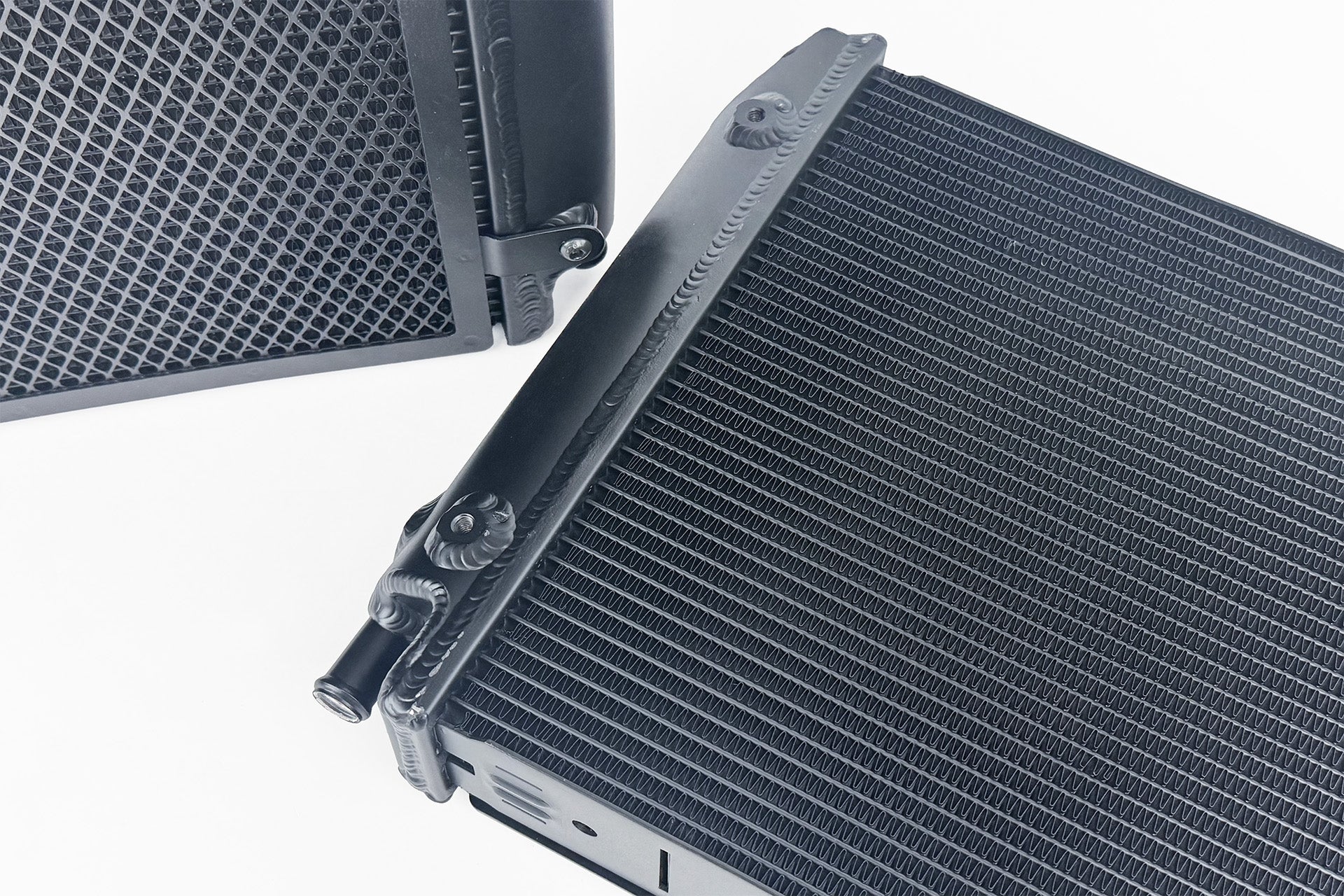

CSF's Turbocharger Heat Exchanger upgrades the front-mounted charge-air heat exchangers on the McLaren MP4-12C, 650S and 675LT (M838TE twin-turbo 3.8L V8). The factory units work well at stock power but struggle with the extra heat of more boost or larger turbos. CSF's version fits the factory housing pods to lower intake air temperatures and recover faster from heat soak, with no cutting or modification.
Key Features
- 2-row, 54 mm core versus the factory 1-row core (both 39 cooling tubes and 40 fin rows)
- CSF's exclusive B-Tube technology, rated at approximately 15% more heat transfer than regular oval welded tubes

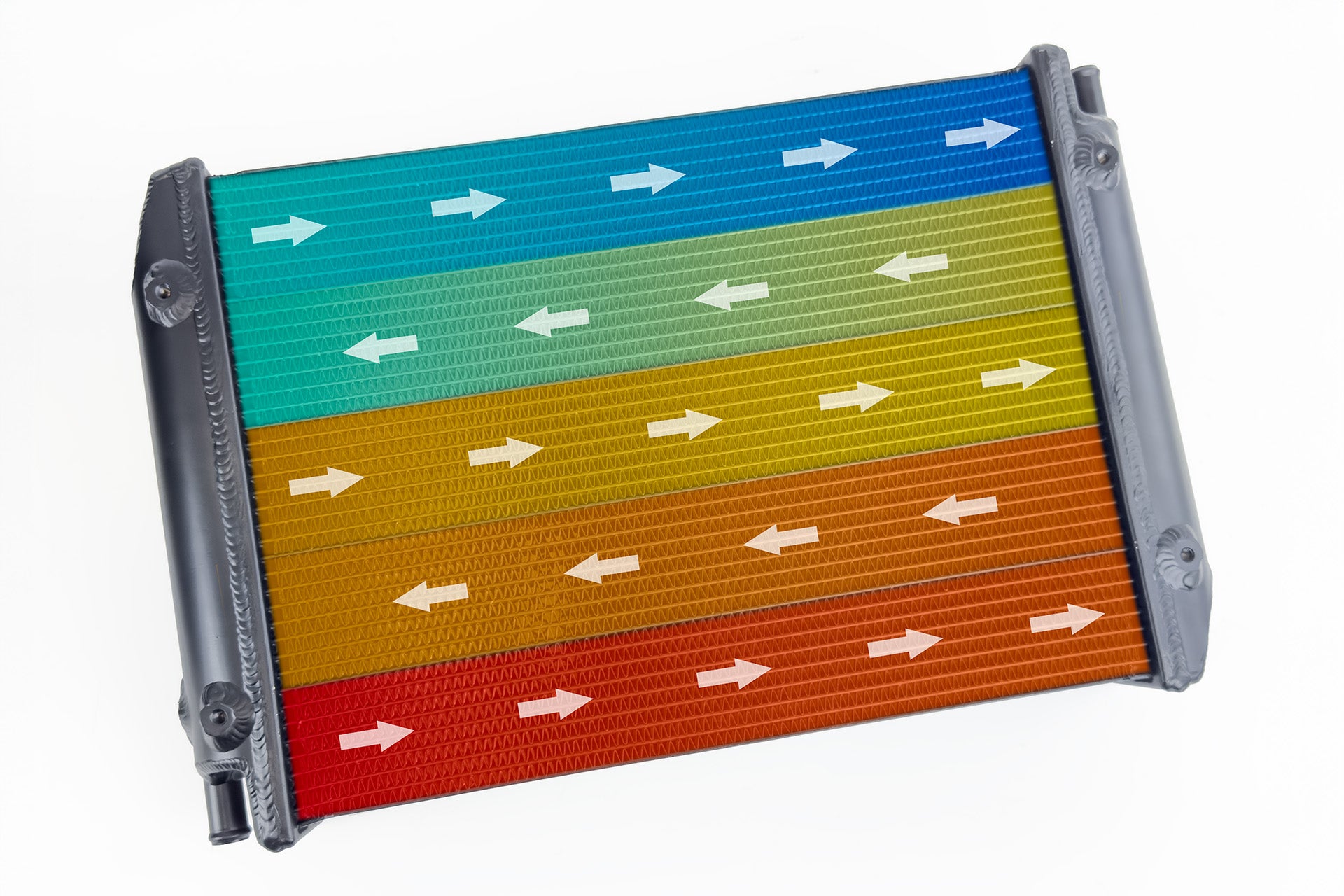

- 5 mm multi-louvred fins and a 5-pass design for longer coolant dwell time

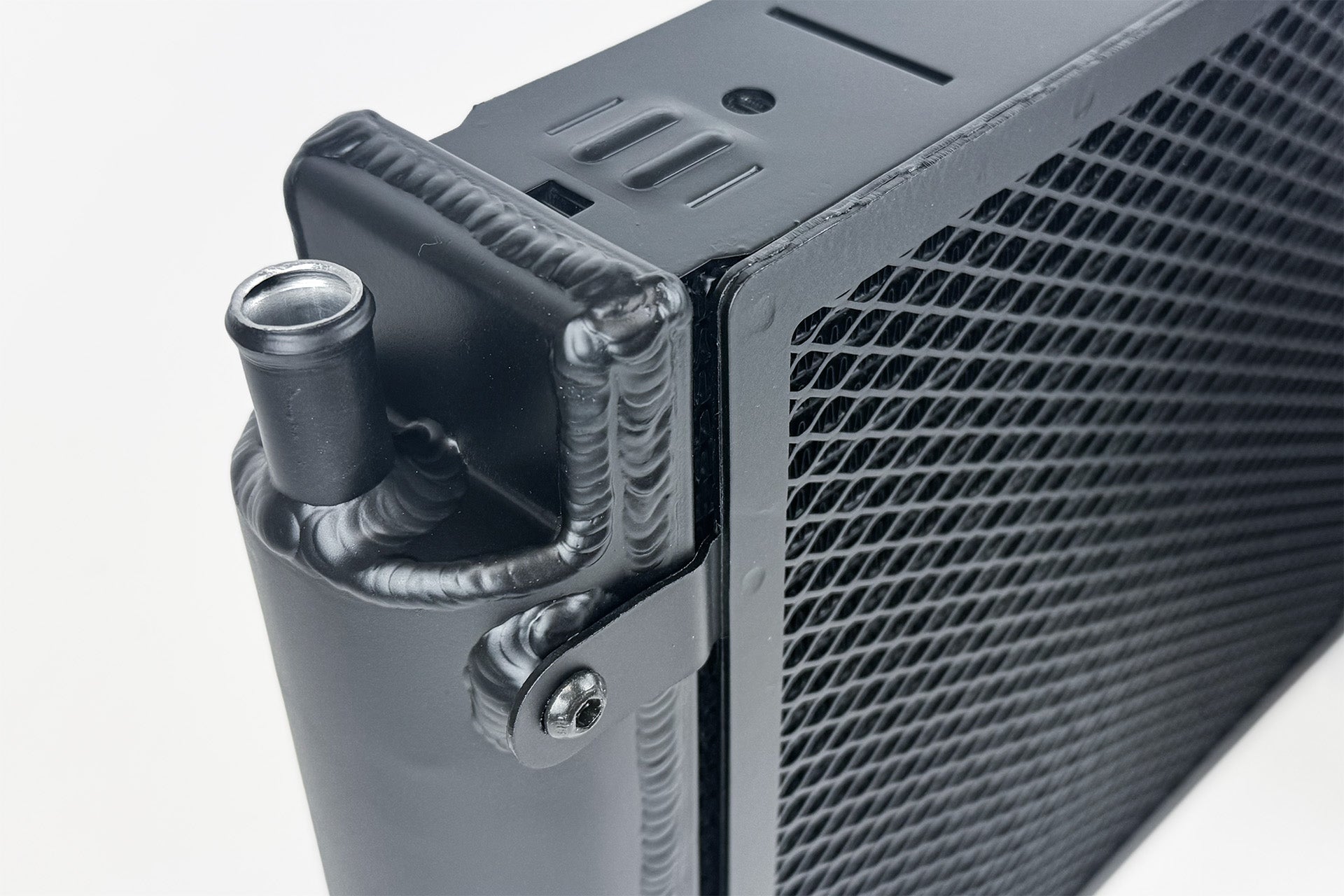

- 100% TIG-welded all-aluminium construction in place of the factory crimped and brazed design

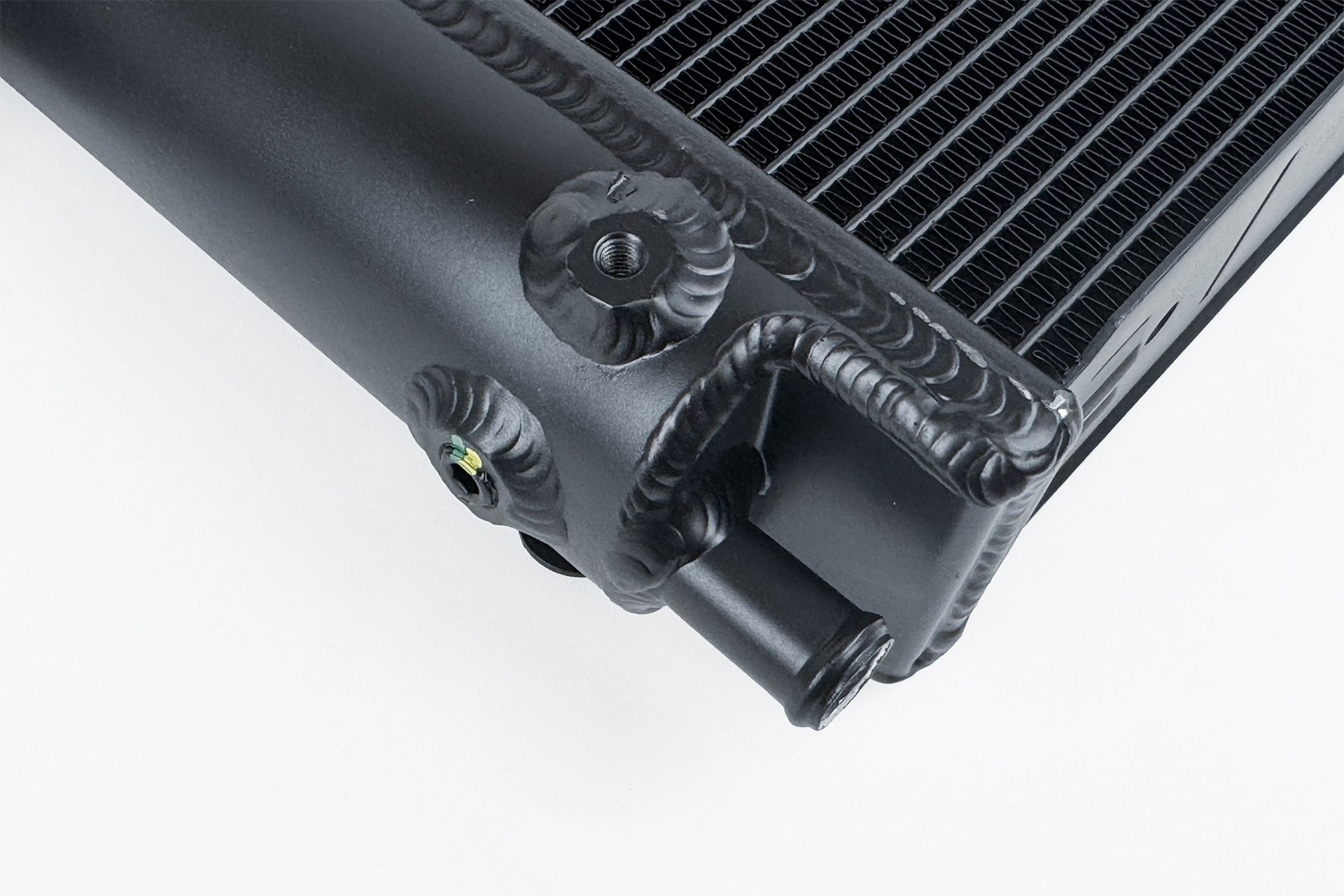

- Pre-plugged 1/8 NPT temperature sensor ports in the outlet tanks

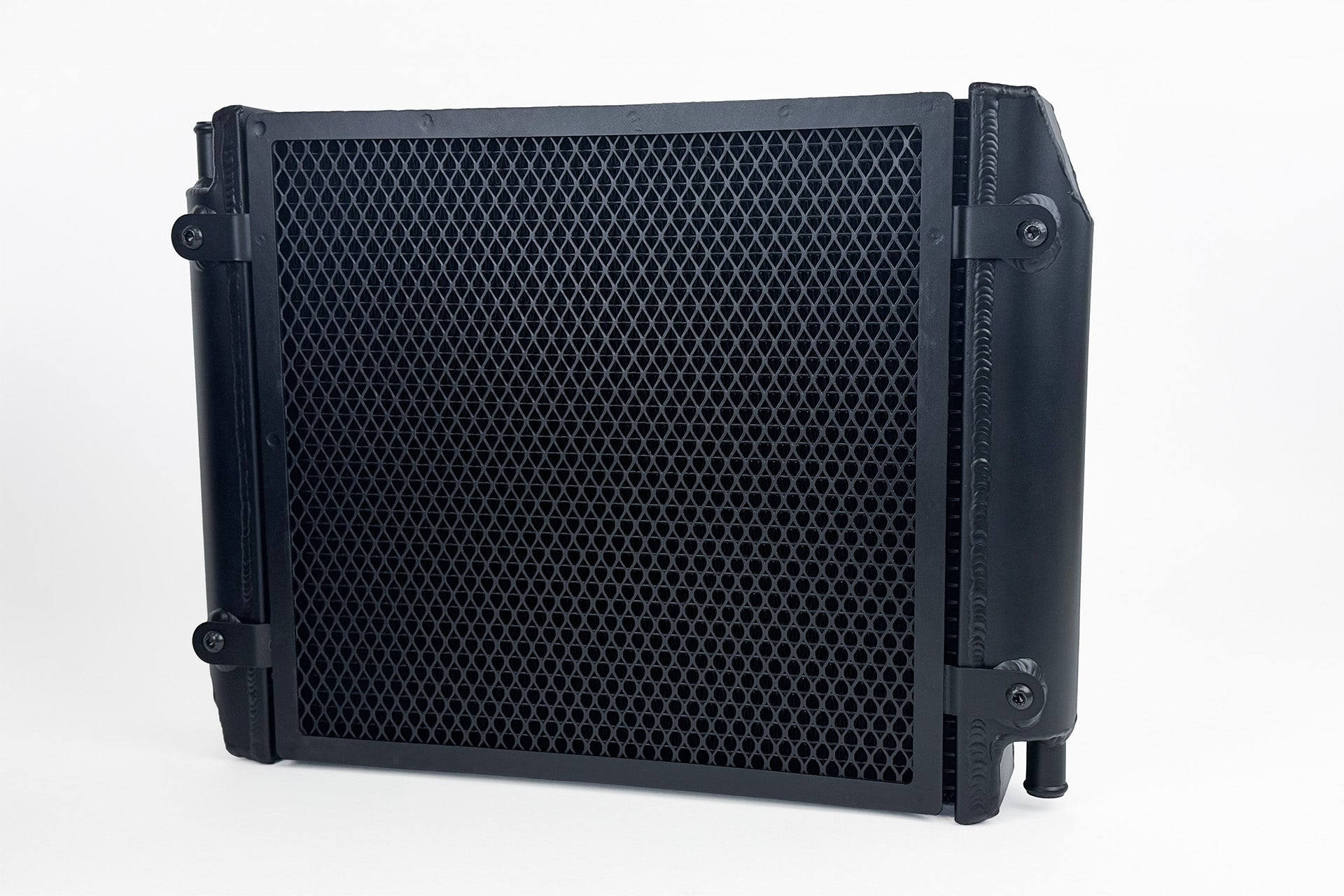

- Removable metal rock guards replace the OE plastic pieces (McLaren OE 11L0528CP)
- Reuses the OE foam strips; satin black finish
Specifications
- Replaces OEM: McLaren 11L0241CP
- Fitment: MP4-12C 2012-2014, MP4-12C Spider 2013-2014, 650S and 650S Spider 2015-2017, 675LT and 675LT Spider 2016-2017
- Supplied as: Sold individually; each car requires two (left and right)
⚠ Fitment Notes
The CSF #8212 and #8213 heat exchangers cover all 12C, 650S/675LT, 570S/570GT/600LT, 720S/765LT, 750S, and GT/GTS models. There is some overlap in fitment for the 650S and 675LT models so you should consult a McLaren dealership with your VIN to confirm which coolers your application requires. The difference in the two heat exchanger models is the core height (measurement between tanks). The CSF #8212 (McLaren OE: 13L0183CP or 11L0375CP) are ~59mm (2.3") taller than the CSF #8213 (McLaren OE: 11L0241CP).
CSF #8212
570s / 600LT / 720S / 765LT / 750S / GT / GTS
CSF #8213
12C / 650S / 675LT
CSF #8212 (McLaren OE: 13L0183CP or 11L0375CP)
CSF #8213 (McLaren OE: 11L0241CP)
Vehicle compatibility
Engine: Turbocharged 3.8L V8
- McLaren MP4-12C 2012–2014; Requires 2 Coolers (Left & Right)
- McLaren MP4-12C Spider 2013–2014; Requires 2 Coolers (Left & Right)
- McLaren 650S 2015–2017; See Fitment Notes. Requires 2 Coolers (Left & Right)
- McLaren 650S Spider 2015–2017; See Fitment Notes. Requires 2 Coolers (Left & Right)
- McLaren 675LT 2016–2017; See Fitment Notes. Requires 2 Coolers (Left & Right)
- McLaren 675LT Legacy 2024; See Fitment Notes. Requires 2 Coolers (Left & Right)
- McLaren 675LT Spider 2016–2017; See Fitment Notes. Requires 2 Coolers (Left & Right)
