CSF Aluminium Radiator for Honda Civic Type R (FL5) / Acura Integra Type S (DE5)

SKU: CSF7221
Sale price$1,295.10 Regular price$1,439.00
Save $143.90

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

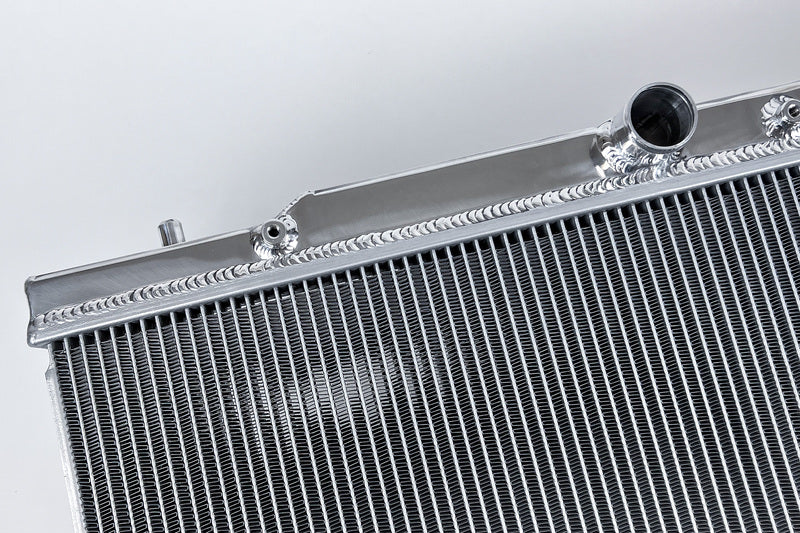

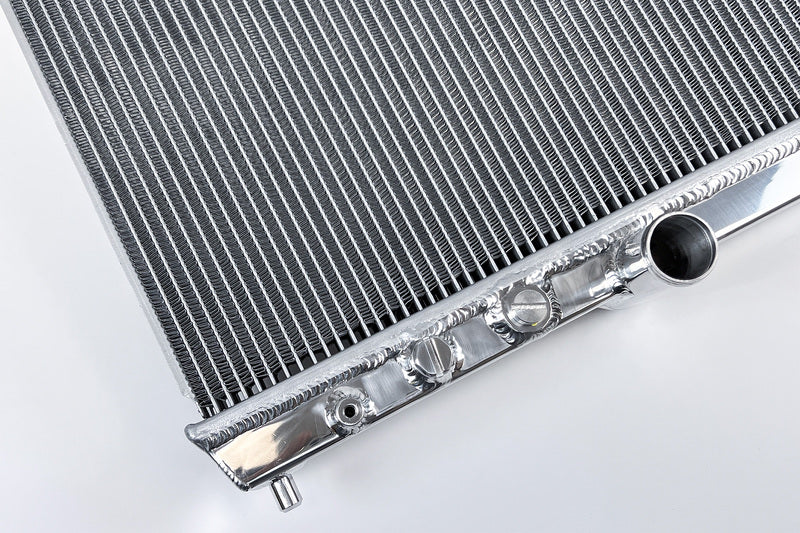

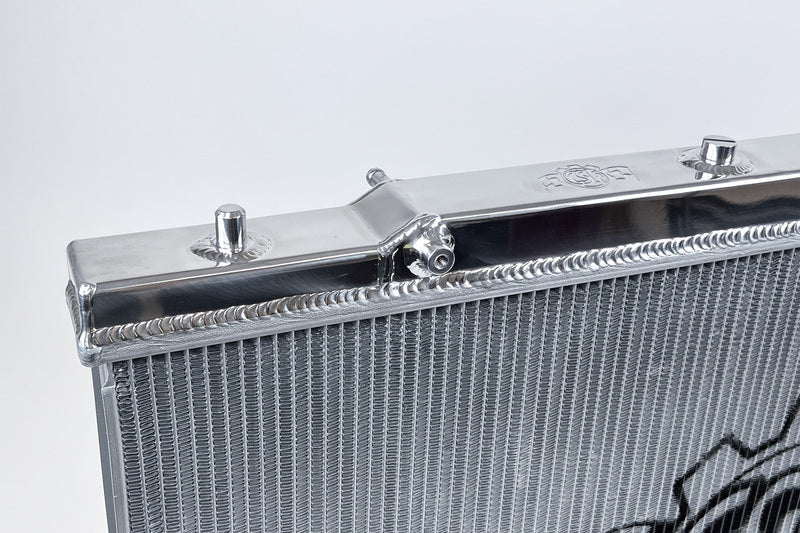

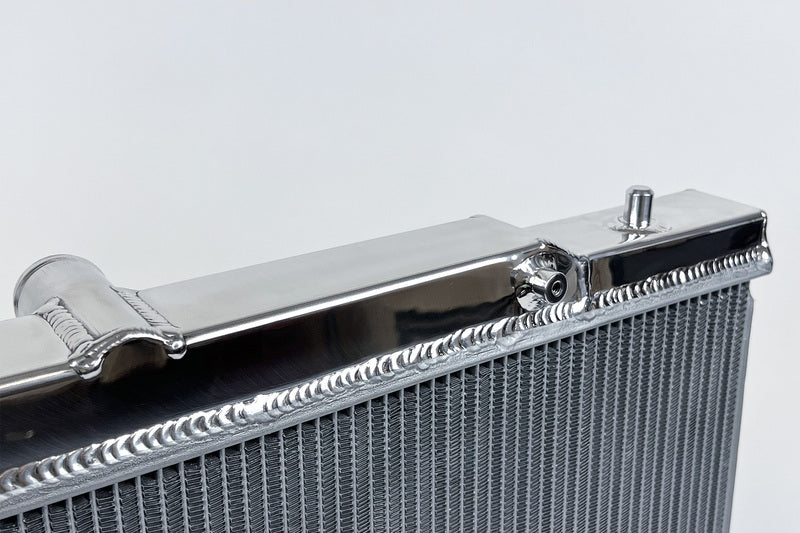

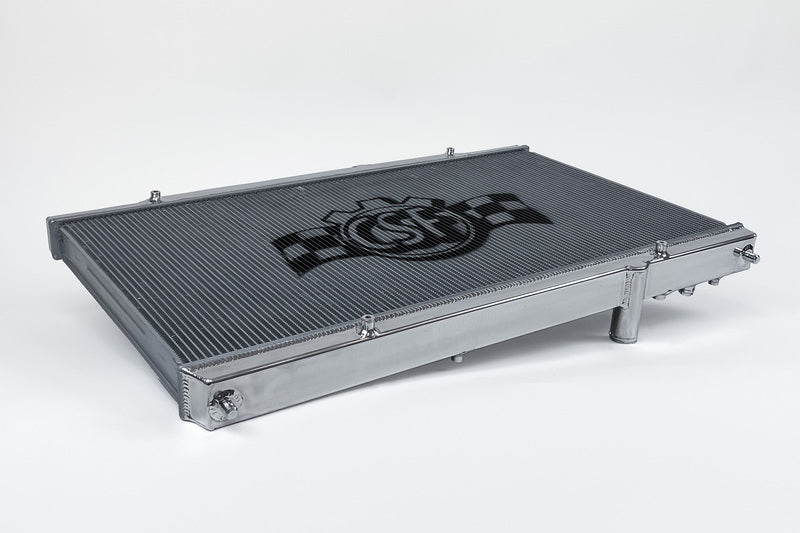

The CSF High-Performance All-Aluminium Radiator is designed for the Honda FL5 Civic Type R and Acura DE5 Integra Type S, with a hand-polished mirror finish.

Its 2-row, 42 mm core combines CSF B-Tube technology with 5 mm-tall multi-louvred fins. The radiator mounts in the factory location without cutting or modifications, using CNC-machined brackets and OEM-style inlet and outlet connections.

Key Features

  • All-aluminium TIG-welded construction
  • 105 cooling tubes and 106 cooling fin rows
  • 5 mm Track-Spec fin design for increased heat exchange surface area
  • Plug-and-play, drop-in installation
  • Individually leak and pressure tested

Specifications

  • Core: 2-row, 42 mm (OEM 1-row, 28 mm)
  • Cooling tubes: 105 (OEM 118)
  • Fin height: 5 mm (OEM 5.3 mm)
  • Tanks: Aluminium, 100% TIG-welded (OEM plastic, crimped gasket)

Vehicle compatibility

Engine: Turbocharged 2.0L L4

  • Acura Integra Type S (DE5) 2024–2026
  • Honda Civic Type R (FL5) 2023–2026
