CSF OEM+ A/C Evaporator for Porsche 911 (964/993)

SKU: CSF8368
Sale price$863.10 Regular price$959.00
Save $95.90

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

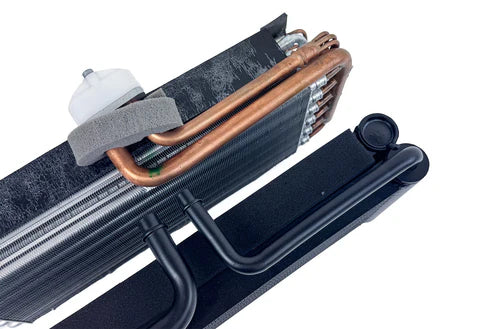

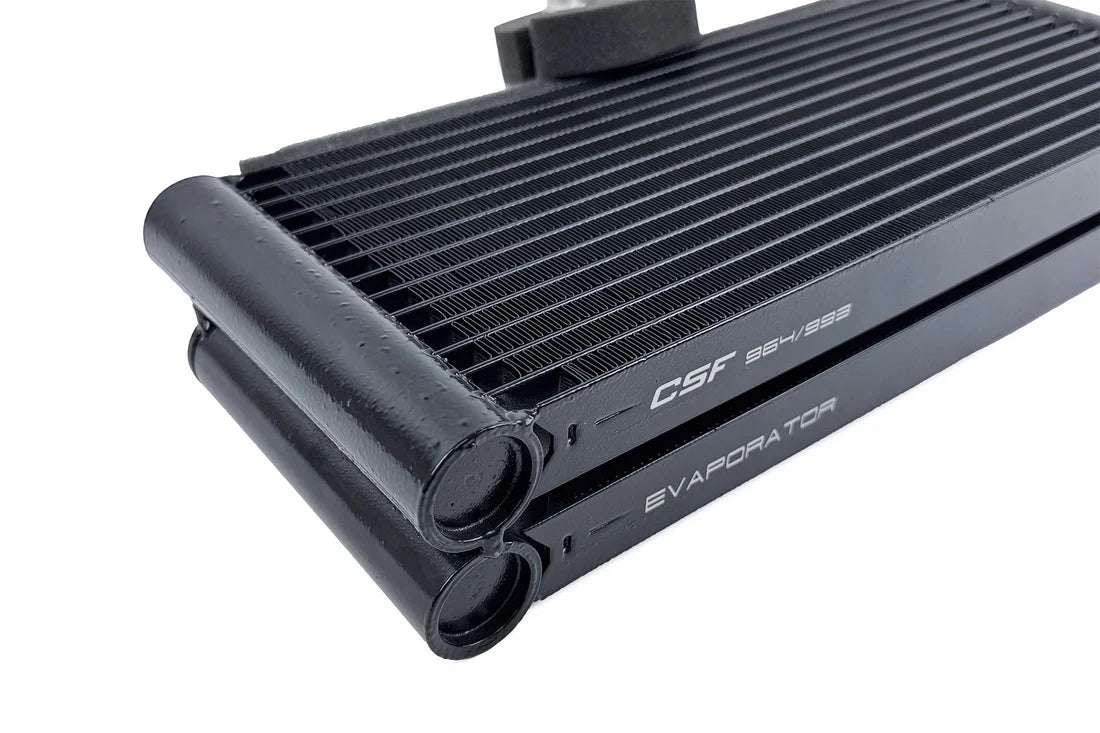

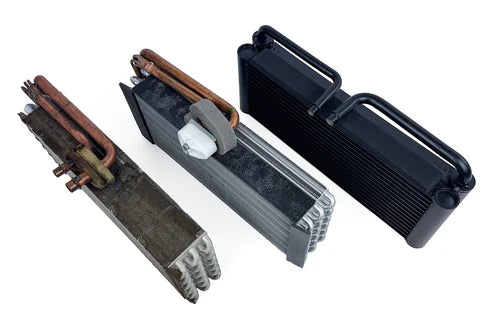

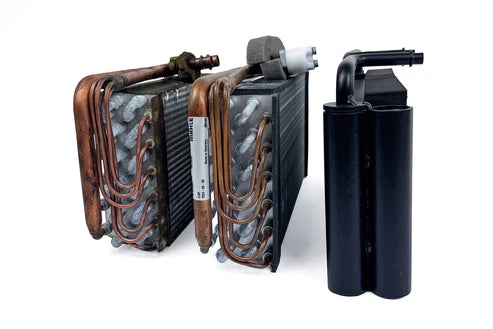

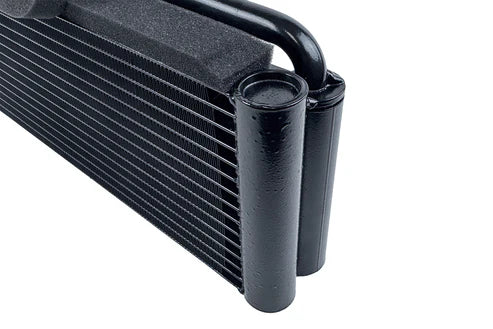

The CSF Porsche 964 / 993 OEM+ Performance A/C Evaporator is optimised for R134a refrigerant, including systems converted from R12. Its parallel-flow dual core uses a single-pass design and an anti-corrosive satin black powder coat finish to protect against oxidation and corrosion associated with white flakes or dust from the vents.

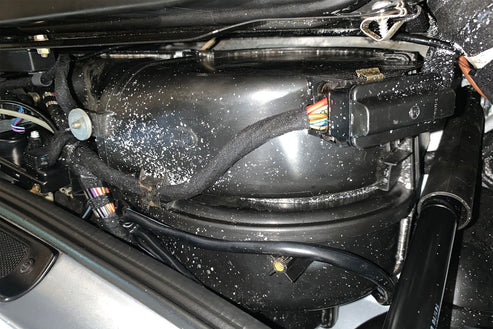

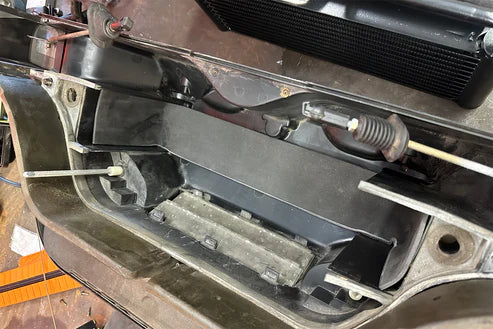

Developed with Motorsport Inc, the evaporator was test-fitted in the complete HVAC suitcase. This housing sits behind the dashboard and requires significant labour to remove and reinstall.

Key Features

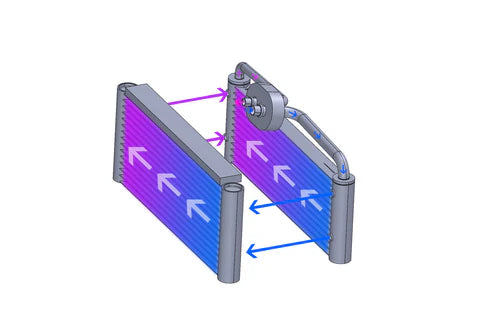

  • Cross-flow parallel dual core with super-high-pressure microtubes
  • Extruded multi-channel tubes paired with multi-louvred fins
  • 100% aluminium construction, including aluminium tanks, with brazing and robotic welding

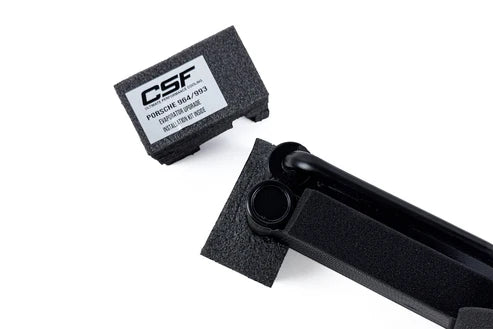

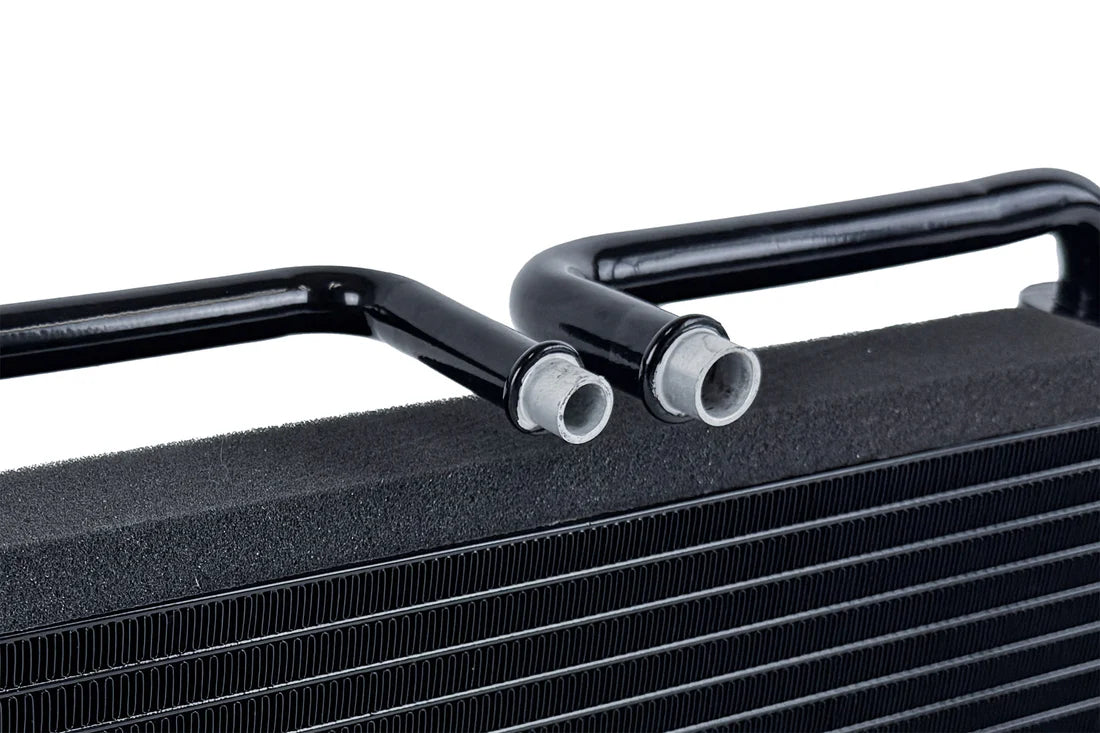

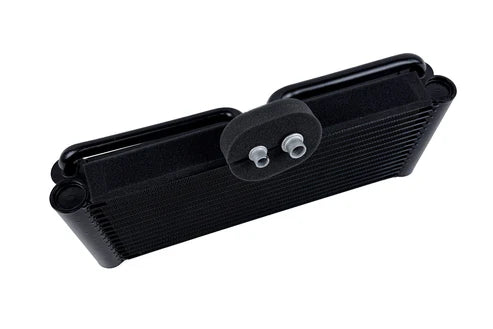

  • OEM-style inlet and outlet connections and pre-installed sealing foam

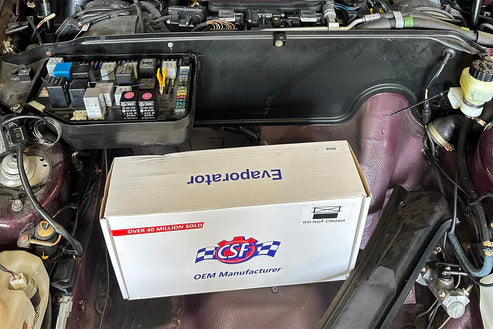

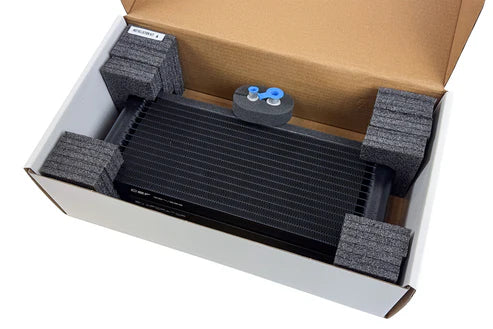

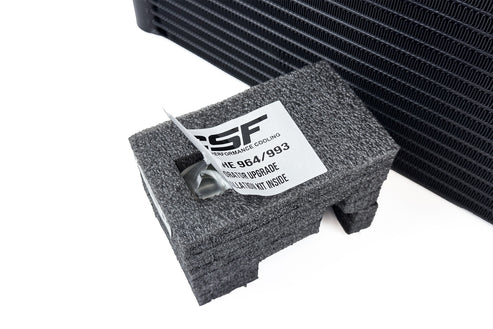

  • Individually leak and pressure tested; packaged in a box with laser-cut foam inserts

Specifications

  • Core thickness: 52 mm
  • Microtubes: 26 mm, 12-channel
  • Cooling tube rows: 24 total: 13 front and 11 rear
  • Fin height: 8 mm, multi-louvred
  • Fin rows: 25; the core specifications also describe 14 front and 12 rear cooling fin rows
  • OEM part numbers: Porsche 964-573-901-00 and 964-573-013-00. The evaporator can be paired with the CSF 964 / 993 OEM+ Performance A/C Condenser
  • Warranty: 2-year limited

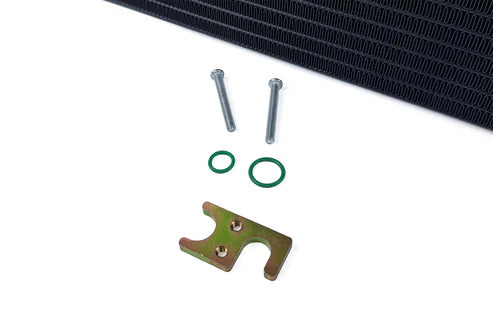

Important Includes hardware, O-rings and a bracket for attaching the OE expansion valve, Porsche 92857312305 or 92857022300.
Important Installation of the factory evaporator temperature sensor, OE 964-618-943-00, may require minor modifications. The sensor fits in the factory location with its end between the evaporator fins, and its wiring runs outside the HVAC suitcase before reconnection using butt connectors or soldering.

⚠ Fitment Notes

Evaporator Temp Sensor:

To install the factory evaporator temperature sensor (OE# 964-618-943-00) may require minor modifications. To install the sensor, CSF recommends following the following steps:

  1. Cut the wires in a place easy to reconnect.

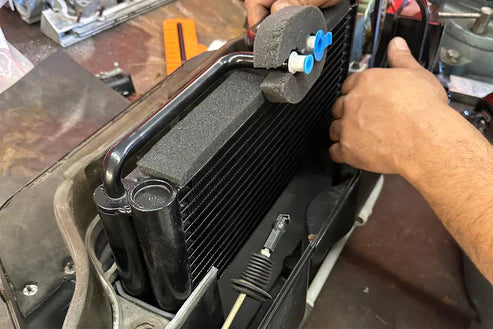

  2. Install the sensor in the factory location making sure the end of the sensors goes between fins on the evaporator.
  3. Run the wire outside the suitcase.
  4. Reconnect the wires for the sensor using butt connectors or soldering.

Vehicle compatibility

  • Porsche 911 Carrera (993) 1995–1998; 3.6L H6
  • Porsche 911 Carrera 2 (964) 1990–1994; 3.6L H6
  • Porsche 911 Carrera 4 (964) 1989–1994; 3.6L H6
  • Porsche 911 Carrera 4 (993) 1995–1998; 3.6L H6
  • Porsche 911 Carrera 4S (993) 1996–1998; 3.6L H6
  • Porsche 911 Carrera S (993) 1998; 3.6L H6
  • Porsche 911 RS America (964) 1993–1994; 3.6L H6
  • Porsche 911 Speedster (964) 1994; 3.6L H6
  • Porsche 911 Targa (993) 1996–1998; 3.6L H6
  • Porsche 911 Turbo (964) 1991–1992; Turbocharged 3.3L H6
  • Porsche 911 Turbo (993) 1996–1997; Turbocharged 3.6L H6
  • Porsche 911 Turbo 3.6 (964) 1993–1994; Turbocharged 3.6L H6
