CSF "Super Manifold" for A90/91 Supra and BMW B58

CSF B58 Charge-Air Cooler Manifold Features (CSF #8200)

• Utilises a High Performance, Motorsports-Grade Bar/Plate Air-to-Water Intercooler Core
  • Double the Capacity of the OEM Core (12 Rows of Water Cooling vs. OEM 6 Rows)
• Significantly Lower Pressure Drop Across the Core Compared to OEM
• Designed in SolidWorks Using Computational Fluid Dynamics (CFD)
  • Integrated Air Divider in Inlet Tank Evenly Distributes Airflow Throughout the Core
• Easy Access to Spin-Off Oil Filter for Quick Oil Changes " No Need to Uninstall Manifold Every Oil Change
  • Counter Balanced Design for Optimised Airflow
• Integrated Sensor Pad with Three 1/8"3 NPT Ports to Measure Additional Parameters

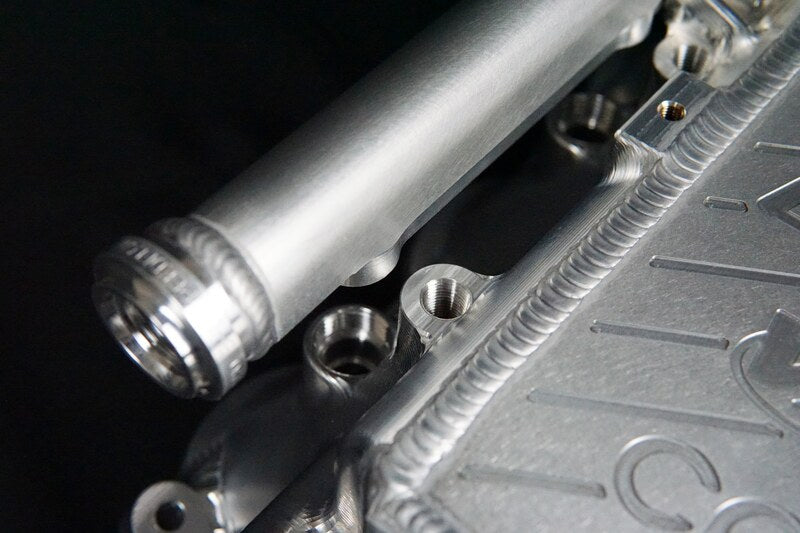

• Included Optional Fuel Rail for Top Feed Port Injection
  • Individual Port Injection Bungs on Each Cylinder Runner (Comes Pre-Plugged)
• Individual 1/8"3 NPT Ports on the Top of Each Cylinder Runner for Nitrous or Meth Injection
  • Allows for Even Spray Distribution and Control for Maximum Performance and Engine Protection
• Individual 1/8"3 NPT Breather Ports for Both Inlet/Outlet Water Connections on Back of Manifold for Easy Air-Bleeding of the System
• Plug-and-Play design, Requiring No Modifications to Install
  • Includes Hardware and Installation Kit with Picture Diagrams Containing 28 Different Parts for Easy Installation
  • Can be Used With OEM or Aftermarket Engine Covers (with OEM Connections)
• Comes Finished in Raw Billet Aluminum " Made by World-Leading Automotive Machinist Custom Plenum Creations in Australia
  • Optional Powder-Coating and Thermal Rejection Finishes Available
• Fitment
  • OEM # BMW: 11618647977 / Toyota: 17101WAA01
• Custom Colour Options Available
