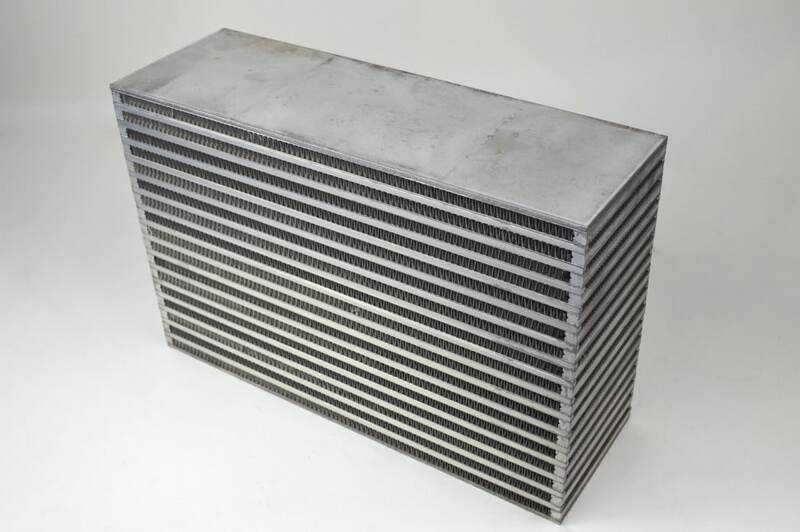

CSF Magnum 1000HP+ Bar & Plate Intercooler Core 18L x 12H x 6W
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

CSF Magnum 1000HP+ Bar & Plate Intercooler Core 18L x 12H x 6W
Sale price$755.10
Regular price$839.00 (/)
The CSF MAGNUM 1000HP+ Intercooler Core features a heavy-duty bar and plate design for custom intercooler applications. This is a horizontal-flow core.
Each core is hand-built using jigs and fixtures in a clean room to maintain straightness and a clean surface for subsequent welding. The cores are batch-brazed in a digital vacuum brazing oven and individually pressure tested.
Key Features
- Heavy-duty bar and plate construction
- Horizontal cross-flow layout
- Individually pressure tested
- Multi-louvred, high-precision staggered fins on both the ambient and pressure sides
- Universal core for custom intercooler applications
Specifications
- Dimensions: 18 x 12 x 6" (455 x 300 x 150 mm)
- Power rating: 1300 WHP
- Test pressure: 120 psi
Vehicle compatibility
- Universal
