Eventuri V2 Black Carbon Intake for BMW M5/M6 (E6X)
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

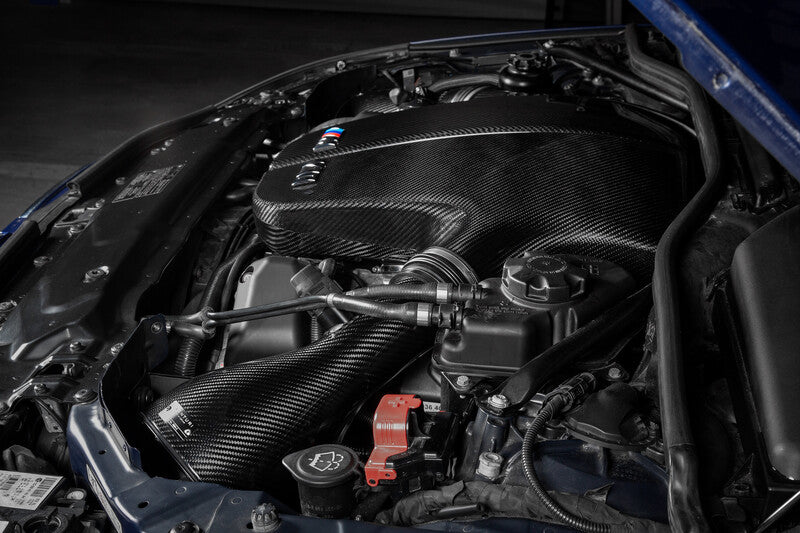

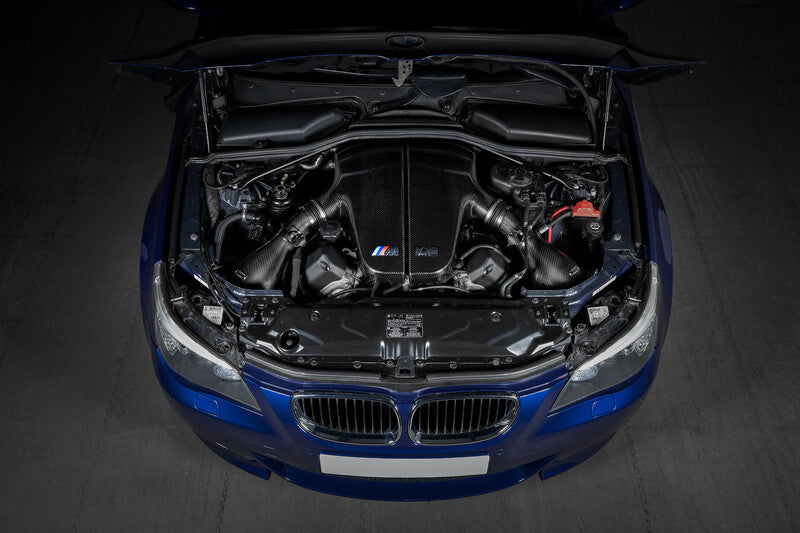

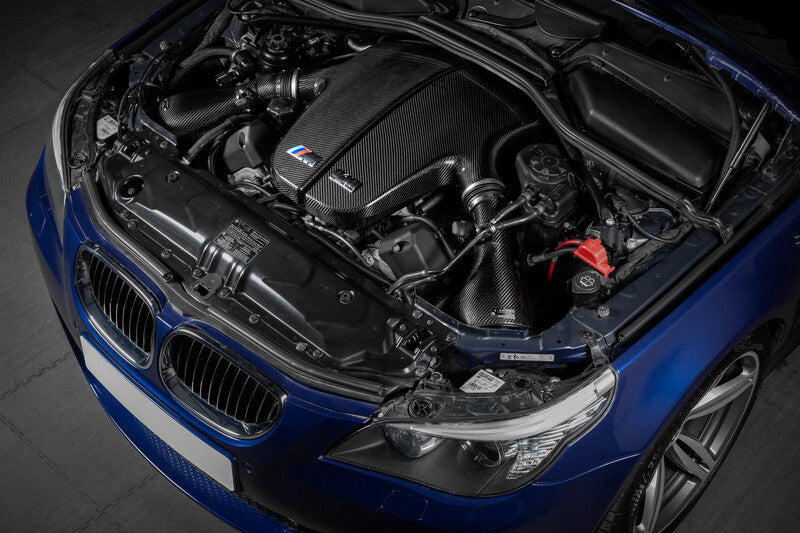

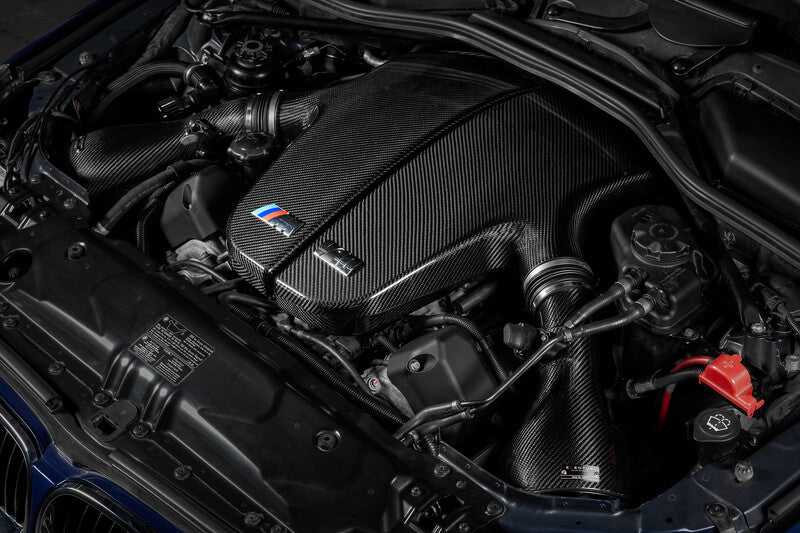

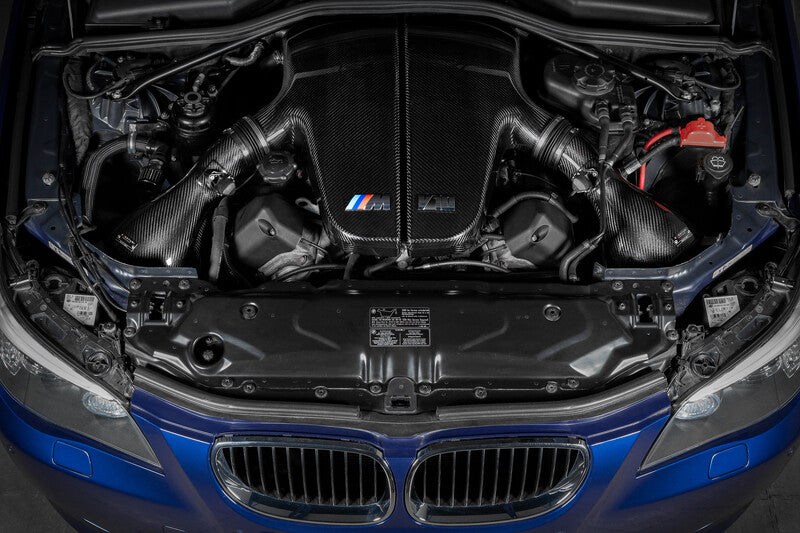

The Eventuri V2 Black Carbon Intake for the BMW E60 M5 / E63 M6 (E6X) is an updated, more integrated design. The MAF tube is built into the carbon housing and the OEM flexible hoses are replaced with custom shorter versions, giving the system a seamless look. Aerodynamic principles and computational fluid dynamics were used to optimise the airflow, aiming at sharper throttle response, improved driveability and an intoxicating V10 induction sound.

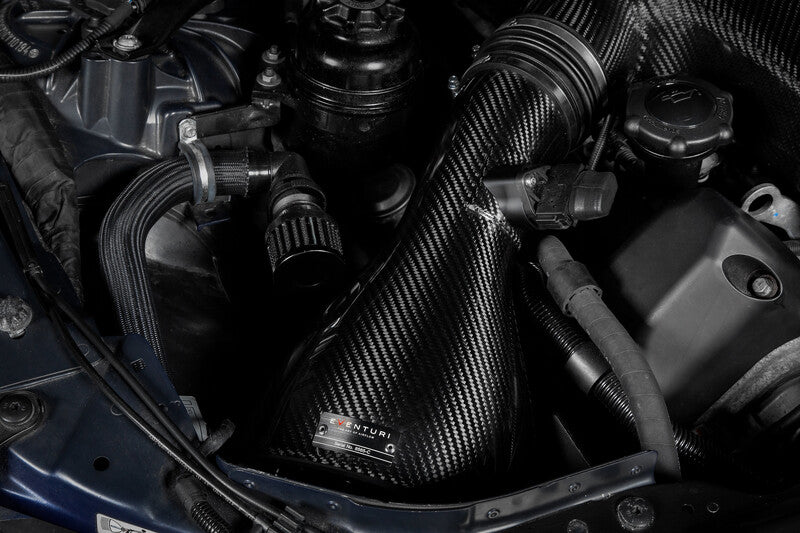

The S85 system uses Eventuri's Patent Pending carbon fibre housing, which provides an aerodynamically efficient airflow path from the filter to the MAF tube. It is not just another cone filter with a heat shield but a unique design that invokes the Venturi effect. The carbon housing shrouds the reverse-mounted filters and smoothly shapes the airflow towards the MAF tubes, where volume is gradually reduced, accelerating airflow while maintaining laminar conditions.
Key Features
- Shorter cone filter balances filtration area against housing volume, allowing a housing shape that flows better towards the MAF tubes; the filter medium is ISO tested to ensure filtration is in line with OEM standards, and is dry
- Custom EPDM couplers are internally stepped like the OEM versions, replacing the OEM flexible hose to give a smooth path between the housings and the plenum
- 2 scoops sit behind the front nose grills and curve to direct ambient air into the stock ducting, displacing heated air from the intake area; 2 lower scoops in the brake ducts direct ambient air into the mouths of the intakes
- Neoprene-lined aluminium heat shields sit on the engine side of each intake and deflect hot air from the radiator, especially when the fan operates

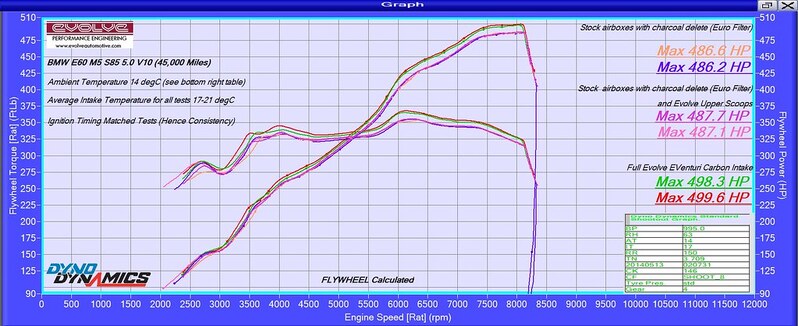

- Eventuri quotes a performance gain of 12-15hp, 12-18ft-lb

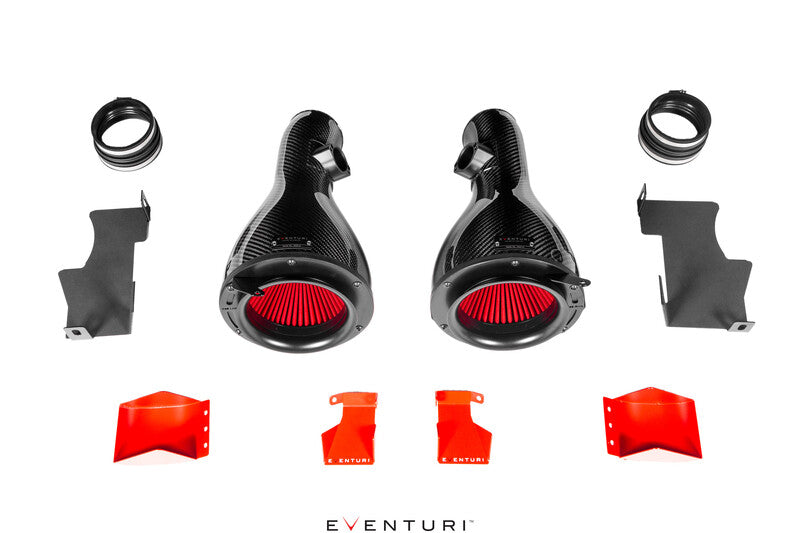

Specifications
- Housings: 2 x 100% Pre Preg carbon fibre with integrated MAF tubes
- Filters: Custom high-flow air filters
- Couplers: 2 x custom EPDM
- Breather adapter: CNC-machined secondary air flow
- Intake cowls: Aluminium
- Brackets: Laser-cut mounting brackets
- Heat shields: 2 laser-cut aluminium, neoprene lined
- Air scoops: Laser-cut aluminium, powder coated; 2 upper and 2 lower
- Hardware: OEM specification hose clamps with high-quality silicone couplers, OEM quality anti-vibration mounts
Vehicle compatibility
- BMW E60/E63 M5/M6 with the S85 engine.
