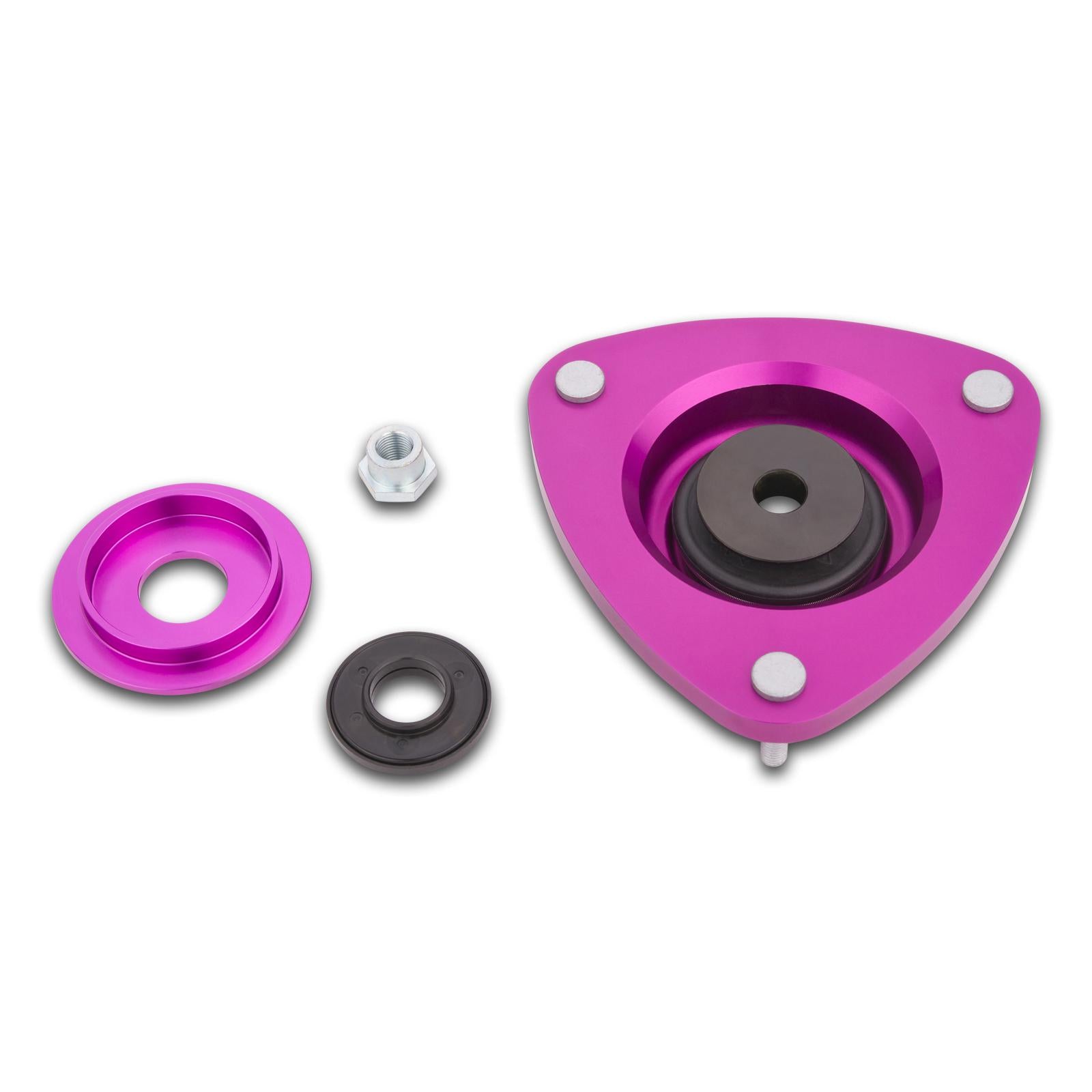

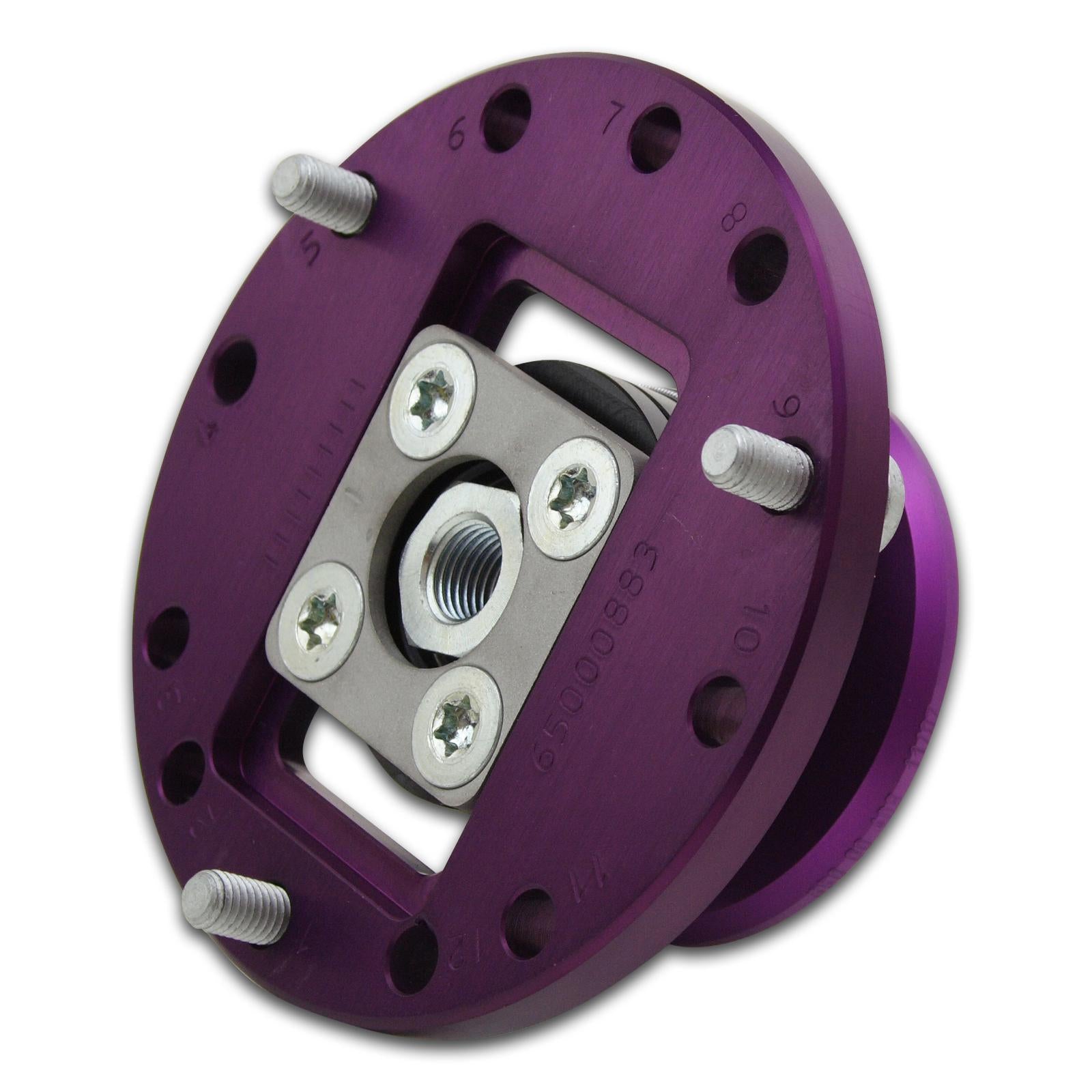

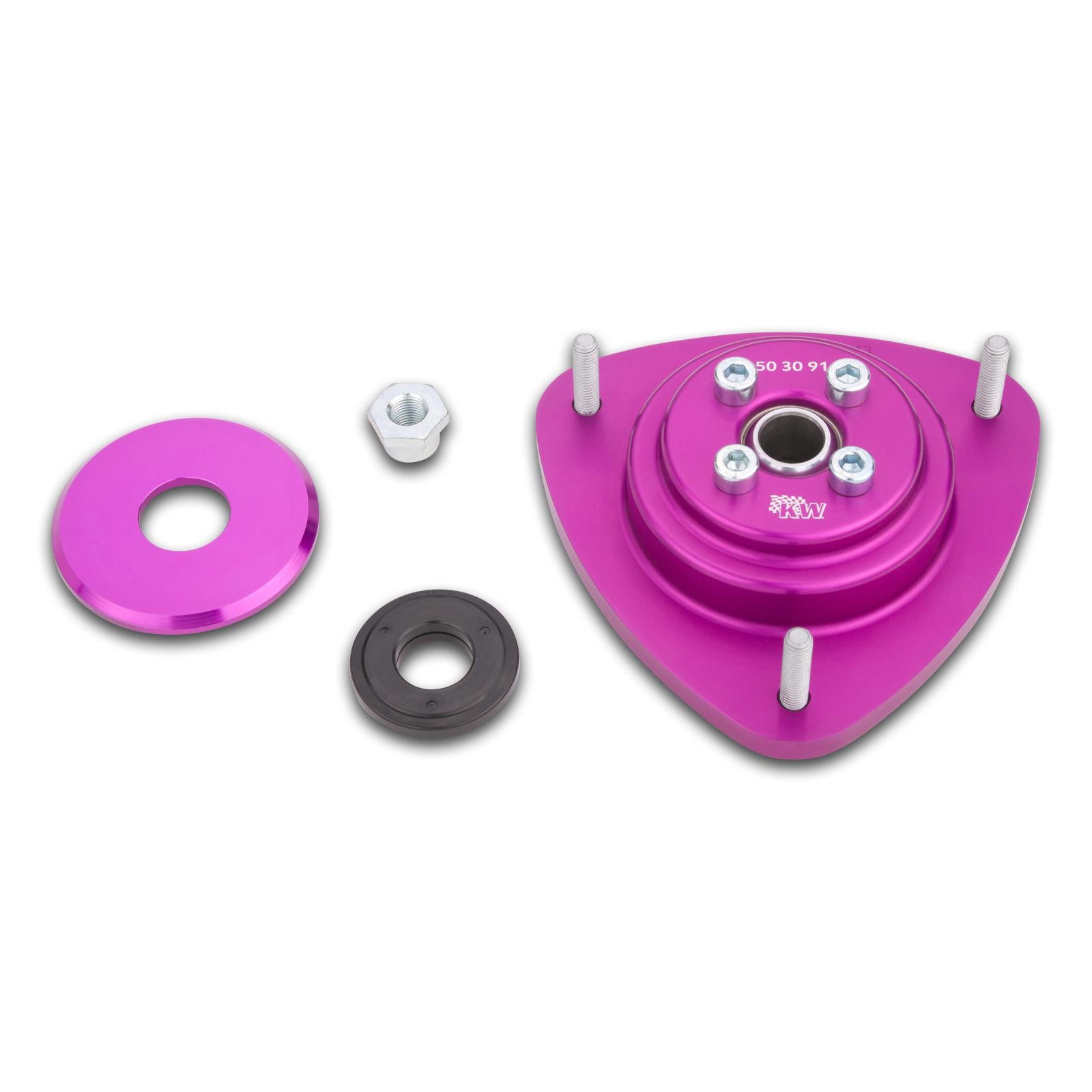

KW Clubsport top mount FA (with camber and castor adjustment) for Suzuki SWIFT III (FZ, NZ) 10/2010-
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.
Description
KW Clubsport Unibal Top Mounts
KW Clubsport aluminium unibal top mounts have been tranfered from motorsports to the street.
We also offer adjustable top mounts made from high tensile aluminium alloy for our KW Clubsport kits. Camber and caster (optional) adjustments are available on certain applications.
Designed for the toughest race track in the world: the Nürburgring Nordschleife
A special KW sealing system avoids an intrusion of dirt and water into the free of play and preloaded unibal bearings. Furthermore axial bearings allow rotation of springs at McPherson struts.
- Scaled camber adjustment
- Sealed and preloaded spherical bearing
- Axial bearings allow rotation of springs at McPherston struts
- Made of tool steel (100Cr6): 58 to 64 HRC - hard chrome plated
- PTFE surface inlay, stainless steel outer ring (X20Cr13)
|
Manufacturer
|
Model
|
Engine
|
Vehicle shape
|
Fuel
|
Performance
|
Cubic capacity
|
Cylinder
|
Drivetrain
|
|---|---|---|---|---|---|---|---|---|
| SUZUKI | SWIFT III (FZ, NZ) 10/2010- | 1.2 | Hatchback | Petrol | 63 KW | 1197 ccm | 4 | Front Wheel Drive |
| SUZUKI | SWIFT III (FZ, NZ) 10/2010- | 1.2 | Hatchback | Petrol | 64 KW | 1197 ccm | 4 | Front Wheel Drive |
| SUZUKI | SWIFT III (FZ, NZ) 10/2010- | 1.2 (AZG 412) | Hatchback | Petrol | 66 KW | 1242 ccm | 4 | Front Wheel Drive |
| SUZUKI | SWIFT III (FZ, NZ) 10/2010- | 1.2 (AZH 412, AZG 412) | Hatchback | Petrol | 67 KW | 1242 ccm | 4 | Front Wheel Drive |
| SUZUKI | SWIFT III (FZ, NZ) 10/2010- | 1.2 (AZH 412) | Hatchback | Petrol | 69 KW | 1242 ccm | 4 | Front Wheel Drive |
| SUZUKI | SWIFT III (FZ, NZ) 10/2010- | 1.2 VVT | Hatchback | Petrol | 61 KW | 1197 ccm | 4 | Front Wheel Drive |
| SUZUKI | SWIFT III (FZ, NZ) 10/2010- | 1.3 DDiS (AZG 413D) | Hatchback | Diesel | 55 KW | 1248 ccm | 4 | Front Wheel Drive |
| SUZUKI | SWIFT III (FZ, NZ) 10/2010- | 1.4 (AZH 414) | Hatchback | Petrol | 70 KW | 1372 ccm | 4 | Front Wheel Drive |
| SUZUKI | SWIFT III (FZ, NZ) 10/2010- | 1.4 (AZH 414) | Hatchback | Petrol | 75 KW | 1372 ccm | 4 | Front Wheel Drive |
| SUZUKI | SWIFT III (FZ, NZ) 10/2010- | 1.6 (AZG 416, AZH 416, RS416) | Hatchback | Petrol | 100 KW | 1586 ccm | 4 | Front Wheel Drive |
