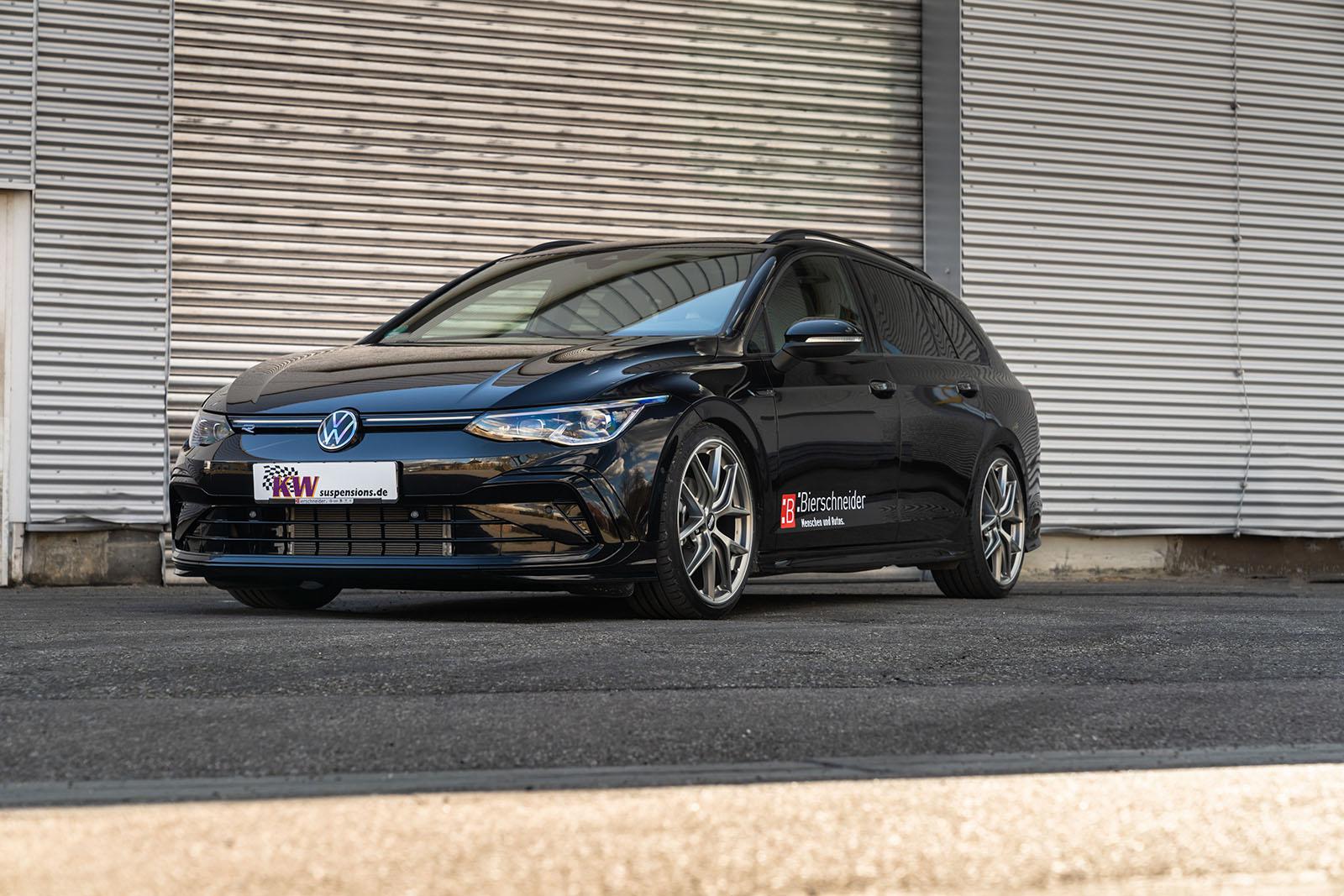

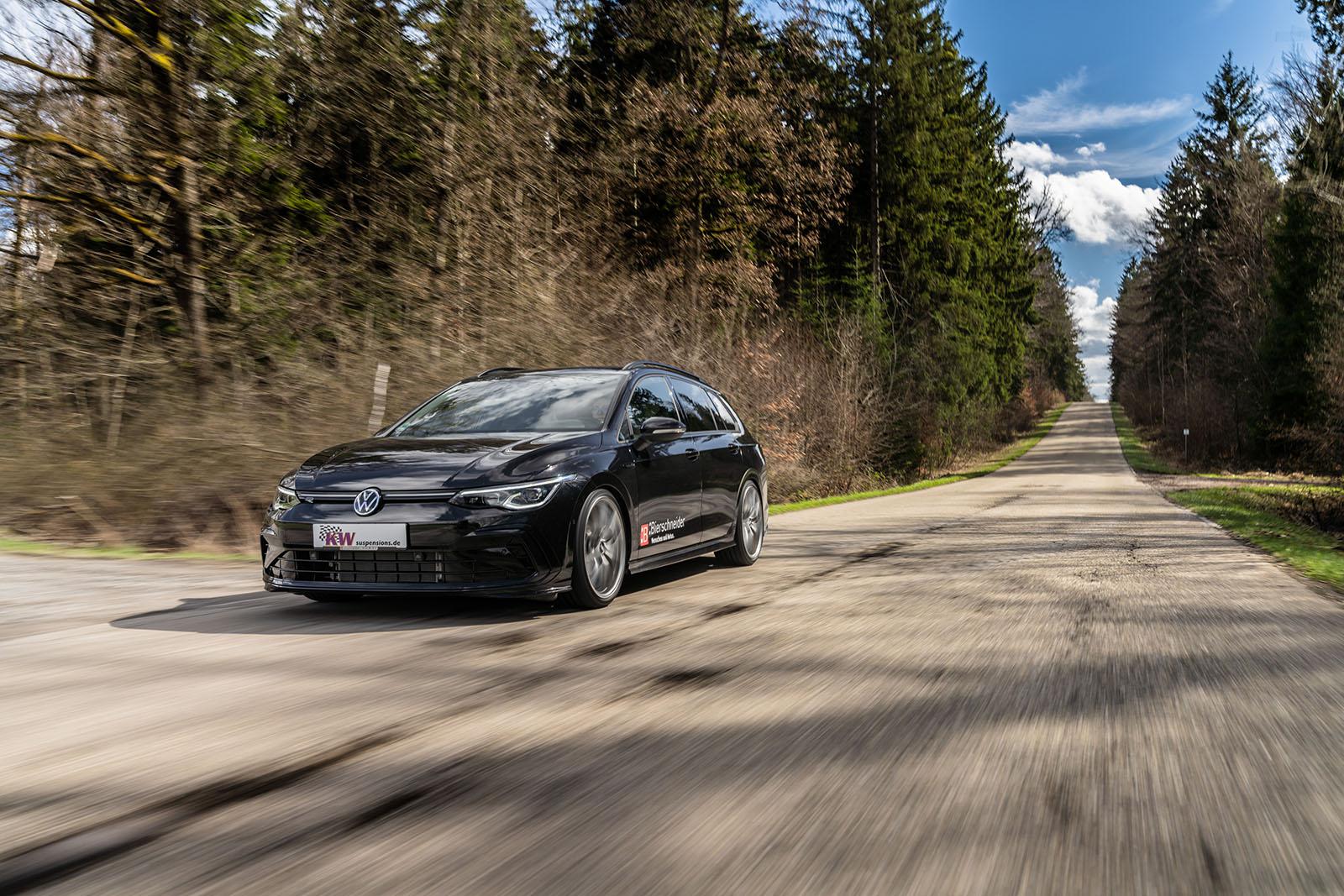

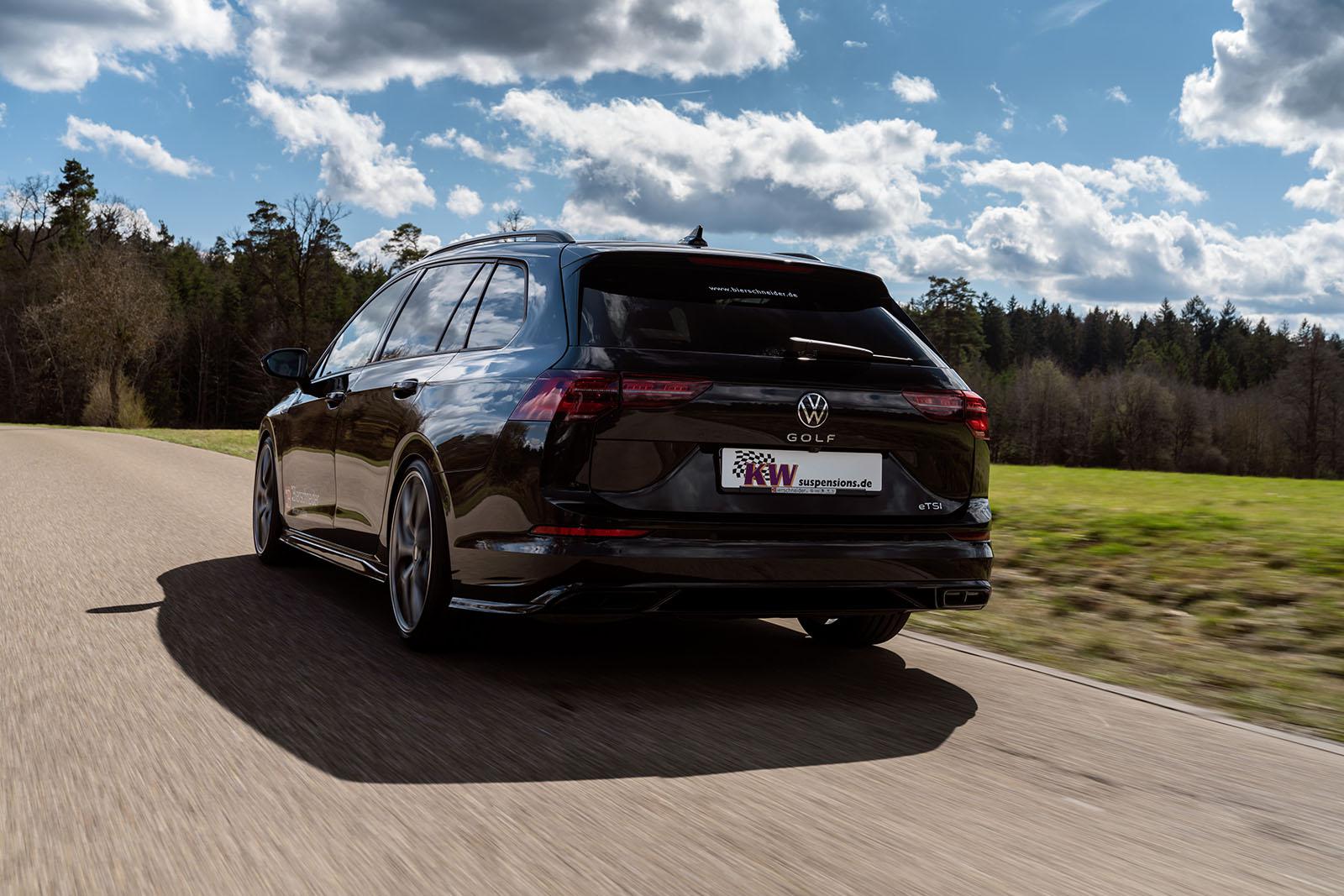

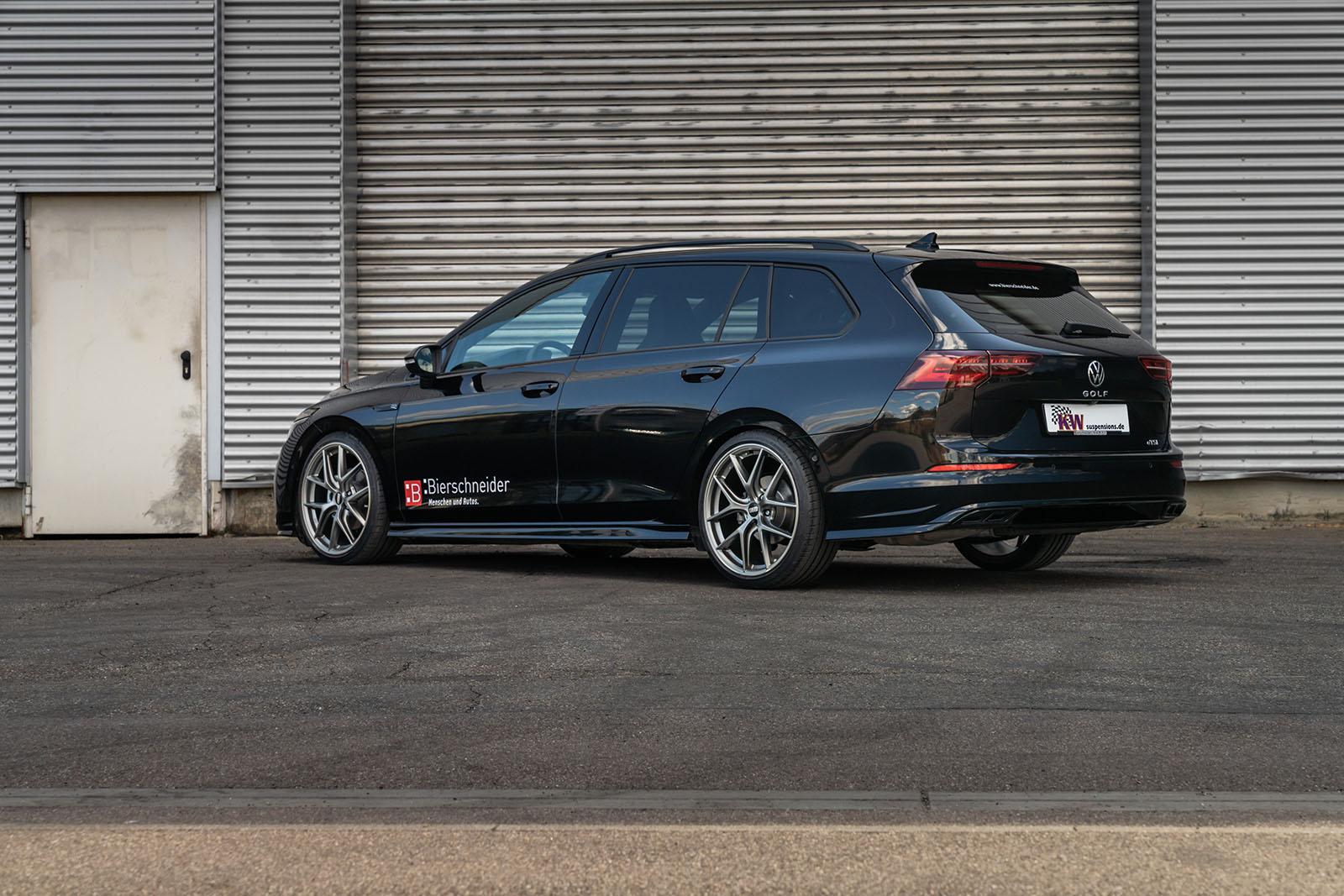

KW Coilover Kit V1 for VW (MK8) Golf Wagon 1.0L-2.0L - 55mm Front Strut

SKU: 102800DR
Sale price$2,022.30 Regular price$2,889.00
Save $866.70

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V1 is the entry model in its street coilover range, pairing height-adjustable struts with a damper setup that KW pre-configures for each vehicle. Ride height is continuously adjustable within the tested range using a dirt-resistant trapezoidal thread and composite collar, so it can still be changed easily years after fitting. Corrosion-resistant springs and bump stops are built for a long service life. This kit is developed for the VW Golf Wagon (MK8) 1.0-2.0.

Key Features

  • Vehicle-specific, factory-set damping
  • Continuous ride height adjustment within the tested range
  • Trapezoidal thread with composite adjuster collar

Specifications

  • Version: V1
  • Damping: Fixed, vehicle-specific setting
  • Material: Stainless steel
  • Front lowering: 35–60 mm
  • Rear lowering: 35–60 mm
  • Front axle load: up to 1,035 kg
  • Rear axle load: up to 1,040 kg
  • Front strut diameter (vehicle): 55 mm
  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 1,035 kg; Rear axle load up to 1,040 kg.

For vehicles without electronic damper control.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2020+VWGolf VIII Estate (CDV)1.0 TSIPetrol · 66 kW · 1.0L · 3-cylFront-Wheel Drive2, 37, 57
2020+VWGolf VIII Estate (CDV)1.0 TSIPetrol · 81 kW · 1.0L · 3-cylFront-Wheel Drive2, 37, 57
2020+VWGolf VIII Estate (CDV)1.0 eTSIPetrol/Electric · 81 kW · 1.0L · 3-cylFront-Wheel Drive2, 37, 57
2020+VWGolf VIII Estate (CDV)1.5 TSIPetrol · 85 kW · 1.5L · 4-cylFront-Wheel Drive2, 37, 57
2020+VWGolf VIII Estate (CDV)1.5 TSIPetrol · 96 kW · 1.5L · 4-cylFront-Wheel Drive2, 37, 57
2020+VWGolf VIII Estate (CDV)1.5 TSIPetrol · 110 kW · 1.5L · 4-cylFront-Wheel Drive2, 37, 57
2020+VWGolf VIII Estate (CDV)1.5 eTSIPetrol/Electric · 85 kW · 1.5L · 4-cylFront-Wheel Drive2, 37, 57
2020+VWGolf VIII Estate (CDV)1.5 eTSIPetrol/Electric · 96 kW · 1.5L · 4-cylFront-Wheel Drive2, 37, 57
2020+VWGolf VIII Estate (CDV)1.5 eTSIPetrol/Electric · 110 kW · 1.5L · 4-cylFront-Wheel Drive2, 37, 57
2020+VWGolf VIII Estate (CDV)2.0 TDIDiesel · 85 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 57
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
  • Note 57: Only for cars with a clamp diameter of 55mm on the front axle.
