KW Coilover Kit V3 for BMW (E34) 540i / 530i V8
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW Coilover Kit V3 for BMW (E34) 540i / 530i V8
Sale price$5,594.55
Regular price$5,889.00 (/)
KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the BMW 540i / 530i V8 (E34).
Key Features
- Rebound damping adjustable in 16 clicks
- Compression damping adjustable in 12 clicks
- Continuous ride height adjustment within the tested range
Specifications
- Version: V3
- Damping: Adjustable rebound and compression
- Material: Galvanised steel
- Front lowering: 40–75 mm
- Rear lowering: 40–70 mm
- Front axle load: up to 1,060 kg
- Rear axle load: up to 1,300 kg

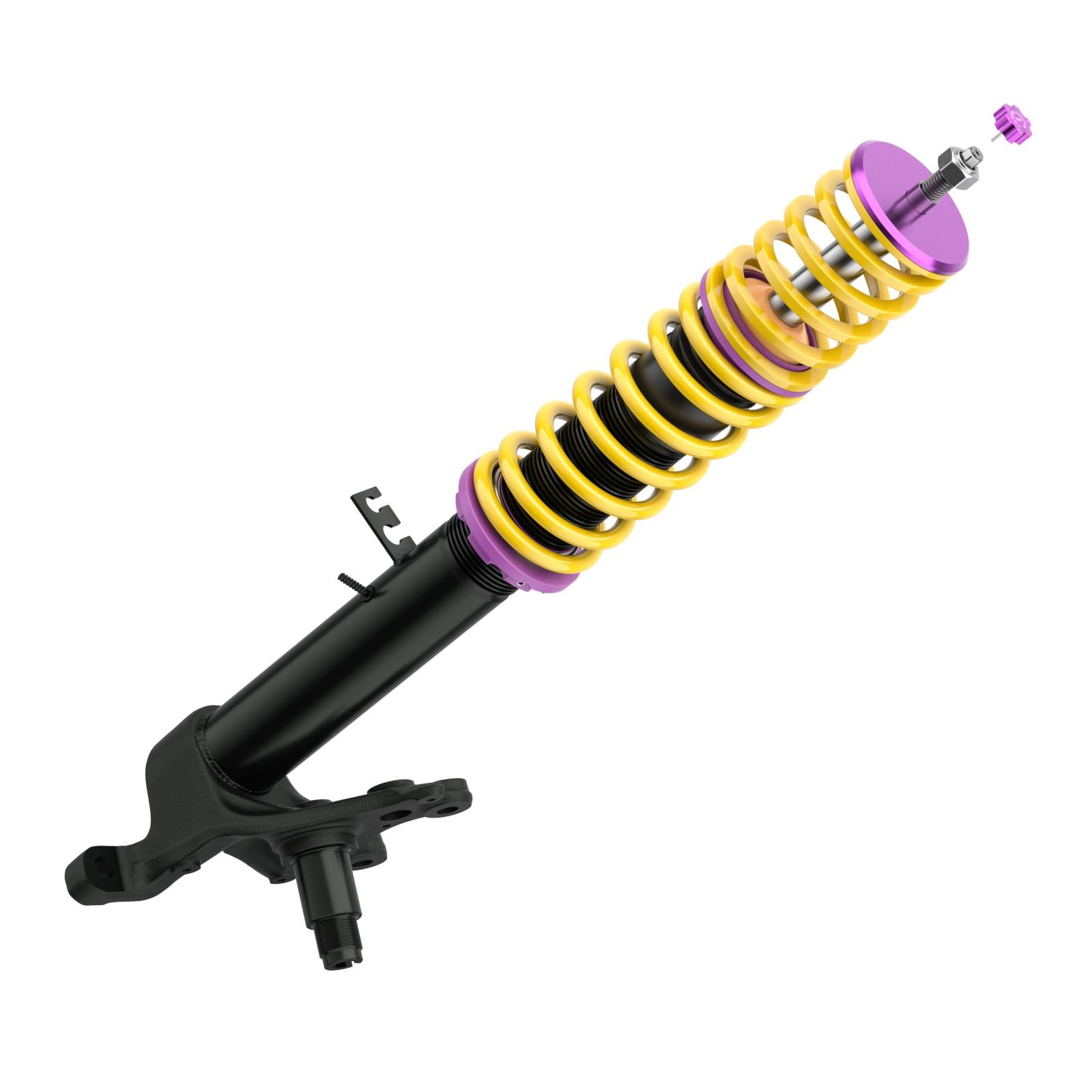

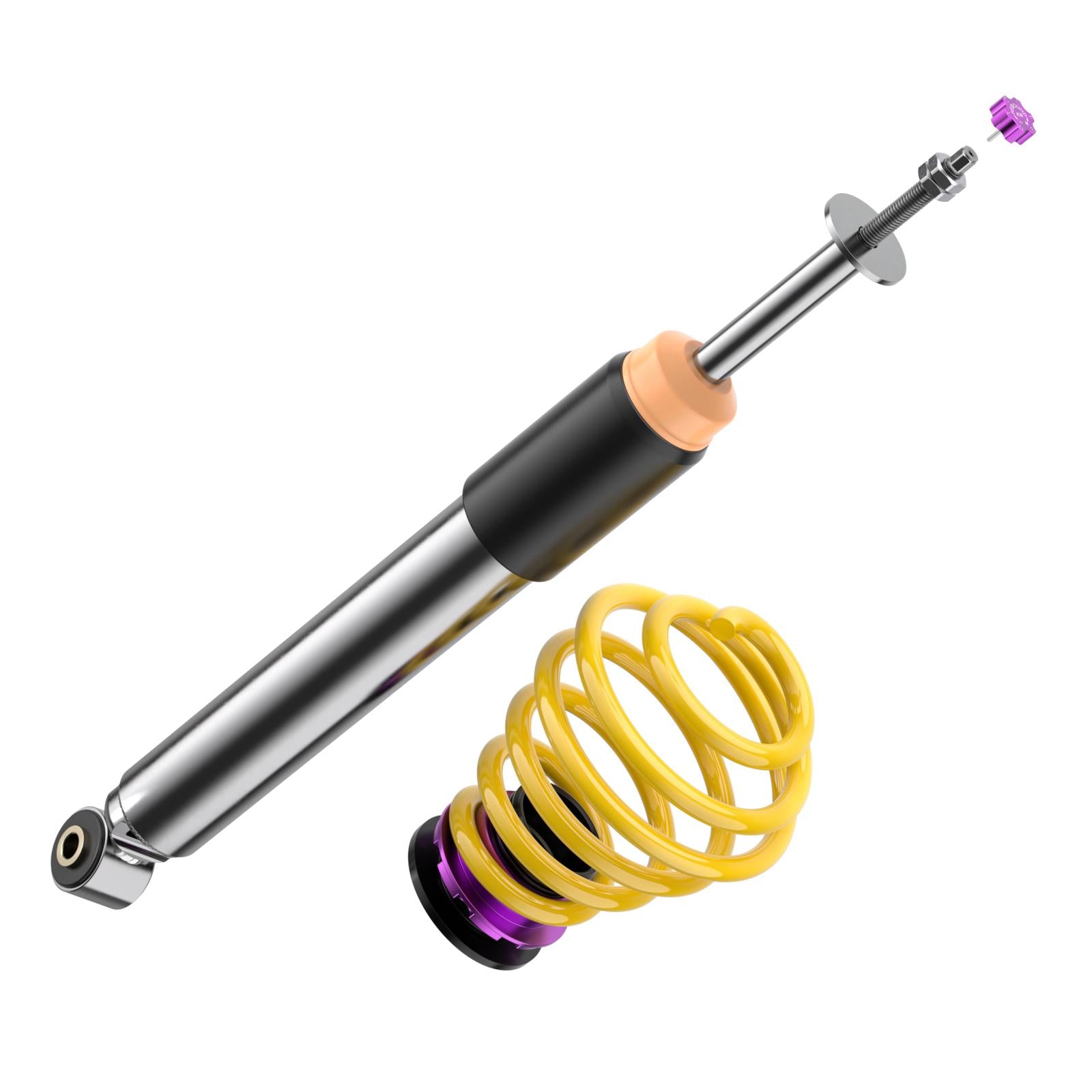

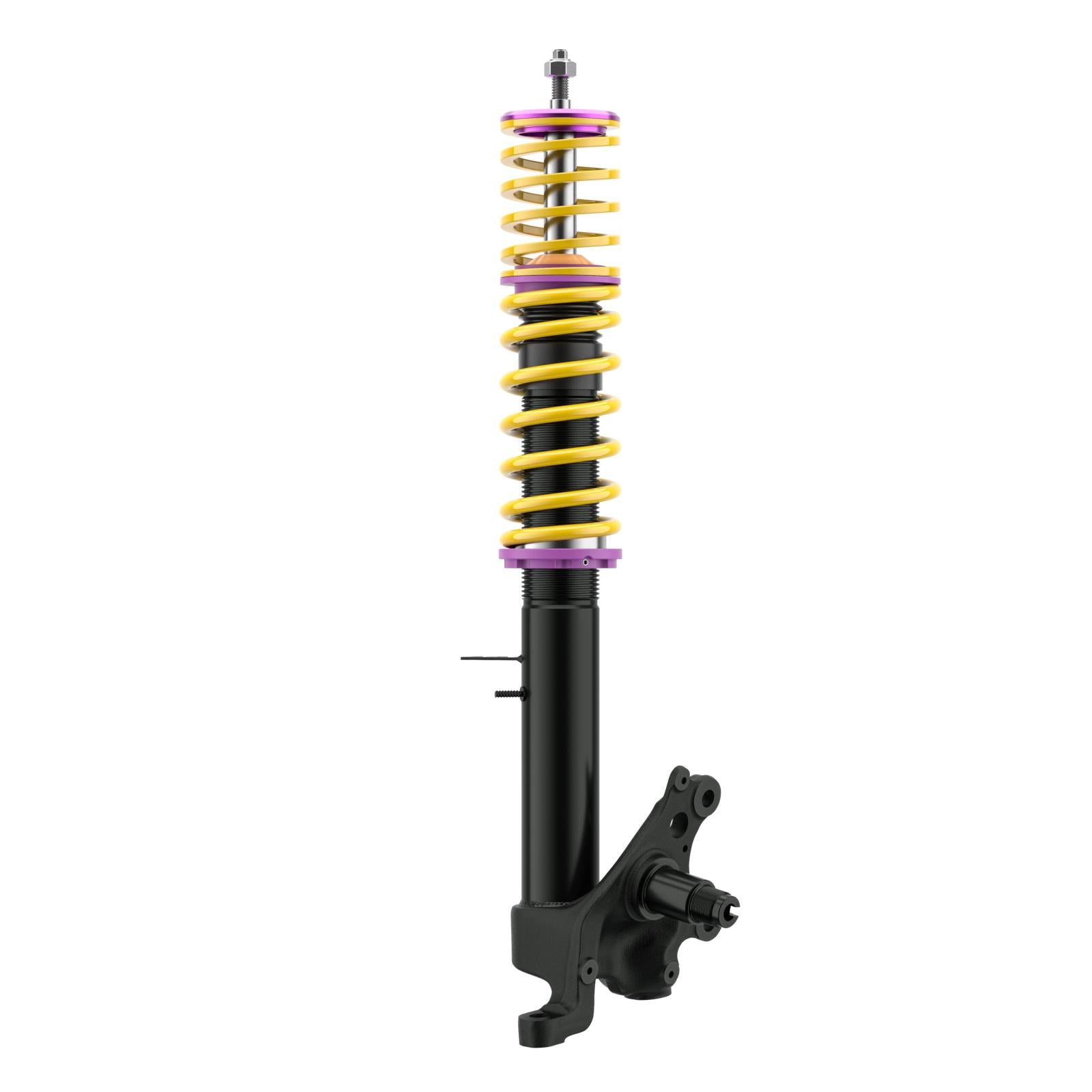

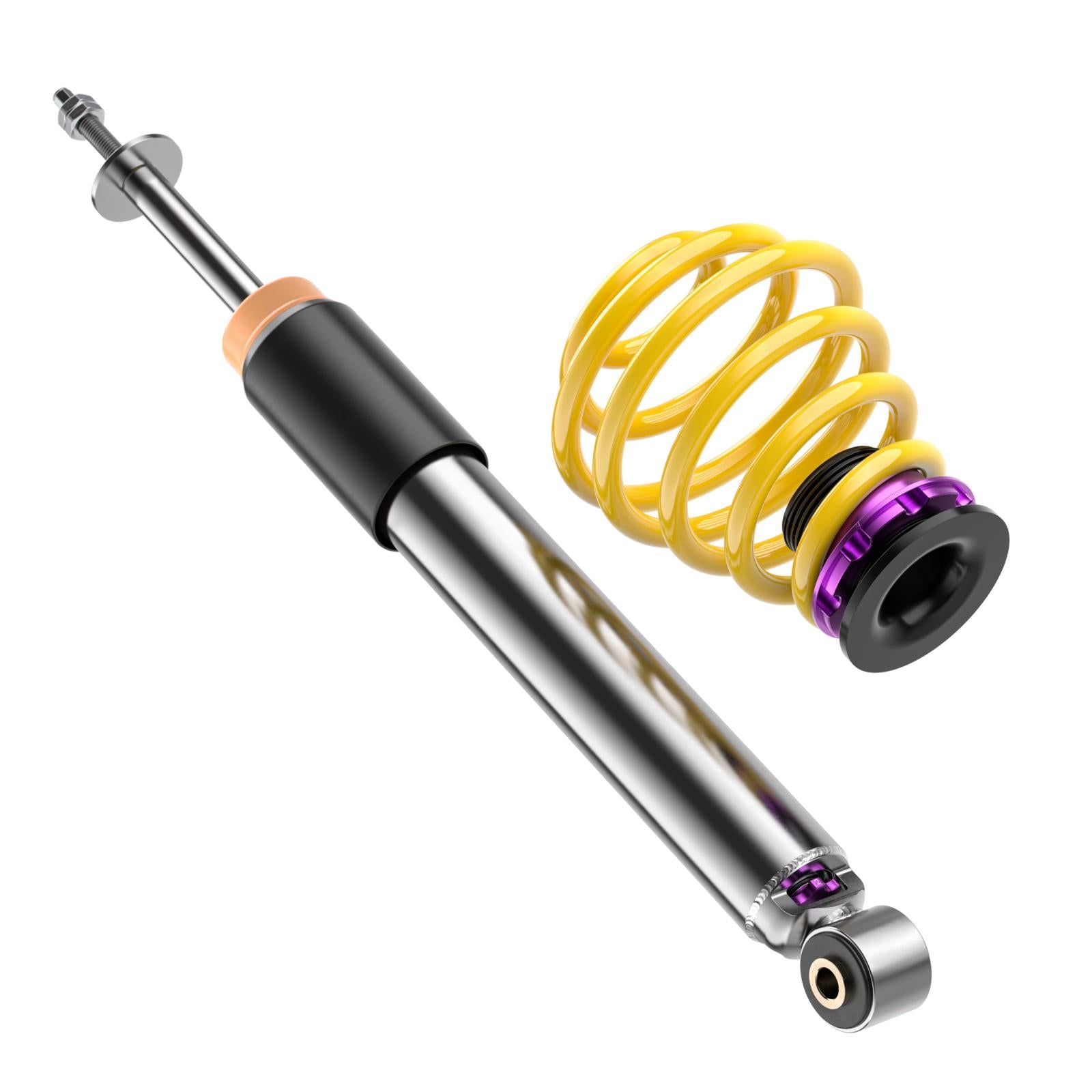

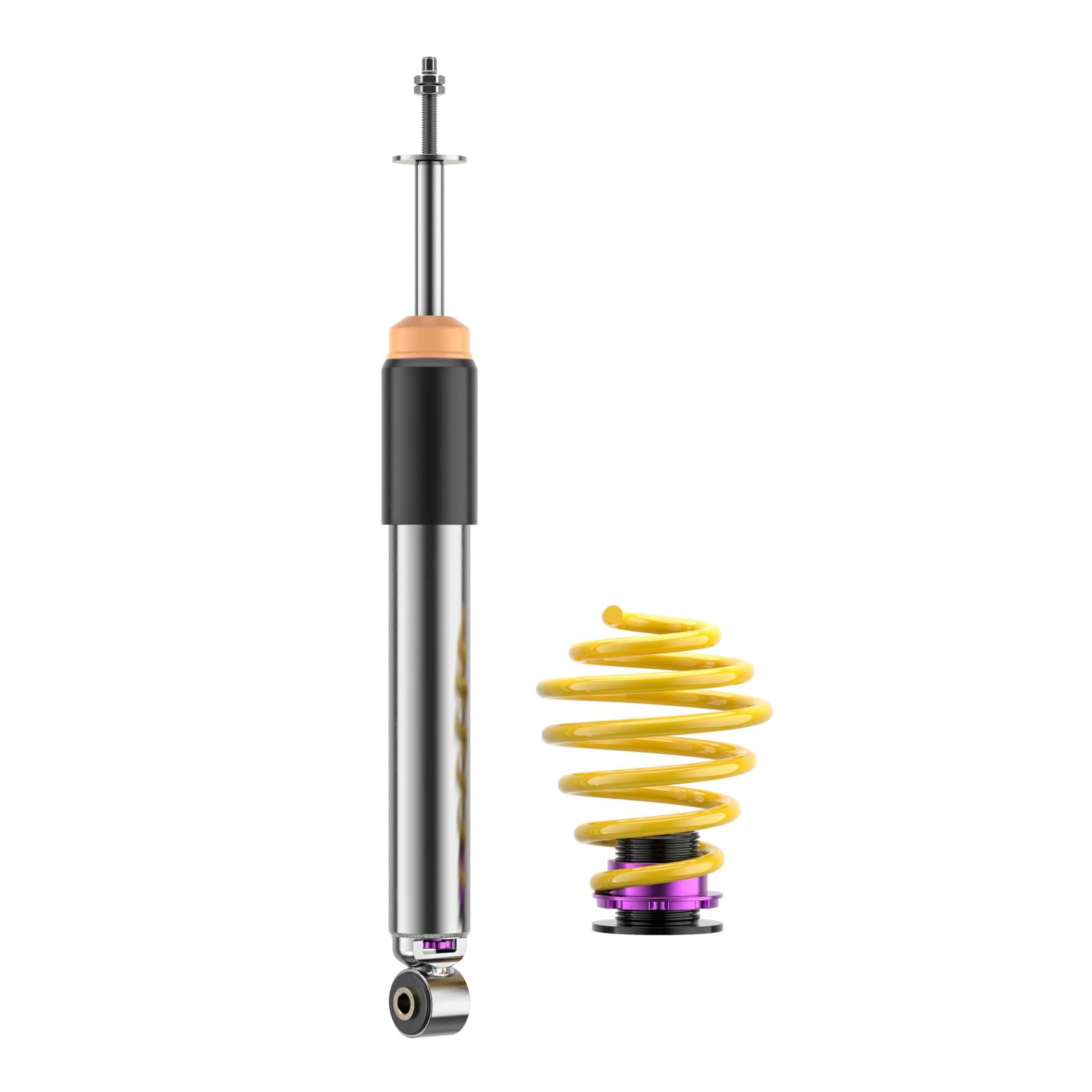

- Supplied as: Front axle + rear axle coilover struts (Original front axle strut housings modified)
Note The original front strut housings are modified by KW and must be sent in advance.
Front axle load up to 1,060 kg; Rear axle load up to 1,300 kg.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 1987–1995 | BMW | 5 (E34) 5/H, M5/H, X5/H | 518 i | Petrol · 83 kW · 1.8L · 4-cyl | Rear-Wheel Drive | 1, 6, 8, 18, 38, 40, 41, 62, 82 |
| 1987–1995 | BMW | 5 (E34) 5/H, M5/H, X5/H | 518 i | Petrol · 85 kW · 1.8L · 4-cyl | Rear-Wheel Drive | 1, 6, 8, 18, 38, 40, 41, 62, 82 |
| 1987–1995 | BMW | 5 (E34) 5/H, M5/H, X5/H | 520 i 24V | Petrol · 110 kW · 2.0L · 6-cyl | Rear-Wheel Drive | 1, 6, 8, 18, 38, 40, 41, 62, 82 |
| 1987–1995 | BMW | 5 (E34) 5/H, M5/H, X5/H | 525 i 24V | Petrol · 141 kW · 2.5L · 6-cyl | Rear-Wheel Drive | 1, 6, 8, 18, 38, 40, 41, 62, 82 |
| 1987–1995 | BMW | 5 (E34) 5/H, M5/H, X5/H | 525 td | Diesel · 85 kW · 2.5L · 6-cyl | Rear-Wheel Drive | 1, 6, 8, 18, 38, 40, 41, 62, 82 |
| 1987–1995 | BMW | 5 (E34) 5/H, M5/H, X5/H | 525 tds | Diesel · 105 kW · 2.5L · 6-cyl | Rear-Wheel Drive | 1, 6, 8, 18, 38, 40, 41, 62, 82 |
| 1987–1995 | BMW | 5 (E34) 5/H, M5/H, X5/H | 530 i | Petrol · 160 kW · 3.0L · 8-cyl | Rear-Wheel Drive | 1, 6, 8, 18, 38, 40, 41, 62, 82 |
| 1987–1995 | BMW | 5 (E34) 5/H, M5/H, X5/H | 530 i V8 | Petrol · 160 kW · 3.0L · 8-cyl | Rear-Wheel Drive | 1, 6, 8, 18, 38, 40, 41, 62, 82 |
| 1987–1995 | BMW | 5 (E34) 5/H, M5/H, X5/H | 535 i | Petrol · 155 kW · 3.4L · 6-cyl | Rear-Wheel Drive | 1, 6, 8, 18, 38, 40, 41, 62, 82 |
| 1987–1995 | BMW | 5 (E34) 5/H, M5/H, X5/H | 540 i V8 | Petrol · 210 kW · 4.0L · 8-cyl | Rear-Wheel Drive | 1, 6, 8, 18, 38, 40, 41, 62, 82 |
- Note 1: Height adjustable on the front and rear axles (threaded strut housings).
- Note 6: When using original tyres, wheel offset spacers may be required.
- Note 8: Not for vehicles with automatic self levelling control / air suspension.
- Note 18: For front dome bearing caps with a diameter of 80 mm, new parts are required. (BMW Part No.: dome bearings 31 331 139 452 + washer 31 331 116 983 + collar 31 331 110 196).
- Note 38: If the rear axle shock absorber of the car is equipped with M12 thread - you need to modify the supporting bearing unit to M10 thread. Therefore please buy the following BMW parts from the car manufacturer: supporting bearing 33 52 1 132 270, washer disc 33 52 1 136 063, disc 33 52 1 129 565.
- Note 40: Original struts need to be sent in advance for modification.
- Note 41: Coilover kits where the strut housings are being modified are only available in galvanised finish.
- Note 62: Not for cars with electronic damping.
- Note 82: Production on demand. Please ask for delivery time.
