KW Coilover Kit V3 for Cupra (KM7) Formentor VZ5 / VZ 4Drive w/ Deactivation for Electronic Dampers

SKU: 35281065
Sale price$4,692.05 Regular price$4,939.00
Save $246.95

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Cupra Formentor VZ5 / VZ (KM7) 4Drive.

Key Features

  • Rebound damping adjustable in 16 clicks
  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 40–60 mm
  • Rear lowering: 40–65 mm
  • Front axle load: up to 1,130 kg
  • Rear axle load: up to 1,090 kg

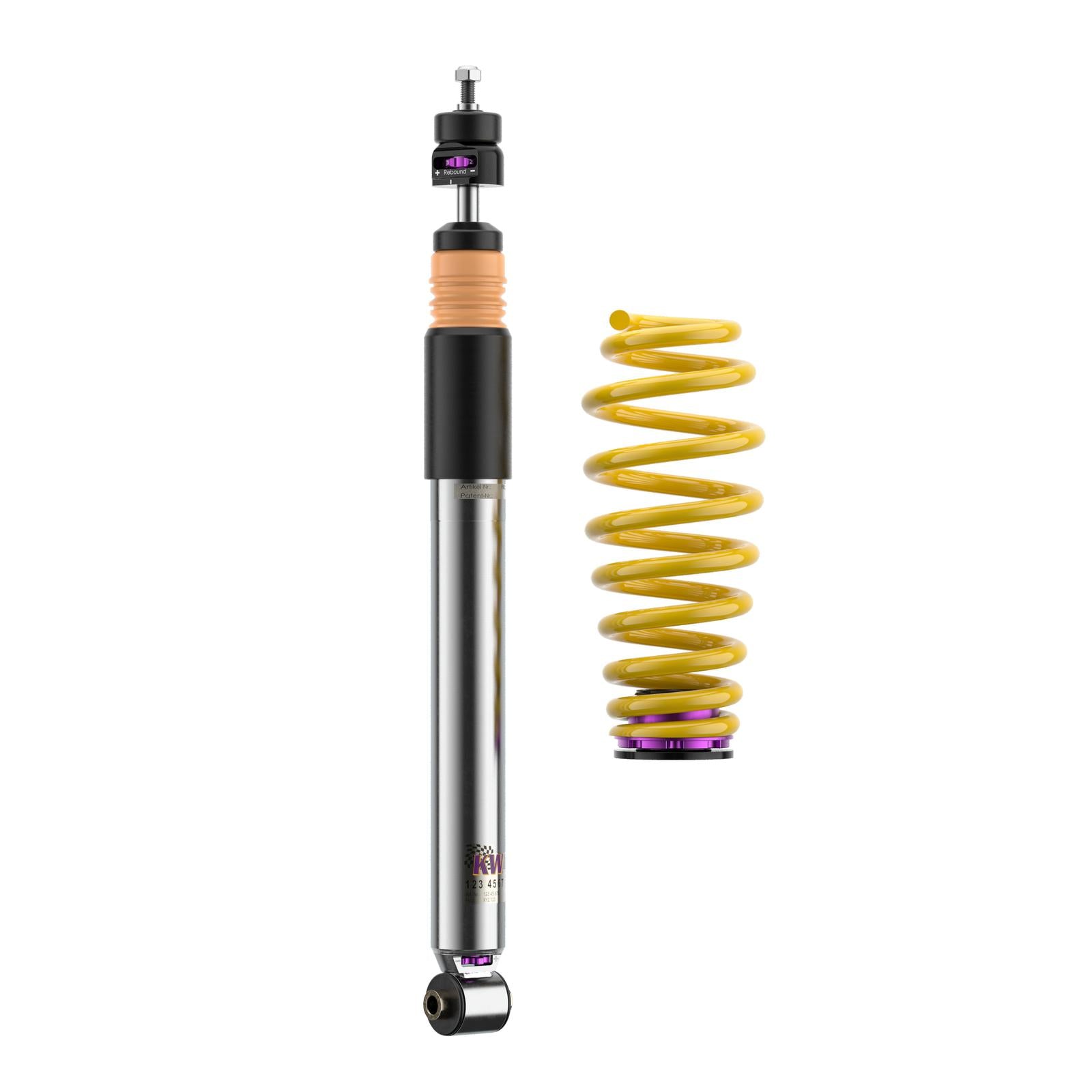

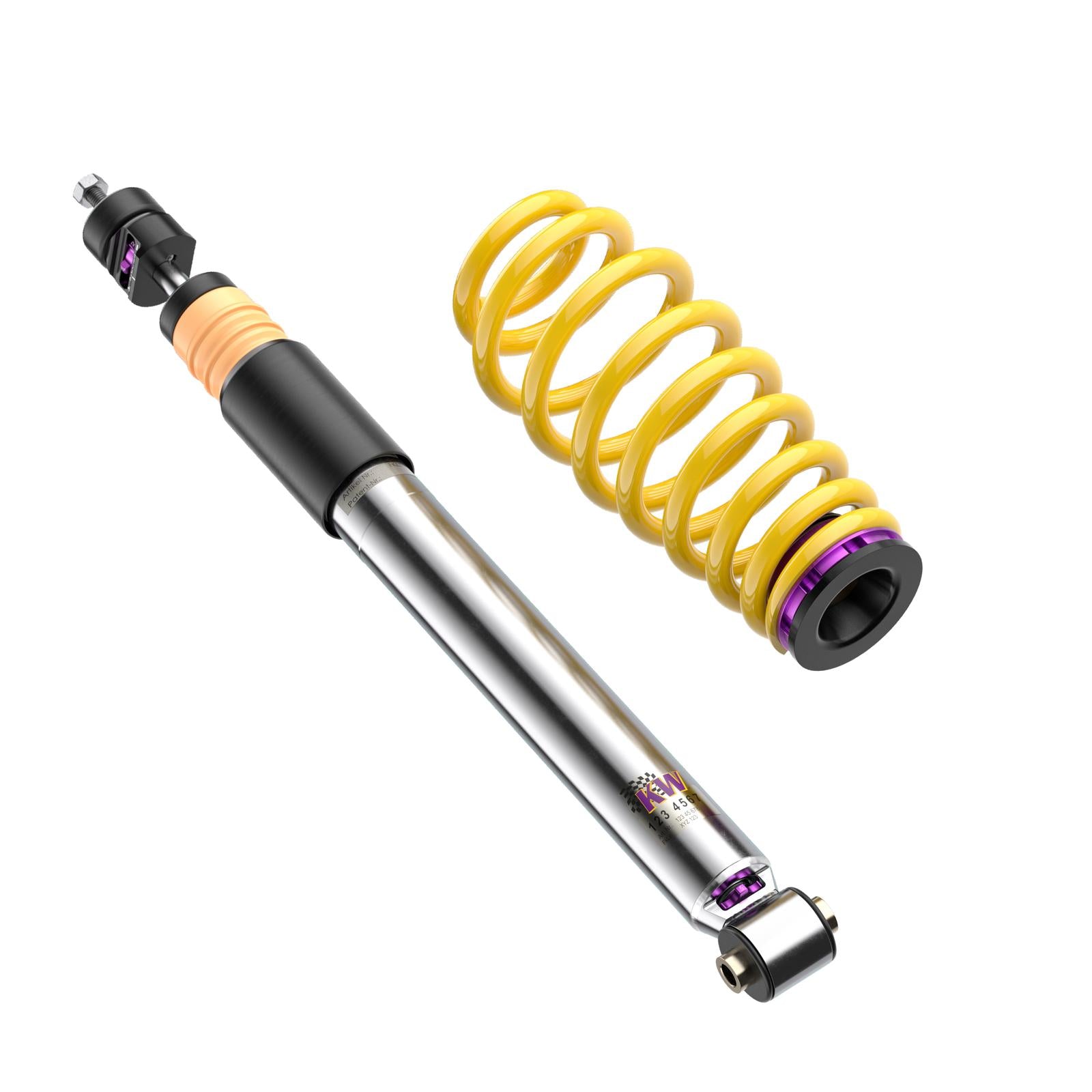

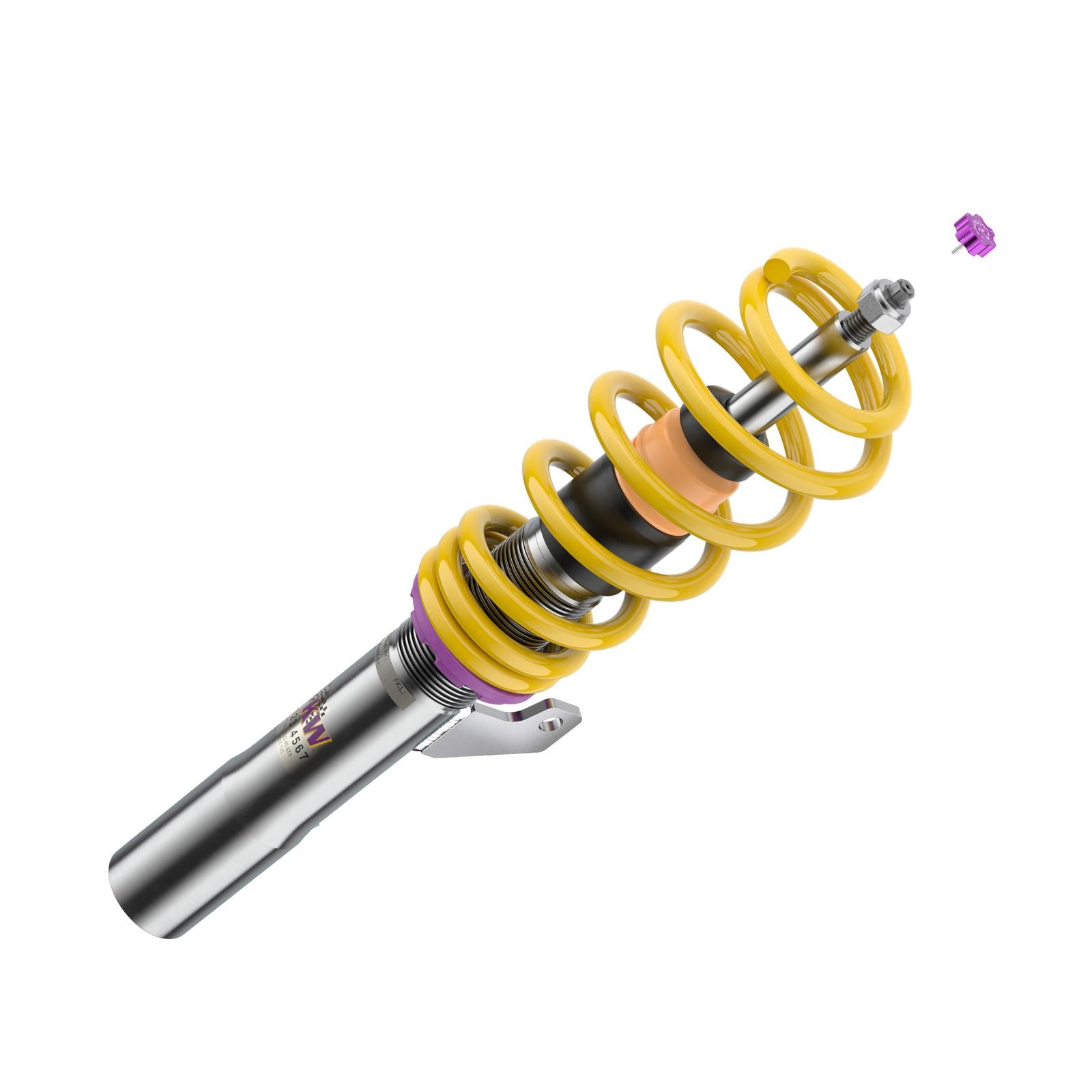

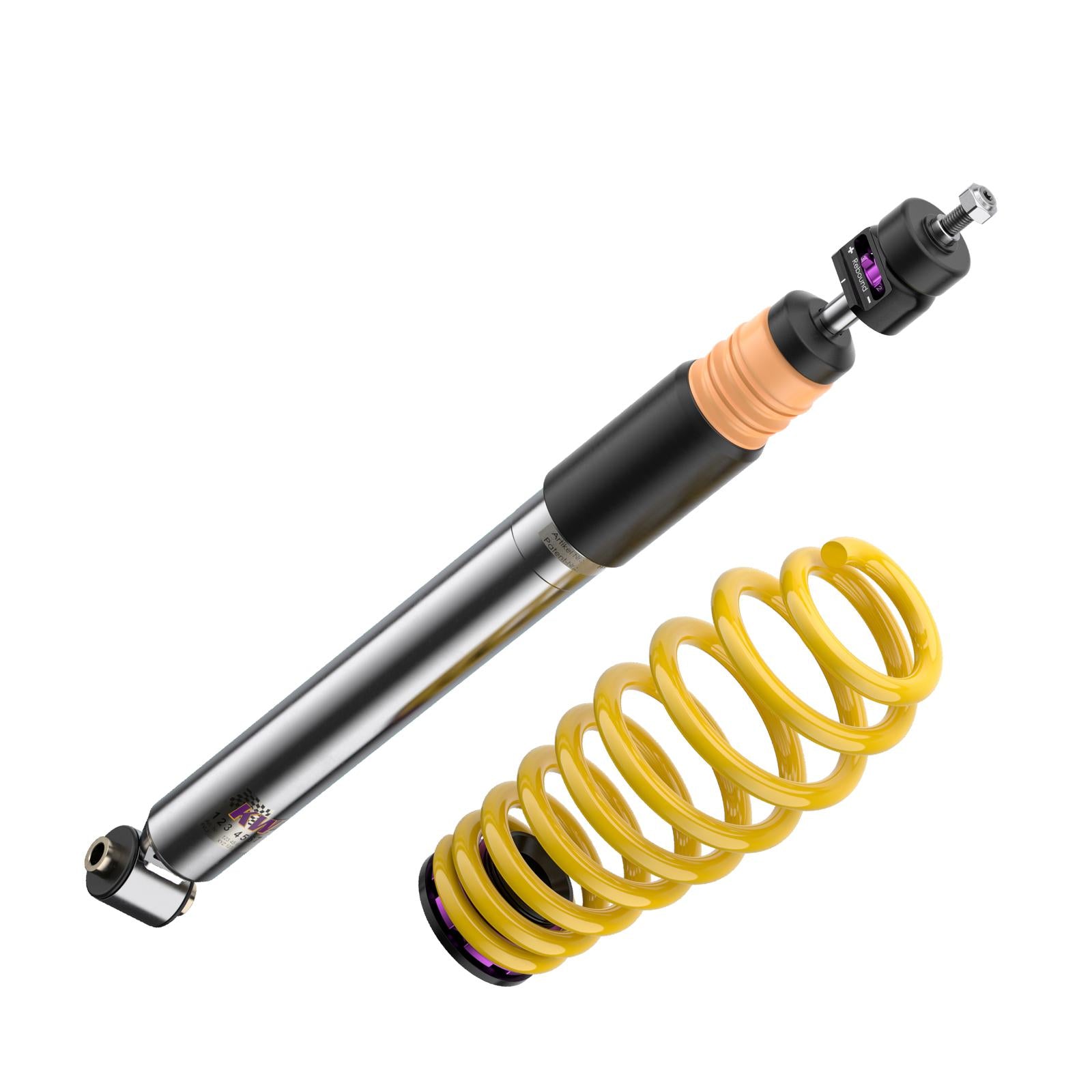

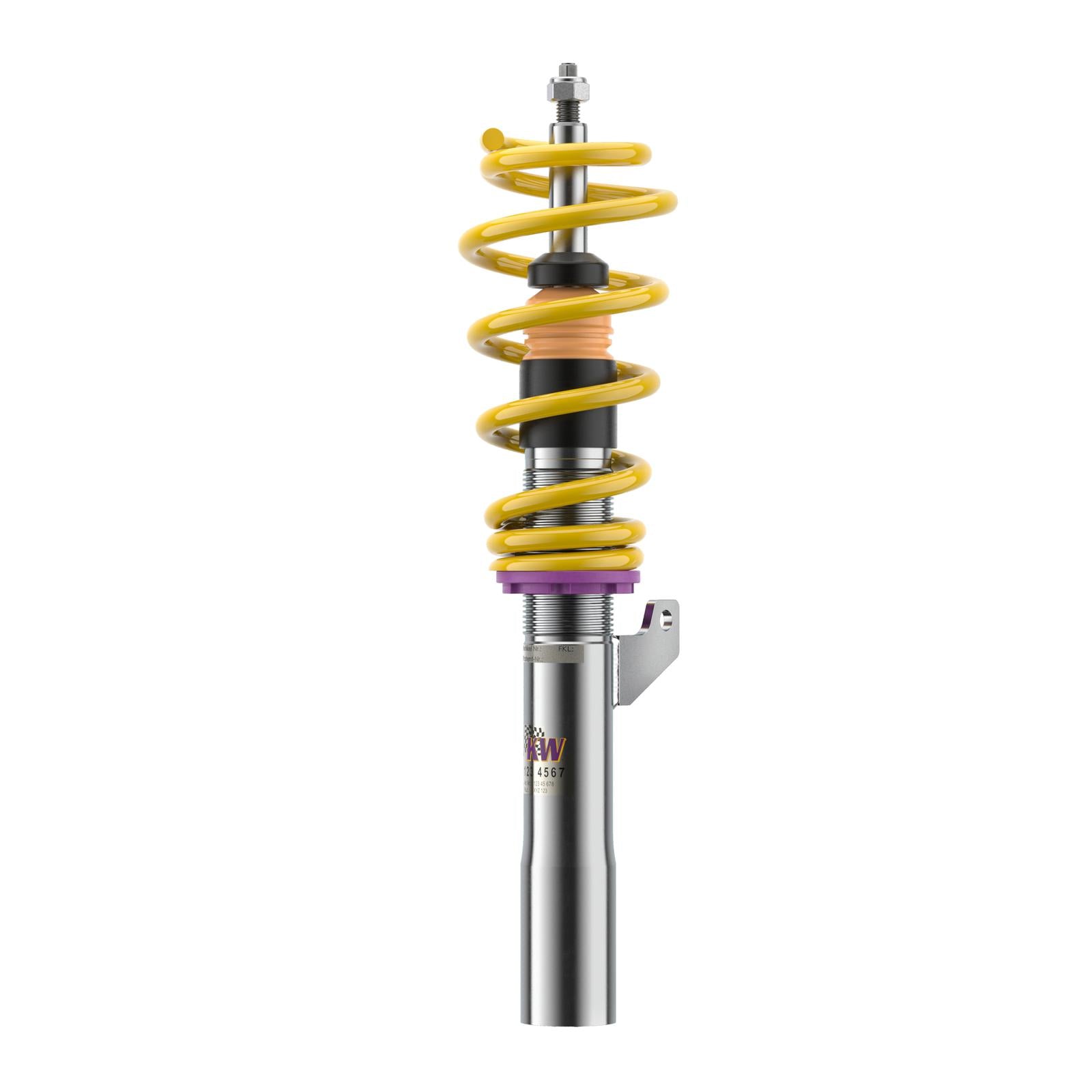

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers including cancellation kit for electronic damper control

Front axle load up to 1,130 kg; Rear axle load up to 1,090 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2020+CupraFormentor (KM7, KMP)2.0 TDI 4DriveDiesel · 110 kW · 2.0L · 4-cylAll-Wheel Drive2, 67, 88
2020+CupraFormentor (KM7, KMP)2.0 TSI 4DrivePetrol · 140 kW · 2.0L · 4-cylAll-Wheel Drive2, 67, 88
2020+CupraFormentor (KM7, KMP)2.0 TSI 4DrivePetrol · 150 kW · 2.0L · 4-cylAll-Wheel Drive2, 67, 88
2020+CupraFormentor (KM7, KMP)2.0 TSI 4DrivePetrol · 228 kW · 2.0L · 4-cylAll-Wheel Drive2, 67, 88
2020+CupraFormentor (KM7, KMP)2.0 VZ 4DrivePetrol · 245 kW · 2.0L · 4-cylAll-Wheel Drive2, 67, 88
2020+CupraFormentor (KM7, KMP)2.5 VZ5 4DrivePetrol · 287 kW · 2.5L · 5-cylAll-Wheel Drive2, 67, 88
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
  • Note 88: Electronic damping control has to be deactivated. Deactivation kit is included in the delivery.
