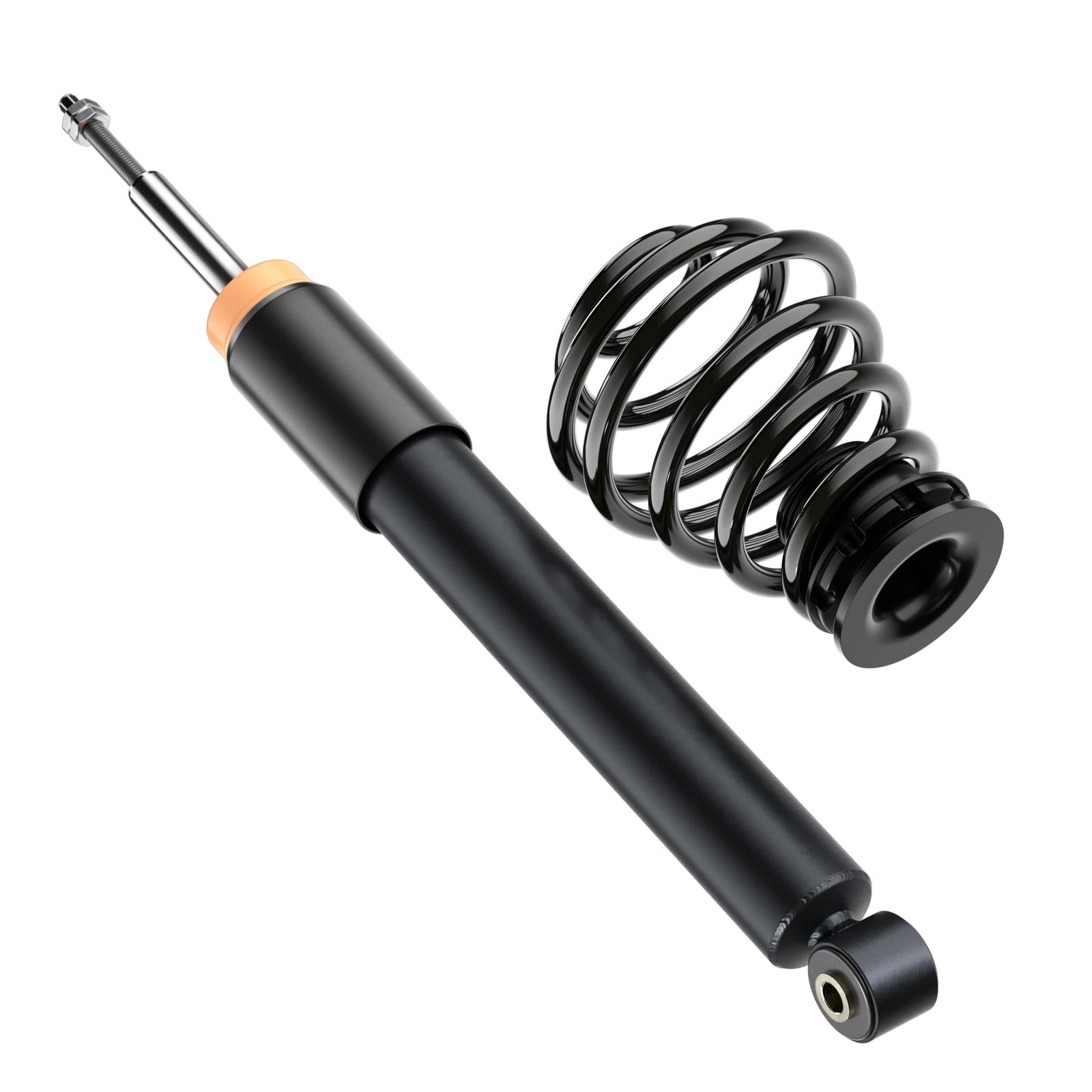

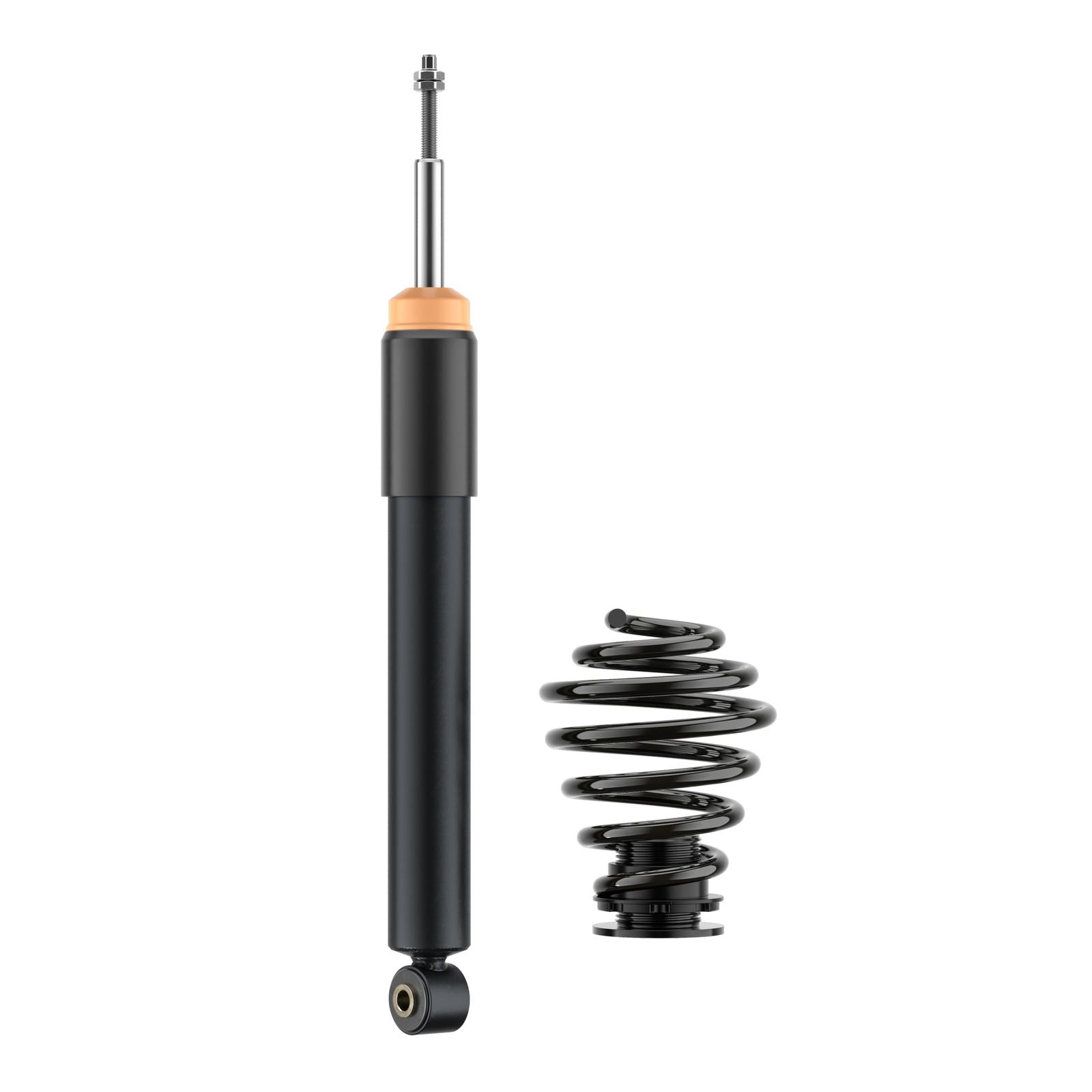

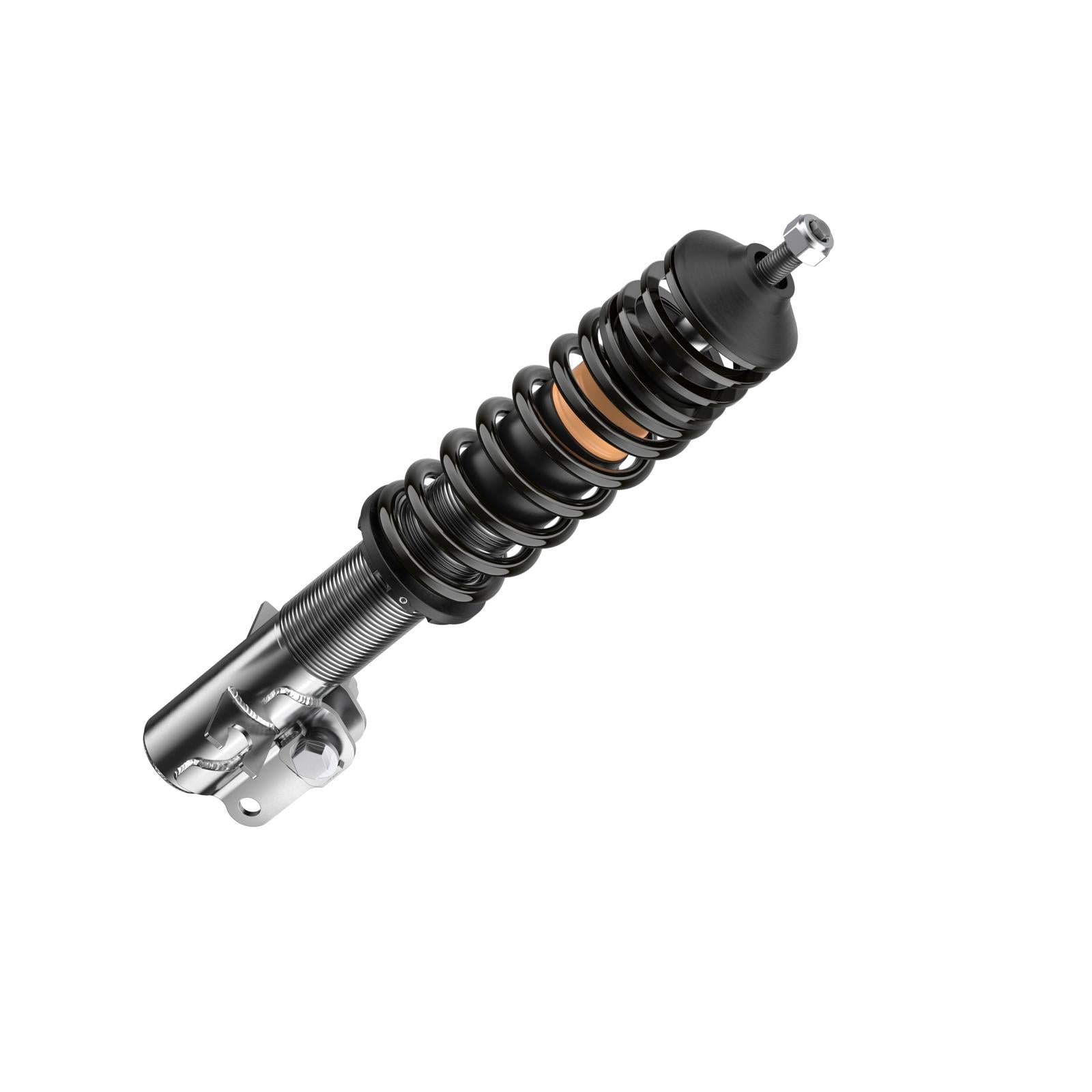

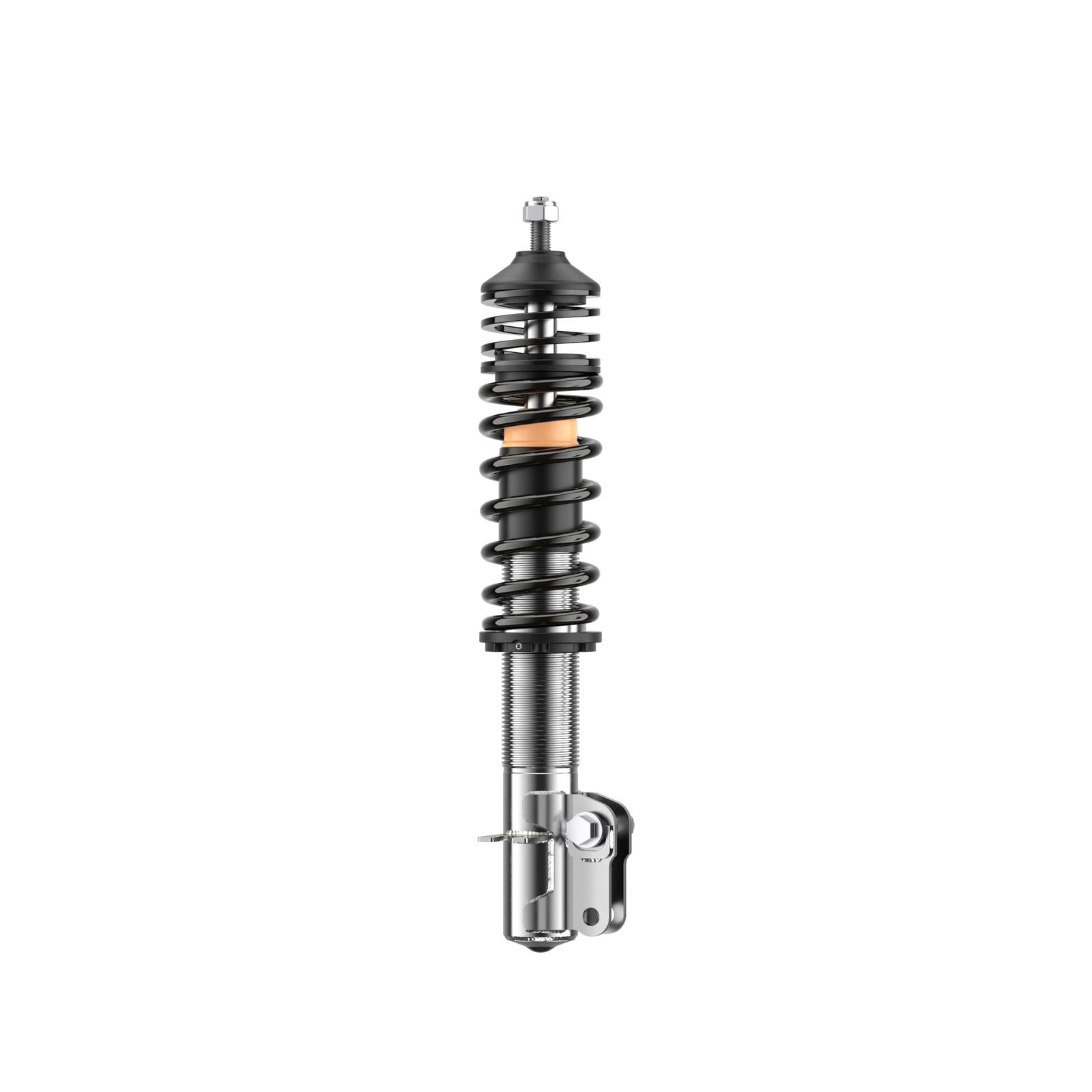

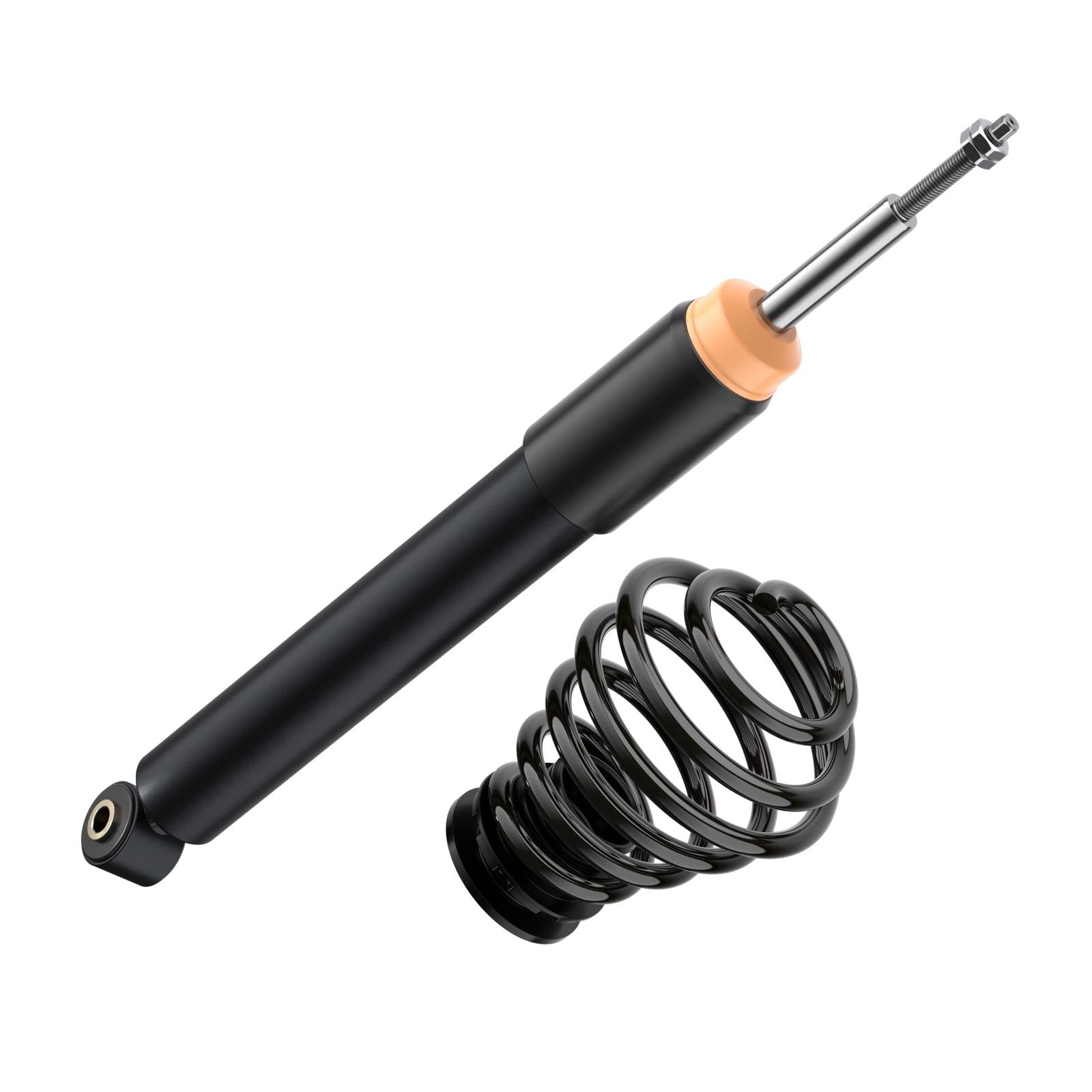

KW Coilover Kit V1 Classic Line for Audi (B4) 80 - M14 Front Strut Bolt - 10210019-B

SKU: 10210019-B
Sale price$2,484.30 Regular price$3,549.00
Save $1,064.70

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V1 is the entry model in its street coilover range, pairing height-adjustable struts with a damper setup that KW pre-configures for each vehicle. Ride height is continuously adjustable within the tested range using a dirt-resistant trapezoidal thread and composite collar, so it can still be changed easily years after fitting. Corrosion-resistant springs and bump stops are built for a long service life. This kit is developed for the Audi 80 (B4).

Key Features

  • Vehicle-specific, factory-set damping
  • Continuous ride height adjustment within the tested range
  • Trapezoidal thread with composite adjuster collar

Specifications

  • Version: V1 classic line
  • Damping: Fixed, vehicle-specific setting
  • Material: Stainless steel
  • Front lowering: 45–80 mm
  • Rear lowering: 45–80 mm
  • Front axle load: 911–1,080 kg
  • Rear axle load: up to 1,120 kg
  • Supplied as: Front axle + rear axle coilover struts
Note For cars with M14 screw at the front axle strut down below.

Front axle load 911–1,080 kg; Rear axle load up to 1,120 kg.

For cars with M14 screw at the FA strut down below.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
1991–1995Audi80 (B4) 8C21.9 TDDiesel · 55 kW · 1.9L · 4-cylFront-Wheel Drive1, 6, 12
1991–1995Audi80 (B4) 8C21.9 TDIDiesel · 66 kW · 1.9L · 4-cylFront-Wheel Drive1, 6, 12
1991–1995Audi80 (B4) 8C21.6Petrol · 52 kW · 1.6L · 4-cylFront-Wheel Drive1, 6, 12
1991–1995Audi80 (B4) 8C21.6 EPetrol · 74 kW · 1.6L · 4-cylFront-Wheel Drive1, 6, 12
1991–1995Audi80 (B4) 8C22.0Petrol · 66 kW · 2.0L · 4-cylFront-Wheel Drive1, 6, 12
1991–1995Audi80 (B4) 8C22.0 EPetrol · 85 kW · 2.0L · 4-cylFront-Wheel Drive1, 6, 12
1991–1995Audi80 (B4) 8C22.0 E 16VPetrol · 103 kW · 2.0L · 4-cylFront-Wheel Drive1, 6, 12
1991–1995Audi80 (B4) 8C22.3 EPetrol · 98 kW · 2.3L · 5-cylFront-Wheel Drive1, 6, 12
1991–1995Audi80 (B4) 8C22.6Petrol · 110 kW · 2.6L · 6-cylFront-Wheel Drive1, 6, 12
1991–1995Audi80 (B4) 8C22.8Petrol · 128 kW · 2.8L · 6-cylFront-Wheel Drive1, 6, 12
1991–1996Audi80 Avant (B4) 8C52.0Petrol · 66 kW · 2.0L · 4-cylFront-Wheel Drive1, 6, 12
1991–1996Audi80 Avant (B4) 8C52.0 EPetrol · 85 kW · 2.0L · 4-cylFront-Wheel Drive1, 6, 12
1991–1996Audi80 Avant (B4) 8C52.0 E 16VPetrol · 103 kW · 2.0L · 4-cylFront-Wheel Drive1, 6, 12
1991–1996Audi80 Avant (B4) 8C52.3 EPetrol · 98 kW · 2.3L · 5-cylFront-Wheel Drive1, 6, 12
1991–1996Audi80 Avant (B4) 8C52.6Petrol · 110 kW · 2.6L · 6-cylFront-Wheel Drive1, 6, 12
1991–1996Audi80 Avant (B4) 8C51.9 TDDiesel · 55 kW · 1.9L · 4-cylFront-Wheel Drive1, 6, 12
1991–1996Audi80 Avant (B4) 8C51.9 TDIDiesel · 66 kW · 1.9L · 4-cylFront-Wheel Drive1, 6, 12
1991–1996Audi80 Avant (B4) 8C51.6 EPetrol · 74 kW · 1.6L · 4-cylFront-Wheel Drive1, 6, 12
1991–1996Audi80 Avant (B4) 8C52.8Petrol · 128 kW · 2.8L · 6-cylFront-Wheel Drive1, 6, 12
1991–1995Audi80 (B4) 8C22.0 E 16VPetrol · 101 kW · 2.0L · 4-cylFront-Wheel Drive1, 6, 12
  • Note 1: Height adjustable on the front and rear axles (threaded strut housings).
  • Note 6: When using original tyres, wheel offset spacers may be required.
  • Note 12: To identify the suspension struts, measure the diameter of the strut mounting screw at the steering knuckle. Screw diameter either M12 or M14.
