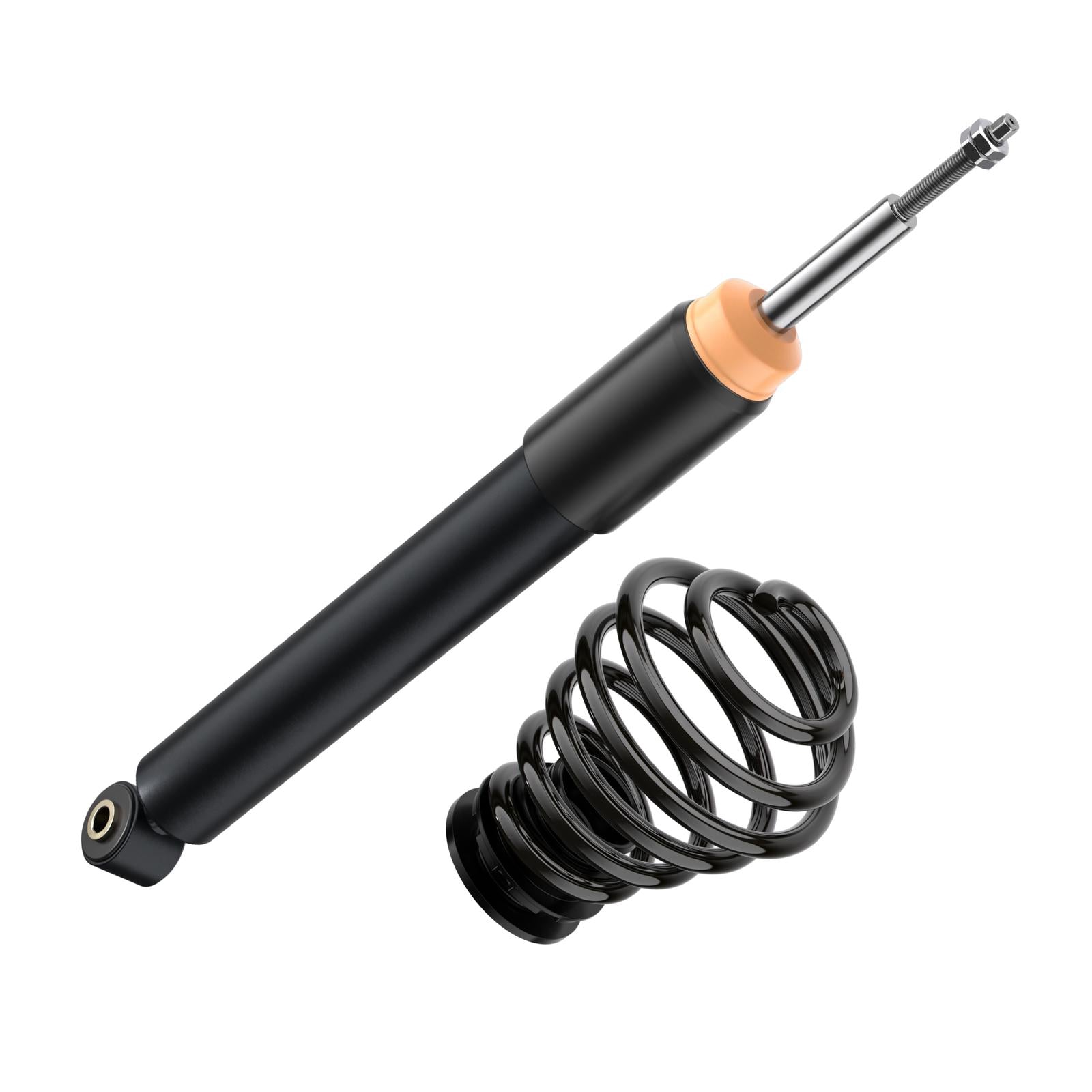

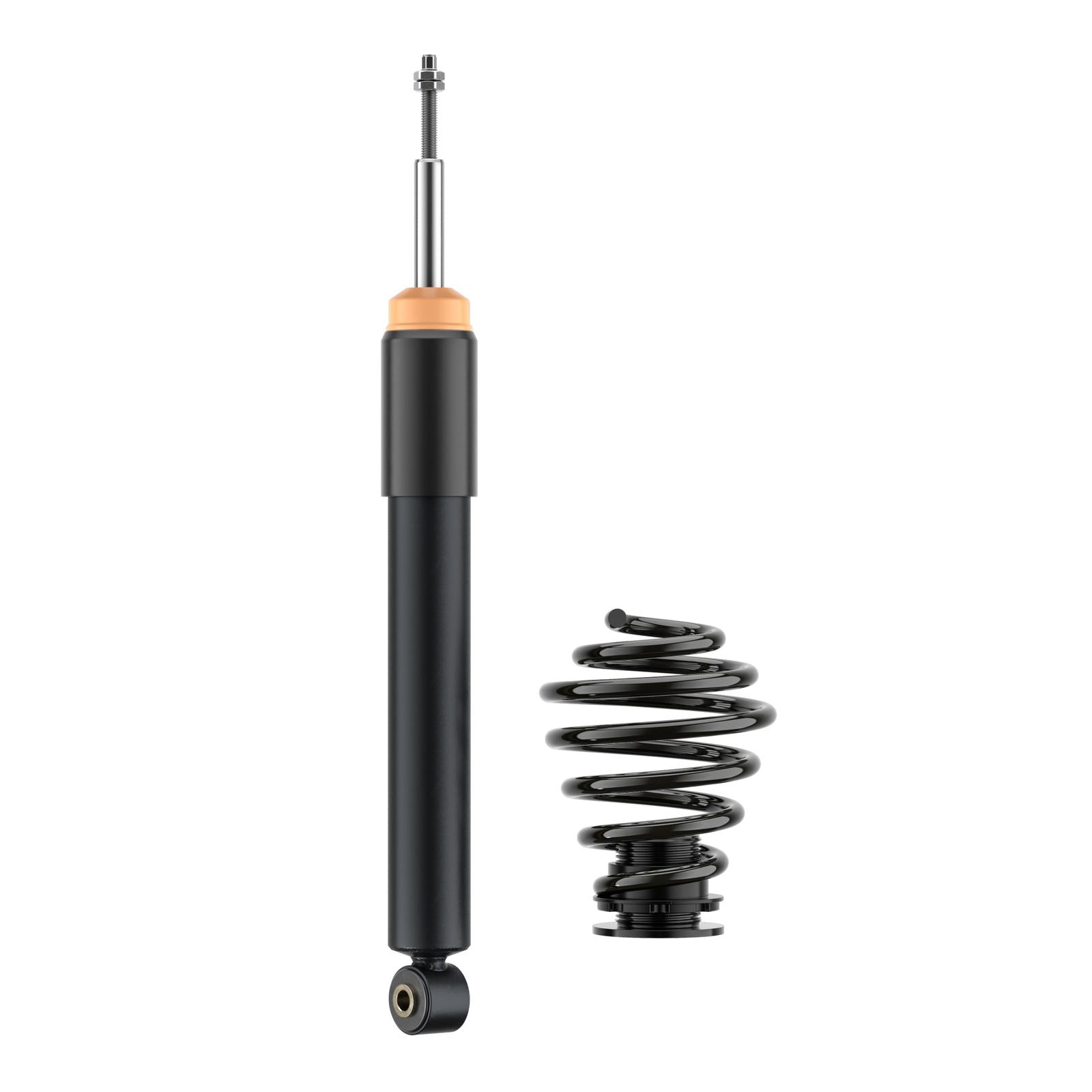

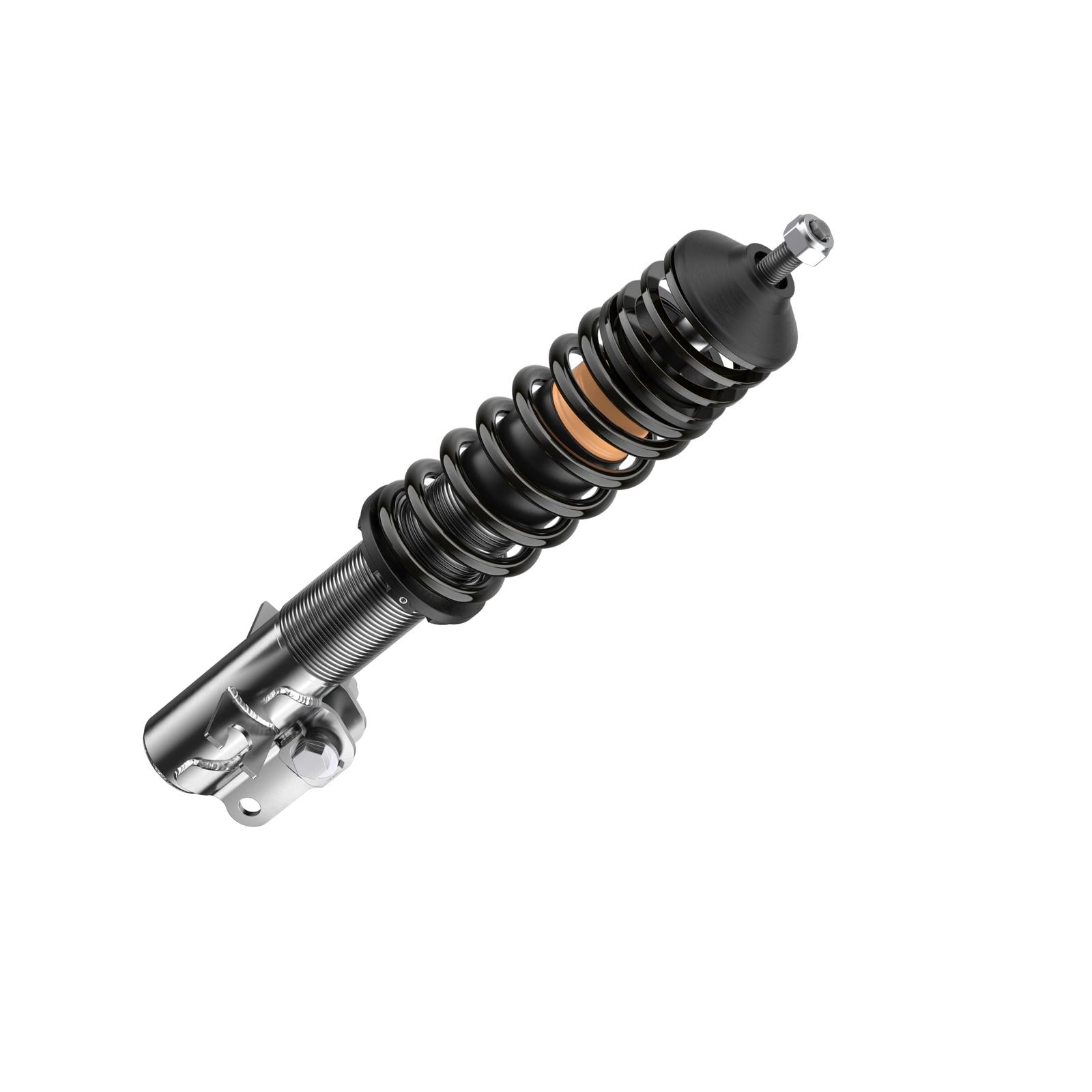

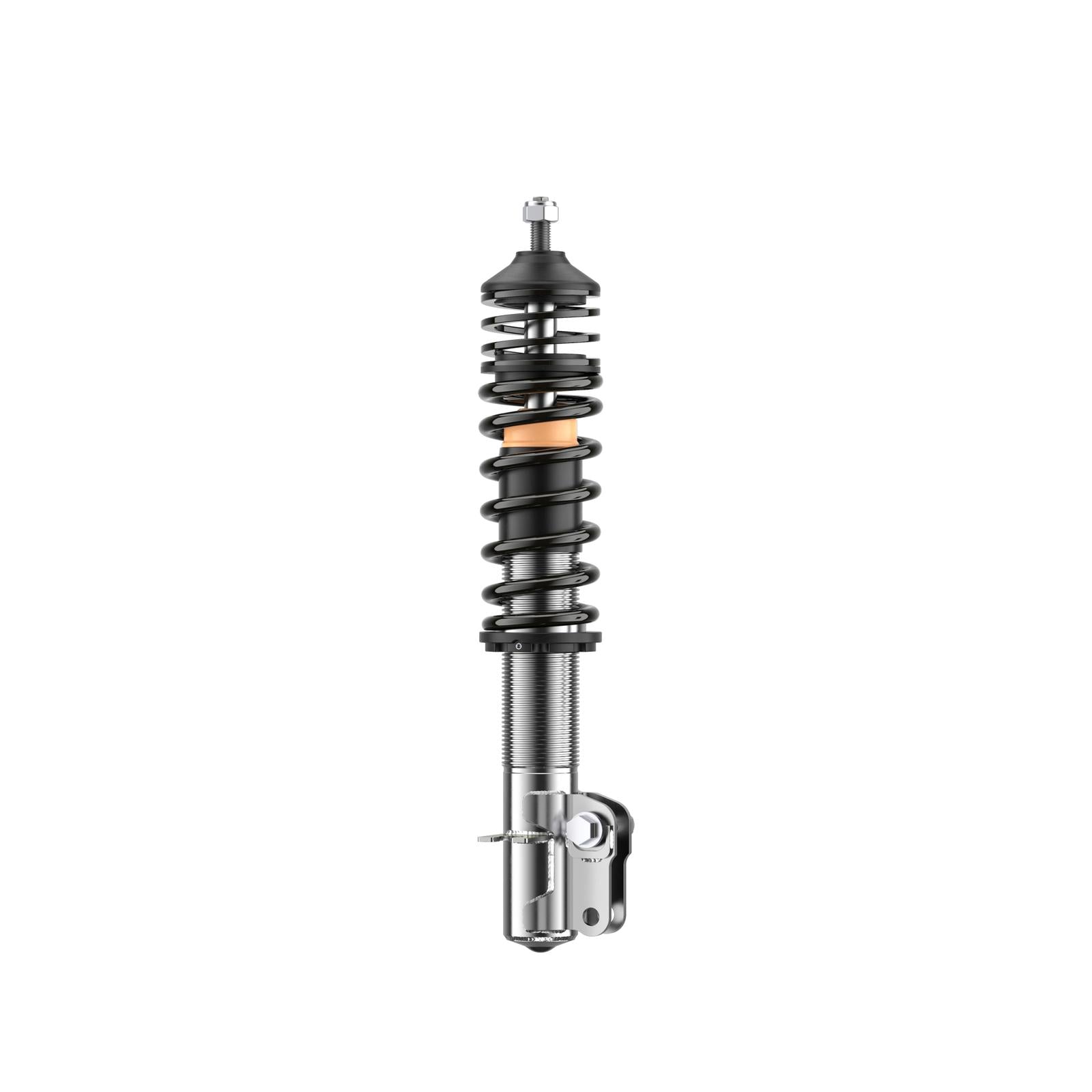

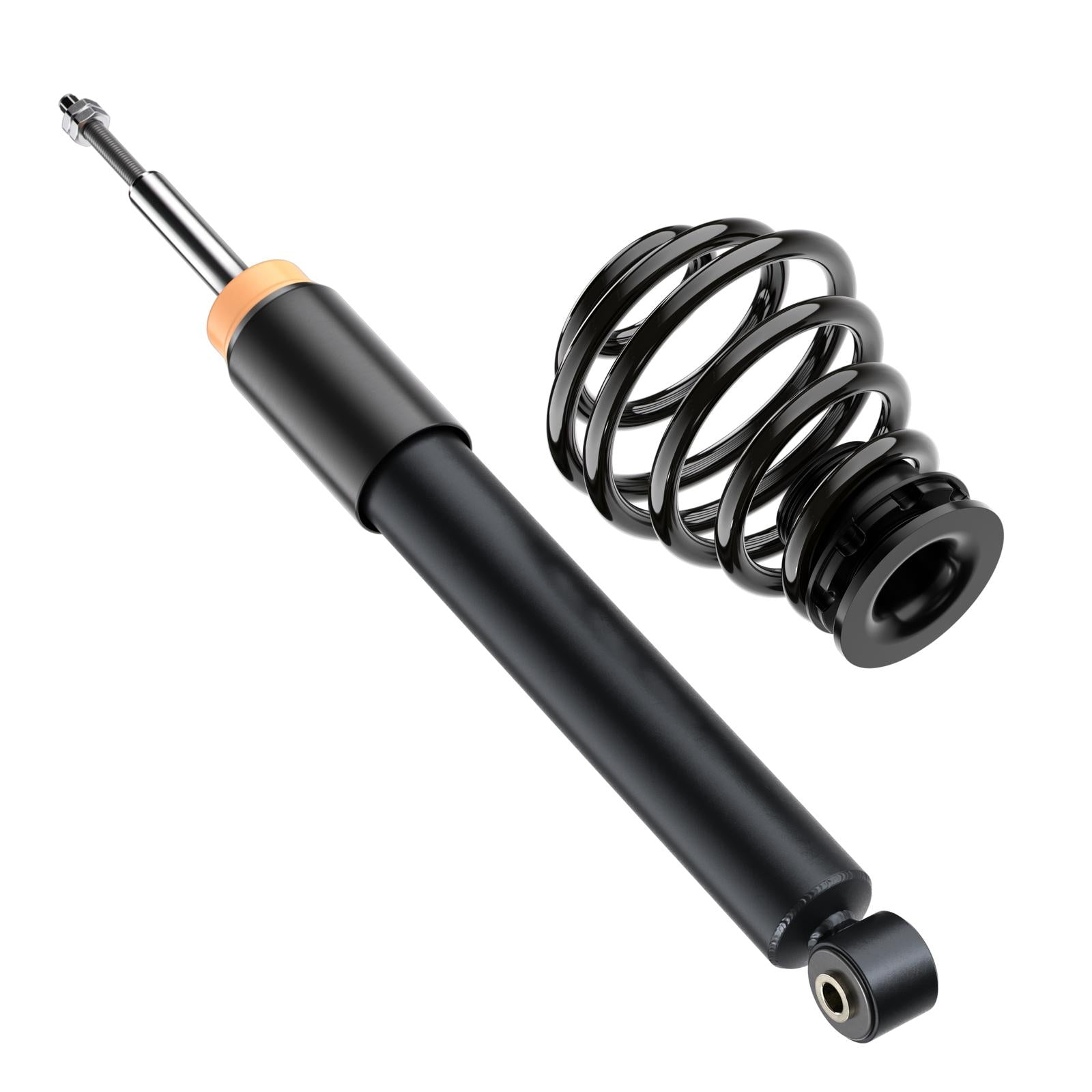

KW Coilover Kit V1 Classic Line for Audi (89) Coupe / (B3) 80 - M12 Front Strut Bolt
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW's V1 is the entry model in its street coilover range, pairing height-adjustable struts with a damper setup that KW pre-configures for each vehicle. Ride height is continuously adjustable within the tested range using a dirt-resistant trapezoidal thread and composite collar, so it can still be changed easily years after fitting. Corrosion-resistant springs and bump stops are built for a long service life. This kit is developed for the Audi Coupe / 80 (B3).
Key Features
- Vehicle-specific, factory-set damping
- Continuous ride height adjustment within the tested range
- Trapezoidal thread with composite adjuster collar
Specifications
- Version: V1 classic line
- Damping: Fixed, vehicle-specific setting
- Material: Stainless steel
- Front lowering: 40–80 mm
- Rear lowering: 40–80 mm
- Front axle load: 951–1,100 kg
- Rear axle load: up to 870 kg
- Supplied as: Front axle + rear axle coilover struts
Front axle load 951–1,100 kg; Rear axle load up to 870 kg.
For cars with M12 screw at the FA strut down below.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 1988–1996 | Audi | Coupe (89) 8B, 89Q | 2.3 | Petrol · 97 kW · 2.3L · 5-cyl | Front-Wheel Drive | 1, 6, 12 |
| 1988–1996 | Audi | Coupe (89) 8B, 89Q | 2.0 16 V | Petrol · 101 kW · 2.0L · 4-cyl | Front-Wheel Drive | 1, 6, 12 |
| 1988–1996 | Audi | Coupe (89) 8B, 89Q | 2.0 | Petrol · 85 kW · 2.0L · 4-cyl | Front-Wheel Drive | 1, 6, 12 |
| 1988–1996 | Audi | Coupe (89) 8B, 89Q | 2.0 16 V | Petrol · 103 kW · 2.0L · 4-cyl | Front-Wheel Drive | 1, 6, 12 |
| 1988–1996 | Audi | Coupe (89) 8B, 89Q | 2.3 | Petrol · 98 kW · 2.3L · 5-cyl | Front-Wheel Drive | 1, 6, 12 |
| 1988–1996 | Audi | Coupe (89) 8B, 89Q | 2.6 | Petrol · 110 kW · 2.6L · 6-cyl | Front-Wheel Drive | 1, 6, 12 |
| 1988–1996 | Audi | Coupe (89) 8B, 89Q | 2.8 | Petrol · 128 kW · 2.8L · 6-cyl | Front-Wheel Drive | 1, 6, 12 |
| 1988–1996 | Audi | Coupe (89) 8B, 89Q | 2.0 20 V | Petrol · 118 kW · 2.0L · 5-cyl | Front-Wheel Drive | 1, 6, 12 |
| 1986–1991 | Audi | 80 (B3) 89, 89Q, 8A, SF2 | 1.6 | Petrol · 75 kW · 1.6L · 4-cyl | Front-Wheel Drive | 1, 6, 12 |
| 1986–1991 | Audi | 80 (B3) 89, 89Q, 8A, SF2 | 2.3 | Petrol · 97 kW · 2.3L · 5-cyl | Front-Wheel Drive | 1, 6, 12 |
- Note 1: Height adjustable on the front and rear axles (threaded strut housings).
- Note 6: When using original tyres, wheel offset spacers may be required.
- Note 12: To identify the suspension struts, measure the diameter of the strut mounting screw at the steering knuckle. Screw diameter either M12 or M14.
