KW Coilover Kit V1 for Audi (C5) S6 / A6 / VW Passat W8

SKU: 10210026
Sale price$1,805.30 Regular price$2,579.00
Save $773.70

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

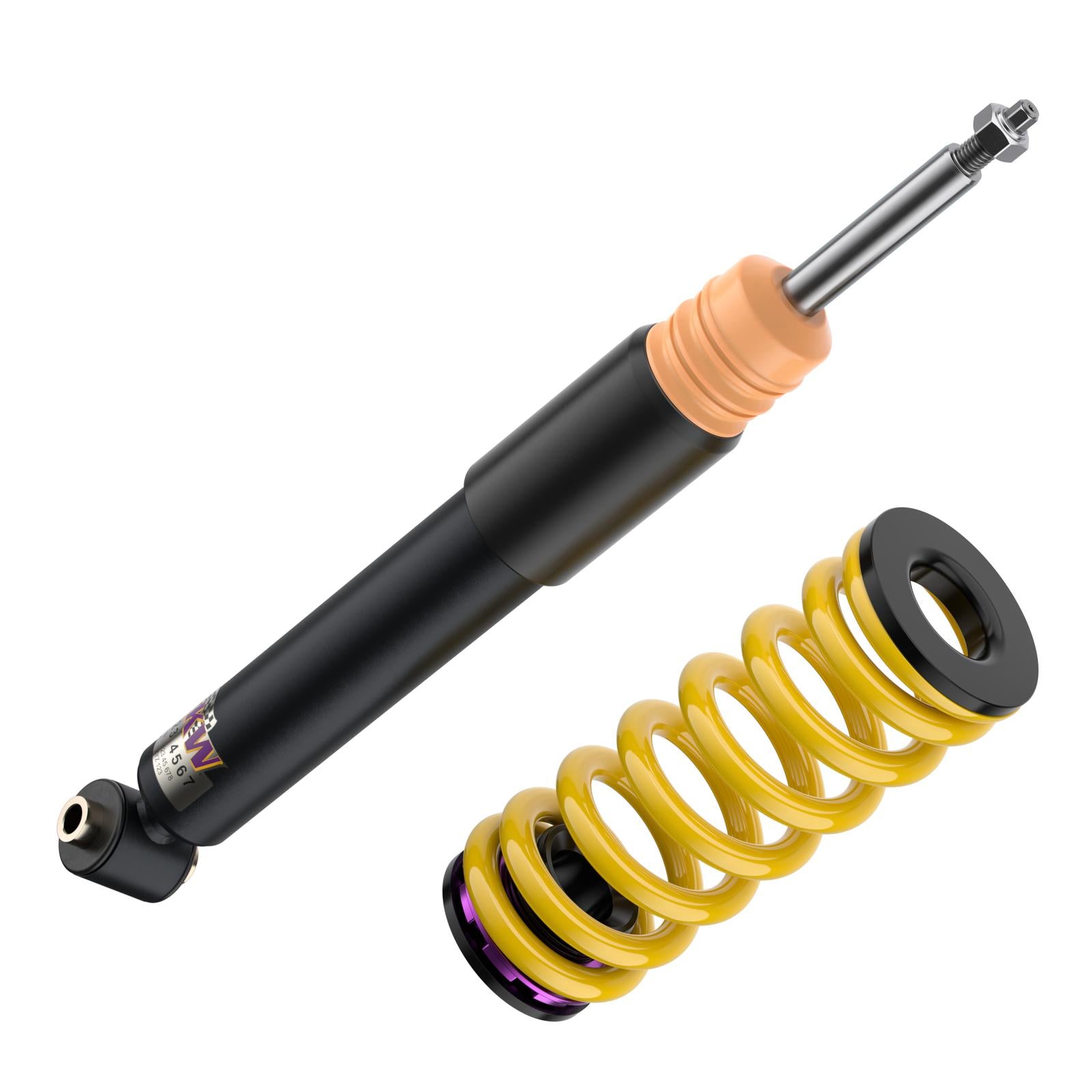

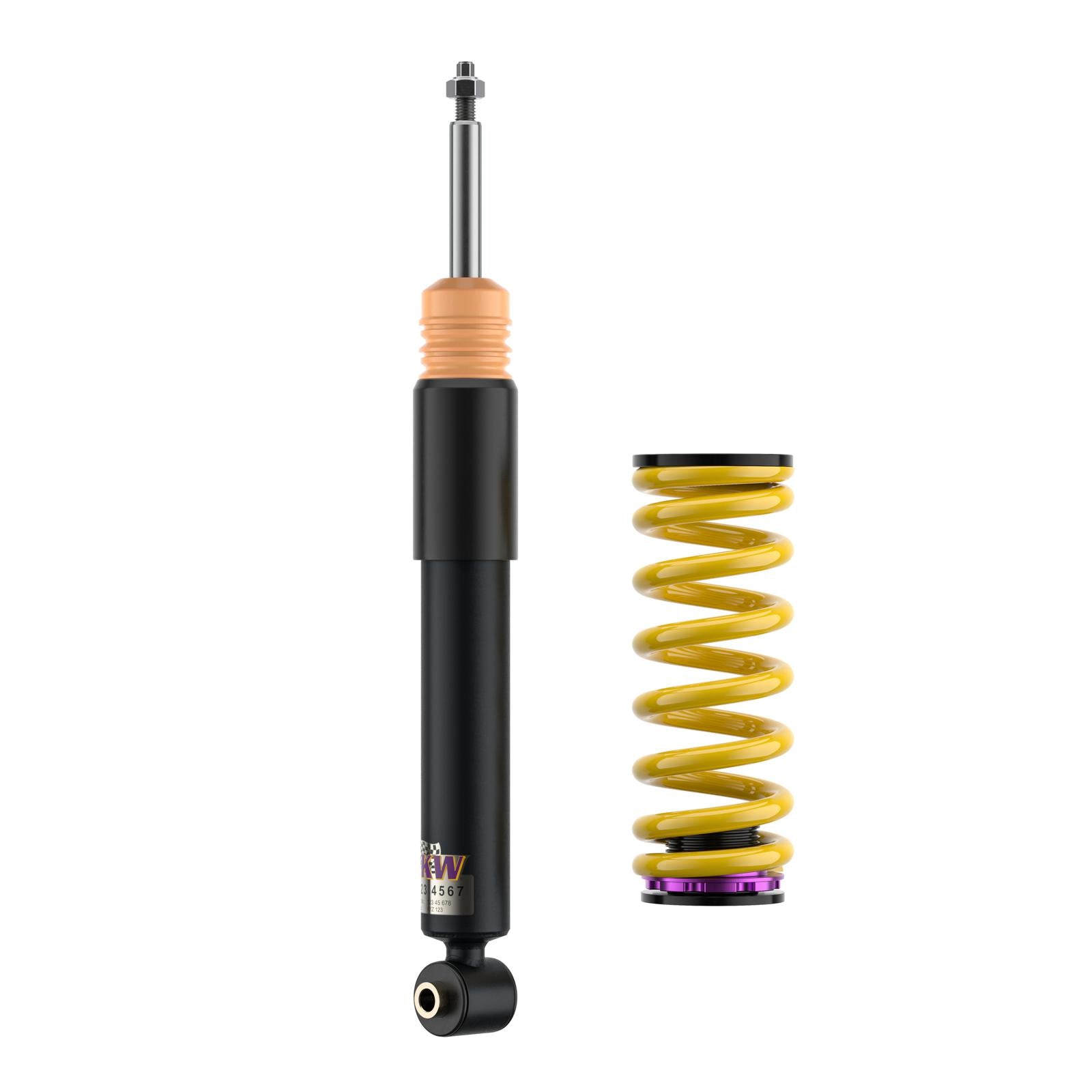

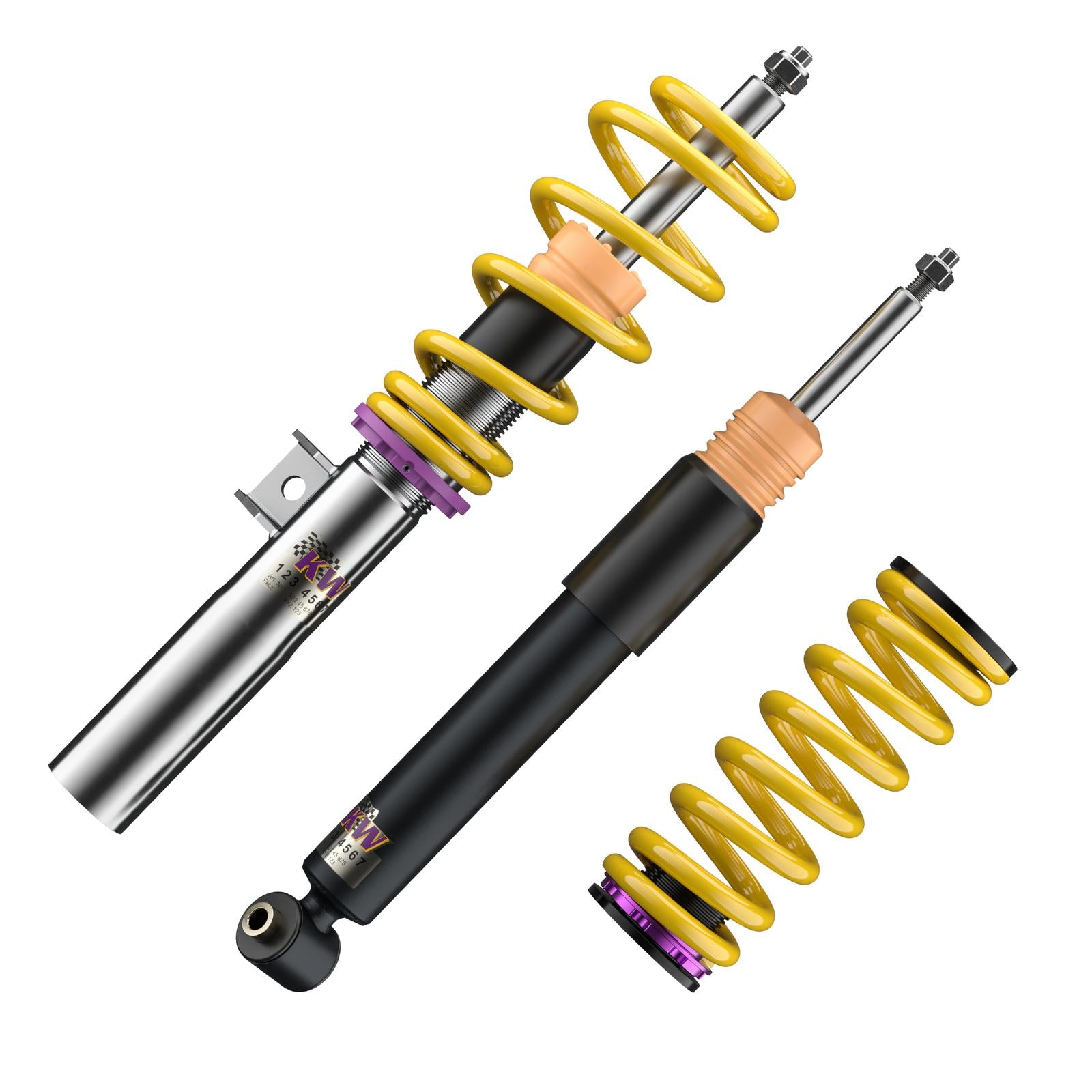

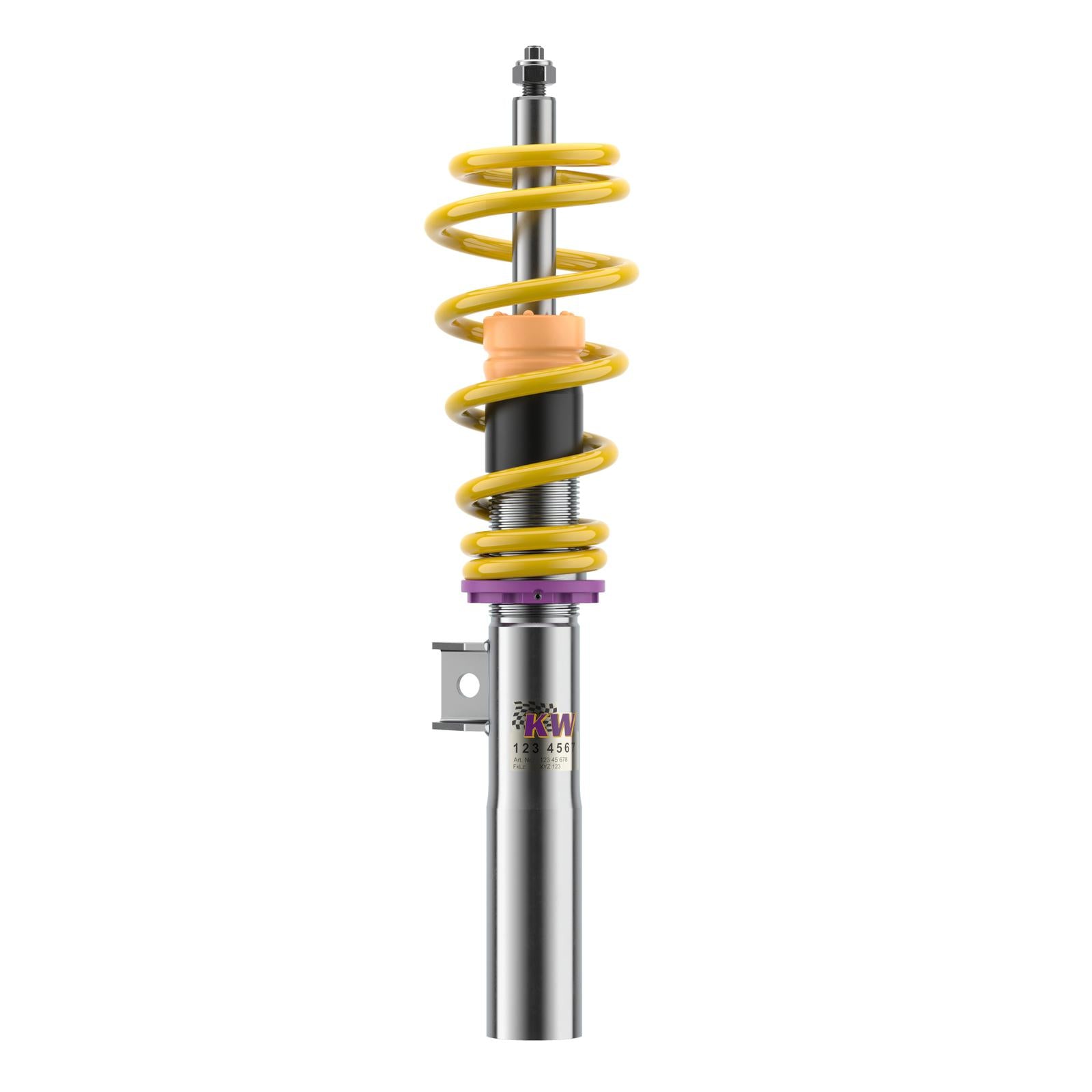

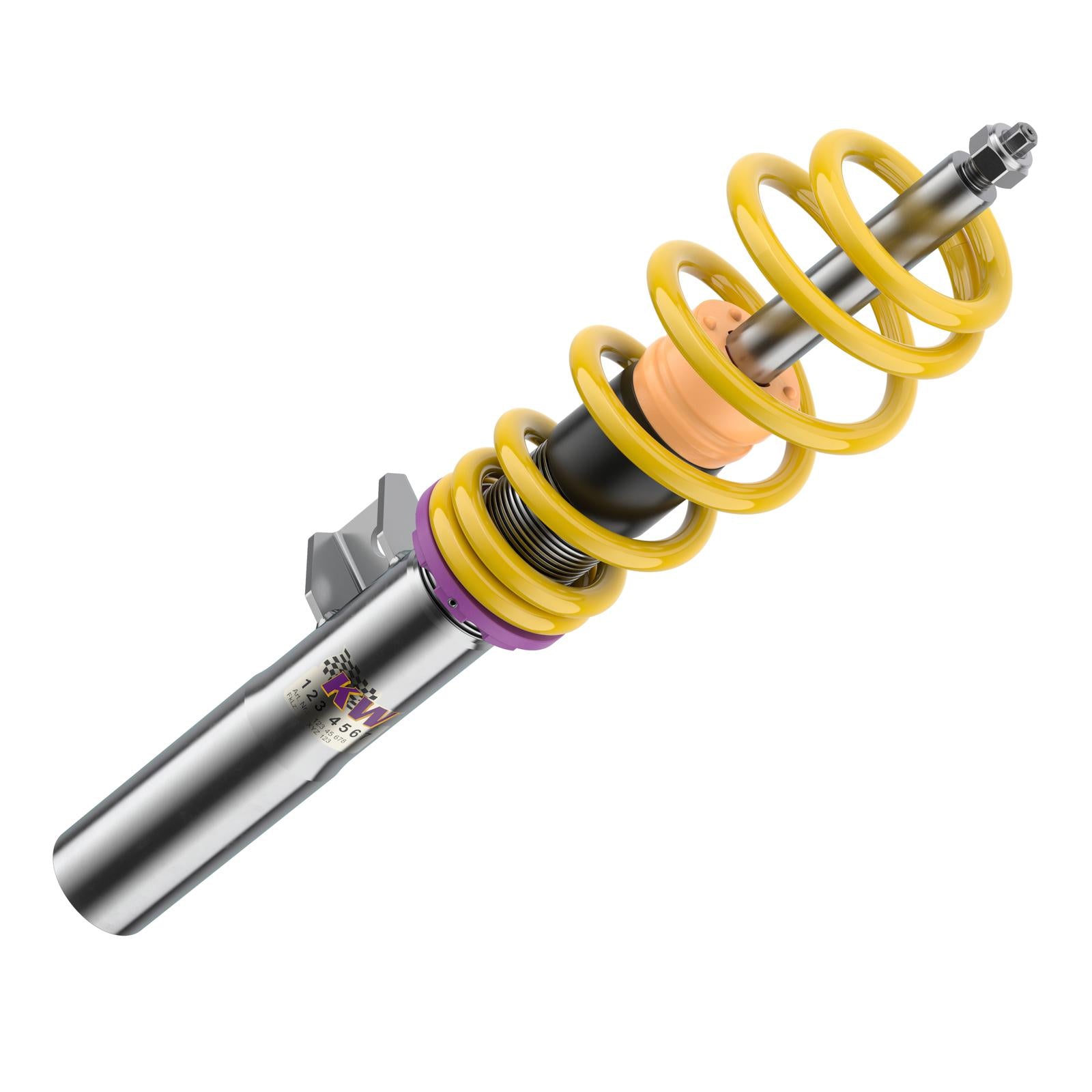

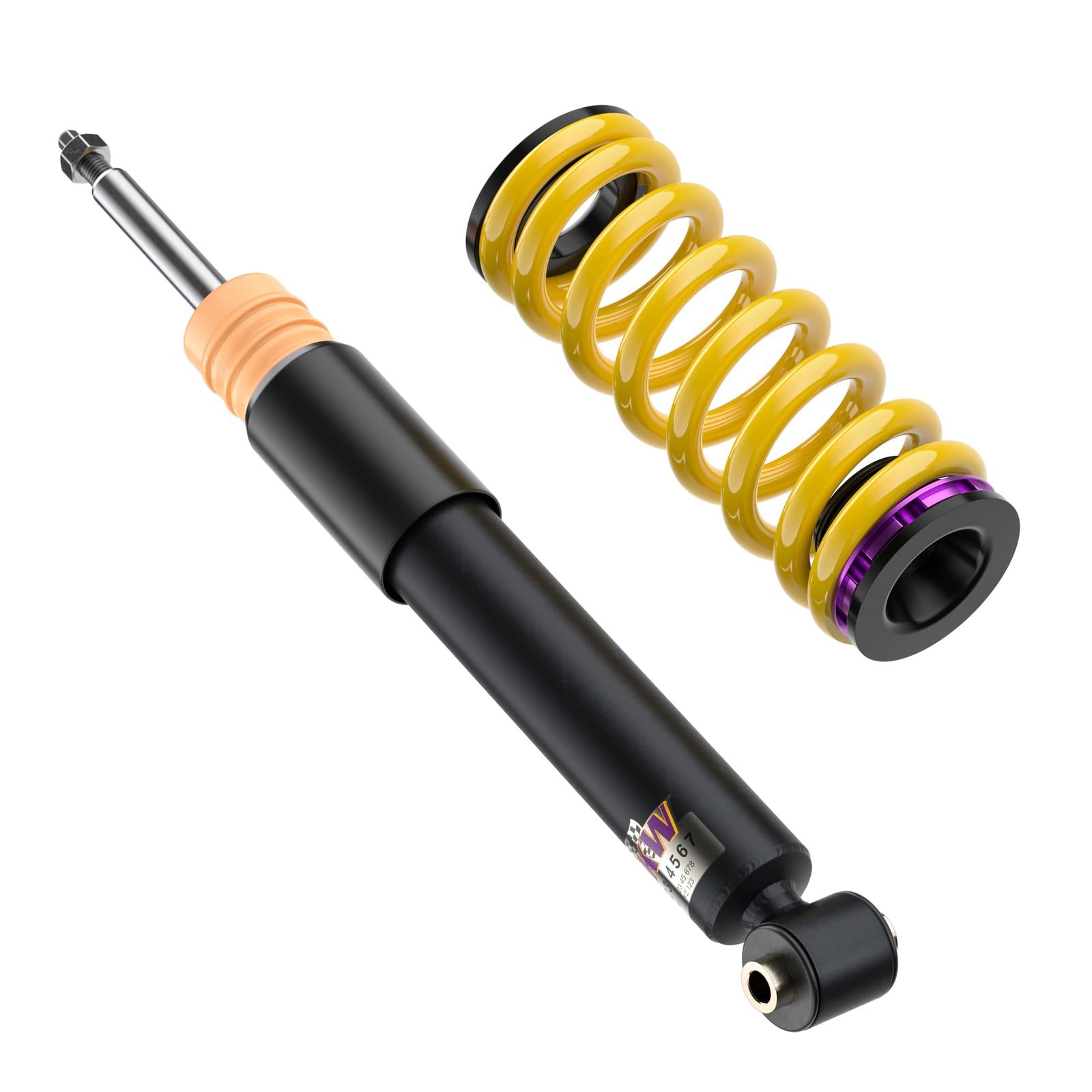

KW's V1 is the entry model in its street coilover range, pairing height-adjustable struts with a damper setup that KW pre-configures for each vehicle. Ride height is continuously adjustable within the tested range using a dirt-resistant trapezoidal thread and composite collar, so it can still be changed easily years after fitting. Corrosion-resistant springs and bump stops are built for a long service life. This kit is developed for the Audi S6 / A6 quattro (C5) / VW Passat W8.

Key Features

  • Vehicle-specific, factory-set damping
  • Continuous ride height adjustment within the tested range
  • Trapezoidal thread with composite adjuster collar

Specifications

  • Version: V1
  • Damping: Fixed, vehicle-specific setting
  • Material: Stainless steel
  • Front lowering: 40–75 mm
  • Rear lowering: 40–75 mm
  • Front axle load: 1,101–1,350 kg
  • Rear axle load: up to 1,300 kg
  • Supplied as: Front axle + rear axle coilover struts

Front axle load 1,101–1,350 kg; Rear axle load up to 1,300 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
1997–2005AudiA6 (4B) 4B2, C54.2 quattroPetrol · 220 kW · 4.2L · 8-cylAll-Wheel Drive1, 16
1997–2005AudiA6 (4B) 4B2, C53.7 quattroPetrol · 191 kW · 3.7L · 8-cylAll-Wheel Drive1, 16
1997–2006AudiA6 Avant (4B) 4B5, C53.7 quattroPetrol · 191 kW · 3.7L · 8-cylAll-Wheel Drive1, 16
1997–2006AudiA6 Avant (4B) 4B5, C54.2 quattroPetrol · 220 kW · 4.2L · 8-cylAll-Wheel Drive1, 16
1997–2005AudiA6 (4B) 4B2, C53.0 quattroPetrol · 164 kW · 3.0L · 6-cylAll-Wheel Drive1, 16
1997–2005AudiA6 (4B) 4B2, C5S6 quattroPetrol · 250 kW · 4.2L · 8-cylAll-Wheel Drive1, 16
1997–2006AudiA6 Avant (4B) 4B5, C5S6 quattroPetrol · 250 kW · 4.2L · 8-cylAll-Wheel Drive1, 16
1997–2005AudiA6 (4B) 4B2, C52.5 TDI quattroDiesel · 132 kW · 2.5L · 6-cylAll-Wheel Drive1, 16
1997–2006AudiA6 Avant (4B) 4B5, C52.5 TDI quattroDiesel · 132 kW · 2.5L · 6-cylAll-Wheel Drive1, 16
1997–2006AudiA6 Avant (4B) 4B5, C52.8 quattroPetrol · 140 kW · 2.8L · 6-cylAll-Wheel Drive1, 16
1997–2005AudiA6 (4B) 4B2, C53.0 quattroPetrol · 162 kW · 3.0L · 6-cylAll-Wheel Drive1, 16
1997–2005AudiA6 (4B) 4B2, C52.4 quattroPetrol · 125 kW · 2.4L · 6-cylAll-Wheel Drive1, 16
1997–2005AudiA6 (4B) 4B2, C52.7 T quattroPetrol · 184 kW · 2.7L · 6-cylAll-Wheel Drive1, 16
1997–2006AudiA6 Avant (4B) 4B5, C52.4 quattroPetrol · 125 kW · 2.4L · 6-cylAll-Wheel Drive1, 16
1997–2006AudiA6 Avant (4B) 4B5, C52.7 T quattroPetrol · 184 kW · 2.7L · 6-cylAll-Wheel Drive1, 16
1997–2006AudiA6 Avant (4B) 4B5, C53.0 quattroPetrol · 162 kW · 3.0L · 6-cylAll-Wheel Drive1, 16
2000–2005VWPassat 3B3 (3BG|3BL|3BS)4.0 W8 4motionPetrol · 202 kW · 4.0L · 8-cylAll-Wheel Drive1
2000–2005VWPassat Estate 3B6 (3BG, 3BS)4.0 W8 4motionPetrol · 202 kW · 4.0L · 8-cylAll-Wheel Drive1
1997–2005AudiA6 (4B) 4B2, C52.4 quattroPetrol · 120 kW · 2.4L · 6-cylAll-Wheel Drive1, 16
1997–2006AudiA6 Avant (4B) 4B5, C52.4 quattroPetrol · 120 kW · 2.4L · 6-cylAll-Wheel Drive1, 16
1997–2005AudiA6 (4B) 4B2, C52.4 quattroPetrol · 115 kW · 2.4L · 6-cylAll-Wheel Drive1, 16
1997–2006AudiA6 Avant (4B) 4B5, C52.4 quattroPetrol · 115 kW · 2.4L · 6-cylAll-Wheel Drive1, 16
1997–2005AudiA6 (4B) 4B2, C52.7 quattroPetrol · 187 kW · 2.7L · 6-cylAll-Wheel Drive1, 16
1997–2005AudiA6 (4B) 4B2, C52.7 quattroPetrol · 195 kW · 2.7L · 6-cylAll-Wheel Drive1, 16
1997–2005AudiA6 (4B) 4B2, C52.8 quattroPetrol · 132 kW · 2.8L · 6-cylAll-Wheel Drive1, 16
1997–2005AudiA6 (4B) 4B2, C53.0 quattroPetrol · 160 kW · 3.0L · 6-cylAll-Wheel Drive1, 16
1997–2005AudiA6 (4B) 4B2, C52.8 quattroPetrol · 140 kW · 2.8L · 6-cylAll-Wheel Drive1, 16
1997–2006AudiA6 Avant (4B) 4B5, C53.0 quattroPetrol · 164 kW · 3.0L · 6-cylAll-Wheel Drive1, 16
1997–2006AudiA6 Avant (4B) 4B5, C53.0 quattroPetrol · 160 kW · 3.0L · 6-cylAll-Wheel Drive1, 16
1997–2005AudiA6 (4B) 4B2, C52.4 quattroPetrol · 121 kW · 2.4L · 6-cylAll-Wheel Drive1, 16
1997–2005AudiA6 (4B) 4B2, C52.8 quattroPetrol · 142 kW · 2.8L · 6-cylAll-Wheel Drive1, 16
1997–2005AudiA6 (4B) 4B2, C52.5 TDI quattroDiesel · 110 kW · 2.5L · 6-cylAll-Wheel Drive1, 16
1997–2006AudiA6 Avant (4B) 4B5, C52.8 quattroPetrol · 142 kW · 2.8L · 6-cylAll-Wheel Drive1, 16
1997–2006AudiA6 Avant (4B) 4B5, C52.4 quattroPetrol · 121 kW · 2.4L · 6-cylAll-Wheel Drive1, 16
1997–2006AudiA6 Avant (4B) 4B5, C52.5 TDI quattroDiesel · 110 kW · 2.5L · 6-cylAll-Wheel Drive1, 16
1997–2006AudiA6 Avant (4B) 4B5, C52.7 T quattroPetrol · 169 kW · 2.7L · 6-cylAll-Wheel Drive1, 16
1997–2005AudiA6 (4B) 4B2, C52.7 T quattroPetrol · 169 kW · 2.7L · 6-cylAll-Wheel Drive1, 16
  • Note 1: Height adjustable on the front and rear axles (threaded strut housings).
  • Note 8: Not for vehicles with automatic self levelling control / air suspension.
  • Note 16: Additional assembly parts are required from the automobile manufacturer for vehicles with self levelling control. (Audi part-no.: damper bearing 8E0 512 121 E, spring base 8E0 512 149 H, bump stop eB0 512 131Q).
