KW Coilover Kit V1 for Audi (FY/FYT) SQ5 / Q5
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

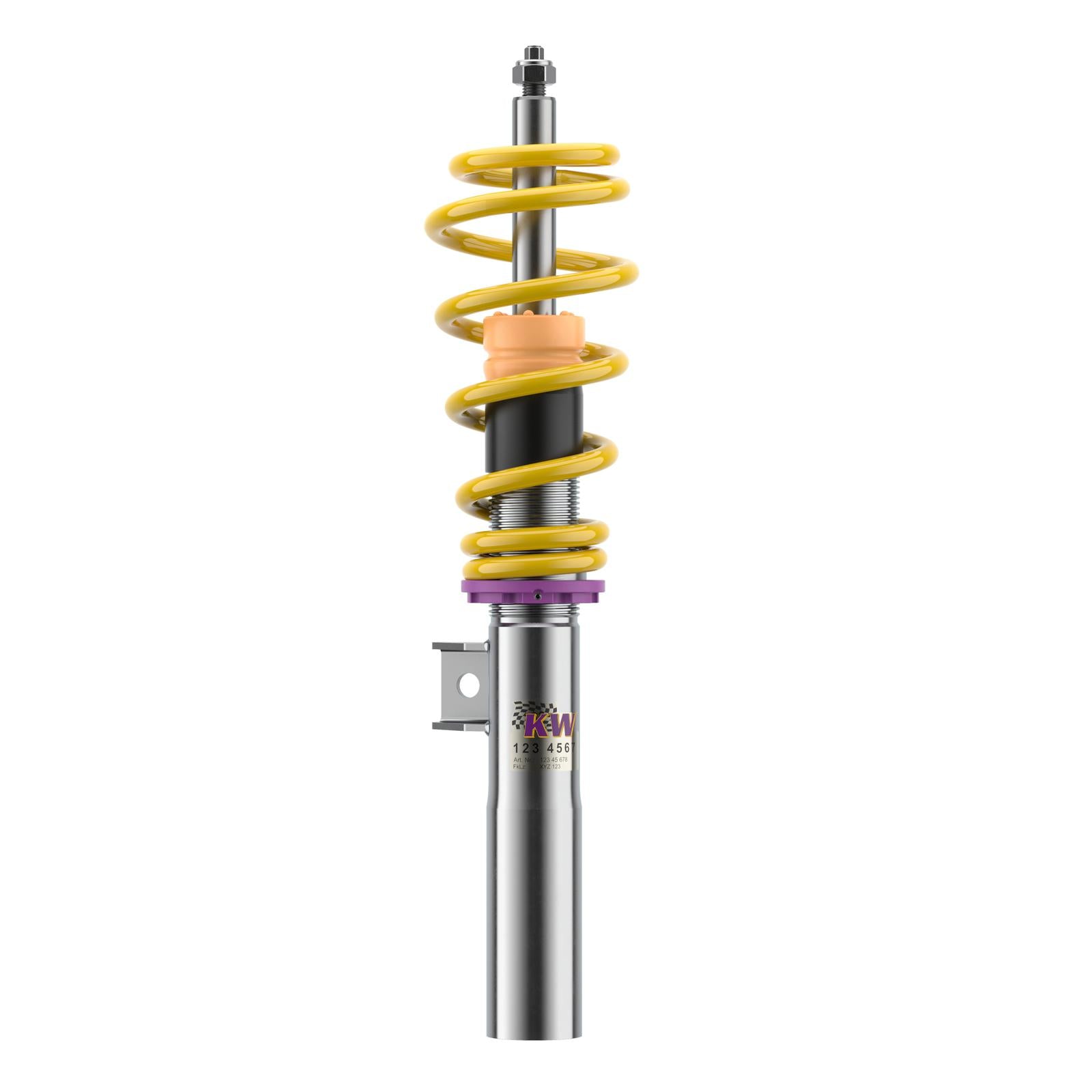

KW's V1 is the entry model in its street coilover range, pairing height-adjustable struts with a damper setup that KW pre-configures for each vehicle. Ride height is continuously adjustable within the tested range using a dirt-resistant trapezoidal thread and composite collar, so it can still be changed easily years after fitting. Corrosion-resistant springs and bump stops are built for a long service life. This kit is developed for the Audi SQ5 (FY) / SQ5 Sportback (FYT) / Q5 (FY).
Key Features
- Vehicle-specific, factory-set damping
- Continuous ride height adjustment within the tested range
- Trapezoidal thread with composite adjuster collar
Specifications
- Version: V1
- Damping: Fixed, vehicle-specific setting
- Material: Stainless steel
- Front lowering: 30–65 mm
- Rear lowering: 35–65 mm
- Front axle load: 1,251–1,355 kg
- Rear axle load: up to 1,390 kg

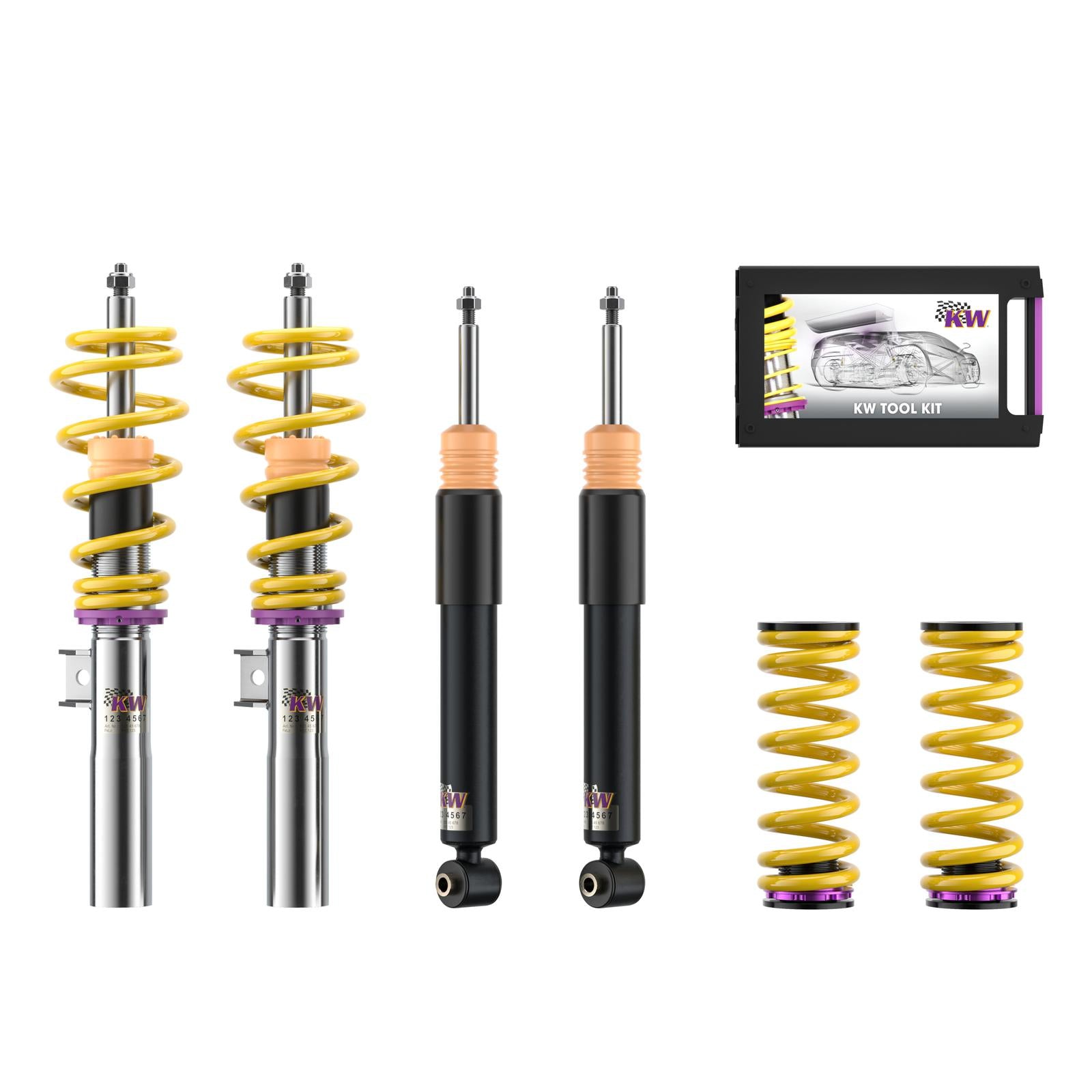

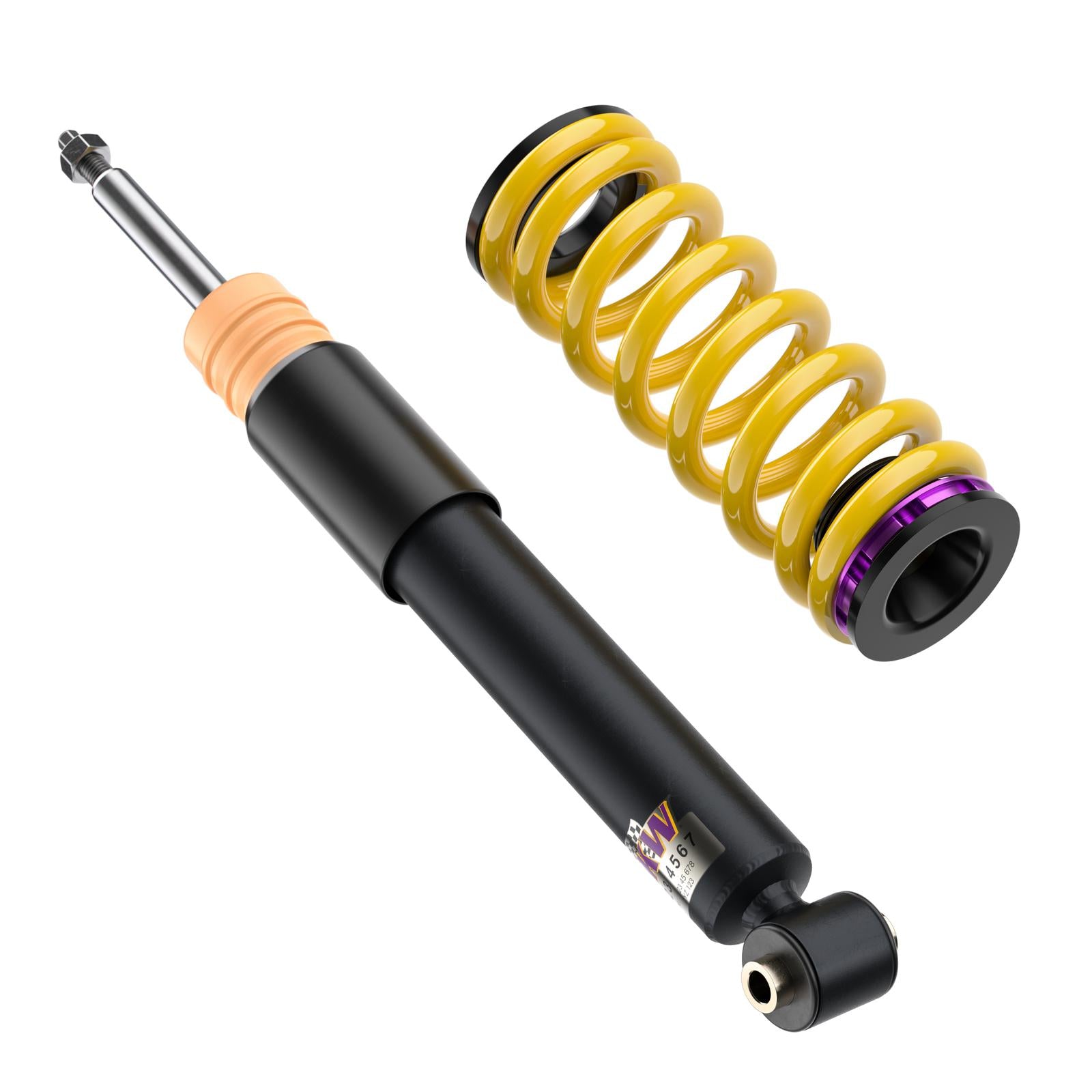

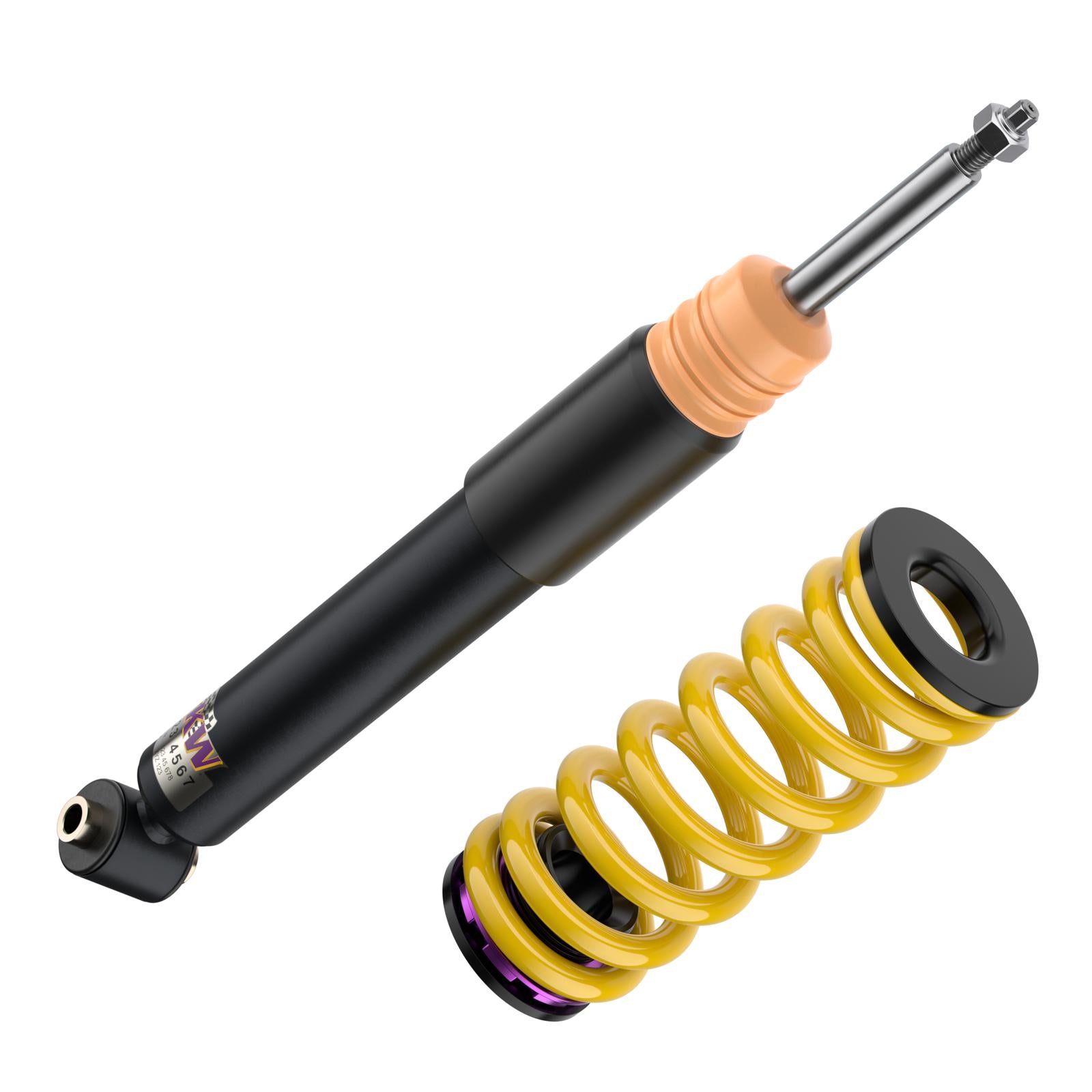

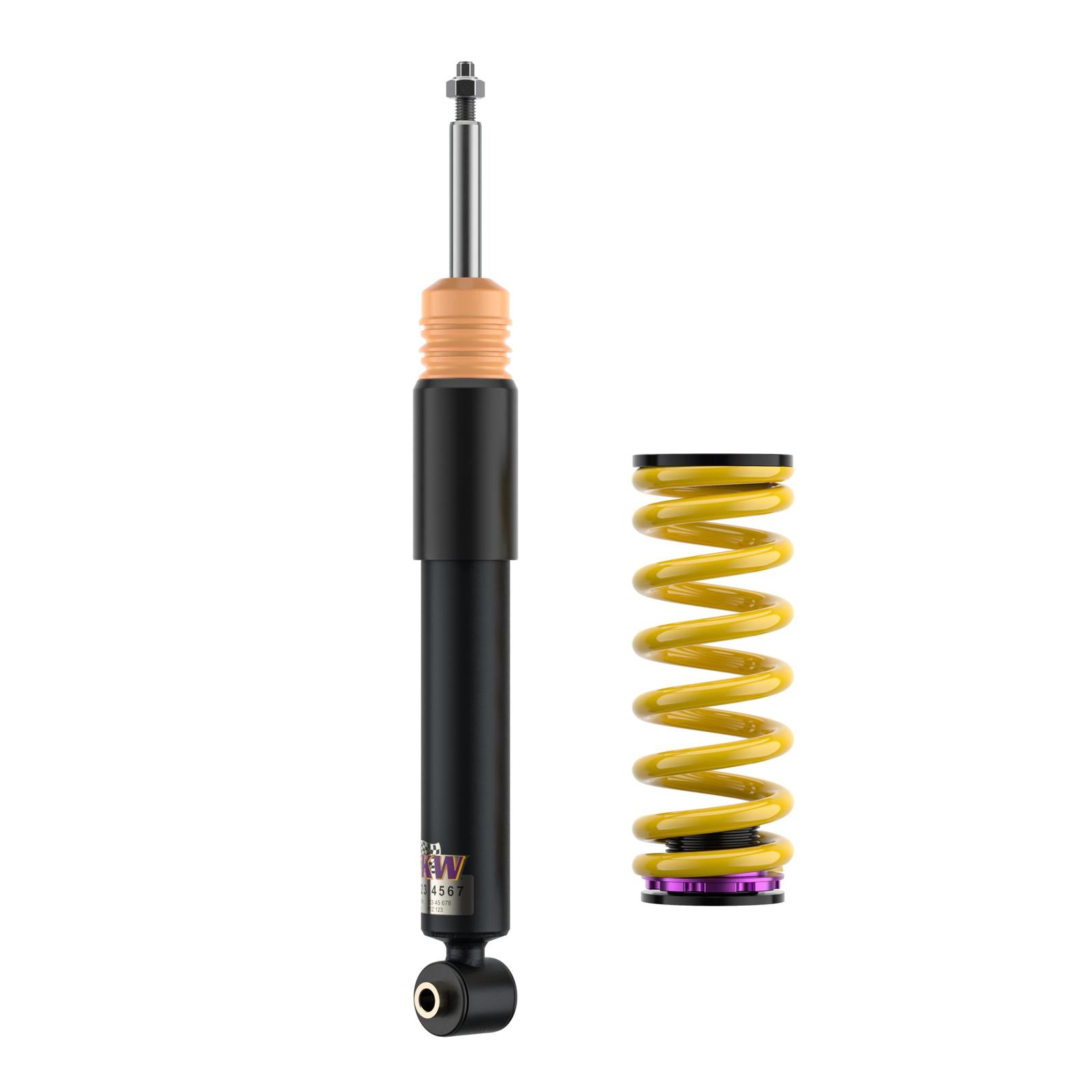

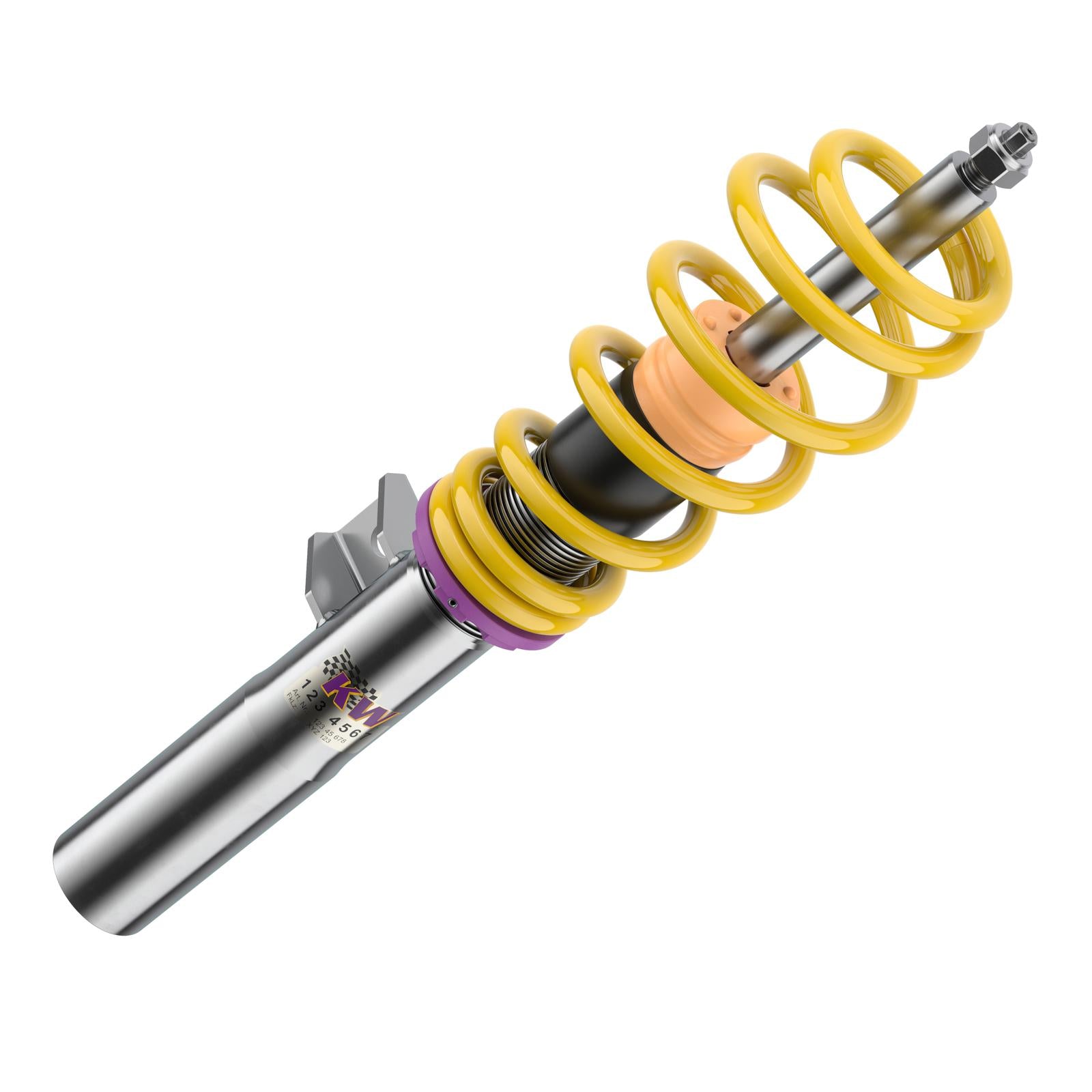

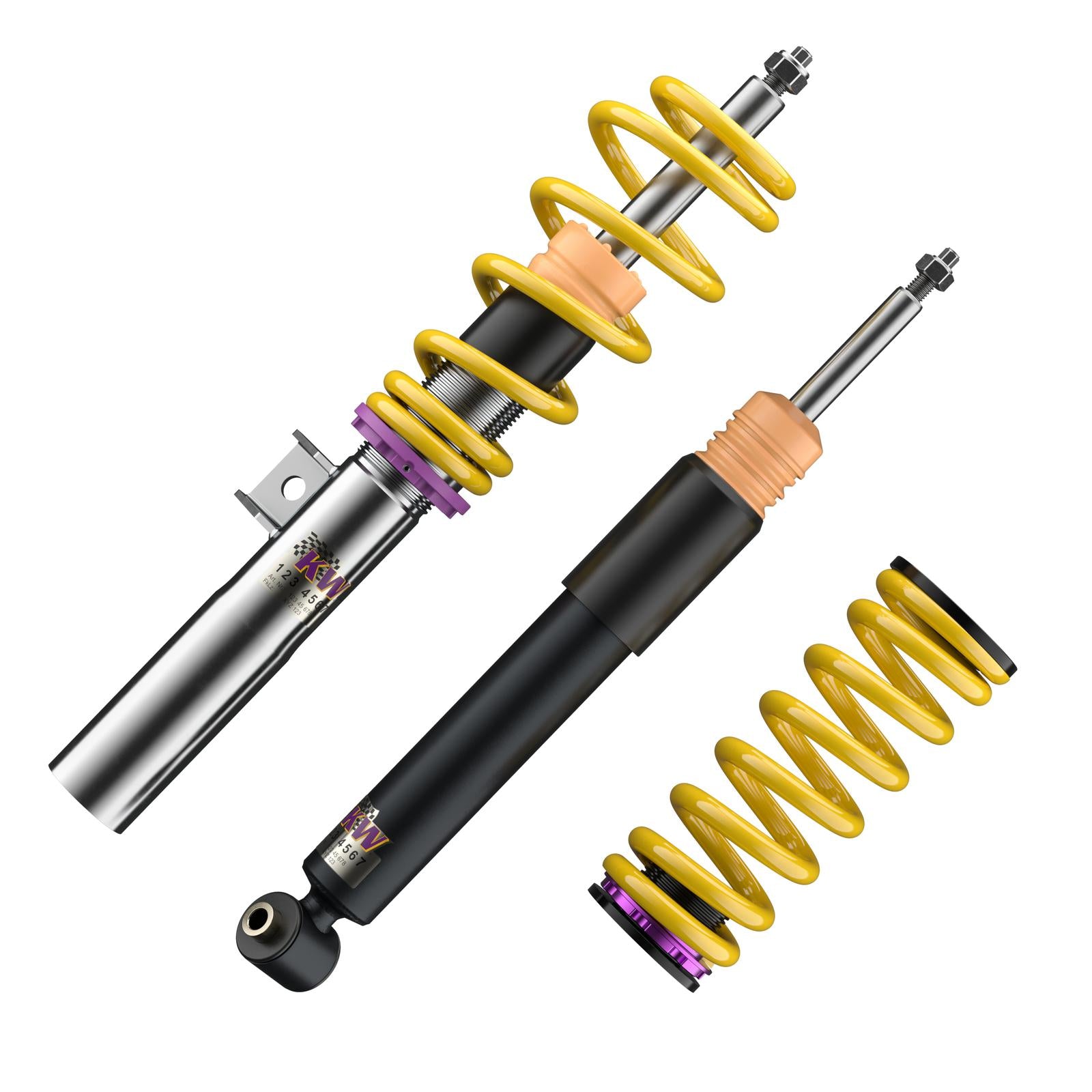

- Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Front axle load 1,251–1,355 kg; Rear axle load up to 1,390 kg.
For vehicles without electronic damper control.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Notes | Refs |
|---|---|---|---|---|---|---|---|
| 2016+ | Audi | Q5 (FY) FYB | 2.0 TFSI quattro | Petrol · 185 kW · 2.0L · 4-cyl | All-Wheel Drive | Not for vehicle class M1G | 2, 8, 62 |
| 2016+ | Audi | Q5 (FY) FYB | 3.0 TDI quattro | Diesel · 210 kW · 3.0L · 6-cyl | All-Wheel Drive | Not for vehicle class M1G | 2, 8, 62 |
| 2016+ | Audi | Q5 (FY) FYB | 45 TDI quattro | Diesel · 170 kW · 3.0L · 6-cyl | All-Wheel Drive | Not for vehicle class M1G | 2, 8, 62 |
| 2016+ | Audi | Q5 (FY) FYB | 50 TDI Mild Hybrid quattro | Diesel/Electric · 210 kW · 3.0L · 6-cyl | All-Wheel Drive | Not for vehicle class M1G | 2, 8, 62 |
| 2016+ | Audi | Q5 (FY) FYB | 50 TDI quattro | Diesel · 210 kW · 3.0L · 6-cyl | All-Wheel Drive | Not for vehicle class M1G | 2, 8, 62 |
| 2016+ | Audi | Q5 (FY) FYB | SQ5 TDI Mild Hybrid quattro | Diesel/Electric · 251 kW · 3.0L · 6-cyl | All-Wheel Drive | Not for vehicle class M1G | 2, 8, 62 |
| 2016+ | Audi | Q5 (FY) FYB | SQ5 TDI Mild Hybrid quattro | Diesel/Electric · 255 kW · 3.0L · 6-cyl | All-Wheel Drive | Not for vehicle class M1G | 2, 8, 62 |
| 2016+ | Audi | Q5 (FY) FYB | SQ5 TFSI Mild Hybrid quattro | Petrol/Electric · 260 kW · 3.0L · 6-cyl | All-Wheel Drive | Not for vehicle class M1G | 2, 8, 62 |
| 2016+ | Audi | Q5 (FY) FYB | SQ5 TFSI quattro | Petrol · 260 kW · 3.0L · 6-cyl | All-Wheel Drive | Not for vehicle class M1G | 2, 8, 62 |
| 2020+ | Audi | Q5 Sportback (FYT) | 50 TDI Mild Hybrid quattro | Diesel/Electric · 210 kW · 3.0L · 6-cyl | All-Wheel Drive | Not for vehicle class M1G | 2, 8, 62 |
| 2020+ | Audi | Q5 Sportback (FYT) | SQ5 TDI Mild Hybrid quattro | Diesel/Electric · 251 kW · 3.0L · 6-cyl | All-Wheel Drive | Not for vehicle class M1G | 2, 8, 62 |
| 2020+ | Audi | Q5 Sportback (FYT) | SQ5 TFSI quattro | Petrol · 260 kW · 3.0L · 6-cyl | All-Wheel Drive | Not for vehicle class M1G | 2, 8, 62 |
| 2020+ | Audi | Q5 Sportback (FYT) | SQ5 TFSI quattro | Petrol/Electric · 260 kW · 3.0L · 6-cyl | All-Wheel Drive | Not for vehicle class M1G | 2, 8, 62 |
- Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
- Note 8: Not for vehicles with automatic self levelling control / air suspension.
- Note 62: Not for cars with electronic damping.
- Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
