KW Coilover Kit V1 for Audi (8N) TT 1.8L Turbo / TT Roadster 1.8L Turbo

SKU: 10210041
Sale price$1,735.31 Regular price$2,479.00
Save $743.69

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V1 is the entry model in its street coilover range, pairing height-adjustable struts with a damper setup that KW pre-configures for each vehicle. Ride height is continuously adjustable within the tested range using a dirt-resistant trapezoidal thread and composite collar, so it can still be changed easily years after fitting. Corrosion-resistant springs and bump stops are built for a long service life. This kit is developed for the Audi TT 1.8T / TT Roadster 1.8T (8N) quattro.

Key Features

  • Vehicle-specific, factory-set damping
  • Continuous ride height adjustment within the tested range
  • Trapezoidal thread with composite adjuster collar

Specifications

  • Version: V1
  • Damping: Fixed, vehicle-specific setting
  • Material: Stainless steel
  • Front lowering: 25–50 mm
  • Rear lowering: 25–50 mm
  • Front axle load: up to 1,040 kg
  • Rear axle load: up to 900 kg

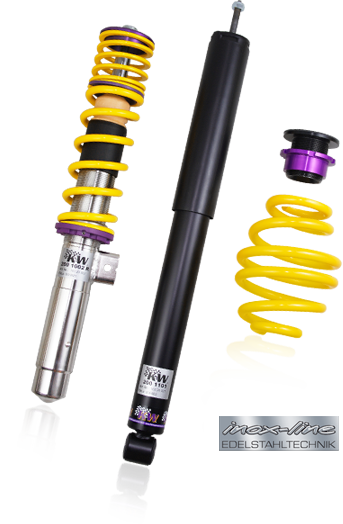

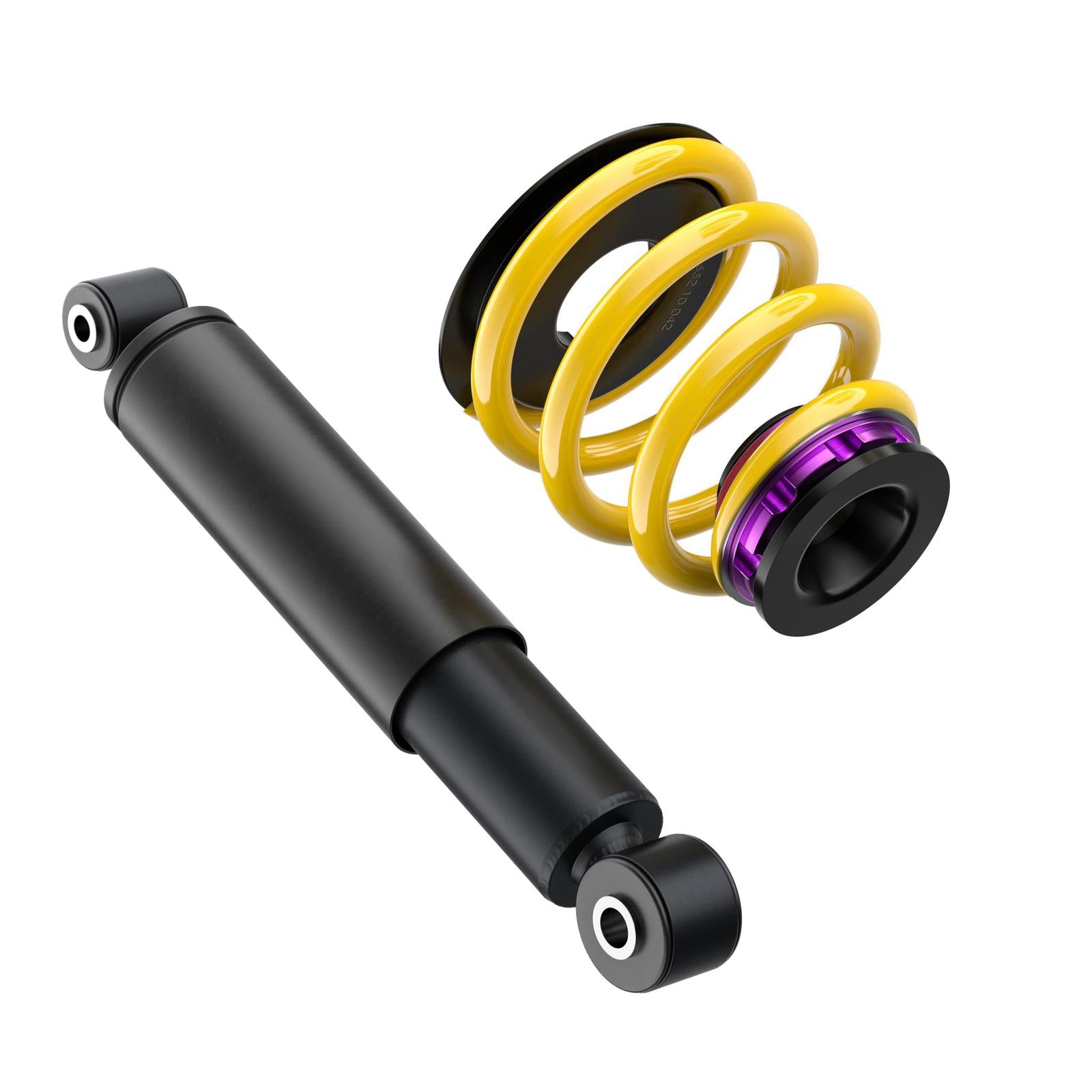

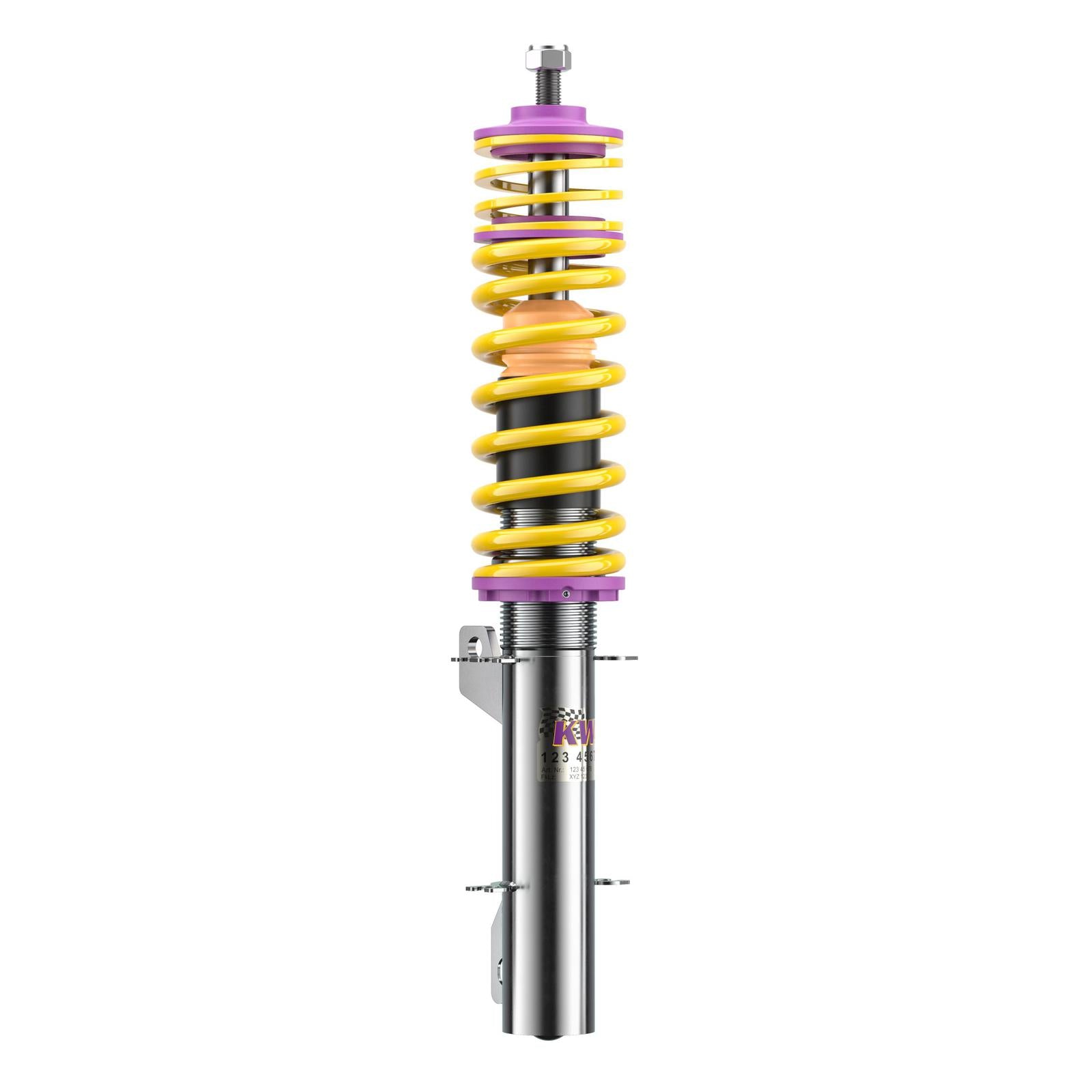

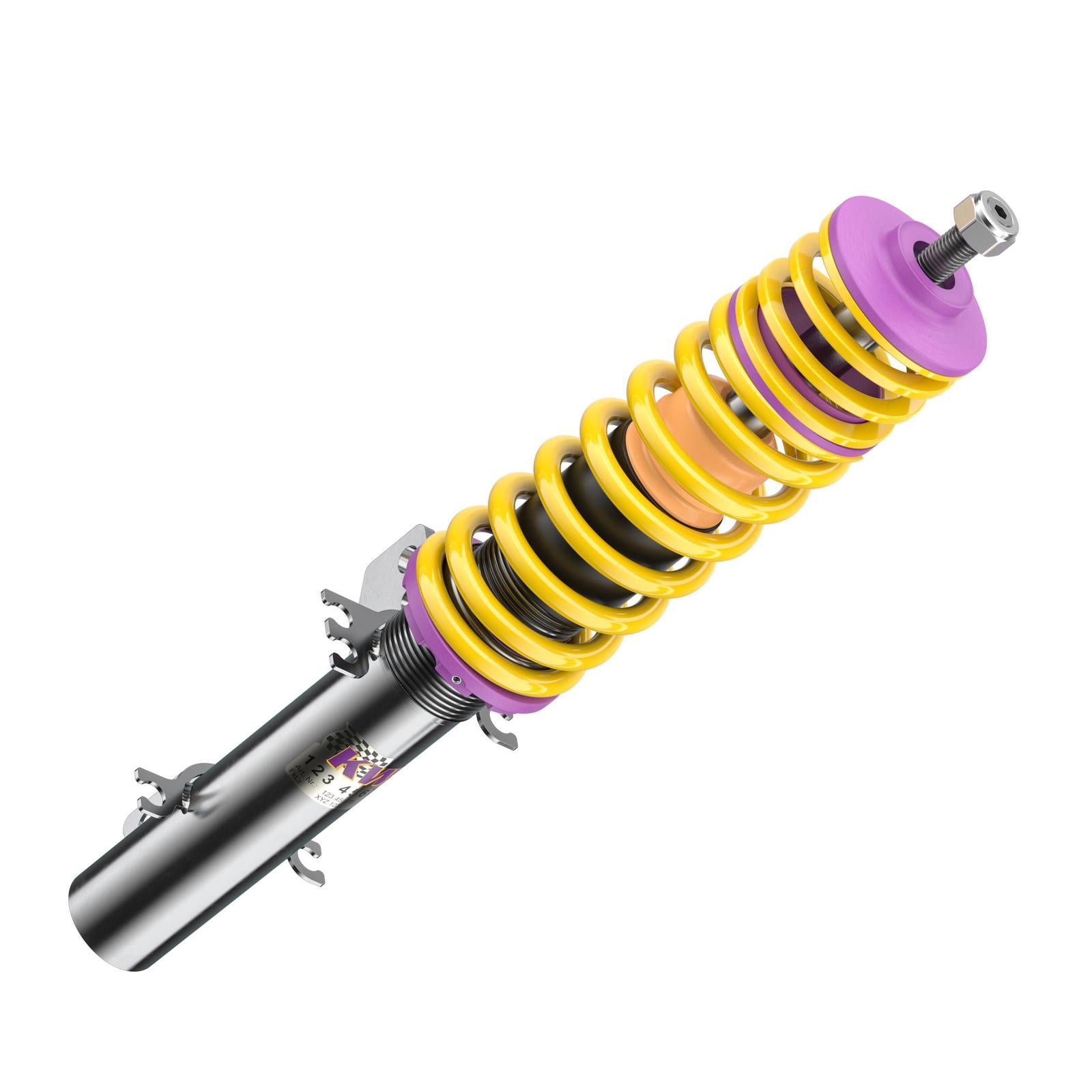

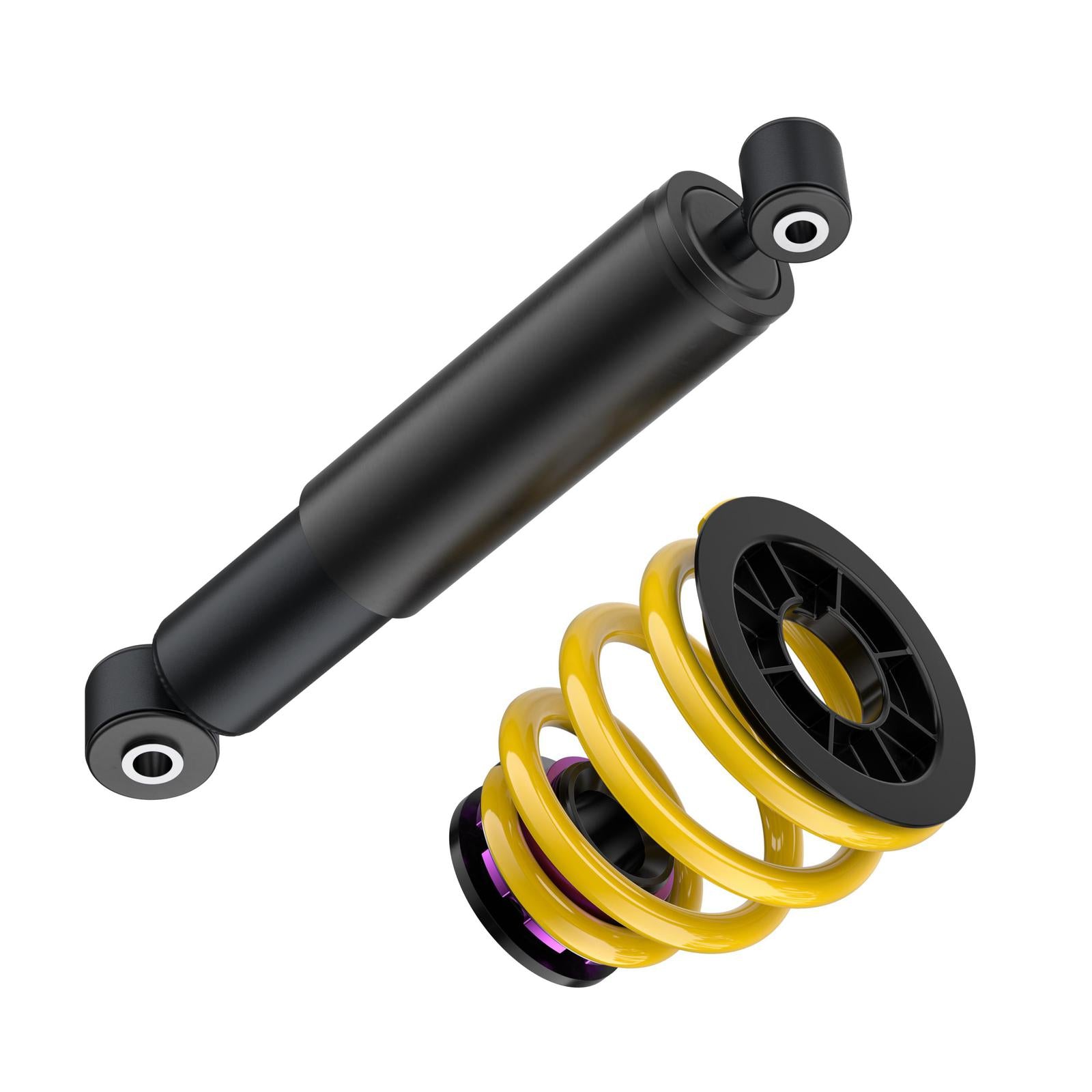

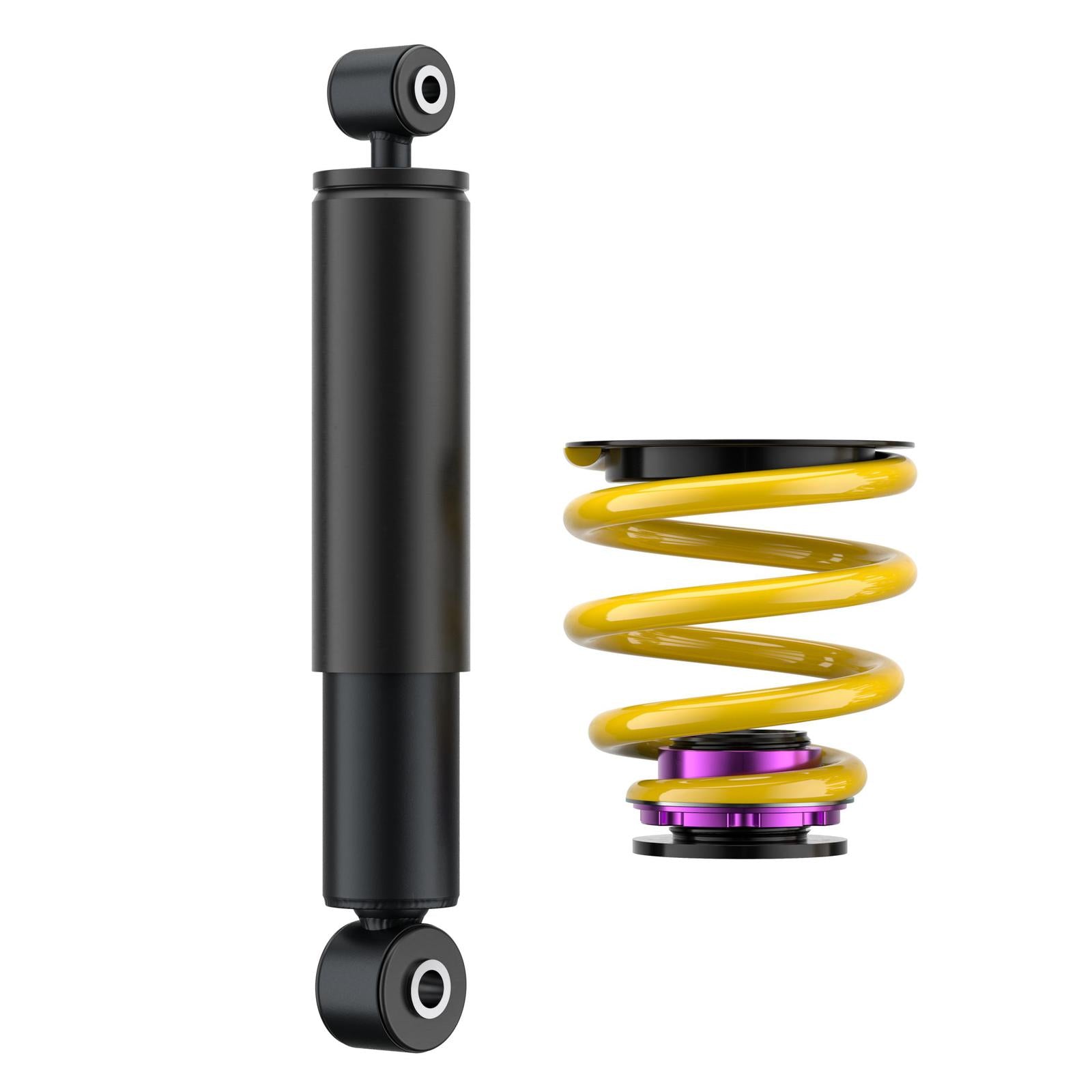

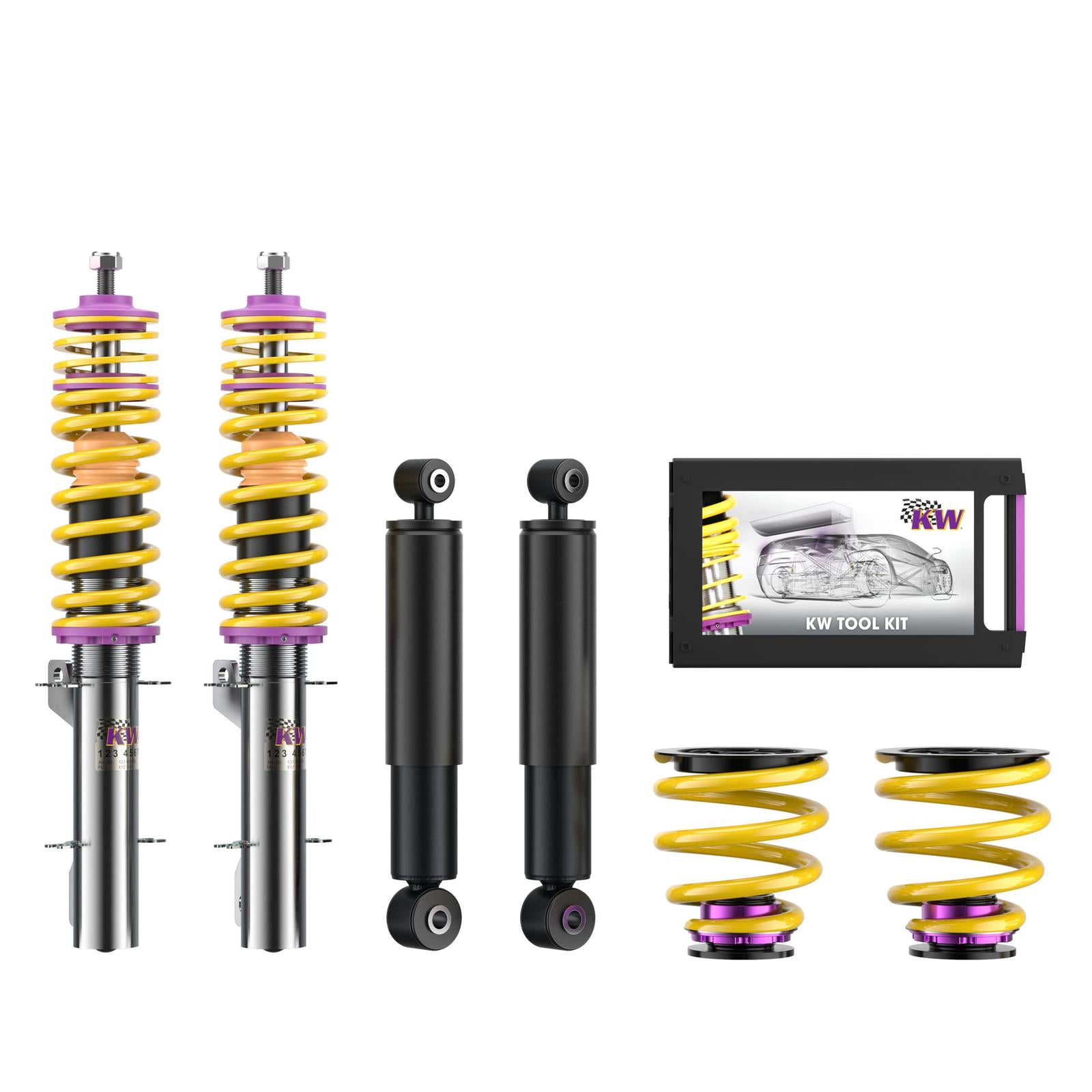

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 1,040 kg; Rear axle load up to 900 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
1998–2007AudiTT (8N) 8N31.8 T quattroPetrol · 168 kW · 1.8L · 4-cylAll-Wheel Drive2, 6, 14, 85
1999–2007AudiTT Roadster (8N) 8N91.8 T quattroPetrol · 168 kW · 1.8L · 4-cylAll-Wheel Drive2, 6, 14, 85
1999–2007AudiTT Roadster (8N) 8N91.8 T quattroPetrol · 132 kW · 1.8L · 4-cylAll-Wheel Drive2, 6, 14, 85
1999–2007AudiTT Roadster (8N) 8N91.8 T quattroPetrol · 165 kW · 1.8L · 4-cylAll-Wheel Drive2, 6, 14, 85
1998–2007AudiTT (8N) 8N31.8 T quattroPetrol · 134 kW · 1.8L · 4-cylAll-Wheel Drive2, 6, 14, 85
1998–2007AudiTT (8N) 8N31.8 T quattroPetrol · 180 kW · 1.8L · 4-cylAll-Wheel Drive2, 6, 14, 85
1998–2007AudiTT (8N) 8N31.8 T quattroPetrol · 140 kW · 1.8L · 4-cylAll-Wheel Drive2, 6, 14, 85
1999–2007AudiTT Roadster (8N) 8N91.8 T quattroPetrol · 140 kW · 1.8L · 4-cylAll-Wheel Drive2, 6, 14, 85
1999–2007AudiTT Roadster (8N) 8N91.8 T quattroPetrol · 134 kW · 1.8L · 4-cylAll-Wheel Drive2, 6, 14, 85
1998–2007AudiTT (8N) 8N31.8 T quattroPetrol · 132 kW · 1.8L · 4-cylAll-Wheel Drive2, 6, 14, 85
1998–2007AudiTT (8N) 8N31.8 T quattroPetrol · 165 kW · 1.8L · 4-cylAll-Wheel Drive2, 6, 14, 85
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 6: When using original tyres, wheel offset spacers may be required.
  • Note 14: Only for vehicles with ESP.
  • Note 85: For rear axle camber adjustment we recommend the installation of the car specific adjustable control arm set from KW. The part number for the control arm set is mention in the accessories list.
