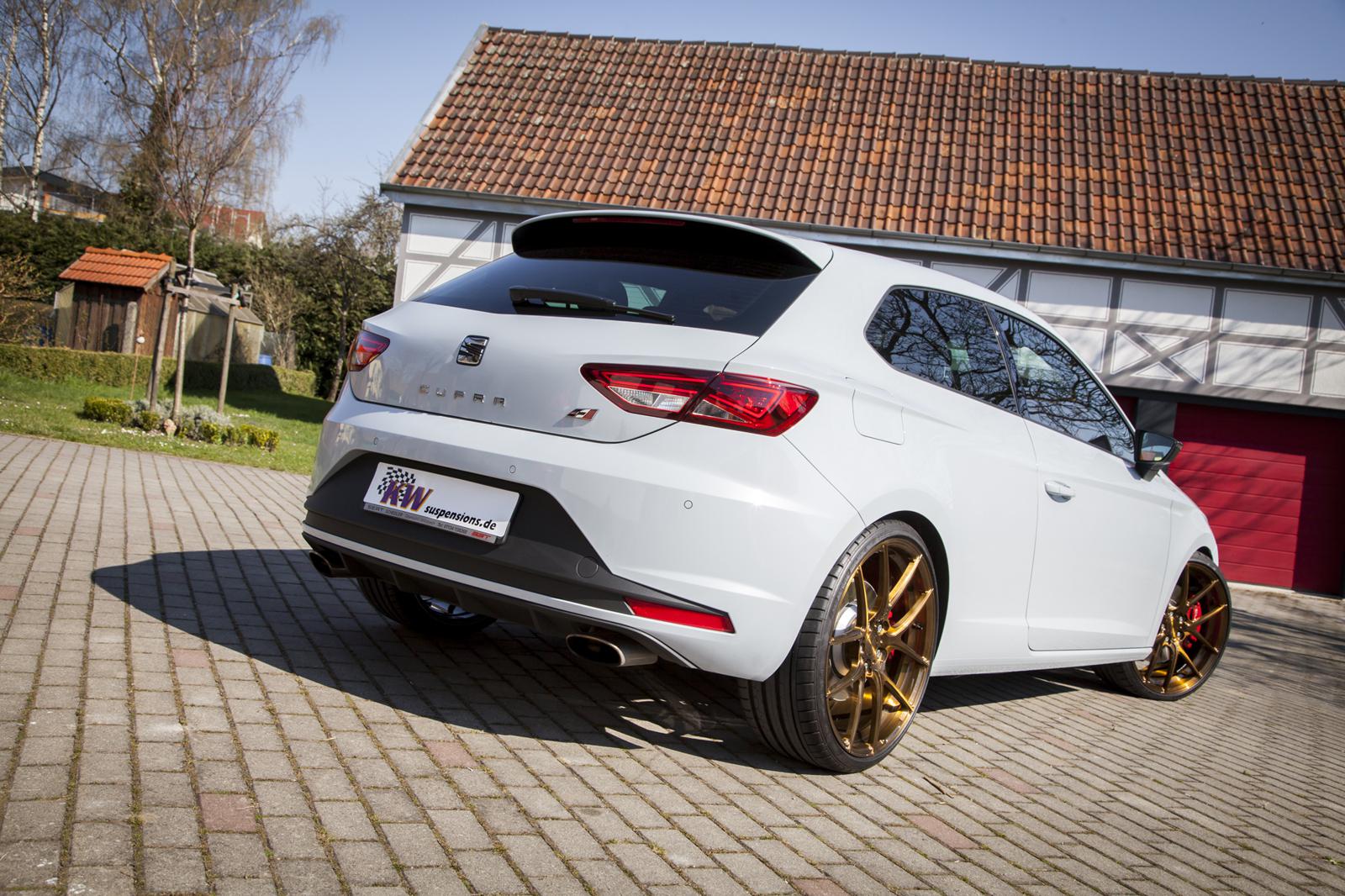

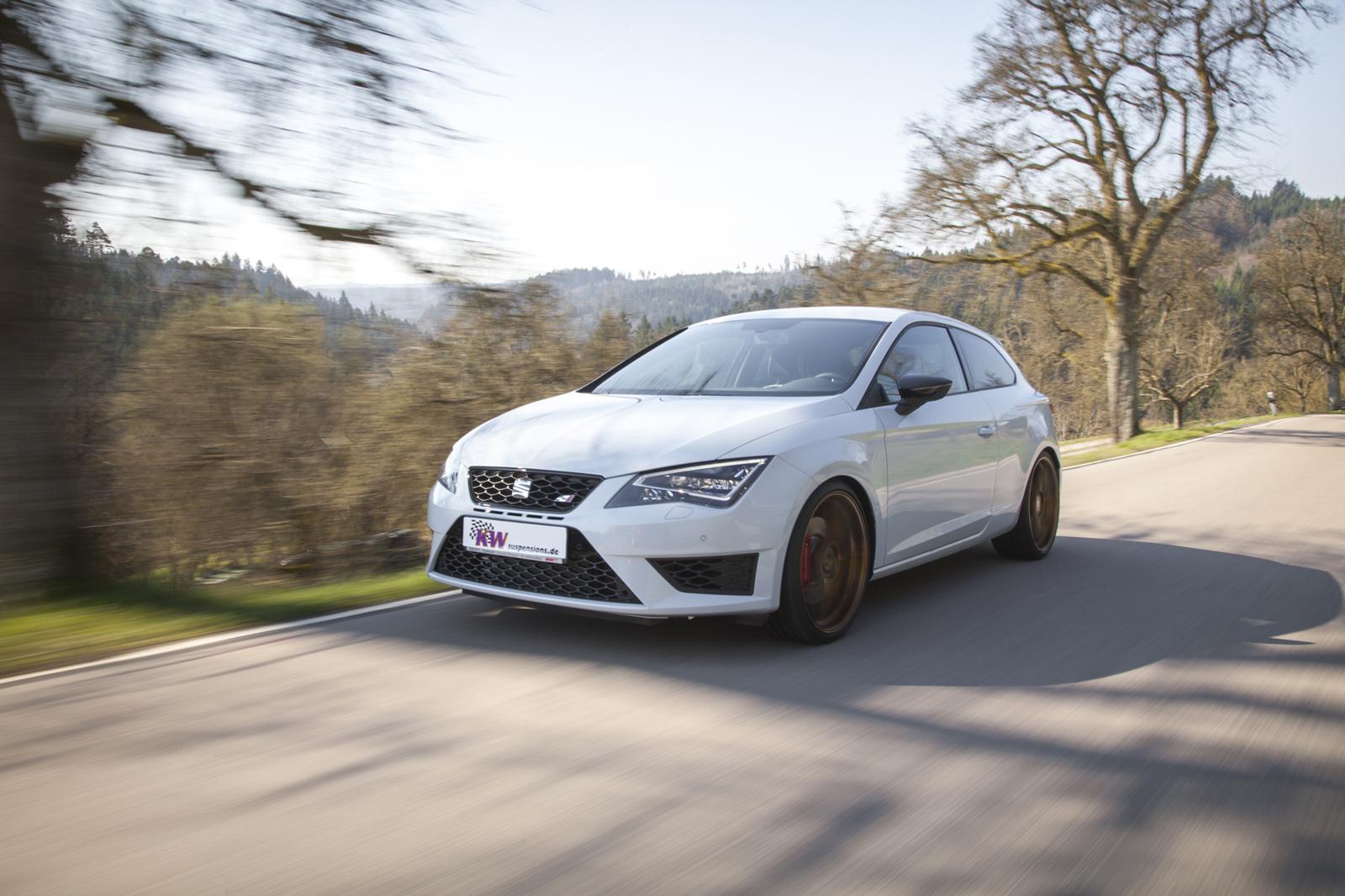

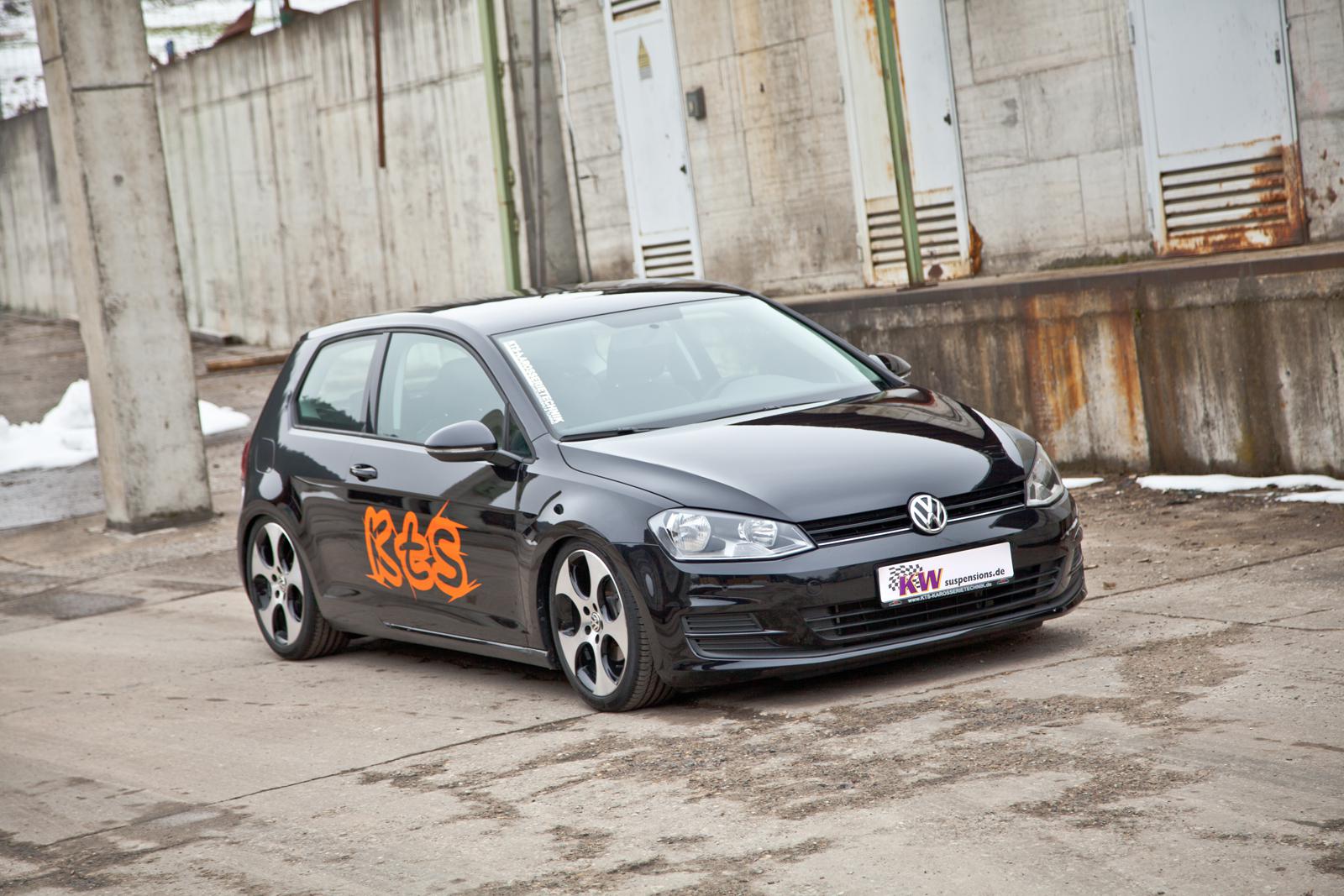

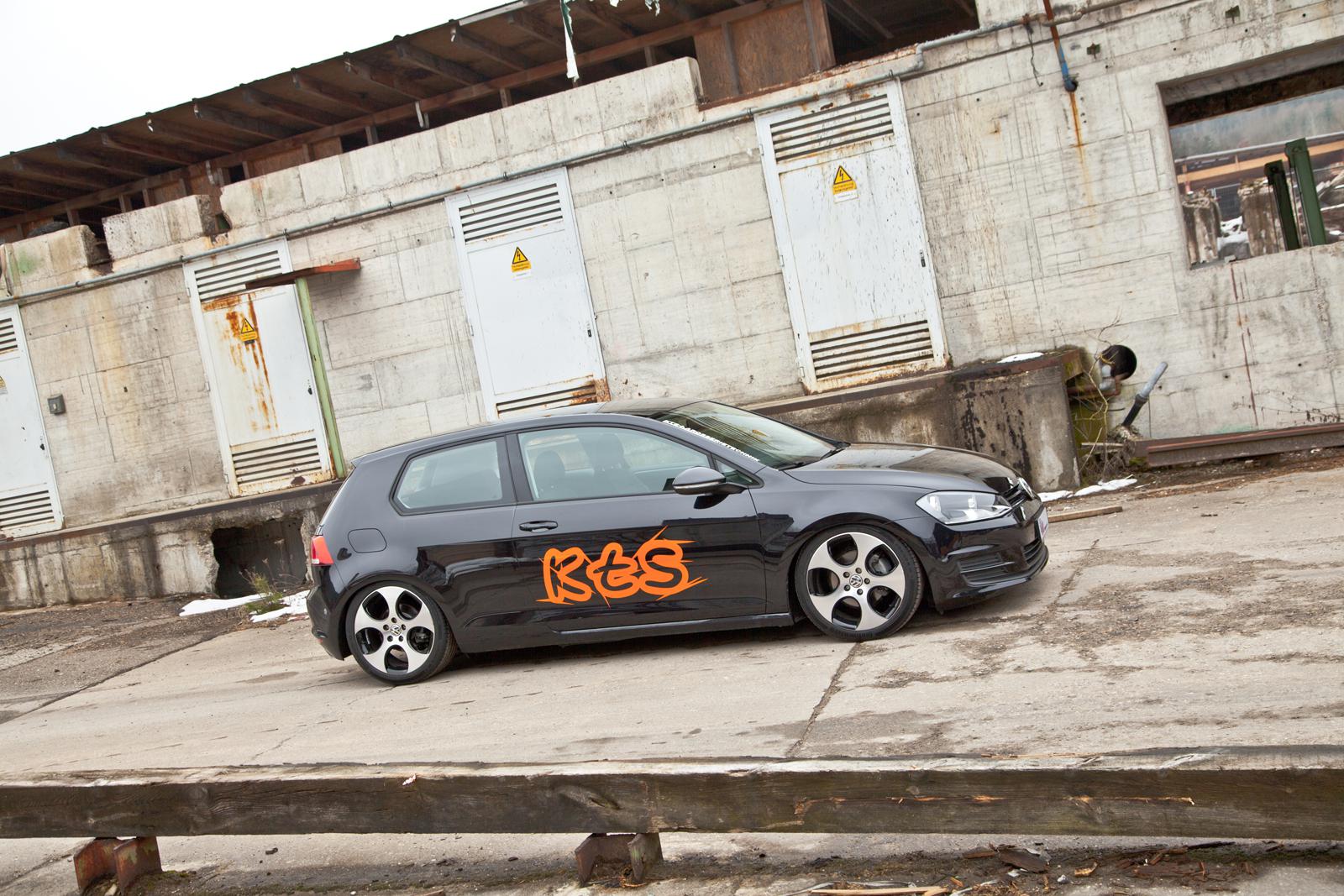

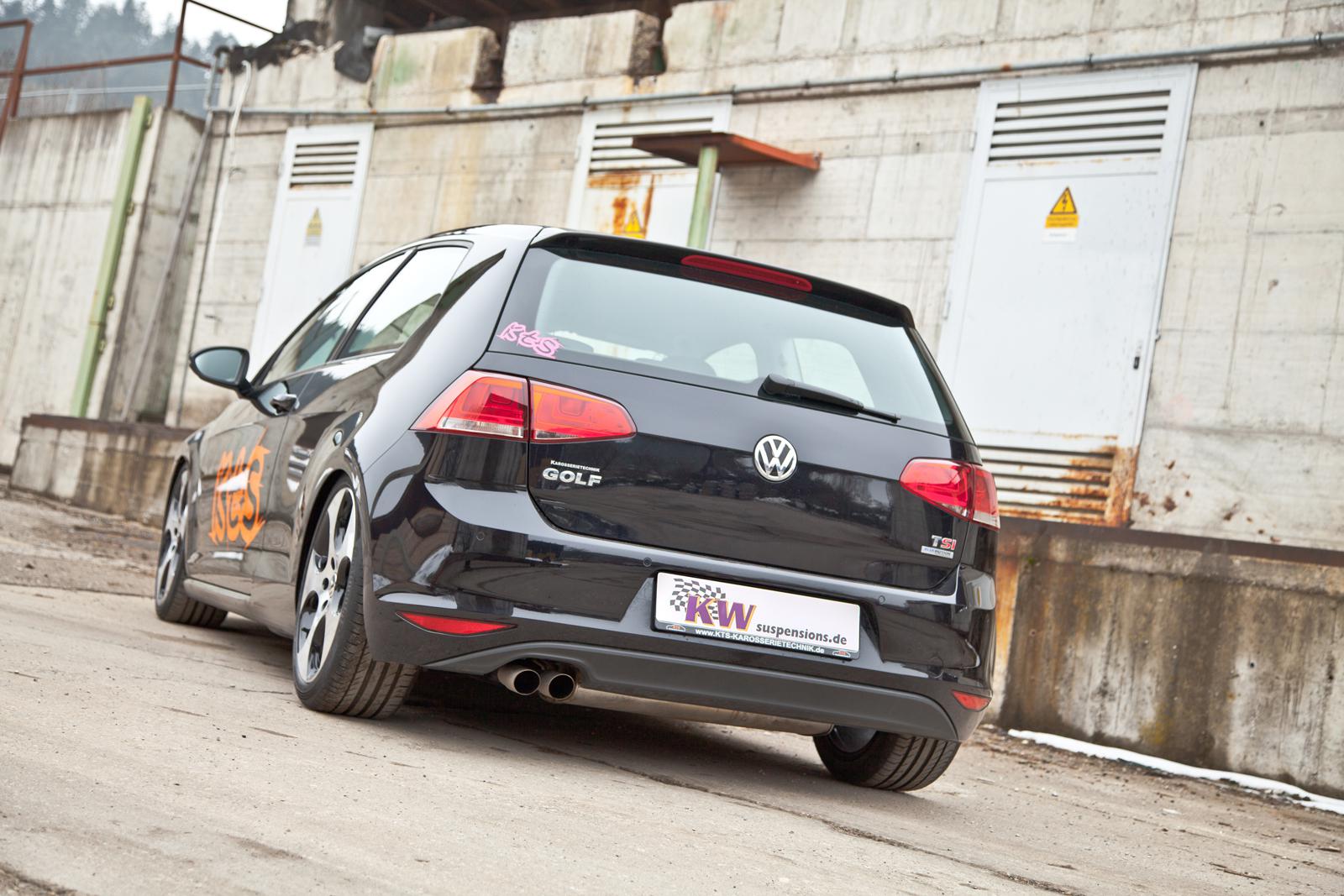

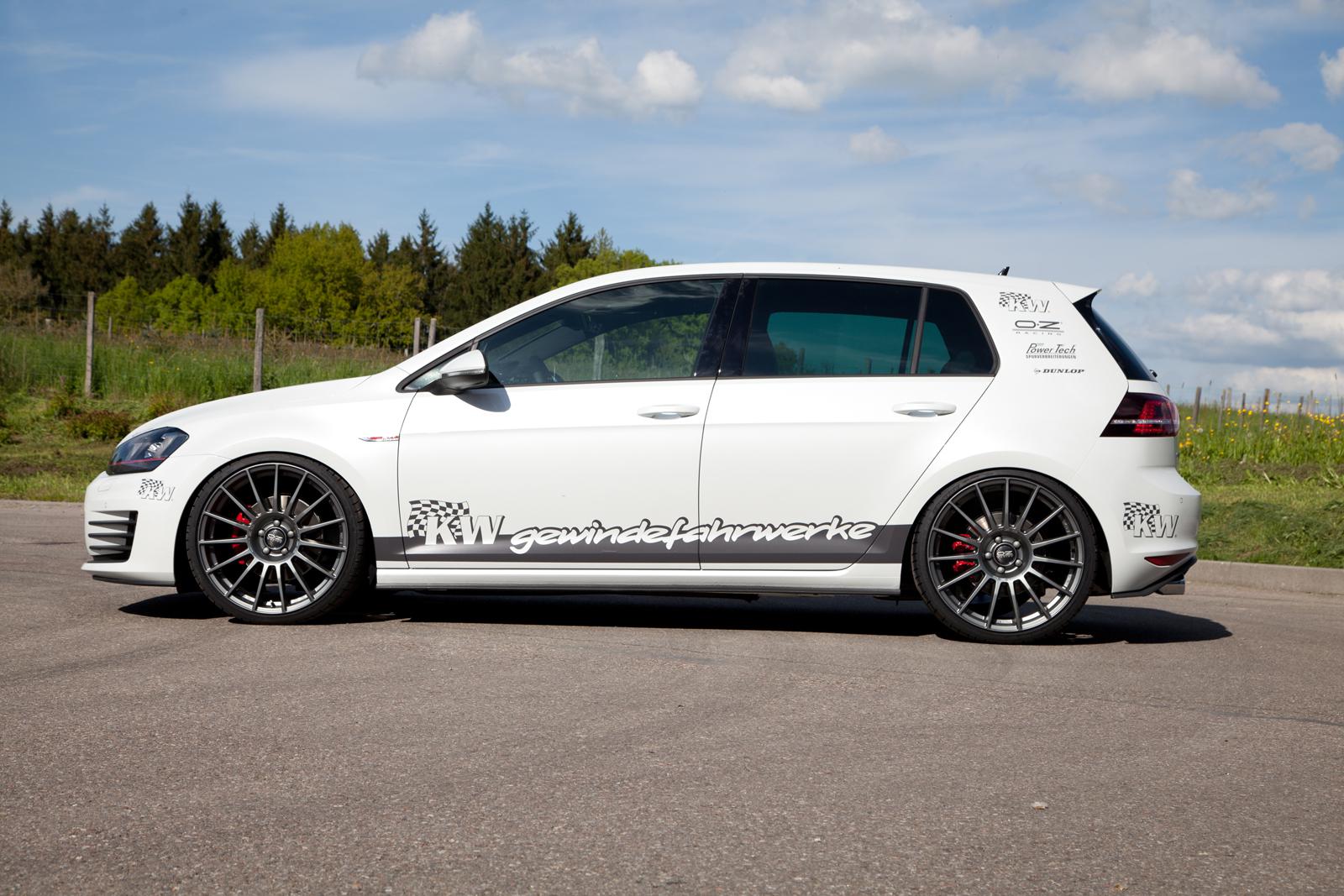

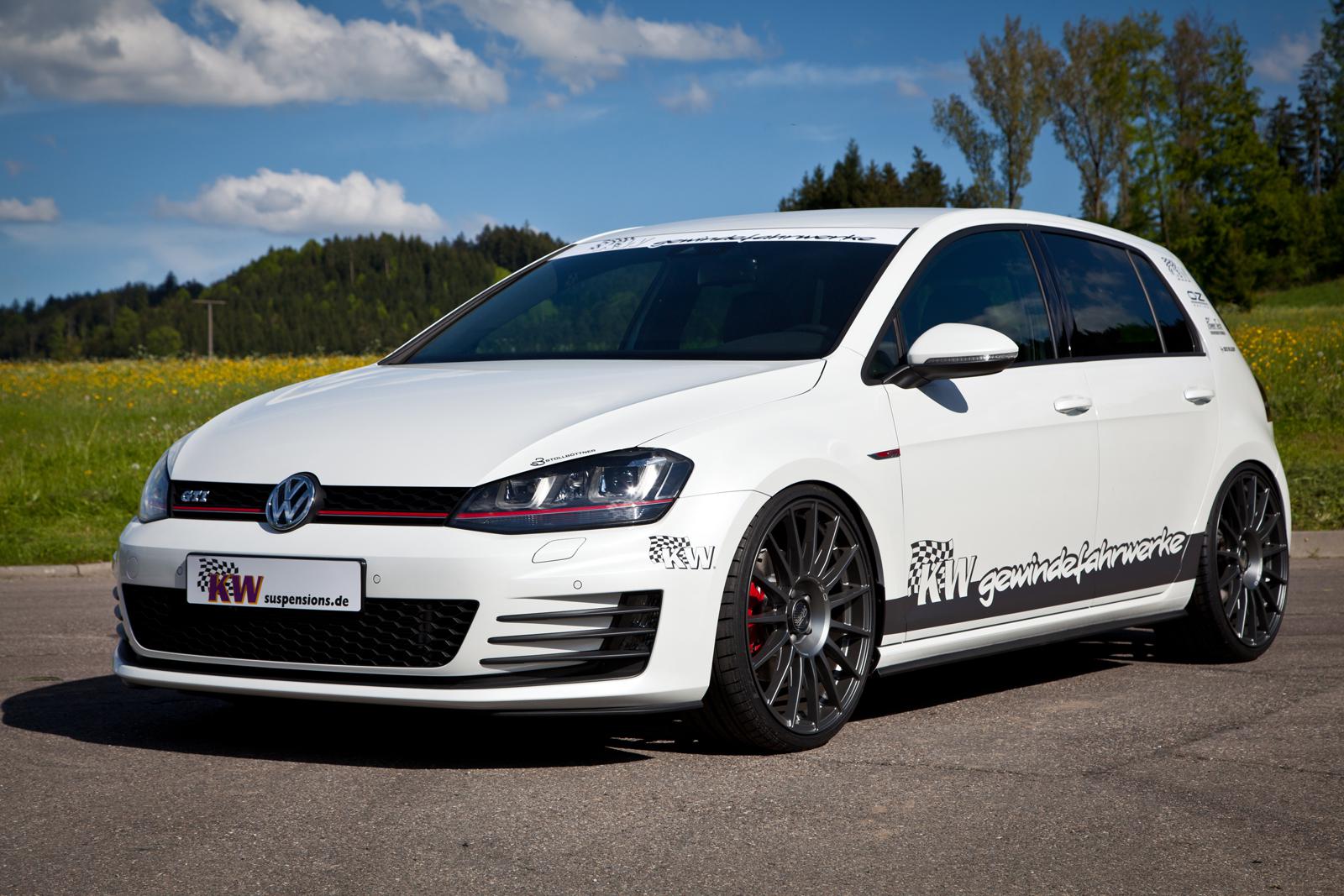

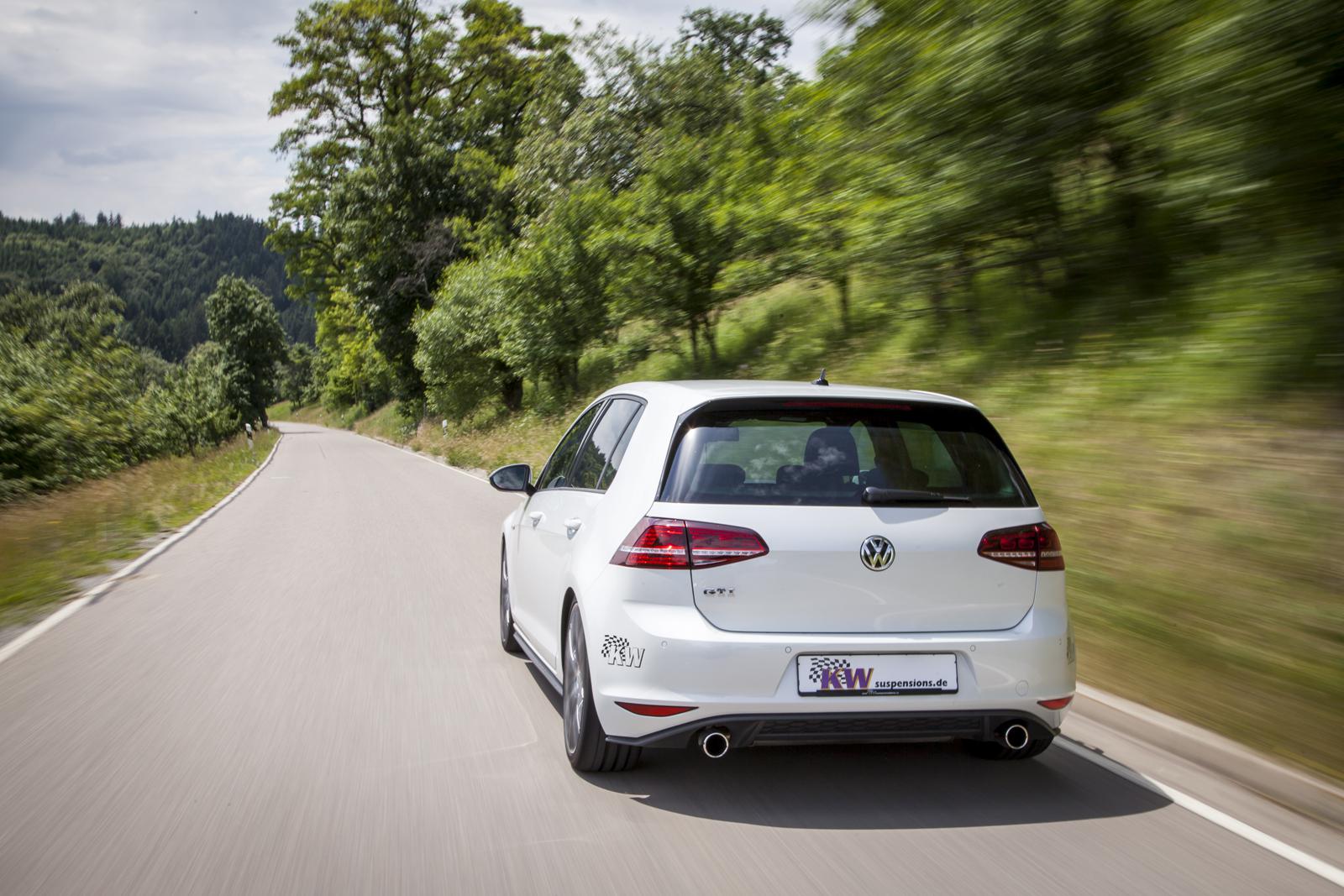

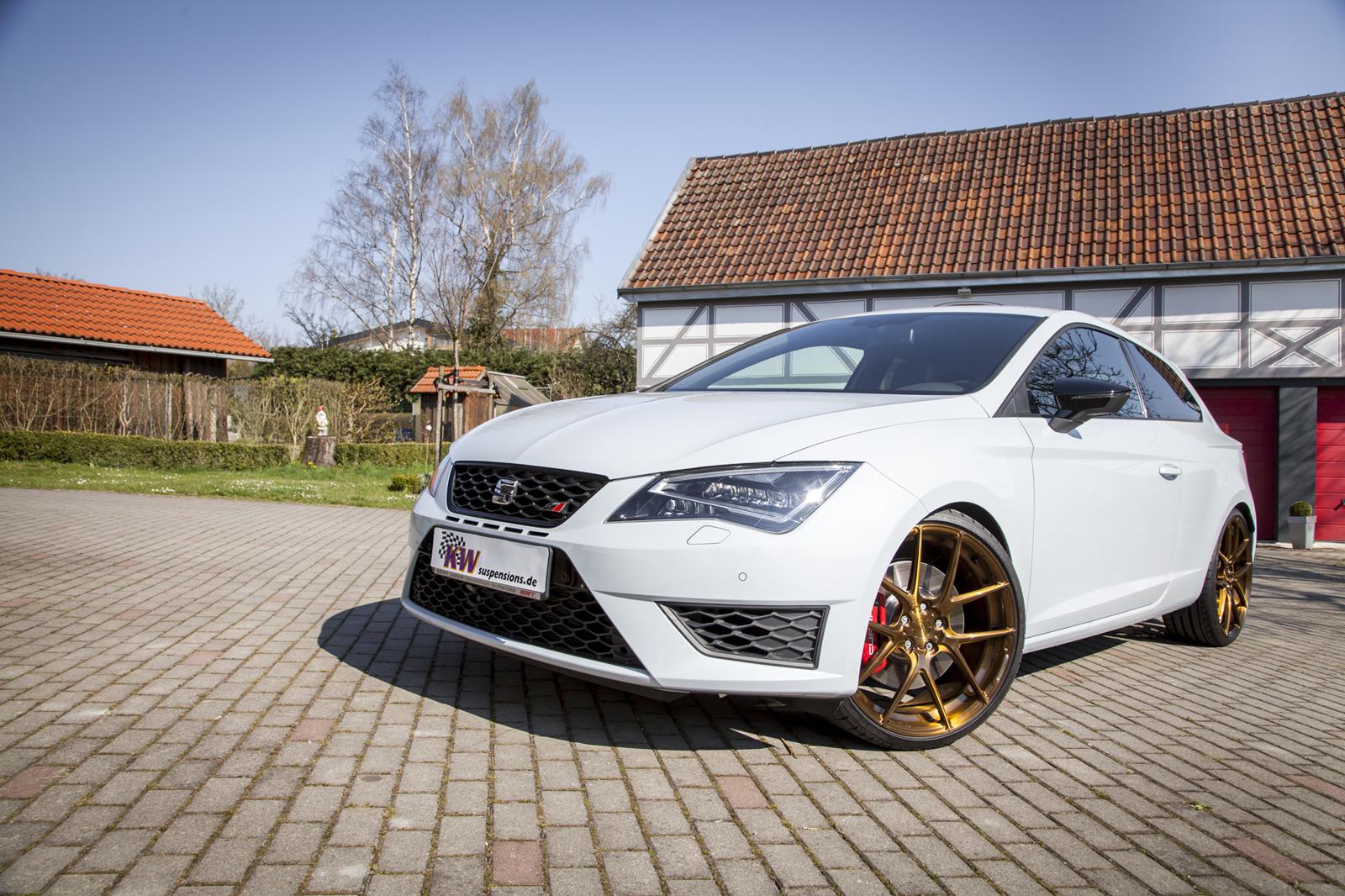

KW Coilover Kit V1 for VW (MK7) Golf GTI / Clubsport / TCR / Seat (5F) Leon Cupra
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW's V1 is the entry model in its street coilover range, pairing height-adjustable struts with a damper setup that KW pre-configures for each vehicle. Ride height is continuously adjustable within the tested range using a dirt-resistant trapezoidal thread and composite collar, so it can still be changed easily years after fitting. Corrosion-resistant springs and bump stops are built for a long service life. This kit is developed for the VW Golf GTI / Clubsport / TCR (MK7) / Seat Leon Cupra (5F).
Key Features
- Vehicle-specific, factory-set damping
- Continuous ride height adjustment within the tested range
- Trapezoidal thread with composite adjuster collar
Specifications
- Version: V1
- Damping: Fixed, vehicle-specific setting
- Material: Stainless steel
- Front lowering: 15–45 mm
- Rear lowering: 10–35 mm
- Front axle load: up to 1,090 kg
- Rear axle load: up to 1,010 kg
- Front strut diameter (vehicle): 55 mm
- Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Front axle load up to 1,090 kg; Rear axle load up to 1,010 kg.
For vehicles without electronic damper control.
References 2, 37, 57. See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Notes | Refs |
|---|---|---|---|---|---|---|---|
| 2012–2021 | Seat | Leon (5F1) | 1.0 TSI | Petrol · 85 kW · 1.0L · 3-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2012–2021 | Seat | Leon (5F1) | 1.0 TSi | Petrol · 63 kW · 1.0L · 3-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2012–2021 | Seat | Leon (5F1) | 1.2 TSI | Petrol · 63 kW · 1.2L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2012–2021 | Seat | Leon (5F1) | 1.2 TSI | Petrol · 77 kW · 1.2L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2012–2021 | Seat | Leon (5F1) | 1.2 TSI | Petrol · 81 kW · 1.2L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2012–2021 | Seat | Leon (5F1) | 1.4 TSI | Petrol · 90 kW · 1.4L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2012–2021 | Seat | Leon (5F1) | 1.4 TSI | Petrol · 92 kW · 1.4L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2012–2021 | Seat | Leon (5F1) | 1.4 TSI | Petrol · 103 kW · 1.4L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2012–2021 | Seat | Leon (5F1) | 1.4 TSI | Petrol · 110 kW · 1.4L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2012–2021 | Seat | Leon (5F1) | 1.5 TSI | Petrol · 96 kW · 1.5L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2012–2021 | Seat | Leon (5F1) | 1.5 TSI | Petrol · 110 kW · 1.5L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2012–2021 | Seat | Leon (5F1) | 1.6 TDI | Diesel · 66 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2012–2021 | Seat | Leon (5F1) | 1.6 TDI | Diesel · 77 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2012–2021 | Seat | Leon (5F1) | 1.6 TDI | Diesel · 81 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2012–2021 | Seat | Leon (5F1) | 1.6 TDI | Diesel · 85 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2012–2021 | Seat | Leon (5F1) | 1.8 TSI | Petrol · 132 kW · 1.8L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2012–2021 | Seat | Leon (5F1) | 2.0 Cupra | Petrol · 195 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2012–2021 | Seat | Leon (5F1) | 2.0 Cupra | Petrol · 206 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2012–2021 | Seat | Leon (5F1) | 2.0 Cupra | Petrol · 213 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2012–2021 | Seat | Leon (5F1) | 2.0 Cupra | Petrol · 221 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2012–2021 | Seat | Leon (5F1) | 2.0 Cupra R | Petrol · 228 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2012–2021 | Seat | Leon (5F1) | 2.0 TDI | Diesel · 81 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2012–2021 | Seat | Leon (5F1) | 2.0 TDI | Diesel · 105 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2012–2021 | Seat | Leon (5F1) | 2.0 TDI | Diesel · 110 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2012–2021 | Seat | Leon (5F1) | 2.0 TDI | Diesel · 135 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2012–2021 | Seat | Leon (5F1) | 2.0 TSI | Petrol · 140 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2013–2018 | Seat | Leon SC (5F5) | 1.0 TSI | Petrol · 85 kW · 1.0L · 3-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2013–2018 | Seat | Leon SC (5F5) | 1.2 TSI | Petrol · 63 kW · 1.2L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2013–2018 | Seat | Leon SC (5F5) | 1.2 TSI | Petrol · 77 kW · 1.2L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2013–2018 | Seat | Leon SC (5F5) | 1.2 TSI | Petrol · 81 kW · 1.2L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2013–2018 | Seat | Leon SC (5F5) | 1.4 TSI | Petrol · 90 kW · 1.4L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2013–2018 | Seat | Leon SC (5F5) | 1.4 TSI | Petrol · 92 kW · 1.4L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2013–2018 | Seat | Leon SC (5F5) | 1.4 TSI | Petrol · 103 kW · 1.4L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2013–2018 | Seat | Leon SC (5F5) | 1.4 TSI | Petrol · 110 kW · 1.4L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2013–2018 | Seat | Leon SC (5F5) | 1.6 TDI | Diesel · 66 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2013–2018 | Seat | Leon SC (5F5) | 1.6 TDI | Diesel · 77 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2013–2018 | Seat | Leon SC (5F5) | 1.6 TDI | Diesel · 81 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2013–2018 | Seat | Leon SC (5F5) | 1.6 TDI | Diesel · 85 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2013–2018 | Seat | Leon SC (5F5) | 1.8 TSI | Petrol · 132 kW · 1.8L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2013–2018 | Seat | Leon SC (5F5) | 2.0 Cupra | Petrol · 195 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2013–2018 | Seat | Leon SC (5F5) | 2.0 Cupra | Petrol · 206 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2013–2018 | Seat | Leon SC (5F5) | 2.0 Cupra | Petrol · 213 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2013–2018 | Seat | Leon SC (5F5) | 2.0 Cupra | Petrol · 221 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2013–2018 | Seat | Leon SC (5F5) | 2.0 TDI | Diesel · 81 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2013–2018 | Seat | Leon SC (5F5) | 2.0 TDI | Diesel · 105 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2013–2018 | Seat | Leon SC (5F5) | 2.0 TDI | Diesel · 110 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2013–2018 | Seat | Leon SC (5F5) | 2.0 TDI | Diesel · 135 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 37, 57 | |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | 1.0 TSI | Petrol · 63 kW · 1.0L · 3-cyl | Front-Wheel Drive | For cars without DCC | 2, 37, 57 |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | 1.0 TSI | Petrol · 81 kW · 1.0L · 3-cyl | Front-Wheel Drive | For cars without DCC | 2, 37, 57 |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | 1.0 TSI | Petrol · 85 kW · 1.0L · 3-cyl | Front-Wheel Drive | For cars without DCC | 2, 37, 57 |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | 1.2 TSI | Petrol · 63 kW · 1.2L · 4-cyl | Front-Wheel Drive | For cars without DCC | 2, 37, 57 |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | 1.2 TSI | Petrol · 77 kW · 1.2L · 4-cyl | Front-Wheel Drive | For cars without DCC | 2, 37, 57 |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | 1.2 TSI | Petrol · 81 kW · 1.2L · 4-cyl | Front-Wheel Drive | For cars without DCC | 2, 37, 57 |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | 1.4 TSI | Petrol · 90 kW · 1.4L · 4-cyl | Front-Wheel Drive | For cars without DCC | 2, 37, 57 |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | 1.4 TSI | Petrol · 92 kW · 1.4L · 4-cyl | Front-Wheel Drive | For cars without DCC | 2, 37, 57 |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | 1.4 TSI | Petrol · 103 kW · 1.4L · 4-cyl | Front-Wheel Drive | For cars without DCC | 2, 37, 57 |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | 1.4 TSI | Petrol · 110 kW · 1.4L · 4-cyl | Front-Wheel Drive | For cars without DCC | 2, 37, 57 |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | 1.5 TSI | Petrol · 96 kW · 1.5L · 4-cyl | Front-Wheel Drive | For cars without DCC | 2, 37, 57 |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | 1.5 TSI | Petrol · 110 kW · 1.5L · 4-cyl | Front-Wheel Drive | For cars without DCC | 2, 37, 57 |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | 1.6 | Petrol · 81 kW · 1.6L · 4-cyl | Front-Wheel Drive | For cars without DCC | 2, 37, 57 |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | 1.6 TDI | Diesel · 66 kW · 1.6L · 4-cyl | Front-Wheel Drive | For cars without DCC | 2, 37, 57 |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | 1.6 TDI | Diesel · 77 kW · 1.6L · 4-cyl | Front-Wheel Drive | For cars without DCC | 2, 37, 57 |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | 1.6 TDI | Diesel · 81 kW · 1.6L · 4-cyl | Front-Wheel Drive | For cars without DCC | 2, 37, 57 |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | 1.6 TDI | Diesel · 85 kW · 1.6L · 4-cyl | Front-Wheel Drive | For cars without DCC | 2, 37, 57 |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | 1.6 TDI 4motion | Diesel · 77 kW · 1.6L · 4-cyl | All-Wheel Drive | For cars without DCC | 2, 37, 57 |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | 1.6 TDI 4motion | Diesel · 81 kW · 1.6L · 4-cyl | All-Wheel Drive | For cars without DCC | 2, 37, 57 |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | 1.8 TSI | Petrol · 125 kW · 1.8L · 4-cyl | Front-Wheel Drive | For cars without DCC | 2, 37, 57 |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | 2.0 GTD | Diesel · 130 kW · 2.0L · 4-cyl | Front-Wheel Drive | For cars without DCC | 2, 37, 57 |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | 2.0 GTD | Diesel · 135 kW · 2.0L · 4-cyl | Front-Wheel Drive | For cars without DCC | 2, 37, 57 |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | 2.0 GTI | Petrol · 155 kW · 2.0L · 4-cyl | Front-Wheel Drive | For cars without DCC | 2, 37, 57 |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | 2.0 GTI | Petrol · 162 kW · 2.0L · 4-cyl | Front-Wheel Drive | For cars without DCC | 2, 37, 57 |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | 2.0 GTI | Petrol · 169 kW · 2.0L · 4-cyl | Front-Wheel Drive | For cars without DCC | 2, 37, 57 |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | 2.0 GTI | Petrol · 180 kW · 2.0L · 4-cyl | Front-Wheel Drive | For cars without DCC | 2, 37, 57 |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | 2.0 GTI Clubsport | Petrol · 195 kW · 2.0L · 4-cyl | Front-Wheel Drive | For cars without DCC | 2, 37, 57 |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | 2.0 GTI Clubsport S | Petrol · 228 kW · 2.0L · 4-cyl | Front-Wheel Drive | For cars without DCC | 2, 37, 57 |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | 2.0 GTI TCR | Petrol · 213 kW · 2.0L · 4-cyl | Front-Wheel Drive | For cars without DCC | 2, 37, 57 |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | 2.0 TDI | Diesel · 81 kW · 2.0L · 4-cyl | Front-Wheel Drive | For cars without DCC | 2, 37, 57 |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | 2.0 TDI | Diesel · 105 kW · 2.0L · 4-cyl | Front-Wheel Drive | For cars without DCC | 2, 37, 57 |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | 2.0 TDI | Diesel · 110 kW · 2.0L · 4-cyl | Front-Wheel Drive | For cars without DCC | 2, 37, 57 |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | 2.0 TDI 4motion | Diesel · 110 kW · 2.0L · 4-cyl | All-Wheel Drive | For cars without DCC | 2, 37, 57 |
- Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
- Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
- Note 57: Only for cars with a clamp diameter of 55mm on the front axle.
