KW Coilover Kit V2 Comfort for Audi (8V) S3 / A3 / (GA) SQ2 / VW (B8) Passat

SKU: 180800AF
Sale price$3,048.55 Regular price$3,209.00
Save $160.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


The KW V2 Comfort combines a moderate lowering with comfort-oriented spring and damper characteristics, aimed at drivers who find a factory or aftermarket suspension too firm for everyday use. Shorter KW damper housings allow a comfortable setup despite the lowering, and rebound damping can be adjusted in 16 clicks to suit the driver. This kit is developed for the Audi S3 (8V) / SQ2 (GA) / A3 quattro (8V) / VW Passat (B8).

Key Features

  • Comfort-oriented spring and damper tuning
  • Rebound damping adjustable in 16 clicks
  • Height adjustable within the tested range

Specifications

  • Version: V2 Comfort
  • Damping: Adjustable rebound
  • Material: Stainless steel
  • Front lowering: 25–50 mm
  • Rear lowering: 20–45 mm
  • Front axle load: up to 1,100 kg
  • Rear axle load: up to 1,080 kg
  • Front strut diameter (vehicle): 55 mm

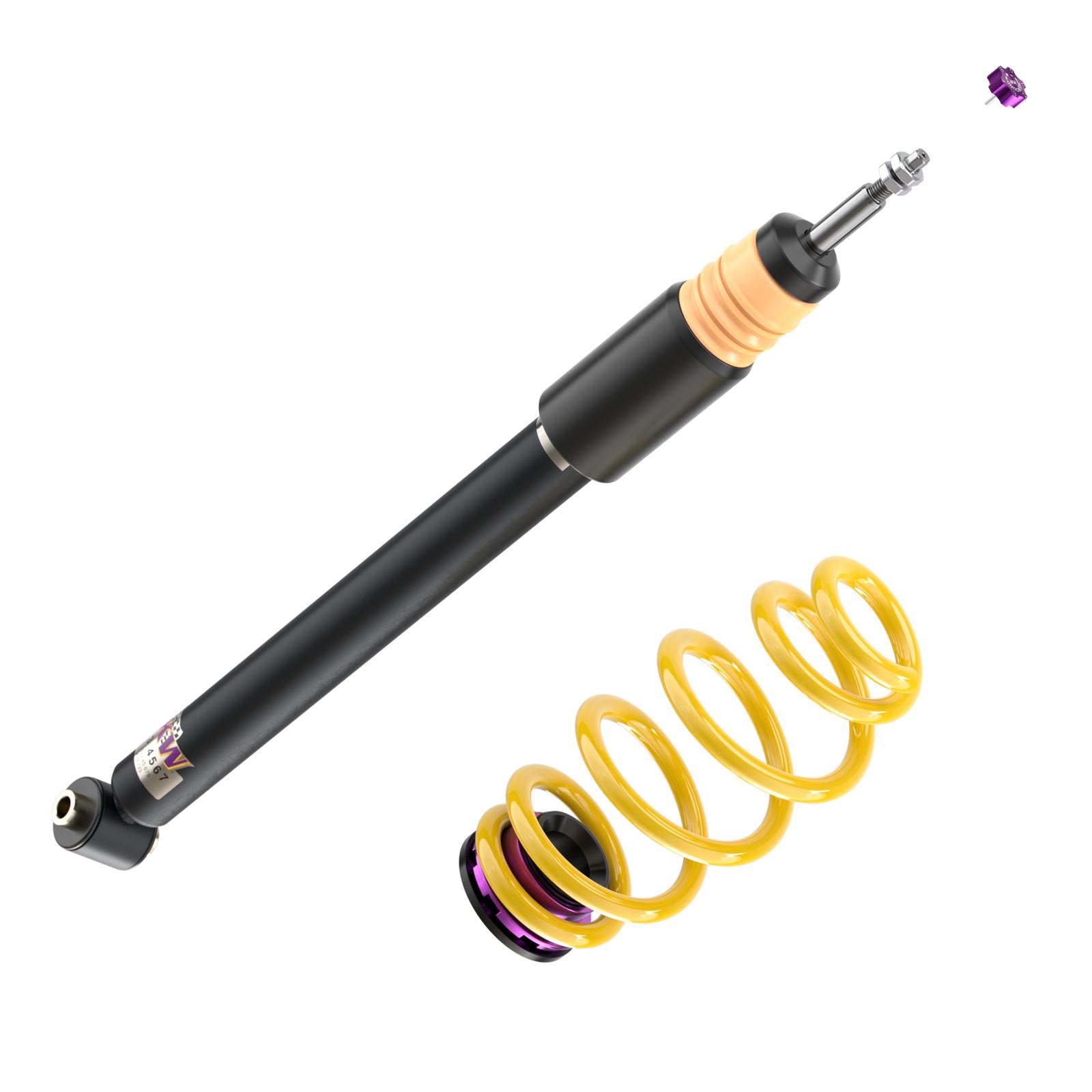

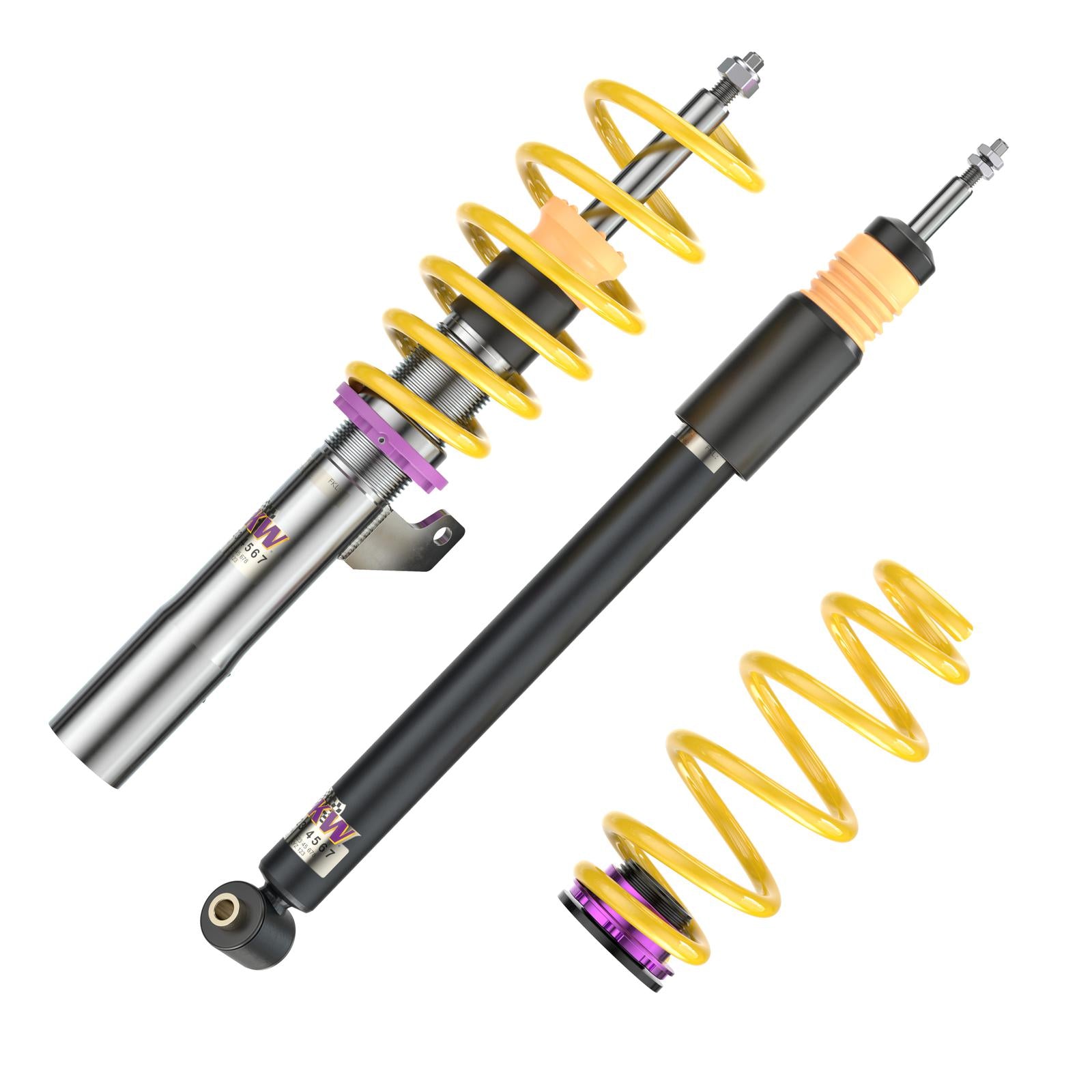

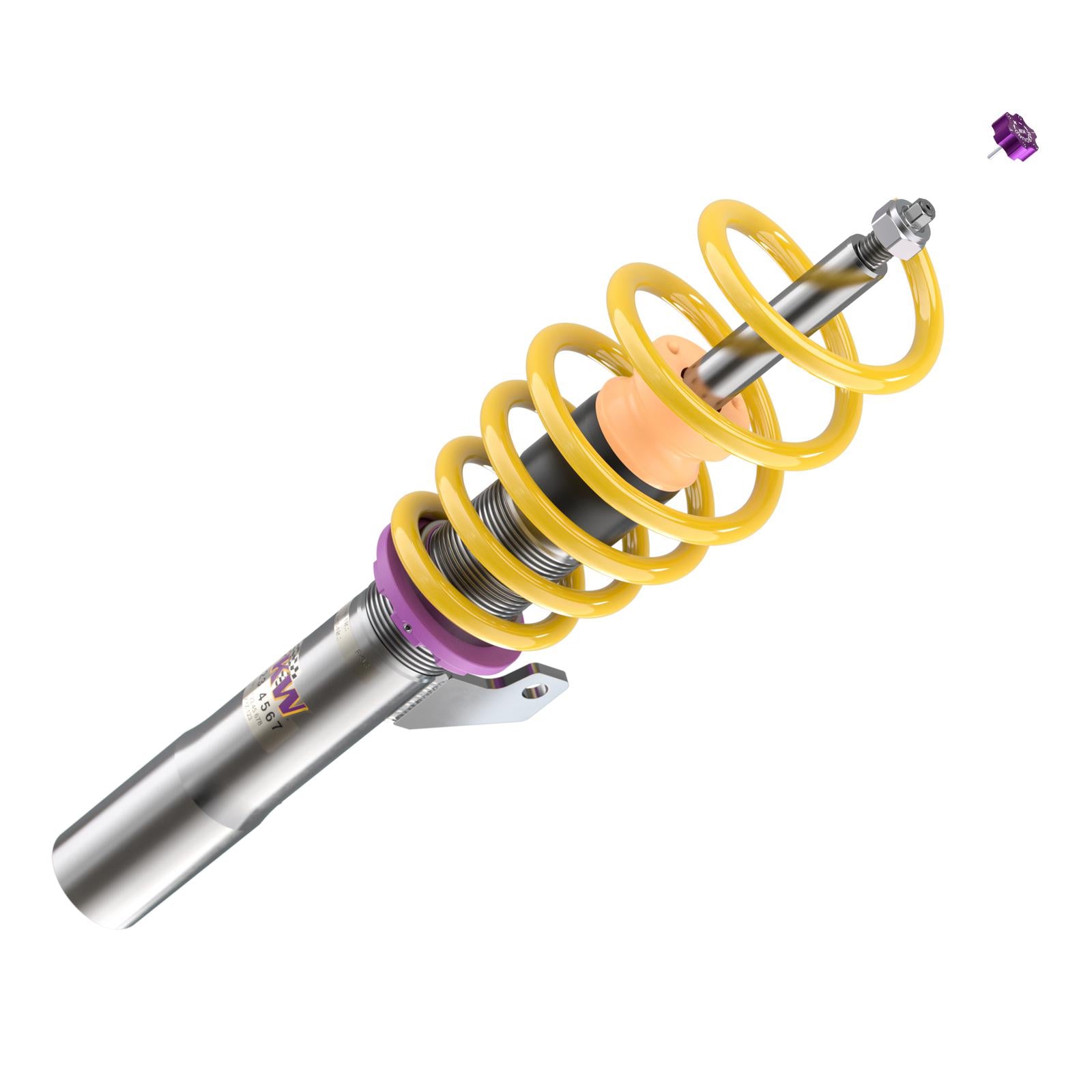

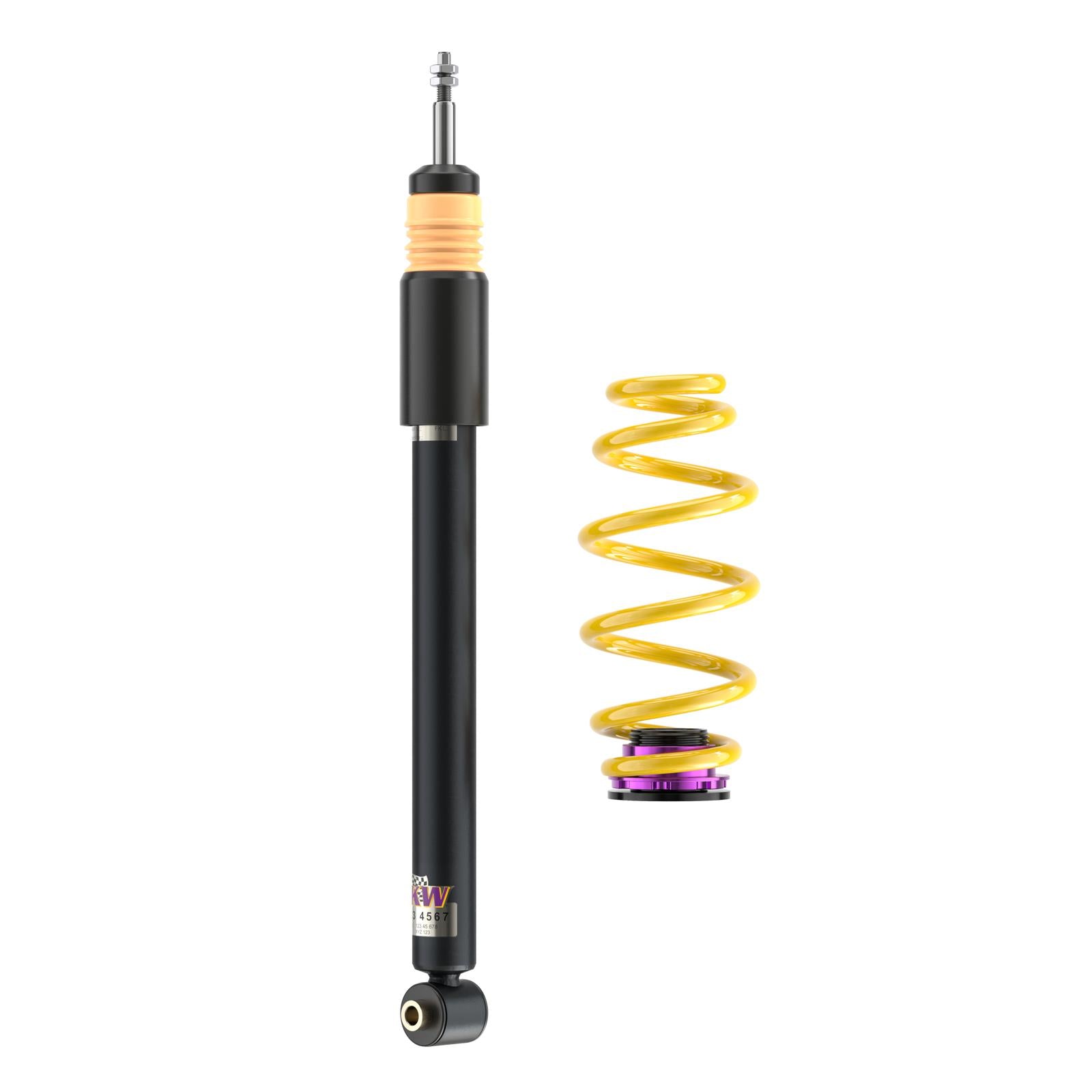

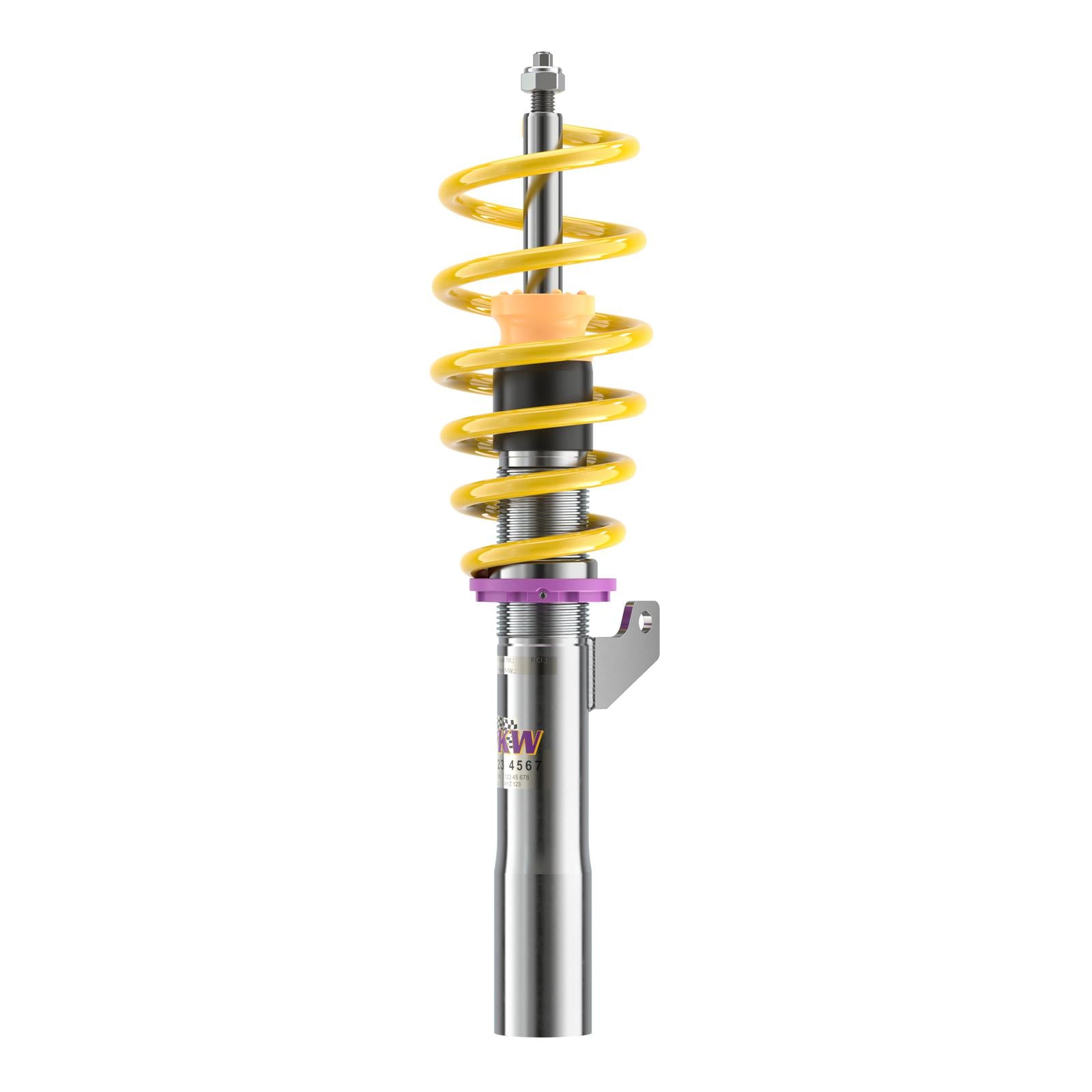

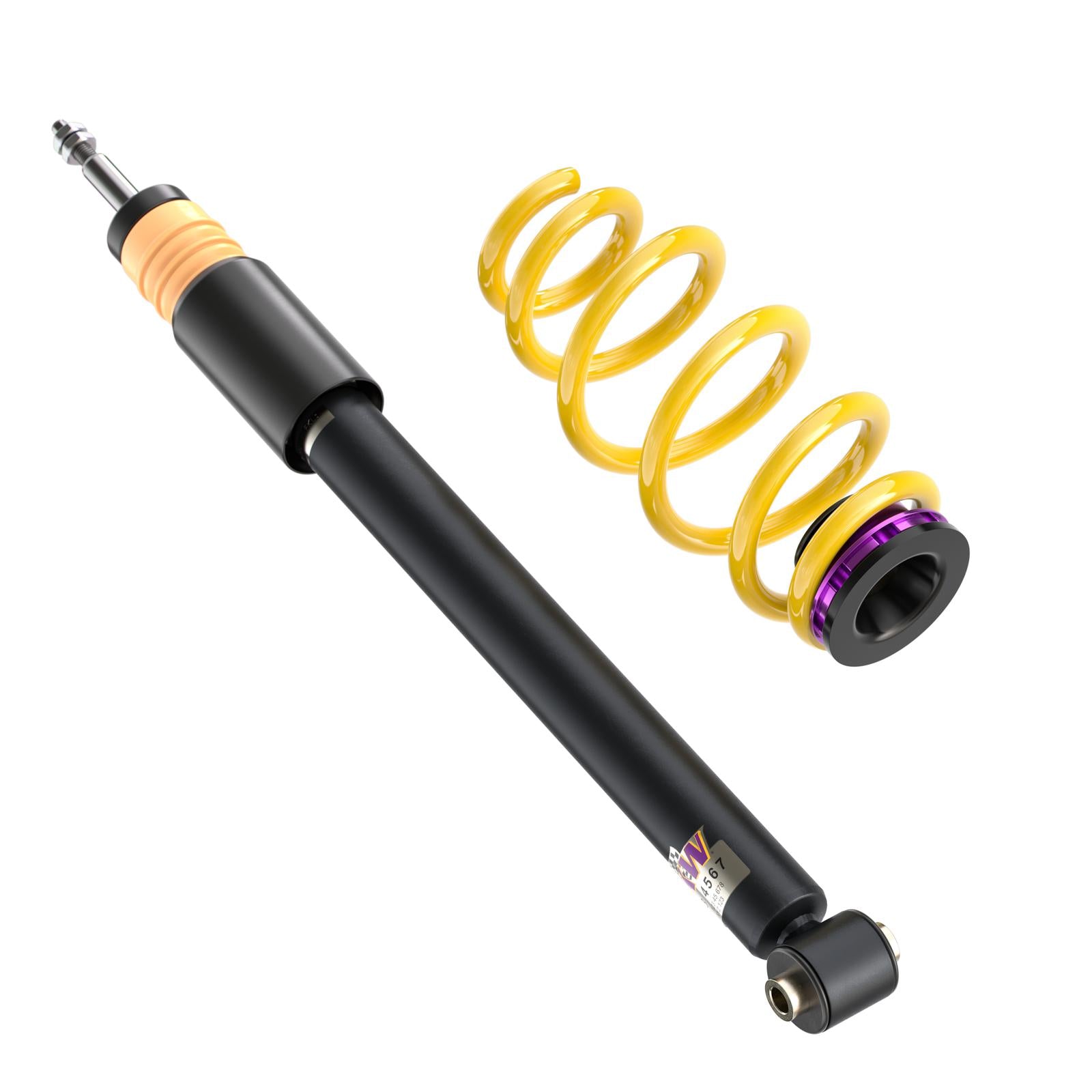

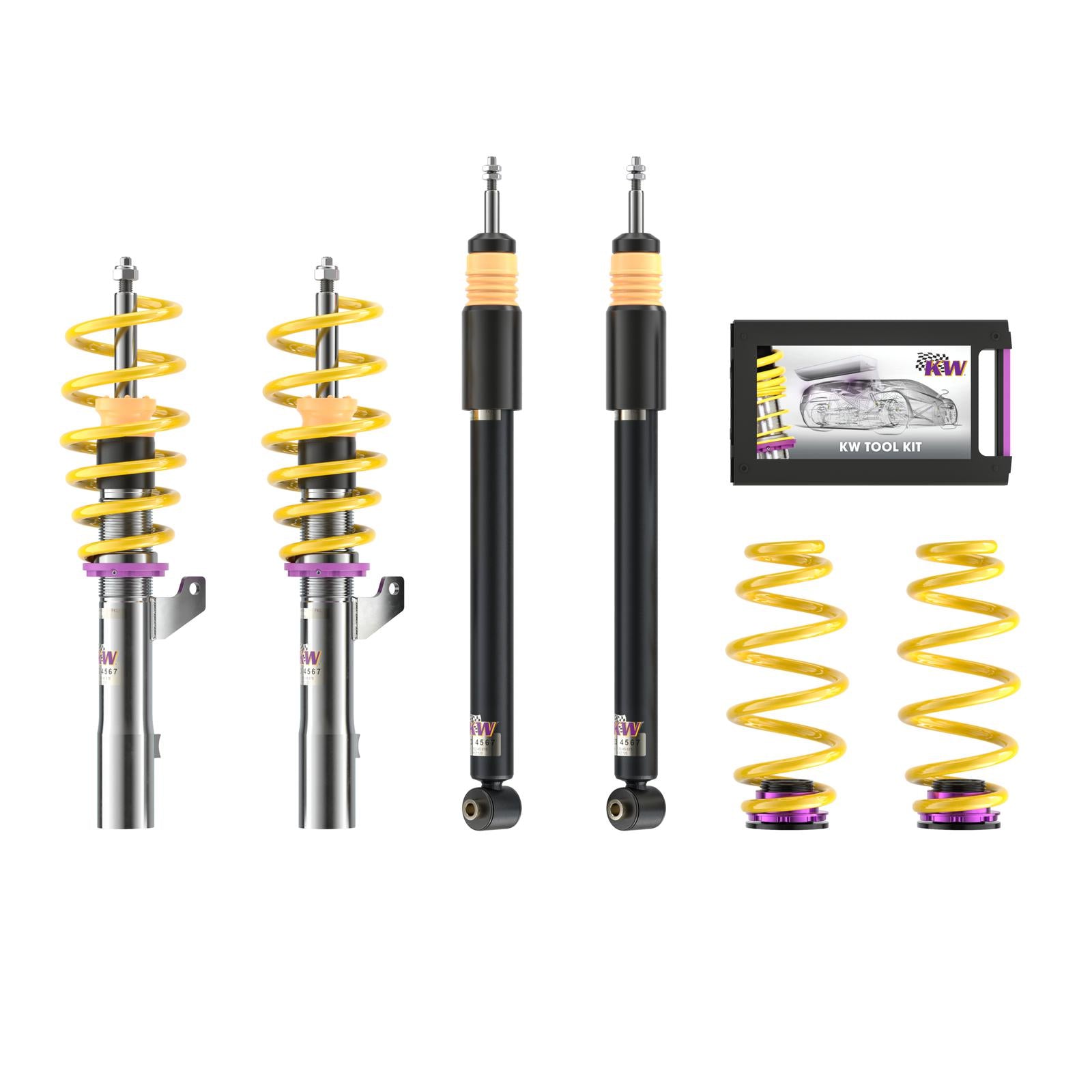

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 1,100 kg; Rear axle load up to 1,080 kg.

For vehicles without electronic damper control.

References 2, 37, 57. See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveNotesRefs
2012–2020AudiA3 (8V) 8V1, 8VK1.8 TFSI quattroPetrol · 132 kW · 1.8L · 4-cylAll-Wheel Drive2, 37, 57
2012–2020AudiA3 (8V) 8V1, 8VK2.0 TDI quattroDiesel · 110 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2012–2020AudiA3 (8V) 8V1, 8VK2.0 TDI quattroDiesel · 135 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2012–2020AudiA3 (8V) 8V1, 8VK2.0 TFSI quattroPetrol · 140 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2012–2020AudiA3 (8V) 8V1, 8VKS3 quattroPetrol · 206 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2012–2020AudiA3 (8V) 8V1, 8VKS3 quattroPetrol · 210 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2012–2020AudiA3 (8V) 8V1, 8VKS3 quattroPetrol · 213 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2012–2020AudiA3 (8V) 8V1, 8VKS3 quattroPetrol · 221 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2012–2020AudiA3 (8V) 8V1, 8VKS3 quattroPetrol · 228 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2013–2021AudiA3 Saloon (8V) 8VS, 8VM1.6 TDI quattroDiesel · 81 kW · 1.6L · 4-cylAll-Wheel Drive2, 37, 57
2013–2021AudiA3 Saloon (8V) 8VS, 8VM1.8 TFSI quattroPetrol · 132 kW · 1.8L · 4-cylAll-Wheel Drive2, 37, 57
2013–2021AudiA3 Saloon (8V) 8VS, 8VM2.0 TDI quattroDiesel · 110 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2013–2021AudiA3 Saloon (8V) 8VS, 8VM2.0 TDI quattroDiesel · 135 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2013–2021AudiA3 Saloon (8V) 8VS, 8VM2.0 TFSI quattroPetrol · 140 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2013–2021AudiA3 Saloon (8V) 8VS, 8VM2.0 TFSI quattroPetrol · 162 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2013–2021AudiA3 Saloon (8V) 8VS, 8VM2.0 TFSI quattroPetrol · 170 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2013–2021AudiA3 Saloon (8V) 8VS, 8VM40 TDI quattroDiesel · 135 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2013–2021AudiA3 Saloon (8V) 8VS, 8VM40 TFSI quattroPetrol · 140 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2013–2021AudiA3 Saloon (8V) 8VS, 8VMS3 quattroPetrol · 206 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2013–2021AudiA3 Saloon (8V) 8VS, 8VMS3 quattroPetrol · 210 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2013–2021AudiA3 Saloon (8V) 8VS, 8VMS3 quattroPetrol · 213 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2013–2021AudiA3 Saloon (8V) 8VS, 8VMS3 quattroPetrol · 215 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2013–2021AudiA3 Saloon (8V) 8VS, 8VMS3 quattroPetrol · 221 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2013–2021AudiA3 Saloon (8V) 8VS, 8VMS3 quattroPetrol · 228 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2012–2021AudiA3 Sportback (8V) 8VA, 8VF1.6 TDI quattroDiesel · 81 kW · 1.6L · 4-cylAll-Wheel Drive2, 37, 57
2012–2021AudiA3 Sportback (8V) 8VA, 8VF1.8 TFSI quattroPetrol · 132 kW · 1.8L · 4-cylAll-Wheel Drive2, 37, 57
2012–2021AudiA3 Sportback (8V) 8VA, 8VF2.0 TDI quattroDiesel · 110 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2012–2021AudiA3 Sportback (8V) 8VA, 8VF2.0 TDI quattroDiesel · 135 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2012–2021AudiA3 Sportback (8V) 8VA, 8VF2.0 TFSI quattroPetrol · 140 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2012–2021AudiA3 Sportback (8V) 8VA, 8VF40 TDI quattroDiesel · 135 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2012–2021AudiA3 Sportback (8V) 8VA, 8VF40 TFSI quattroPetrol · 140 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2012–2021AudiA3 Sportback (8V) 8VA, 8VFS3 quattroPetrol · 206 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2012–2021AudiA3 Sportback (8V) 8VA, 8VFS3 quattroPetrol · 210 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2012–2021AudiA3 Sportback (8V) 8VA, 8VFS3 quattroPetrol · 213 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2012–2021AudiA3 Sportback (8V) 8VA, 8VFS3 quattroPetrol · 221 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2012–2021AudiA3 Sportback (8V) 8VA, 8VFS3 quattroPetrol · 228 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2016+AudiQ2 (GA) GAB2.0 TDI quattroDiesel · 110 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2016+AudiQ2 (GA) GAB2.0 TDI quattroDiesel · 140 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2016+AudiQ2 (GA) GAB2.0 TFSI quattroPetrol · 140 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2016+AudiQ2 (GA) GAB35 TDI quattroDiesel · 110 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2016+AudiQ2 (GA) GAB40 TFSI quattroPetrol · 140 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2016+AudiQ2 (GA) GABSQ2 TFSI quattroPetrol · 221 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57
2015–2024SkodaSuperb III (3V3, 3T)1.4 TSIPetrol · 92 kW · 1.4L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57
2015–2024SkodaSuperb III (3V3, 3T)1.6 TDIDiesel · 88 kW · 1.6L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57
2015–2024SkodaSuperb III (3V3, 3T)1.8 TSIPetrol · 132 kW · 1.8L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57
2015–2024SkodaSuperb III (3V3, 3T)2.0 TDIDiesel · 90 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57
2015–2024SkodaSuperb III (3V3, 3T)2.0 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57
2015–2024SkodaSuperb III (3V3, 3T)2.0 TDIDiesel · 130 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57
2015–2024SkodaSuperb III (3V3, 3T)2.0 TDIDiesel · 140 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57
2015–2024SkodaSuperb III (3V3, 3T)2.0 TDIDiesel · 147 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57
2015–2024SkodaSuperb III (3V3, 3T)2.0 TFSIPetrol · 162 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 57
2015–2024SkodaSuperb III (3V3, 3T)2.0 TSIPetrol · 140 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57
2014–2020VWGolf Sportsvan (AUV, AM1)1.6Petrol · 81 kW · 1.6L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57
2014–2020VWGolf Sportsvan (AUV, AM1)1.6 TDIDiesel · 66 kW · 1.6L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57
2014–2020VWGolf Sportsvan (AUV, AM1)1.6 TDIDiesel · 81 kW · 1.6L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57
2014–2020VWGolf Sportsvan (AUV, AM1)1.6 TDIDiesel · 85 kW · 1.6L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57
2014–2020VWGolf Sportsvan (AUV, AM1)2.0 TDIDiesel · 81 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57
2014–2020VWGolf Sportsvan (AUV, AM1)2.0 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57
2014+VWPassat 3G2 (3C)1.6 TDIDiesel · 88 kW · 1.6L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57
2014+VWPassat 3G2 (3C)1.8 TSIPetrol · 132 kW · 1.8L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57
2014+VWPassat 3G2 (3C)2.0 TDIDiesel · 81 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57
2014+VWPassat 3G2 (3C)2.0 TDIDiesel · 90 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57
2014+VWPassat 3G2 (3C)2.0 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57
2014+VWPassat 3G2 (3C)2.0 TDIDiesel · 130 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57
2014+VWPassat 3G2 (3C)2.0 TDIDiesel · 135 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57
2014+VWPassat 3G2 (3C)2.0 TDIDiesel · 140 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57
2014+VWPassat 3G2 (3C)2.0 TDIDiesel · 147 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57
2014+VWPassat 3G2 (3C)2.0 TSIPetrol · 140 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57
2014+VWPassat 3G2 (3C)2.0 TSIPetrol · 162 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
  • Note 57: Only for cars with a clamp diameter of 55mm on the front axle.
