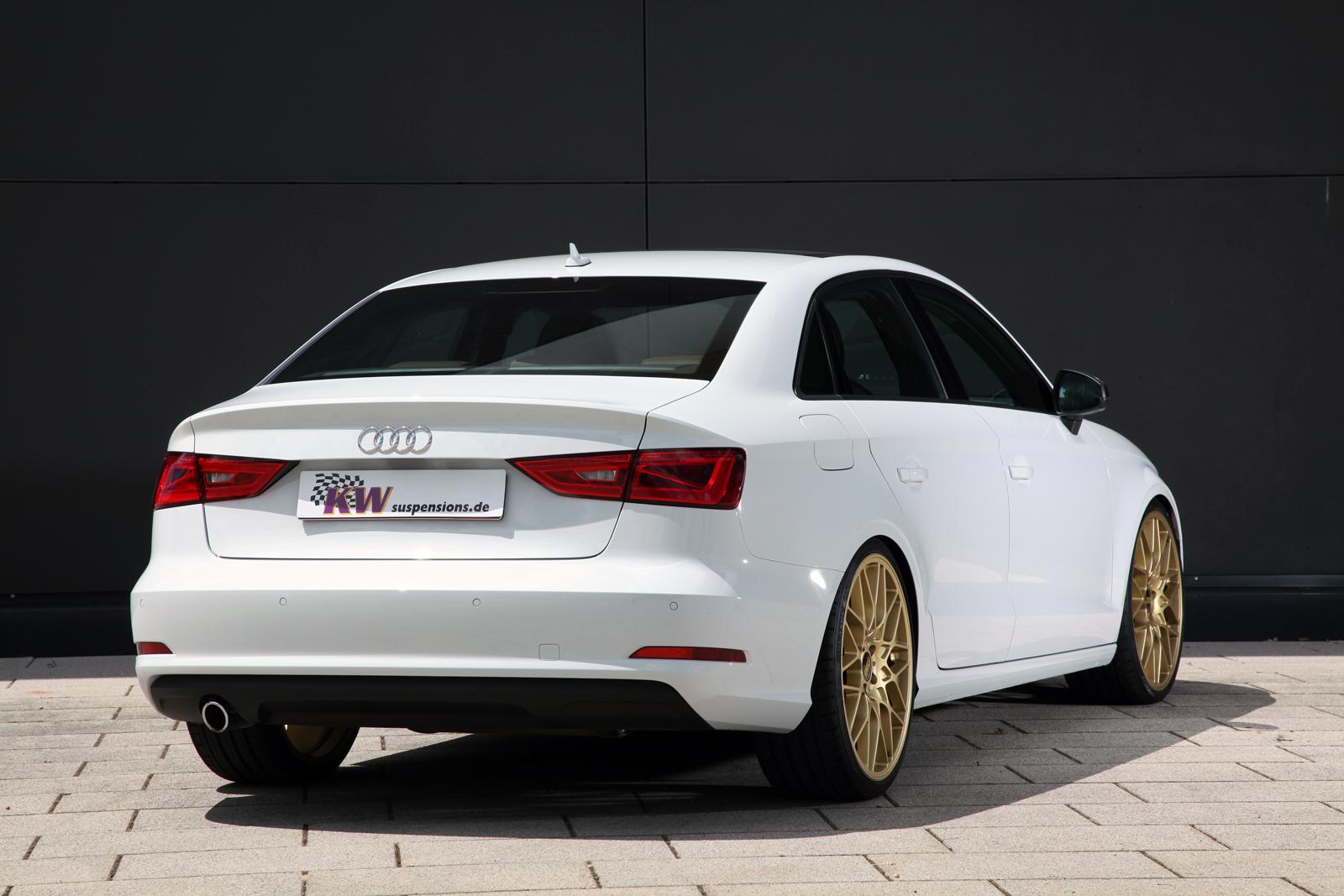

KW Coilover Kit V2 for Audi (8V) A3 / A3 Saloon / A3 Sportback

SKU: 152100AJ
Sale price$3,267.06 Regular price$3,439.00
Save $171.94

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V2 adds adjustable rebound damping to KW's height-adjustable coilover platform. The twin-tube dampers offer 16 clicks of rebound adjustment, so the setup can be made firmer or more comfortable without changing the compression damping. As with all KW coilovers, the base setting is developed for each vehicle on KW's 7-post rig and in road testing, including the Nürburgring Nordschleife. This kit is developed for the Audi A3 quattro / A3 Saloon quattro / A3 Sportback (8V).

Key Features

  • Rebound damping adjustable in 16 clicks
  • Vehicle-specific base damper setting
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V2
  • Damping: Adjustable rebound
  • Material: Stainless steel
  • Front lowering: 30–60 mm
  • Rear lowering: 30–55 mm
  • Front axle load: up to 1,100 kg
  • Rear axle load: up to 1,080 kg
  • Front strut diameter (vehicle): 50 mm
  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 1,100 kg; Rear axle load up to 1,080 kg.

For vehicles without electronic damper control.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2012–2020AudiA3 (8V) 8V1, 8VK1.8 TFSI quattroPetrol · 132 kW · 1.8L · 4-cylAll-Wheel Drive2, 37, 58, 67
2012–2020AudiA3 (8V) 8V1, 8VK2.0 TDI quattroDiesel · 110 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 58, 67
2012–2020AudiA3 (8V) 8V1, 8VK2.0 TDI quattroDiesel · 135 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 58, 67
2012–2020AudiA3 (8V) 8V1, 8VK2.0 TFSI quattroPetrol · 140 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 58, 67
2013–2021AudiA3 Saloon (8V) 8VS, 8VM1.6 TDI quattroDiesel · 81 kW · 1.6L · 4-cylAll-Wheel Drive2, 37, 58, 67
2013–2021AudiA3 Saloon (8V) 8VS, 8VM1.8 TFSI quattroPetrol · 132 kW · 1.8L · 4-cylAll-Wheel Drive2, 37, 58, 67
2013–2021AudiA3 Saloon (8V) 8VS, 8VM2.0 TDI quattroDiesel · 110 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 58, 67
2013–2021AudiA3 Saloon (8V) 8VS, 8VM2.0 TDI quattroDiesel · 135 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 58, 67
2013–2021AudiA3 Saloon (8V) 8VS, 8VM2.0 TFSI quattroPetrol · 140 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 58, 67
2013–2021AudiA3 Saloon (8V) 8VS, 8VM2.0 TFSI quattroPetrol · 162 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 58, 67
2013–2021AudiA3 Saloon (8V) 8VS, 8VM2.0 TFSI quattroPetrol · 170 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 58, 67
2013–2021AudiA3 Saloon (8V) 8VS, 8VM40 TDI quattroDiesel · 135 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 58, 67
2013–2021AudiA3 Saloon (8V) 8VS, 8VM40 TFSI quattroPetrol · 140 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 58, 67
2012–2021AudiA3 Sportback (8V) 8VA, 8VF1.6 TDI quattroDiesel · 81 kW · 1.6L · 4-cylAll-Wheel Drive2, 37, 58, 67
2012–2021AudiA3 Sportback (8V) 8VA, 8VF1.8 TFSI quattroPetrol · 132 kW · 1.8L · 4-cylAll-Wheel Drive2, 37, 58, 67
2012–2021AudiA3 Sportback (8V) 8VA, 8VF2.0 TDI quattroDiesel · 110 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 58, 67
2012–2021AudiA3 Sportback (8V) 8VA, 8VF2.0 TDI quattroDiesel · 135 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 58, 67
2012–2021AudiA3 Sportback (8V) 8VA, 8VF2.0 TFSI quattroPetrol · 140 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 58, 67
2012–2021AudiA3 Sportback (8V) 8VA, 8VF40 TDI quattroDiesel · 135 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 58, 67
2012–2021AudiA3 Sportback (8V) 8VA, 8VF40 TFSI quattroPetrol · 140 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 58, 67
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
  • Note 58: Only for cars with a clamp diameter of 50mm on the front axle.
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
