KW Coilover Kit V2 for Audi (B6/B7) A4 Avant
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW Coilover Kit V2 for Audi (B6/B7) A4 Avant
Sale price$3,438.05
Regular price$3,619.00 (/)
KW's V2 adds adjustable rebound damping to KW's height-adjustable coilover platform. The twin-tube dampers offer 16 clicks of rebound adjustment, so the setup can be made firmer or more comfortable without changing the compression damping. As with all KW coilovers, the base setting is developed for each vehicle on KW's 7-post rig and in road testing, including the Nürburgring Nordschleife. This kit is developed for the Audi A4 Avant quattro (B6) / A4 Avant quattro (B7).
Key Features
- Rebound damping adjustable in 16 clicks
- Vehicle-specific base damper setting
- Continuous ride height adjustment within the tested range
Specifications
- Version: V2
- Damping: Adjustable rebound
- Material: Stainless steel
- Front lowering: 35–65 mm
- Rear lowering: 35–60 mm
- Front axle load: up to 1,080 kg
- Rear axle load: up to 1,165 kg

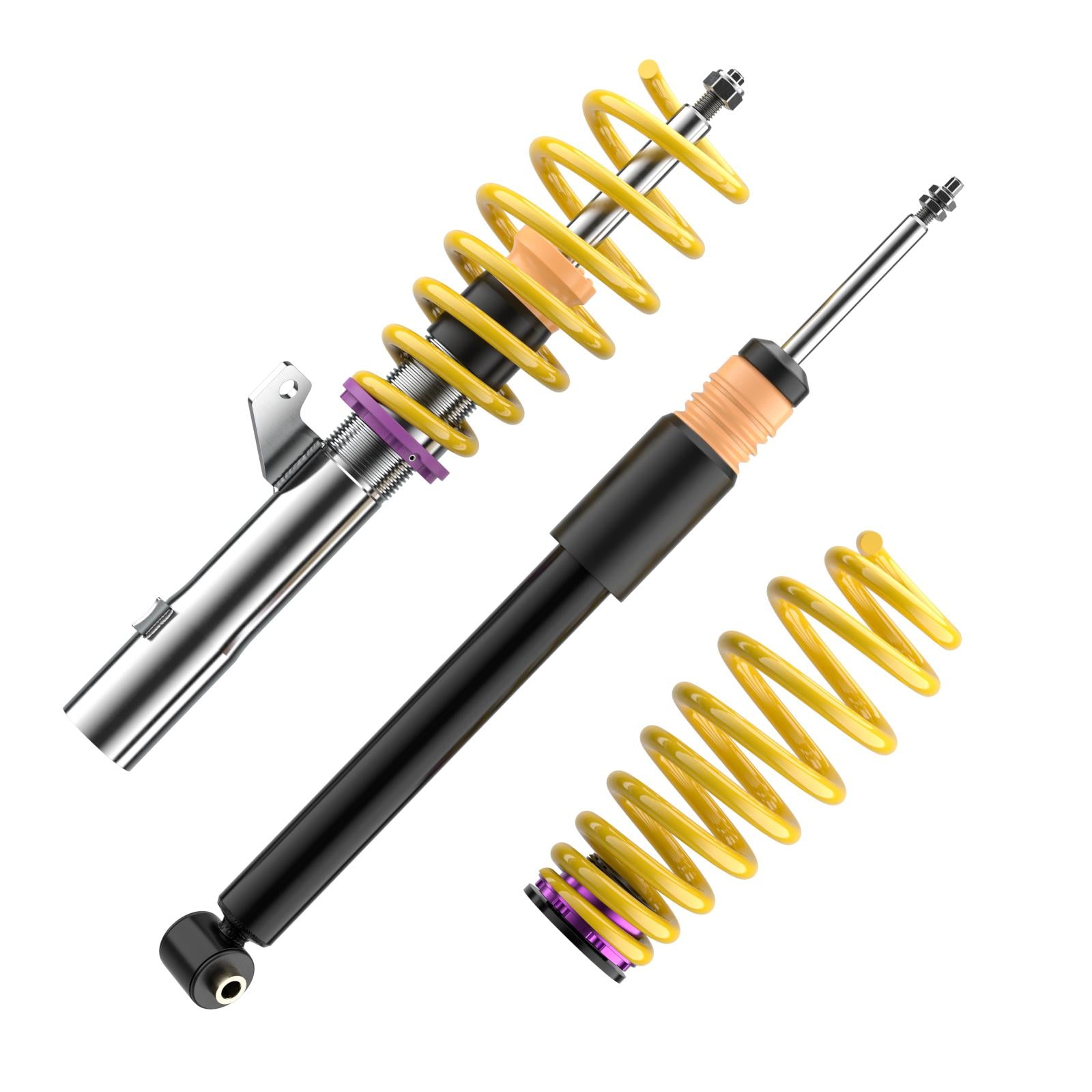

- Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Front axle load up to 1,080 kg; Rear axle load up to 1,165 kg.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 2000–2005 | Audi | A4 Avant (8E) 8E5, B6 | 3.0 quattro | Petrol · 164 kW · 3.0L · 6-cyl | All-Wheel Drive | 2, 8, 10 |
| 2000–2005 | Audi | A4 Avant (8E) 8E5, B6 | 1.8 T quattro | Petrol · 127 kW · 1.8L · 4-cyl | All-Wheel Drive | 2, 8, 10 |
| 2000–2005 | Audi | A4 Avant (8E) 8E5, B6 | 1.8 T quattro | Petrol · 110 kW · 1.8L · 4-cyl | All-Wheel Drive | 2, 8, 10 |
| 2000–2005 | Audi | A4 Avant (8E) 8E5, B6 | 1.8 T quattro | Petrol · 120 kW · 1.8L · 4-cyl | All-Wheel Drive | 2, 8, 10 |
| 2000–2005 | Audi | A4 Avant (8E) 8E5, B6 | 1.8 T quattro | Petrol · 125 kW · 1.8L · 4-cyl | All-Wheel Drive | 2, 8, 10 |
| 2000–2005 | Audi | A4 Avant (8E) 8E5, B6 | 3.0 quattro | Petrol · 160 kW · 3.0L · 6-cyl | All-Wheel Drive | 2, 8, 10 |
| 2004–2008 | Audi | A4 Avant (8E) 8ED, QB6, B7 | 1.8 T quattro | Petrol · 120 kW · 1.8L · 4-cyl | All-Wheel Drive | 2, 8, 10 |
| 2004–2008 | Audi | A4 Avant (8E) 8ED, QB6, B7 | 2.0 TFSI quattro | Petrol · 147 kW · 2.0L · 4-cyl | All-Wheel Drive | 2, 8, 10 |
| 2004–2008 | Audi | A4 Avant (8E) 8ED, QB6, B7 | 2.0 TFSI quattro | Petrol · 162 kW · 2.0L · 4-cyl | All-Wheel Drive | 2, 8, 10 |
| 2004–2008 | Audi | A4 Avant (8E) 8ED, QB6, B7 | 3.0 quattro | Petrol · 160 kW · 3.0L · 6-cyl | All-Wheel Drive | 2, 8, 10 |
| 2002–2010 | Audi | A4 B7 Convertible (8HE) | 2.0 TFSI quattro | Petrol · 147 kW · 2.0L · 4-cyl | All-Wheel Drive | 2, 8, 10 |
| 2002–2009 | Audi | A4 Convertible (8H) QB6, 8H7, B6, 8HE, B7 | 1.8 T quattro | Petrol · 127 kW · 1.8L · 4-cyl | All-Wheel Drive | 2, 8, 10 |
- Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
- Note 8: Not for vehicles with automatic self levelling control / air suspension.
- Note 10: In Variant 2, hardness adjustment for front axle only in not installed condition possible.
