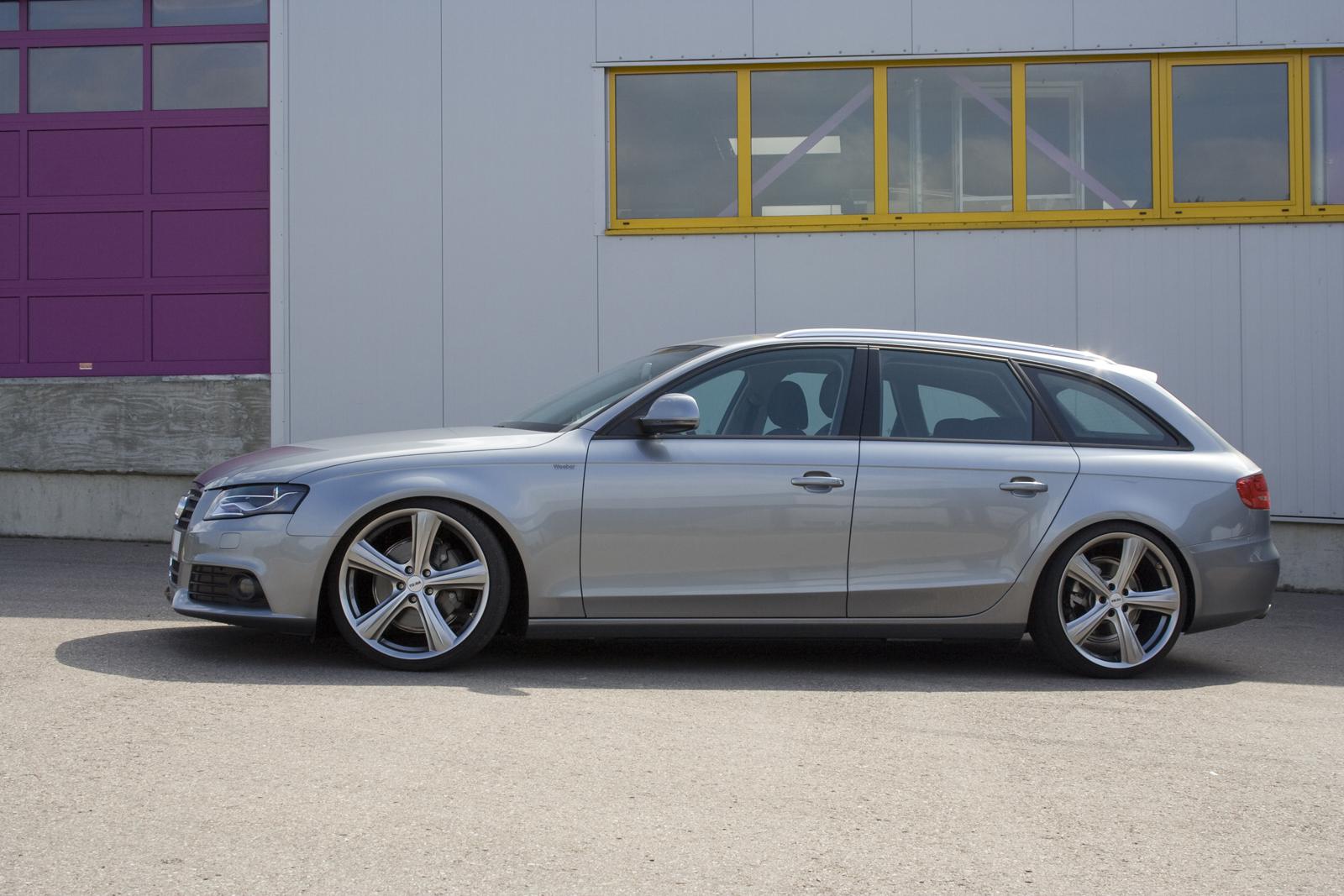

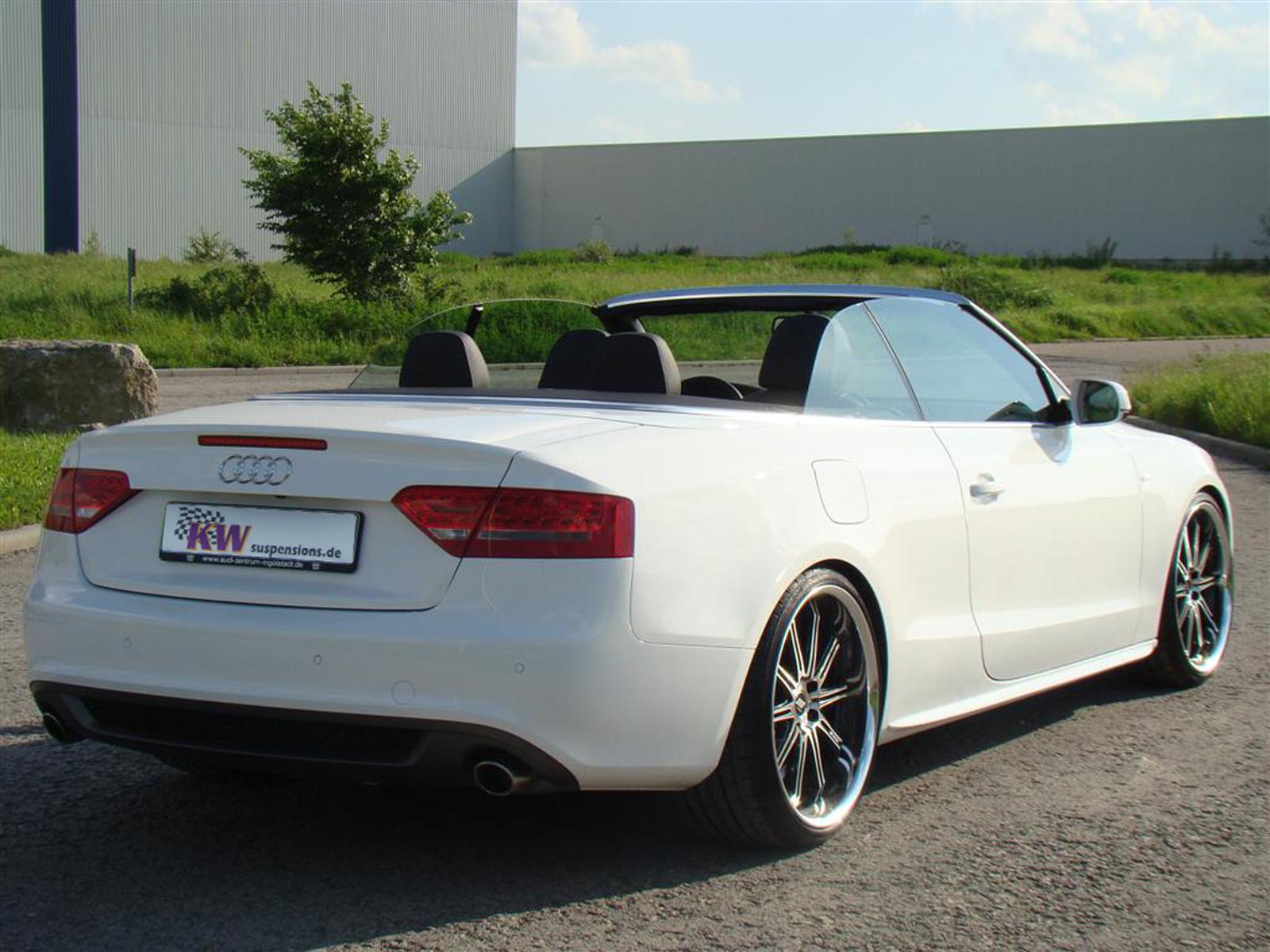

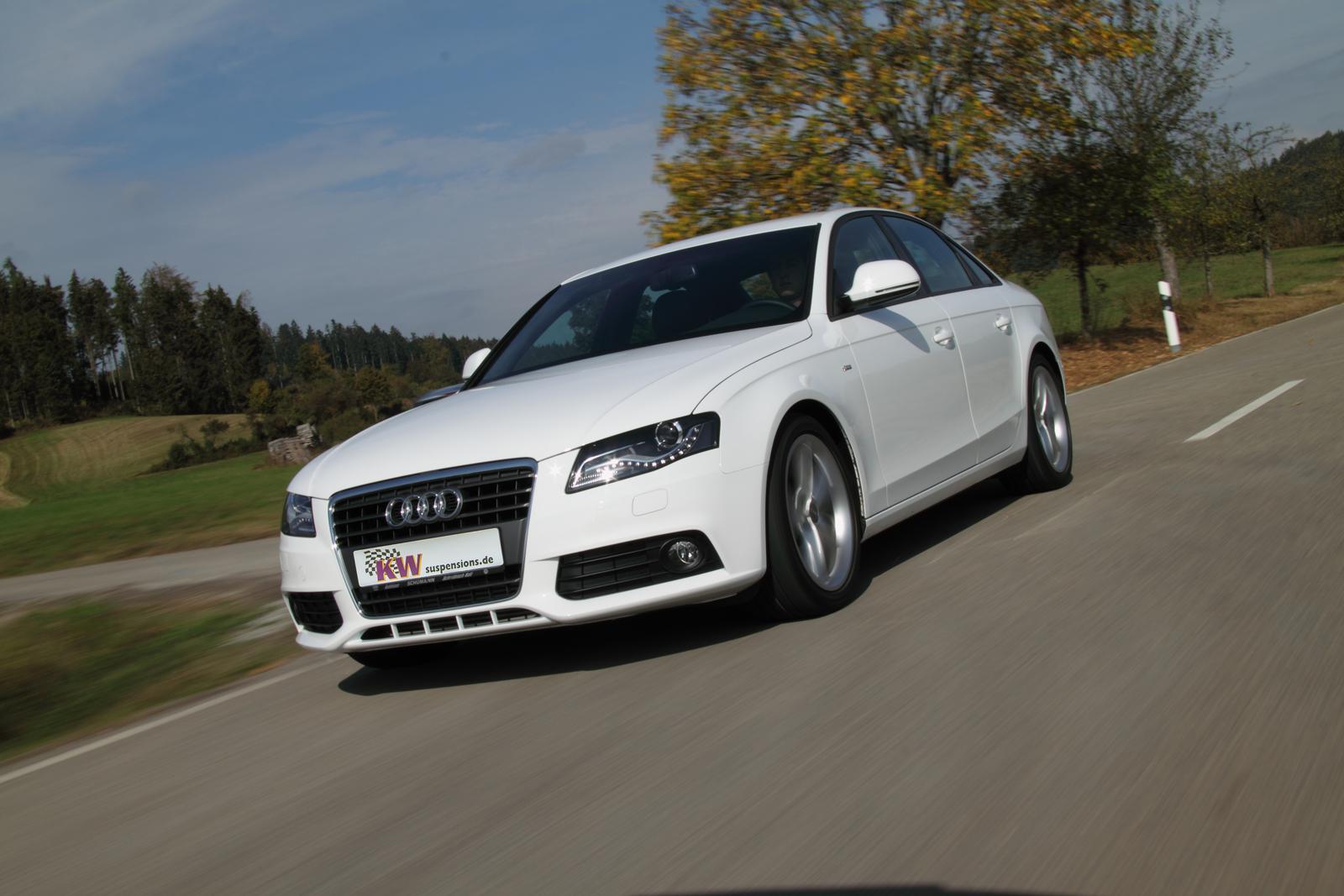

KW Coilover Kit V2 for Audi (B8) A4 / A5

SKU: 15210074
Sale price$3,628.05 Regular price$3,819.00
Save $190.95

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V2 adds adjustable rebound damping to KW's height-adjustable coilover platform. The twin-tube dampers offer 16 clicks of rebound adjustment, so the setup can be made firmer or more comfortable without changing the compression damping. As with all KW coilovers, the base setting is developed for each vehicle on KW's 7-post rig and in road testing, including the Nürburgring Nordschleife. This kit is developed for the Audi A4 / A5 (B8).

Key Features

  • Rebound damping adjustable in 16 clicks
  • Vehicle-specific base damper setting
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V2
  • Damping: Adjustable rebound
  • Material: Stainless steel
  • Front lowering: 25–55 mm
  • Rear lowering: 25–50 mm
  • Front axle load: up to 1,080 kg
  • Rear axle load: up to 1,250 kg
  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 1,080 kg; Rear axle load up to 1,250 kg.

For vehicles without electronic damper control.

References 2, 10, 37. See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2007–2017AudiA4 (B8) 8K21.8 TFSIPetrol · 88 kW · 1.8L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA4 (B8) 8K21.8 TFSIPetrol · 118 kW · 1.8L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA4 (B8) 8K21.8 TFSIPetrol · 125 kW · 1.8L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA4 (B8) 8K21.8 TFSI quattroPetrol · 118 kW · 1.8L · 4-cylAll-Wheel Drive2, 10, 37
2007–2017AudiA4 (B8) 8K21.8 TFSI quattroPetrol · 125 kW · 1.8L · 4-cylAll-Wheel Drive2, 10, 37
2007–2017AudiA4 (B8) 8K22.0 TDIDiesel · 88 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA4 (B8) 8K22.0 TDIDiesel · 100 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA4 (B8) 8K22.0 TDIDiesel · 105 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA4 (B8) 8K22.0 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA4 (B8) 8K22.0 TDIDiesel · 120 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA4 (B8) 8K22.0 TDIDiesel · 125 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA4 (B8) 8K22.0 TDIDiesel · 130 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA4 (B8) 8K22.0 TDIDiesel · 140 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA4 (B8) 8K22.0 TFSIPetrol · 132 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA4 (B8) 8K22.0 TFSIPetrol · 155 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA4 (B8) 8K22.0 TFSIPetrol · 162 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA4 (B8) 8K22.0 TFSIPetrol · 165 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA4 (B8) 8K22.0 TFSI quattroPetrol · 132 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37
2007–2017AudiA4 (B8) 8K22.0 TFSI quattroPetrol · 155 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37
2007–2017AudiA4 (B8) 8K22.0 TFSI quattroPetrol · 162 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37
2007–2017AudiA4 (B8) 8K22.0 TFSI quattroPetrol · 165 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37
2007–2017AudiA5 (B8) 8T31.8 TFSIPetrol · 118 kW · 1.8L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA5 (B8) 8T31.8 TFSIPetrol · 125 kW · 1.8L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA5 (B8) 8T31.8 TFSIPetrol · 130 kW · 1.8L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA5 (B8) 8T32.0 TDIDiesel · 120 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA5 (B8) 8T32.0 TDIDiesel · 125 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA5 (B8) 8T32.0 TDIDiesel · 130 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA5 (B8) 8T32.0 TDI quattroDiesel · 125 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37
2007–2017AudiA5 (B8) 8T32.0 TDI quattroDiesel · 130 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37
2007–2017AudiA5 (B8) 8T32.0 TFSIPetrol · 132 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA5 (B8) 8T32.0 TFSIPetrol · 155 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA5 (B8) 8T32.0 TFSIPetrol · 165 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA5 (B8) 8T32.0 TFSIPetrol · 169 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA5 (B8) 8T32.0 TFSI quattroPetrol · 155 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37
2007–2017AudiA5 (B8) 8T32.0 TFSI quattroPetrol · 162 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37
2007–2017AudiA5 (B8) 8T32.0 TFSI quattroPetrol · 165 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37
2007–2017AudiA5 (B8) 8T32.0 TFSI quattroPetrol · 169 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37
2007–2017AudiA5 (B8) 8T33.2 FSI quattroPetrol · 195 kW · 3.2L · 6-cylAll-Wheel Drive2, 10, 37
2009–2017AudiA5 Convertible (B8) 8F71.8 TFSIPetrol · 118 kW · 1.8L · 4-cylFront-Wheel Drive2, 10, 37
2009–2017AudiA5 Convertible (B8) 8F71.8 TFSIPetrol · 125 kW · 1.8L · 4-cylFront-Wheel Drive2, 10, 37
2009–2017AudiA5 Convertible (B8) 8F71.8 TFSIPetrol · 130 kW · 1.8L · 4-cylFront-Wheel Drive2, 10, 37
2009–2017AudiA5 Convertible (B8) 8F72.0 TFSIPetrol · 155 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2009–2017AudiA5 Convertible (B8) 8F72.0 TFSIPetrol · 162 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2009–2017AudiA5 Convertible (B8) 8F72.0 TFSIPetrol · 165 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2009–2017AudiA5 Convertible (B8) 8F72.0 TFSIPetrol · 169 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2009–2017AudiA5 Convertible (B8) 8F72.0 TFSI quattroPetrol · 162 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37
2007–2017AudiA5 Sportback (B8) 8TA1.8 TFSIPetrol · 106 kW · 1.8L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA5 Sportback (B8) 8TA1.8 TFSIPetrol · 118 kW · 1.8L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA5 Sportback (B8) 8TA1.8 TFSIPetrol · 125 kW · 1.8L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA5 Sportback (B8) 8TA1.8 TFSIPetrol · 130 kW · 1.8L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA5 Sportback (B8) 8TA2.0 TDIDiesel · 100 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA5 Sportback (B8) 8TA2.0 TDIDiesel · 105 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA5 Sportback (B8) 8TA2.0 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA5 Sportback (B8) 8TA2.0 TFSIPetrol · 132 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA5 Sportback (B8) 8TA2.0 TFSIPetrol · 155 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA5 Sportback (B8) 8TA2.0 TFSIPetrol · 165 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA5 Sportback (B8) 8TA2.0 TFSIPetrol · 169 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA5 Sportback (B8) 8TA2.0 TFSI quattroPetrol · 155 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37
2007–2017AudiA5 Sportback (B8) 8TA2.0 TFSI quattroPetrol · 165 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37
2007–2017AudiA5 Sportback (B8) 8TA2.0 TFSI quattroPetrol · 169 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37
2007–2017AudiA5 Sportback (B8) 8TA2.7 TDIDiesel · 120 kW · 2.7L · 6-cylFront-Wheel Drive2, 10, 37
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 10: In Variant 2, hardness adjustment for front axle only in not installed condition possible.
  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
