KW Coilover Kit V2 for BMW (G26) M440i / (G21) 330d

SKU: 152200DV
Sale price$3,609.05 Regular price$3,799.00
Save $189.95

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V2 adds adjustable rebound damping to KW's height-adjustable coilover platform. The twin-tube dampers offer 16 clicks of rebound adjustment, so the setup can be made firmer or more comfortable without changing the compression damping. As with all KW coilovers, the base setting is developed for each vehicle on KW's 7-post rig and in road testing, including the Nürburgring Nordschleife. This kit is developed for the BMW M440i Gran Coupe (G26) / 330d Touring (G21).

Key Features

  • Rebound damping adjustable in 16 clicks
  • Vehicle-specific base damper setting
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V2
  • Damping: Adjustable rebound
  • Material: Stainless steel
  • Front lowering: 40–60 mm
  • Rear lowering: 40–60 mm
  • Front axle load: 1,071–1,110 kg
  • Rear axle load: up to 1,345 kg

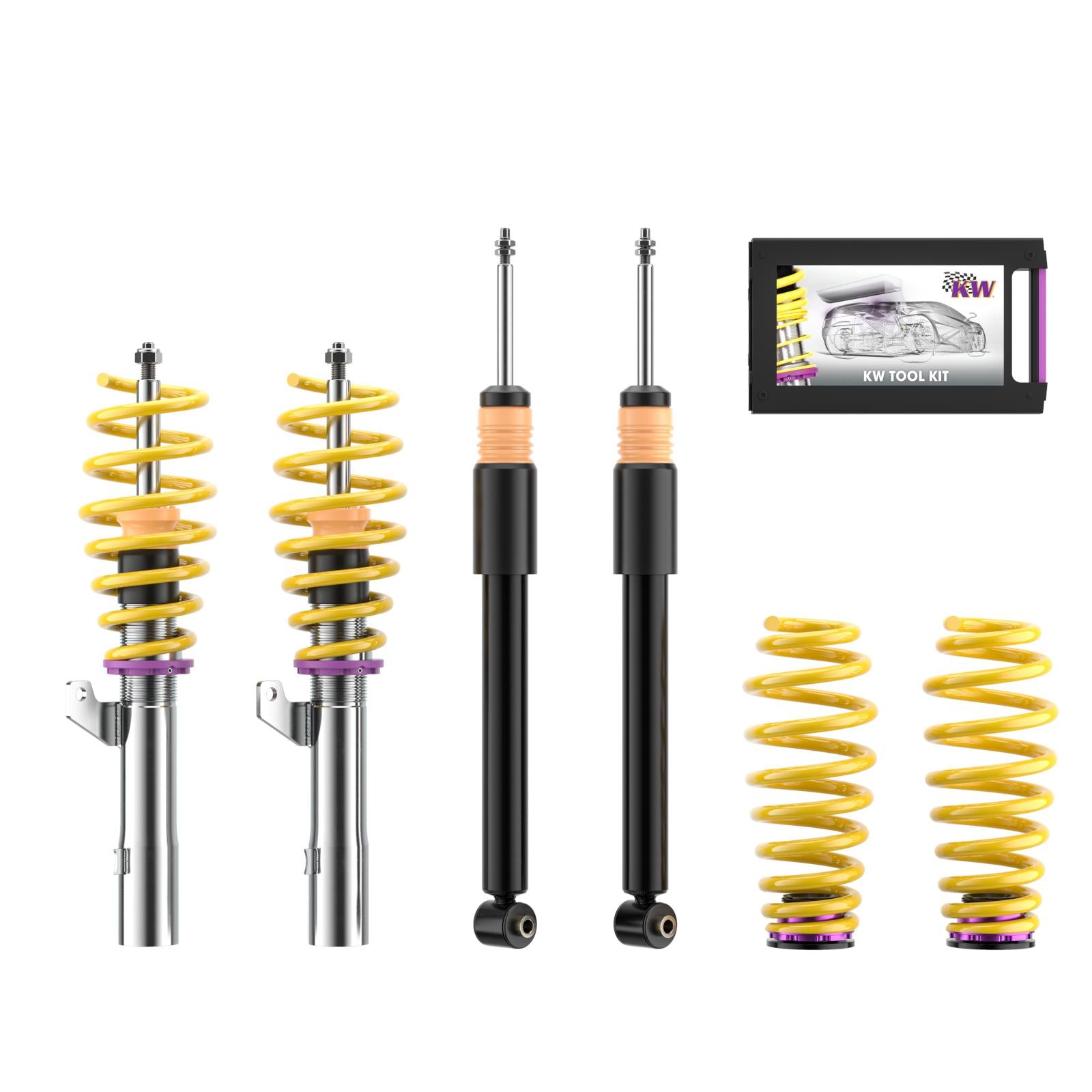

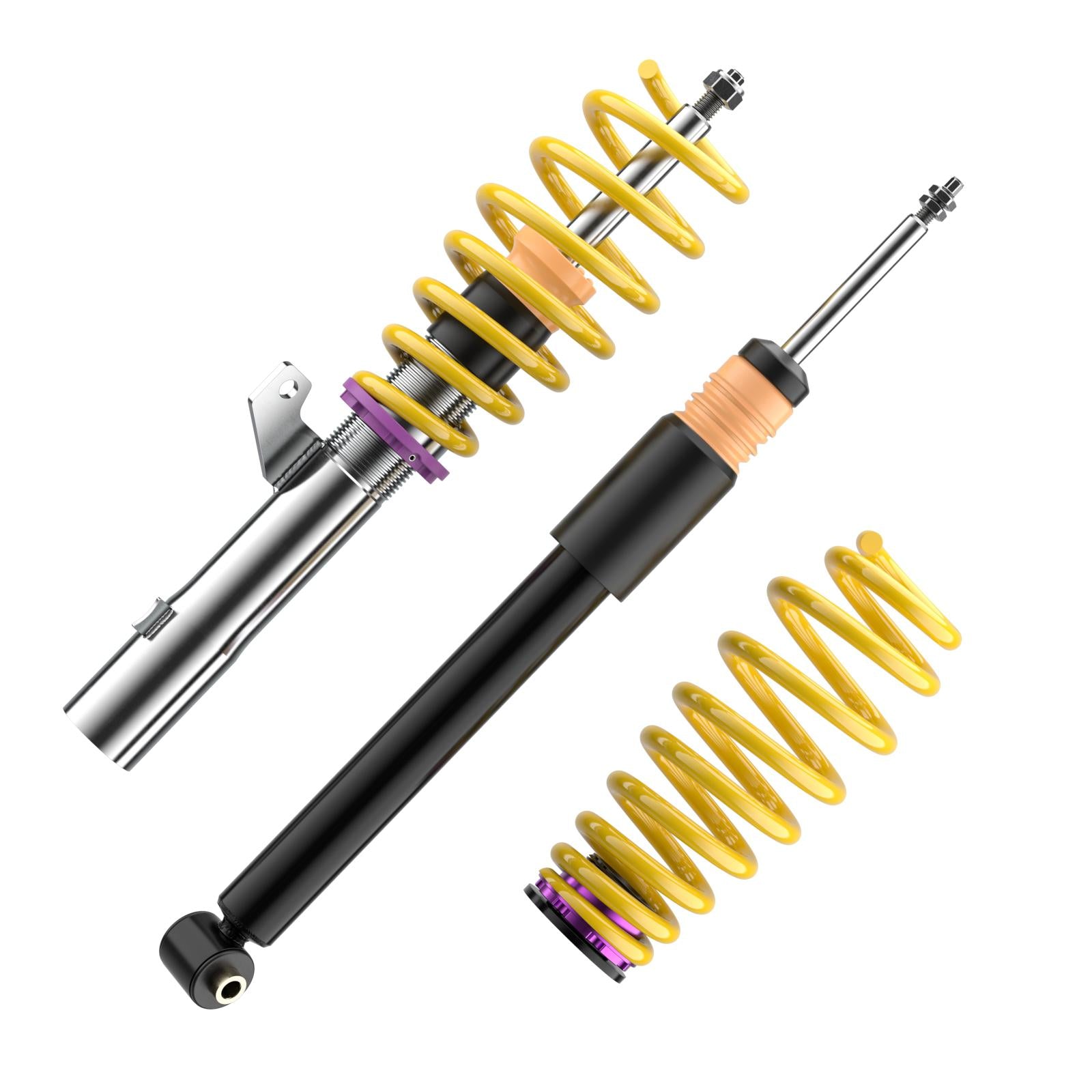

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load 1,071–1,110 kg; Rear axle load up to 1,345 kg.

For vehicles without electronic damper control.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2019+BMW3 Touring (G21, G81) G3K330 dDiesel · 195 kW · 3.0L · 6-cylRear-Wheel Drive2, 37, 67
2019+BMW3 Touring (G21, G81) G3K330 d Mild-HybridDiesel/Electric · 210 kW · 3.0L · 6-cylRear-Wheel Drive2, 37, 67
2021+BMW4 Gran Coupe (G26)M440 i Mild-HybridPetrol/Electric · 275 kW · 3.0L · 6-cylRear-Wheel Drive2, 37, 67
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
