KW Coilover Kit V2 for BMW (E83) X3

SKU: 15220003
Sale price$3,542.55 Regular price$3,729.00
Save $186.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V2 adds adjustable rebound damping to KW's height-adjustable coilover platform. The twin-tube dampers offer 16 clicks of rebound adjustment, so the setup can be made firmer or more comfortable without changing the compression damping. As with all KW coilovers, the base setting is developed for each vehicle on KW's 7-post rig and in road testing, including the Nürburgring Nordschleife. This kit is developed for the BMW X3 (E83).

Key Features

  • Rebound damping adjustable in 16 clicks
  • Vehicle-specific base damper setting
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V2
  • Damping: Adjustable rebound
  • Material: Stainless steel
  • Front lowering: 35–75 mm
  • Rear lowering: 30–60 mm
  • Front axle load: up to 1,177 kg
  • Rear axle load: up to 1,284 kg

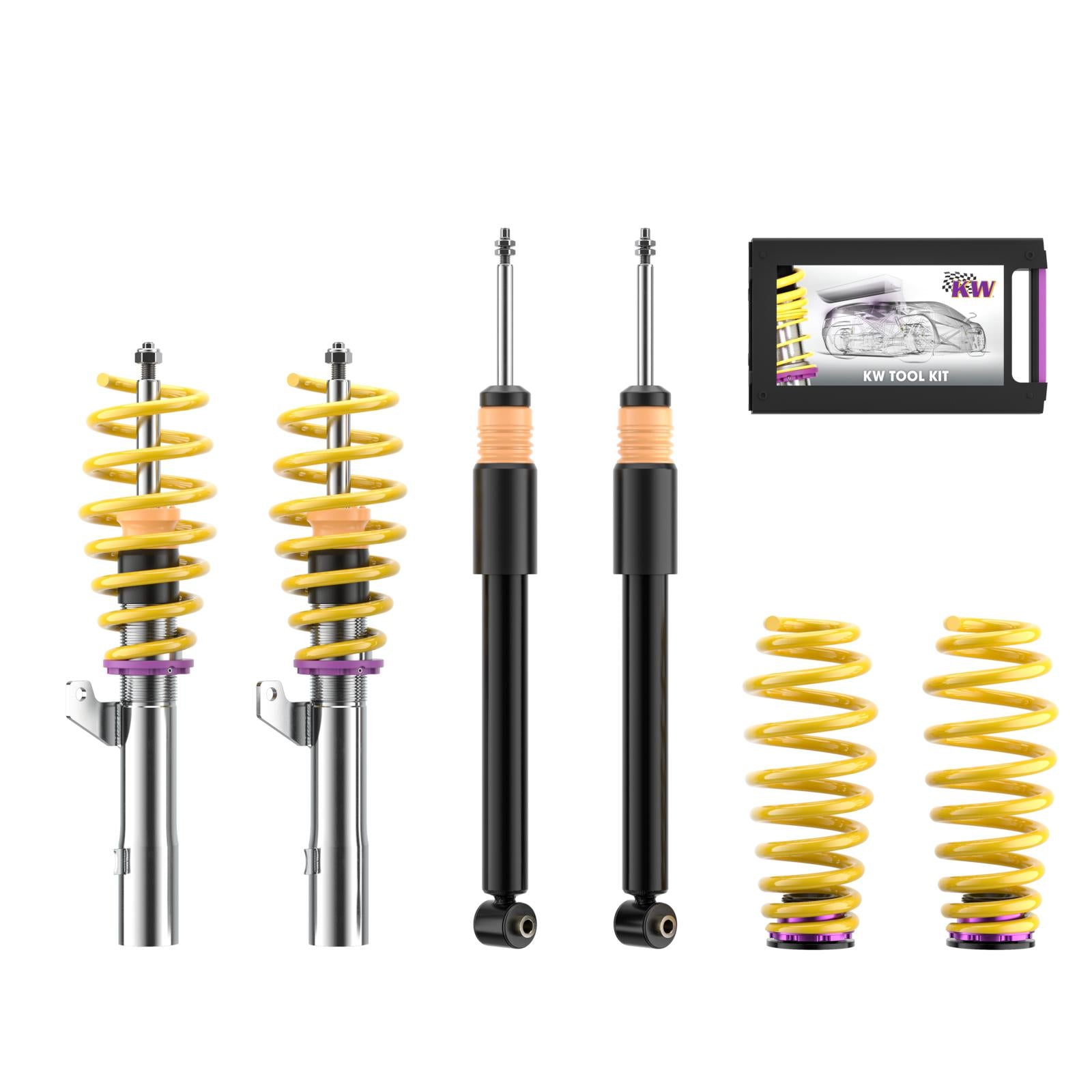

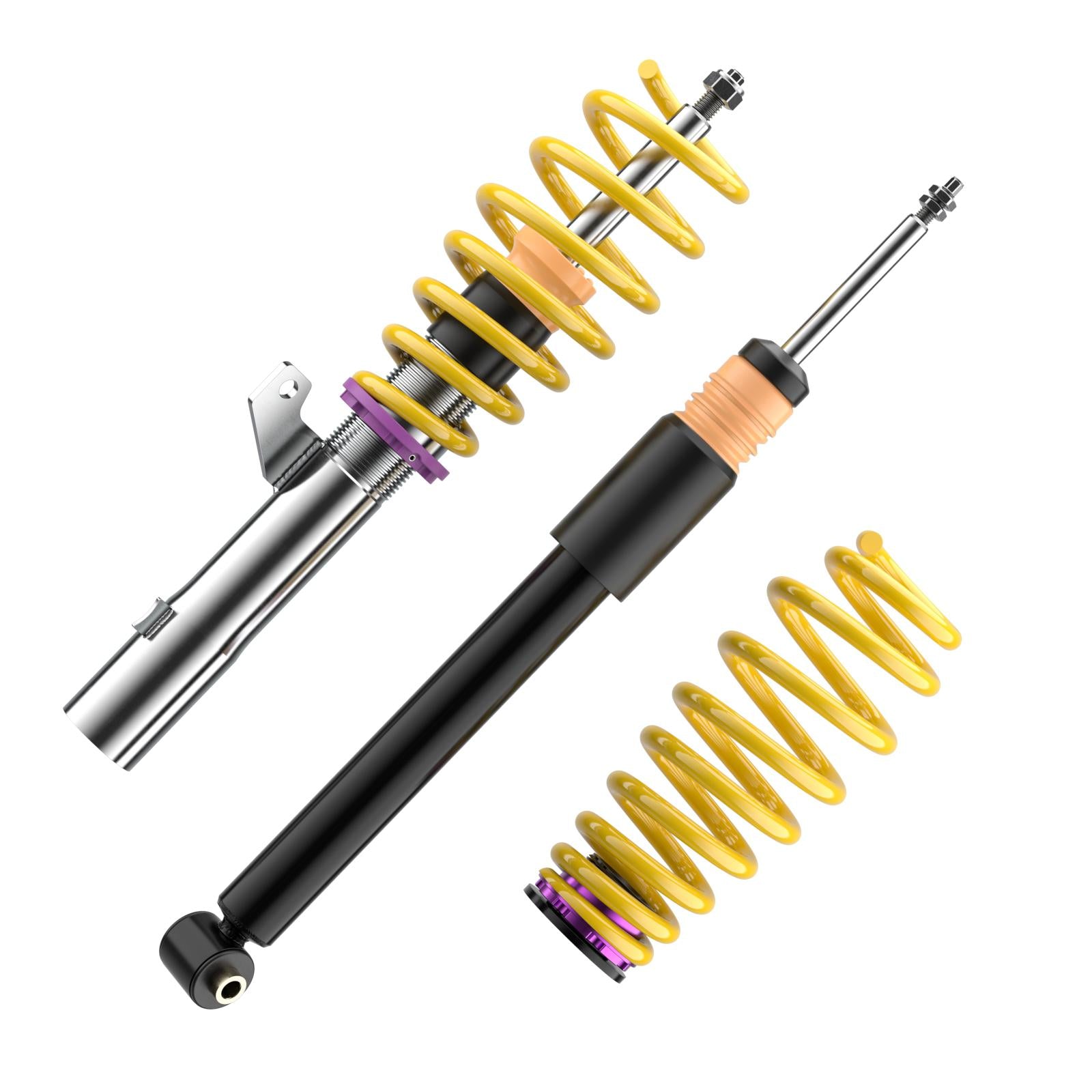

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 1,177 kg; Rear axle load up to 1,284 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2003–2011BMWX3 (E83) X832.0 dDiesel · 110 kW · 2.0L · 4-cylAll-Wheel Drive2, 8
2003–2011BMWX3 (E83) X832.0 iPetrol · 110 kW · 2.0L · 4-cylAll-Wheel Drive2, 8
2003–2011BMWX3 (E83) X832.0 sdDiesel · 130 kW · 2.0L · 4-cylAll-Wheel Drive2, 8
2003–2011BMWX3 (E83) X832.5 iPetrol · 137 kW · 2.5L · 6-cylAll-Wheel Drive2, 8
2003–2011BMWX3 (E83) X832.5 iPetrol · 141 kW · 2.5L · 6-cylAll-Wheel Drive2, 8
2003–2011BMWX3 (E83) X832.5 siPetrol · 160 kW · 2.5L · 6-cylAll-Wheel Drive2, 8
2003–2011BMWX3 (E83) X832.5 si xDrivePetrol · 155 kW · 2.5L · 6-cylAll-Wheel Drive2, 8
2003–2011BMWX3 (E83) X833.0 dDiesel · 150 kW · 3.0L · 6-cylAll-Wheel Drive2, 8
2003–2011BMWX3 (E83) X833.0 dDiesel · 155 kW · 3.0L · 6-cylAll-Wheel Drive2, 8
2003–2011BMWX3 (E83) X833.0 dDiesel · 160 kW · 3.0L · 6-cylAll-Wheel Drive2, 8
2003–2011BMWX3 (E83) X833.0 iPetrol · 168 kW · 3.0L · 6-cylAll-Wheel Drive2, 8
2003–2011BMWX3 (E83) X833.0 i xDrivePetrol · 170 kW · 3.0L · 6-cylAll-Wheel Drive2, 8
2003–2011BMWX3 (E83) X833.0 sdDiesel · 210 kW · 3.0L · 6-cylAll-Wheel Drive2, 8
2003–2011BMWX3 (E83) X833.0 siPetrol · 194 kW · 3.0L · 6-cylAll-Wheel Drive2, 8
2003–2011BMWX3 (E83) X833.0 siPetrol · 200 kW · 3.0L · 6-cylAll-Wheel Drive2, 8
2003–2011BMWX3 (E83) X83xDrive 18 dDiesel · 100 kW · 2.0L · 4-cylAll-Wheel Drive2, 8
2003–2011BMWX3 (E83) X83xDrive 18 dDiesel · 105 kW · 2.0L · 4-cylAll-Wheel Drive2, 8
2003–2011BMWX3 (E83) X83xDrive 20 dDiesel · 120 kW · 2.0L · 4-cylAll-Wheel Drive2, 8
2003–2011BMWX3 (E83) X83xDrive 20 dDiesel · 130 kW · 2.0L · 4-cylAll-Wheel Drive2, 8
2003–2011BMWX3 (E83) X83xDrive 20 iPetrol · 110 kW · 2.0L · 4-cylAll-Wheel Drive2, 8
2003–2011BMWX3 (E83) X83xDrive 25 iPetrol · 155 kW · 2.5L · 6-cylAll-Wheel Drive2, 8
2003–2011BMWX3 (E83) X83xDrive 25 iPetrol · 160 kW · 2.5L · 6-cylAll-Wheel Drive2, 8
2003–2011BMWX3 (E83) X83xDrive 30 dDiesel · 155 kW · 3.0L · 6-cylAll-Wheel Drive2, 8
2003–2011BMWX3 (E83) X83xDrive 30 dDiesel · 160 kW · 3.0L · 6-cylAll-Wheel Drive2, 8
2003–2011BMWX3 (E83) X83xDrive 30 iPetrol · 160 kW · 3.0L · 6-cylAll-Wheel Drive
2003–2011BMWX3 (E83) X83xDrive 30 iPetrol · 194 kW · 3.0L · 6-cylAll-Wheel Drive
2003–2011BMWX3 (E83) X83xDrive 30 iPetrol · 200 kW · 3.0L · 6-cylAll-Wheel Drive2, 8
2003–2011BMWX3 (E83) X83xDrive 35 dDiesel · 210 kW · 3.0L · 6-cylAll-Wheel Drive2, 8
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 8: Not for vehicles with automatic self levelling control / air suspension.
