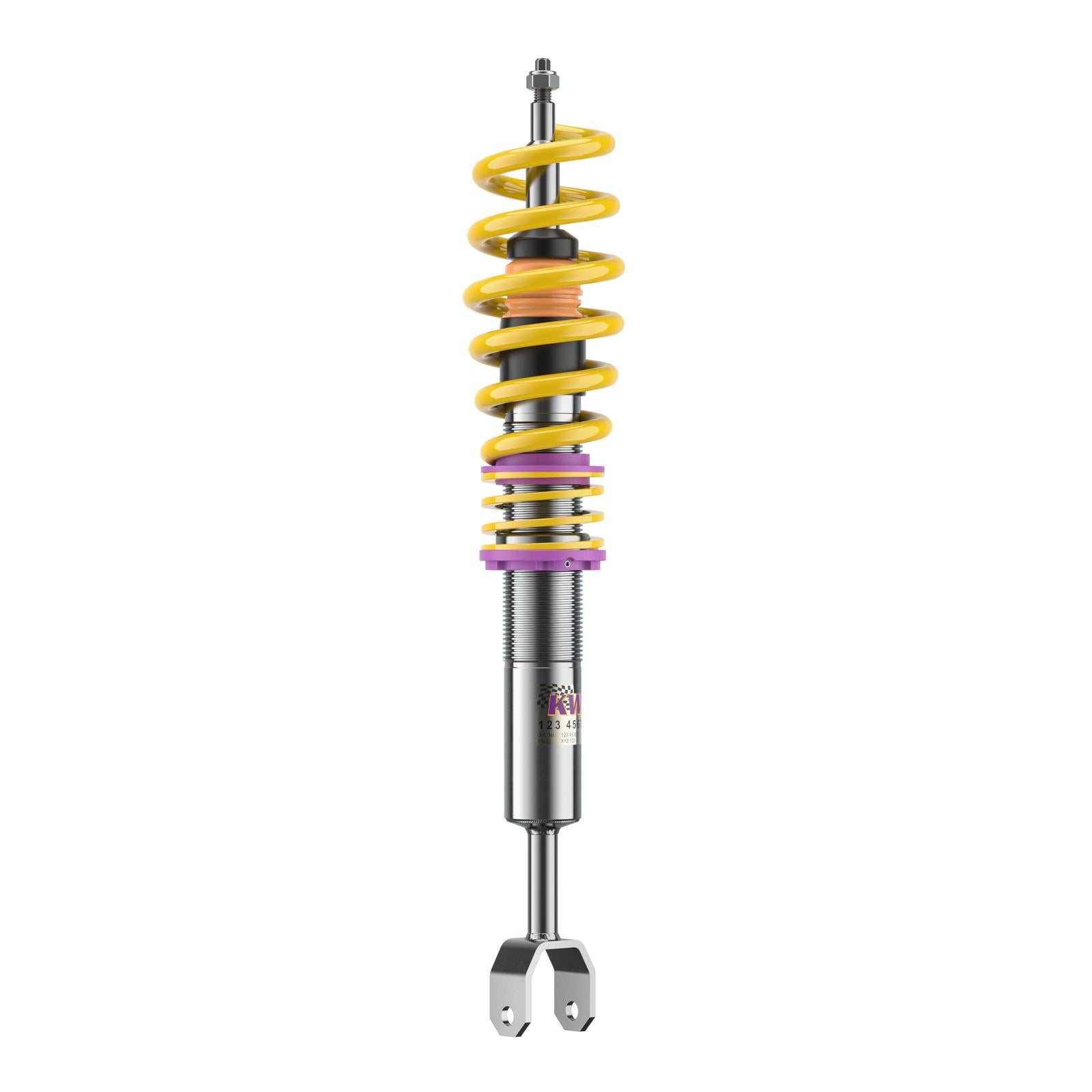

KW Coilover Kit V2 for BMW (E85) Z4 / (E86) Z4

SKU: 15220004
Sale price$3,609.05 Regular price$3,799.00
Save $189.95

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V2 adds adjustable rebound damping to KW's height-adjustable coilover platform. The twin-tube dampers offer 16 clicks of rebound adjustment, so the setup can be made firmer or more comfortable without changing the compression damping. As with all KW coilovers, the base setting is developed for each vehicle on KW's 7-post rig and in road testing, including the Nürburgring Nordschleife. This kit is developed for the BMW Z4 3.0si Roadster (E85) / Z4 Coupe (E86).

Key Features

  • Rebound damping adjustable in 16 clicks
  • Vehicle-specific base damper setting
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V2
  • Damping: Adjustable rebound
  • Material: Stainless steel
  • Front lowering: 20–50 mm
  • Rear lowering: 15–40 mm
  • Front axle load: up to 790 kg
  • Rear axle load: up to 890 kg

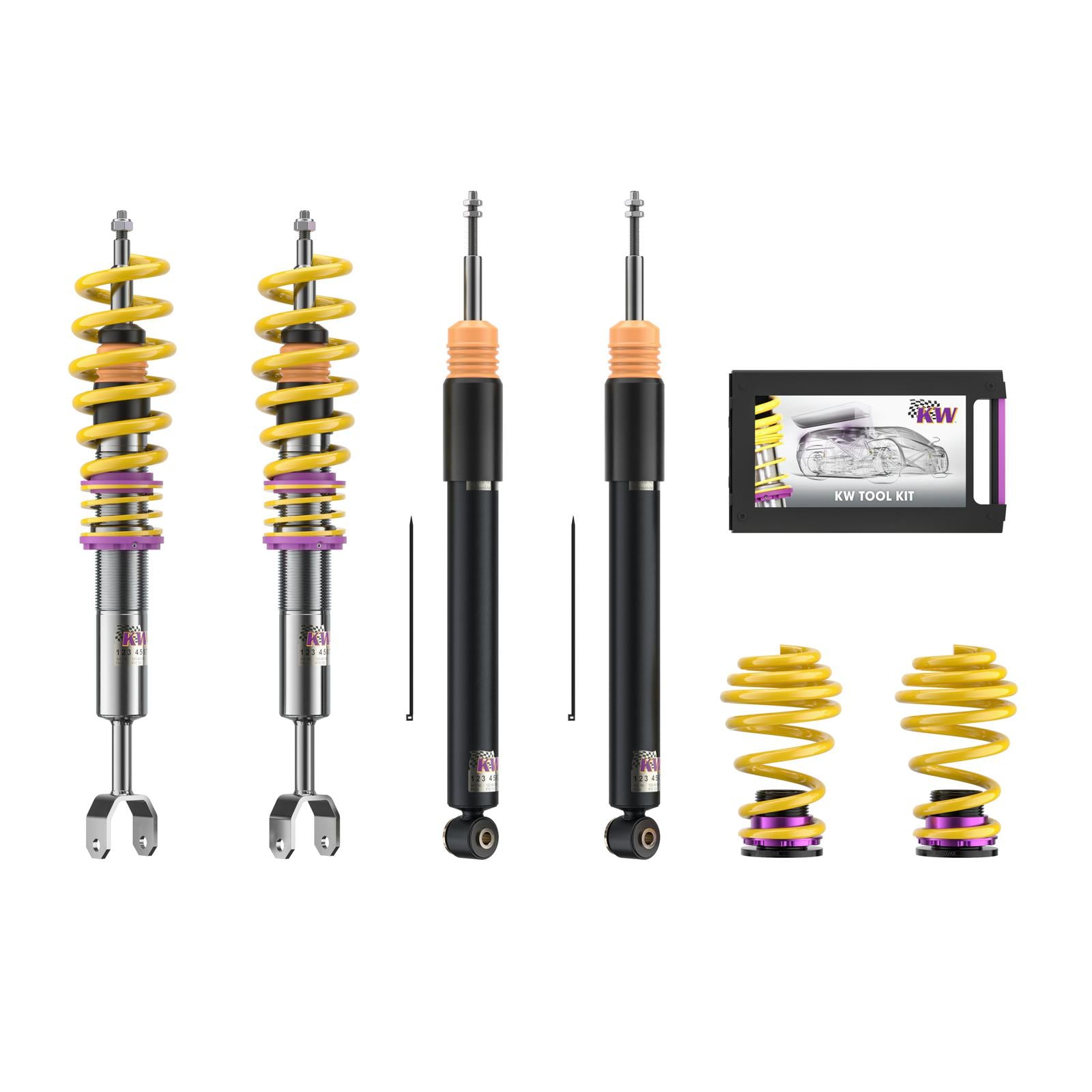

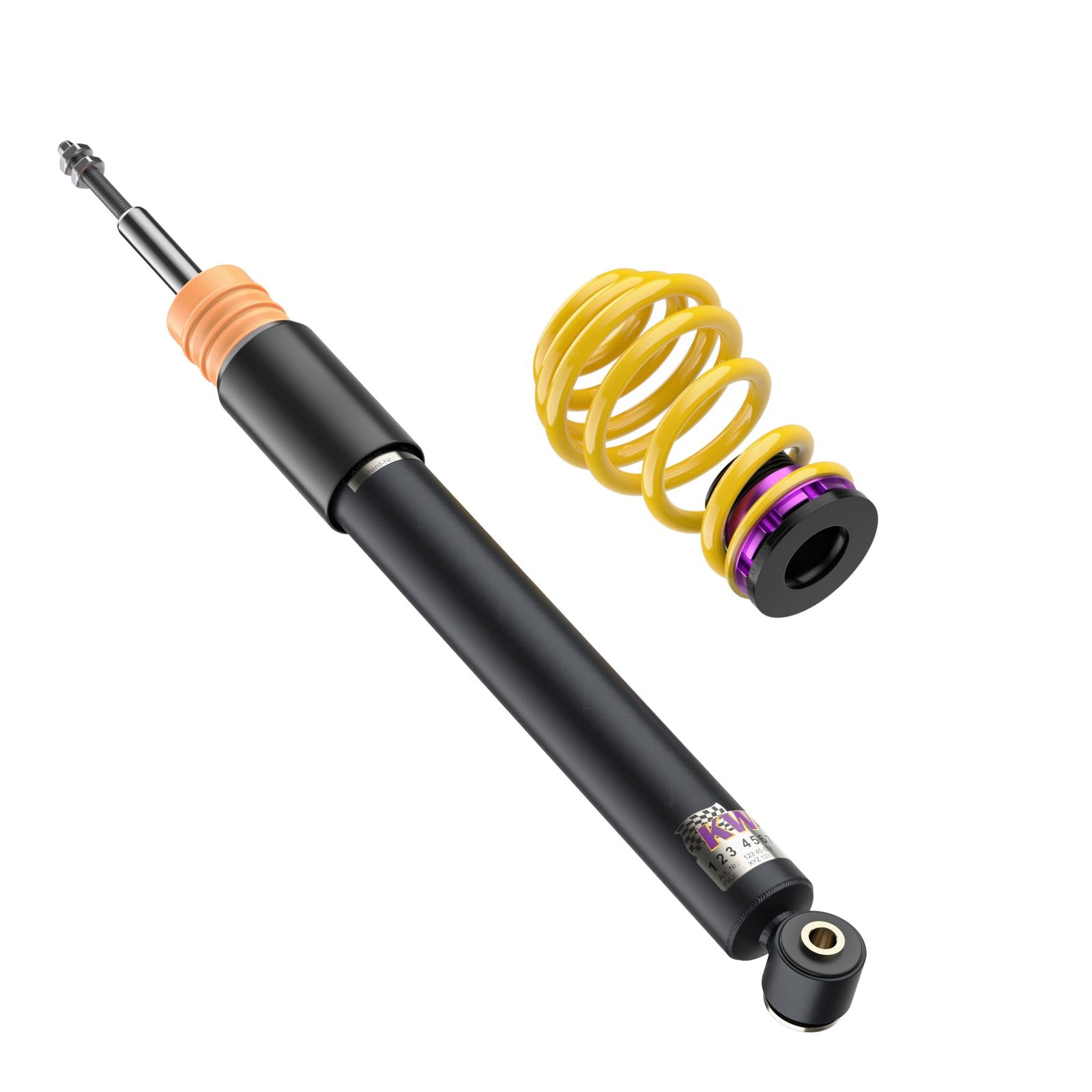

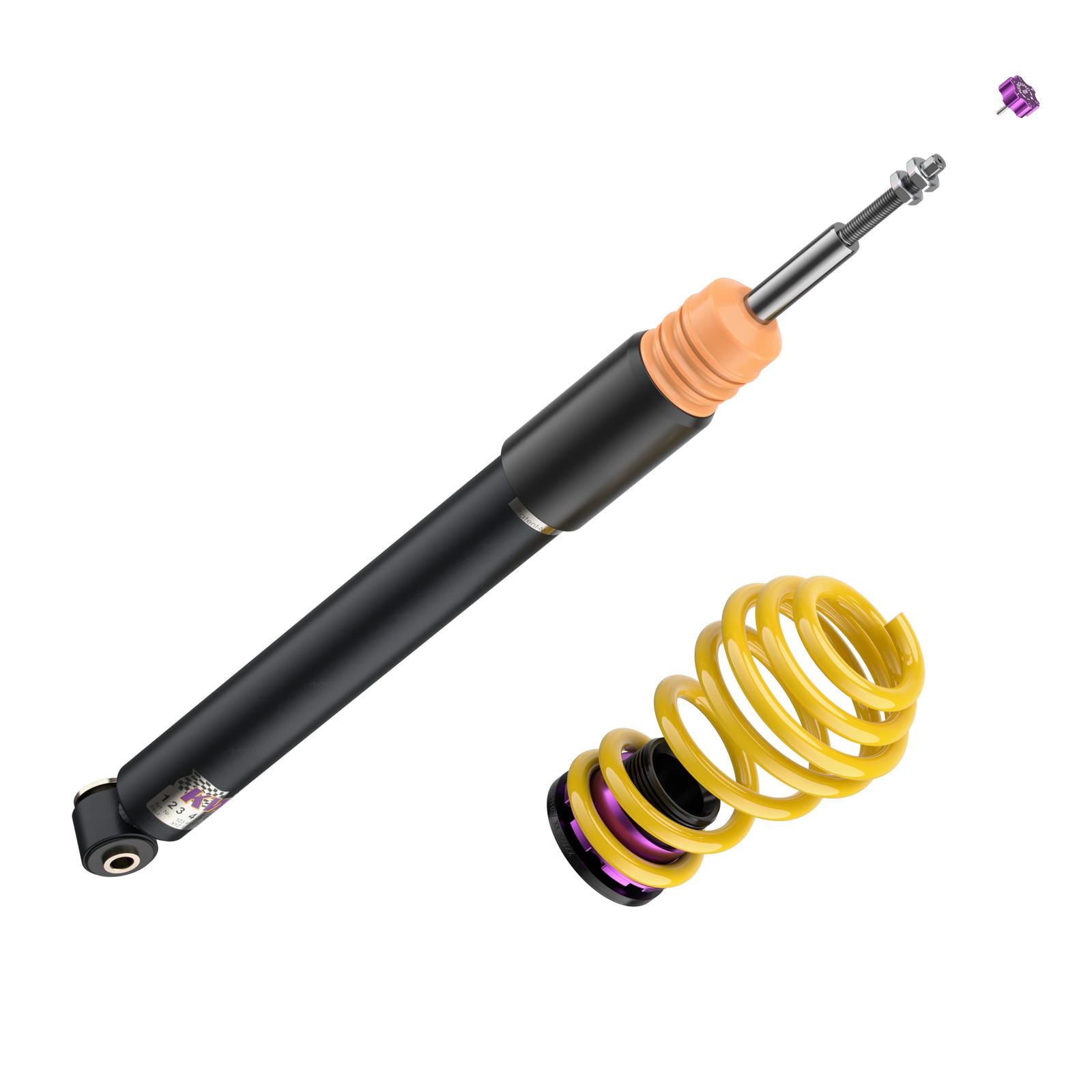

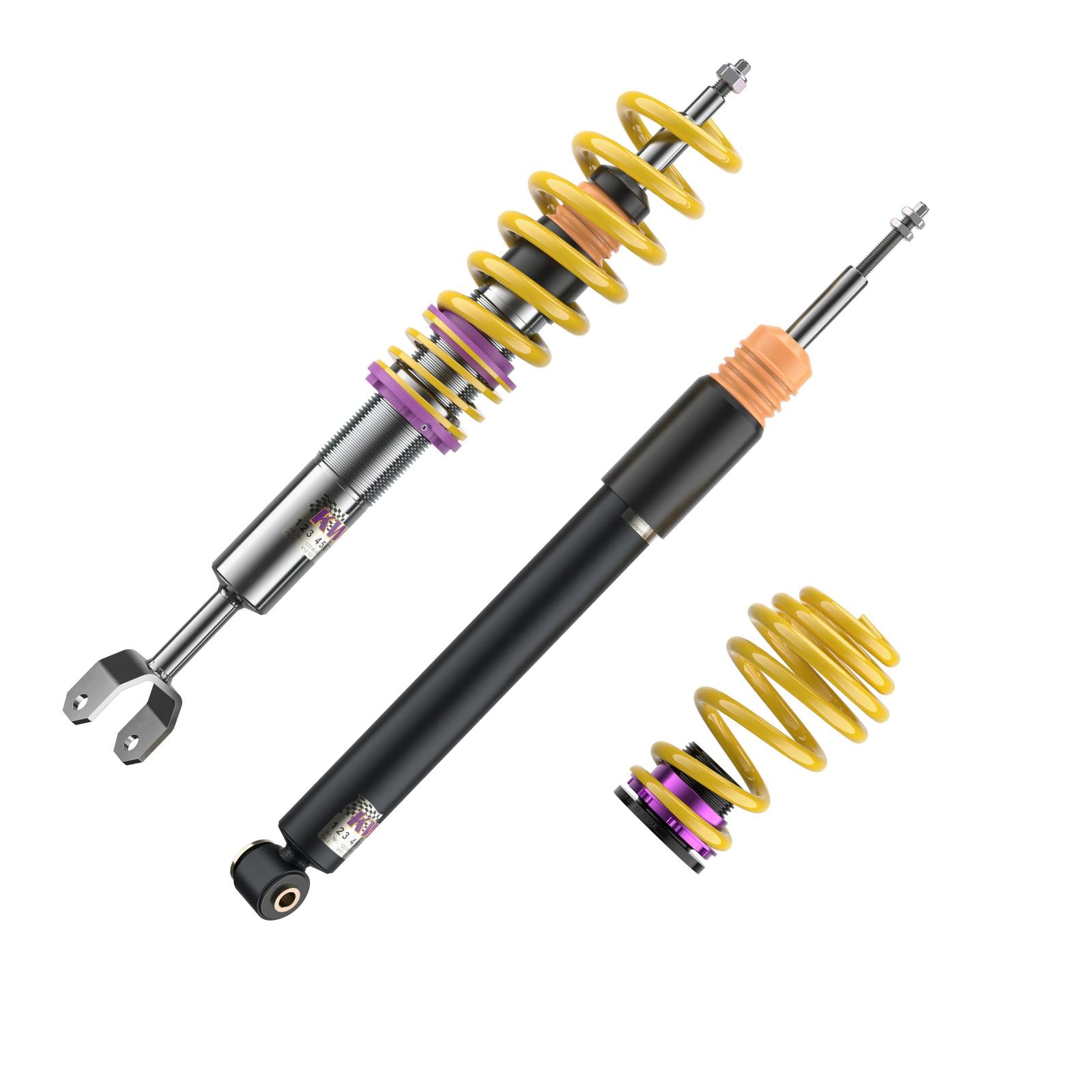

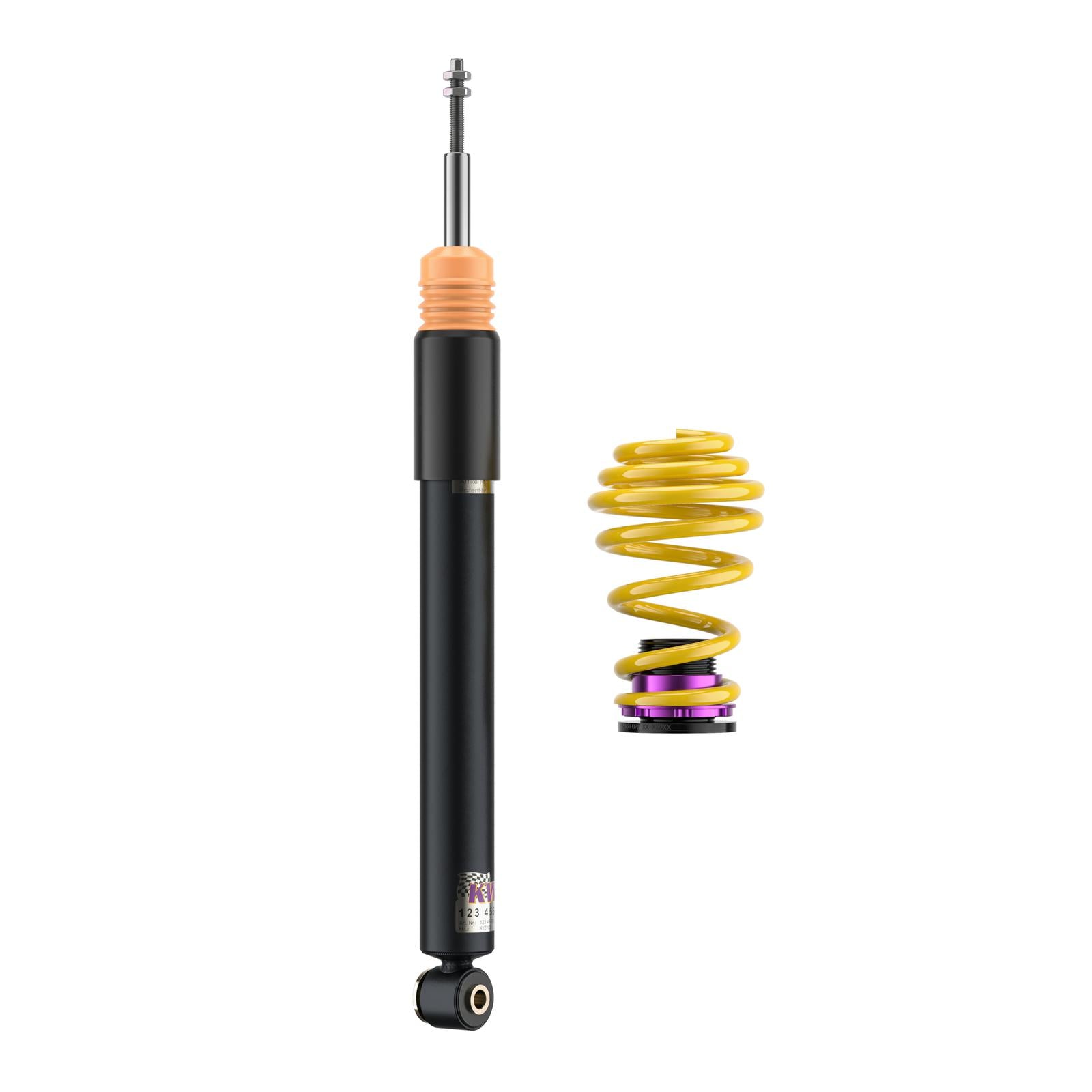

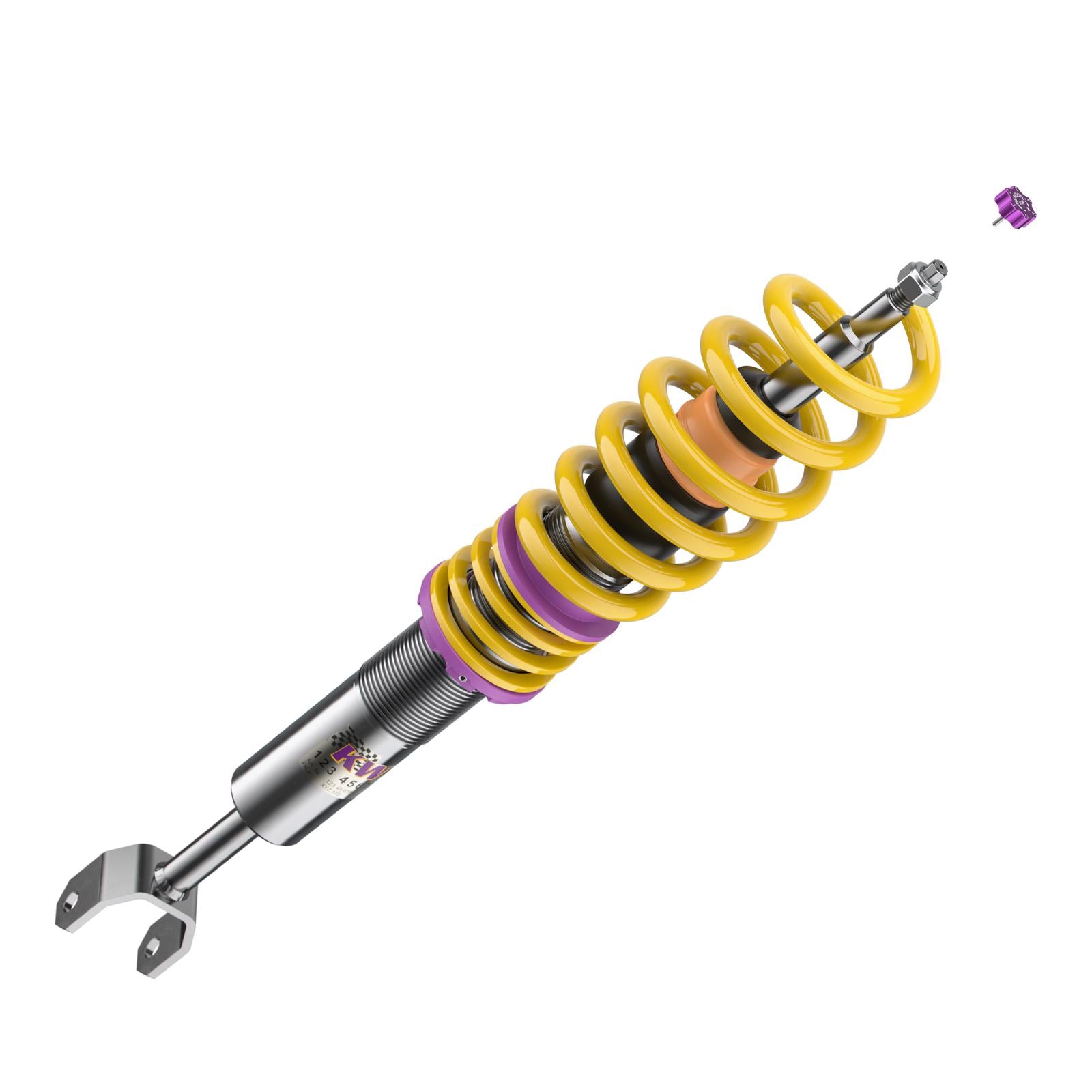

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 790 kg; Rear axle load up to 890 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2006–2009BMWZ4 Coupe (E86) M85, Z852.5 iPetrol · 141 kW · 2.5L · 6-cylRear-Wheel Drive2, 6
2002–2009BMWZ4 Roadster (E85) M85, Z852.5 siPetrol · 155 kW · 2.5L · 6-cylRear-Wheel Drive2, 6
2006–2009BMWZ4 Coupe (E86) M85, Z853.0 siPetrol · 190 kW · 3.0L · 6-cylRear-Wheel Drive2, 6
2002–2009BMWZ4 Roadster (E85) M85, Z853.0 siPetrol · 190 kW · 3.0L · 6-cylRear-Wheel Drive2, 6
2002–2009BMWZ4 Roadster (E85) M85, Z853.0 iPetrol · 170 kW · 3.0L · 6-cylRear-Wheel Drive2, 6
2002–2009BMWZ4 Roadster (E85) M85, Z852.5 iPetrol · 141 kW · 2.5L · 6-cylRear-Wheel Drive2, 6
2002–2009BMWZ4 Roadster (E85) M85, Z852.2 iPetrol · 125 kW · 2.2L · 6-cylRear-Wheel Drive2, 6
2002–2009BMWZ4 Roadster (E85) M85, Z852.0 iPetrol · 110 kW · 2.0L · 4-cylRear-Wheel Drive2, 6
2002–2009BMWZ4 Roadster (E85) M85, Z852.5 iPetrol · 130 kW · 2.5L · 6-cylRear-Wheel Drive2, 6
2002–2009BMWZ4 Roadster (E85) M85, Z852.5 siPetrol · 160 kW · 2.5L · 6-cylRear-Wheel Drive2, 6
2002–2009BMWZ4 Roadster (E85) M85, Z853.0 siPetrol · 195 kW · 3.0L · 6-cylRear-Wheel Drive2, 6
2006–2009BMWZ4 Coupe (E86) M85, Z853.0 siPetrol · 195 kW · 3.0L · 6-cylRear-Wheel Drive2, 6
2002–2009BMWZ4 Roadster (E85) M85, Z853.0 siPetrol · 160 kW · 3.0L · 6-cylRear-Wheel Drive2, 6
2006–2009BMWZ4 Coupe (E86) M85, Z853.0 siPetrol · 160 kW · 3.0L · 6-cylRear-Wheel Drive2, 6
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 6: When using original tyres, wheel offset spacers may be required.
