KW Coilover Kit V2 for Mitsubishi (CU) Outlander Turbo / Outlander
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW Coilover Kit V2 for Mitsubishi (CU) Outlander Turbo / Outlander
Sale price$3,286.05
Regular price$3,459.00 (/)

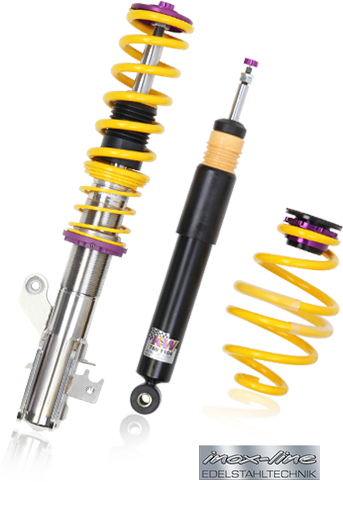

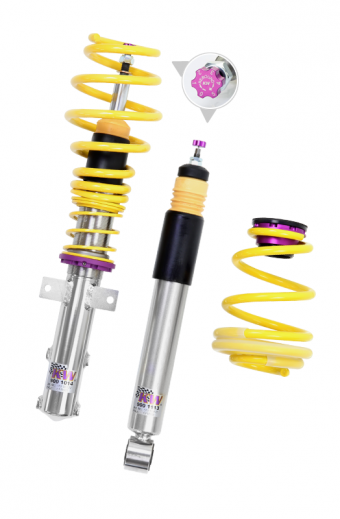

KW's V2 adds adjustable rebound damping to KW's height-adjustable coilover platform. The twin-tube dampers offer 16 clicks of rebound adjustment, so the setup can be made firmer or more comfortable without changing the compression damping. As with all KW coilovers, the base setting is developed for each vehicle on KW's 7-post rig and in road testing, including the Nürburgring Nordschleife. This kit is developed for the Mitsubishi Outlander Turbo / Outlander (CU).
Key Features
- Rebound damping adjustable in 16 clicks
- Vehicle-specific base damper setting
- Continuous ride height adjustment within the tested range
Specifications
- Version: V2
- Damping: Adjustable rebound
- Material: Stainless steel
- Front lowering: 25–65 mm
- Rear lowering: 10–45 mm
- Front axle load: up to 1,070 kg
- Rear axle load: up to 1,075 kg

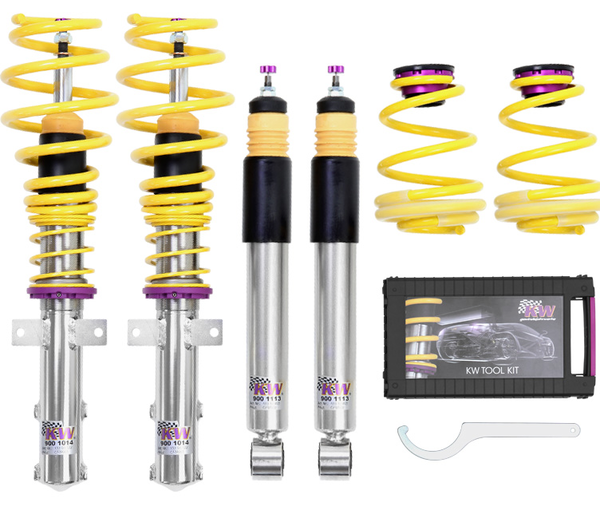

- Supplied as: Front axle + rear axle coilover struts
Front axle load up to 1,070 kg; Rear axle load up to 1,075 kg.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 2001–2008 | Mitsubishi | Outlander I (CU_W) | 2.0 4WD (CU2W) | Petrol · 100 kW · 2.0L · 4-cyl | All-Wheel Drive | 1, 8, 94 |
| 2001–2008 | Mitsubishi | Outlander I (CU_W) | 2.0 AWD (CU2W) | Petrol · 93 kW · 2.0L · 4-cyl | All-Wheel Drive | 1, 8, 94 |
| 2001–2008 | Mitsubishi | Outlander I (CU_W) | 2.0 Turbo 4WD (CU2W) | Petrol · 148 kW · 2.0L · 4-cyl | All-Wheel Drive | 1, 8, 94 |
| 2001–2008 | Mitsubishi | Outlander I (CU_W) | 2.0 Turbo-R 4WD (CU2W) | Petrol · 177 kW · 2.0L · 4-cyl | All-Wheel Drive | 1, 8, 94 |
| 2001–2008 | Mitsubishi | Outlander I (CU_W) | 2.4 4WD | Petrol · 121 kW · 2.4L · 4-cyl | All-Wheel Drive | 1, 8, 94 |
| 2001–2008 | Mitsubishi | Outlander I (CU_W) | 2.4 4WD (CU4W) | Petrol · 102 kW · 2.4L · 4-cyl | All-Wheel Drive | 1, 8, 94 |
| 2001–2008 | Mitsubishi | Outlander I (CU_W) | 2.4 4WD (CU5W) | Petrol · 118 kW · 2.4L · 4-cyl | All-Wheel Drive | 1, 8, 94 |
| 2001–2008 | Mitsubishi | Outlander I (CU_W) | 2.4 4WD (CU5W) | Petrol · 119 kW · 2.4L · 4-cyl | All-Wheel Drive | 1, 8, 94 |
| 2001–2008 | Mitsubishi | Outlander I (CU_W) | 2.4 AWD | Petrol · 108 kW · 2.4L · 4-cyl | All-Wheel Drive | 1, 8, 94 |
| 2001–2008 | Mitsubishi | Outlander I (CU_W) | 2.4 GDI 4WD (CU4W) | Petrol · 102 kW · 2.4L · 4-cyl | All-Wheel Drive | 1, 8, 94 |
| 2001–2008 | Mitsubishi | Outlander I (CU_W) | 2.4 MPI 4WD (CU4W) | Petrol · 98 kW · 2.4L · 4-cyl | All-Wheel Drive | 1, 8, 94 |
| 2001–2008 | Mitsubishi | Outlander I (CU_W) | 2.4 i MIVEC 4WD (CU5W) | Petrol · 120 kW · 2.4L · 4-cyl | All-Wheel Drive | 1, 8, 94 |
- Note 1: Height adjustable on the front and rear axles (threaded strut housings).
- Note 8: Not for vehicles with automatic self levelling control / air suspension.
- Note 94: Specific damping variants only available while stocks last. For further information please send an email to sales@scuderia-autoart.com.
