KW Coilover Kit V2 for Renault (JM) Scenic / Grand Scenic

SKU: 15290017
Sale price$3,542.55 Regular price$3,729.00
Save $186.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V2 adds adjustable rebound damping to KW's height-adjustable coilover platform. The twin-tube dampers offer 16 clicks of rebound adjustment, so the setup can be made firmer or more comfortable without changing the compression damping. As with all KW coilovers, the base setting is developed for each vehicle on KW's 7-post rig and in road testing, including the Nürburgring Nordschleife. This kit is developed for the Renault Scenic / Grand Scenic (JM).

Key Features

  • Rebound damping adjustable in 16 clicks
  • Vehicle-specific base damper setting
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V2
  • Damping: Adjustable rebound
  • Material: Stainless steel
  • Front lowering: 35–65 mm
  • Rear lowering: 40–65 mm
  • Front axle load: up to 1,185 kg
  • Rear axle load: up to 1,025 kg

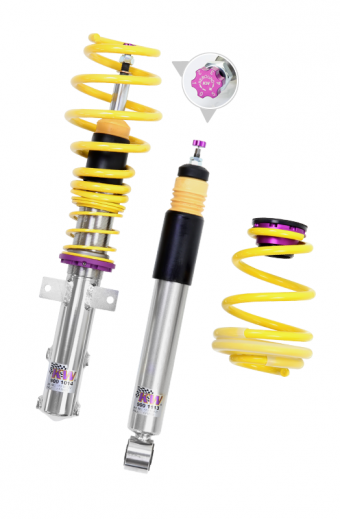

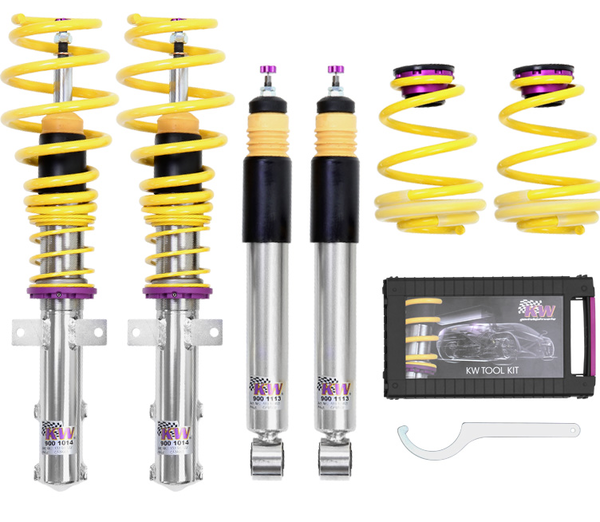

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 1,185 kg; Rear axle load up to 1,025 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2003–2010RenaultScénic II (JM0/1_)2.0 (JM0S, JM2N)Petrol · 101 kW · 2.0L · 4-cylFront-Wheel Drive2, 94
2004–2009RenaultGrand Scénic II (JM0/1_)1.5 dCiDiesel · 76 kW · 1.5L · 4-cylFront-Wheel Drive2, 94
2003–2010RenaultScénic II (JM0/1_)1.9 dCi 130Diesel · 97 kW · 1.9L · 4-cylFront-Wheel Drive2, 94
2003–2010RenaultScénic II (JM0/1_)1.9 dCi (JM0G, JM12, JM1G, JM2C)Diesel · 88 kW · 1.9L · 4-cylFront-Wheel Drive2, 94
2003–2010RenaultScénic II (JM0/1_)2.0 (JM05, JM0U, JM1N, JM1U, JM2V)Petrol · 99 kW · 2.0L · 4-cylFront-Wheel Drive2, 94
2003–2010RenaultScénic II (JM0/1_)1.5 dCi (JM0F)Diesel · 60 kW · 1.5L · 4-cylFront-Wheel Drive2, 94
2003–2010RenaultScénic II (JM0/1_)1.6 (JM0C, JM0J, JM1B)Petrol · 83 kW · 1.6L · 4-cylFront-Wheel Drive2, 94
2003–2010RenaultScénic II (JM0/1_)1.4 (JM0B, JM0H, JM1A)Petrol · 72 kW · 1.4L · 4-cylFront-Wheel Drive2, 94
2003–2010RenaultScénic II (JM0/1_)1.5 dCi (JM02, JM13)Diesel · 74 kW · 1.5L · 4-cylFront-Wheel Drive2, 94
2004–2009RenaultGrand Scénic II (JM0/1_)1.6Petrol · 83 kW · 1.6L · 4-cylFront-Wheel Drive2, 94
2004–2009RenaultGrand Scénic II (JM0/1_)2.0Petrol · 99 kW · 2.0L · 4-cylFront-Wheel Drive2, 94
2004–2009RenaultGrand Scénic II (JM0/1_)1.5 dCi (JM02, JM13)Diesel · 74 kW · 1.5L · 4-cylFront-Wheel Drive2, 94
2004–2009RenaultGrand Scénic II (JM0/1_)1.9 dCi (JM0G, JM12, JM1G, JM2C)Diesel · 88 kW · 1.9L · 4-cylFront-Wheel Drive2, 94
2004–2009RenaultGrand Scénic II (JM0/1_)2.0Petrol · 120 kW · 2.0L · 4-cylFront-Wheel Drive2, 94
2003–2010RenaultScénic II (JM0/1_)2.0 16V Turbo (JM0W)Petrol · 120 kW · 2.0L · 4-cylFront-Wheel Drive2, 94
2003–2010RenaultScénic II (JM0/1_)1.5 dCi (JM1F)Diesel · 63 kW · 1.5L · 4-cylFront-Wheel Drive2, 94
2003–2010RenaultScénic II (JM0/1_)1.5 dCi (JM1E, JM16)Diesel · 78 kW · 1.5L · 4-cylFront-Wheel Drive2, 94
2003–2010RenaultScénic II (JM0/1_)1.9 dCi (JM14)Diesel · 96 kW · 1.9L · 4-cylFront-Wheel Drive2, 94
2003–2010RenaultScénic II (JM0/1_)1.9 dCi (JM15)Diesel · 81 kW · 1.9L · 4-cylFront-Wheel Drive2, 94
2004–2009RenaultGrand Scénic II (JM0/1_)1.9 dCi (JM15)Diesel · 81 kW · 1.9L · 4-cylFront-Wheel Drive2, 94
2004–2009RenaultGrand Scénic II (JM0/1_)1.9 dCi (JM14)Diesel · 96 kW · 1.9L · 4-cylFront-Wheel Drive2, 94
2003–2010RenaultScénic II (JM0/1_)2.0 dCi (JM1K)Diesel · 110 kW · 2.0L · 4-cylFront-Wheel Drive2, 94
2003–2010RenaultScénic II (JM0/1_)1.5 dCi (JM16)Diesel · 76 kW · 1.5L · 4-cylFront-Wheel Drive2, 94
2003–2010RenaultScénic II (JM0/1_)1.6 16V (JM1R)Petrol · 82 kW · 1.6L · 4-cylFront-Wheel Drive2, 94
2004–2009RenaultGrand Scénic II (JM0/1_)2.0 dCi (JM1K)Diesel · 110 kW · 2.0L · 4-cylFront-Wheel Drive2, 94
2003–2010RenaultScénic II (JM0/1_)1.6Petrol · 77 kW · 1.6L · 4-cylFront-Wheel Drive2, 94
2004–2009RenaultGrand Scénic II (JM0/1_)1.6Petrol · 77 kW · 1.6L · 4-cylFront-Wheel Drive2, 94
2003–2010RenaultScénic II (JM0/1_)1.9 DDiesel · 85 kW · 1.9L · 4-cylFront-Wheel Drive2, 94
2004–2009RenaultGrand Scénic II (JM0/1_)1.5 dCi (JM1E)Diesel · 78 kW · 1.5L · 4-cylFront-Wheel Drive2, 94
2003–2010RenaultScénic II (JM0/1_)1.9 dCiDiesel · 92 kW · 1.9L · 4-cylFront-Wheel Drive2, 94
2003–2010RenaultScénic II (JM0/1_)2.0Petrol · 103 kW · 2.0L · 4-cylFront-Wheel Drive2, 94
2003–2010RenaultScénic II (JM0/1_)1.9 dCiDiesel · 72 kW · 1.9L · 4-cylFront-Wheel Drive2, 94
2004–2009RenaultGrand Scénic II (JM0/1_)1.6Petrol · 82 kW · 1.6L · 4-cylFront-Wheel Drive2, 94
2004–2009RenaultGrand Scénic II (JM0/1_)1.9 dCiDiesel · 85 kW · 1.9L · 4-cylFront-Wheel Drive2, 94
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 94: Specific damping variants only available while stocks last. For further information please send an email to sales@scuderia-autoart.com.
