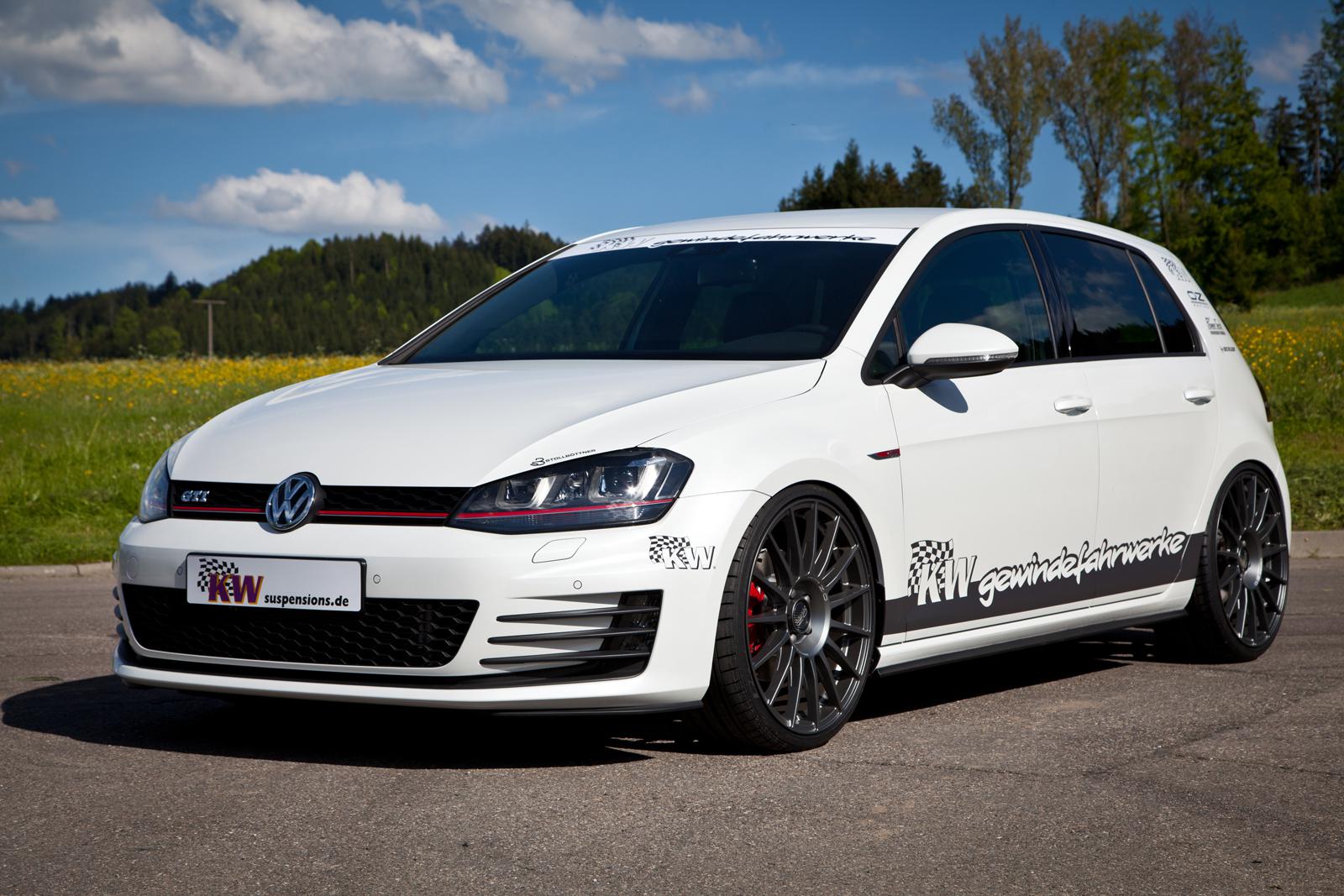

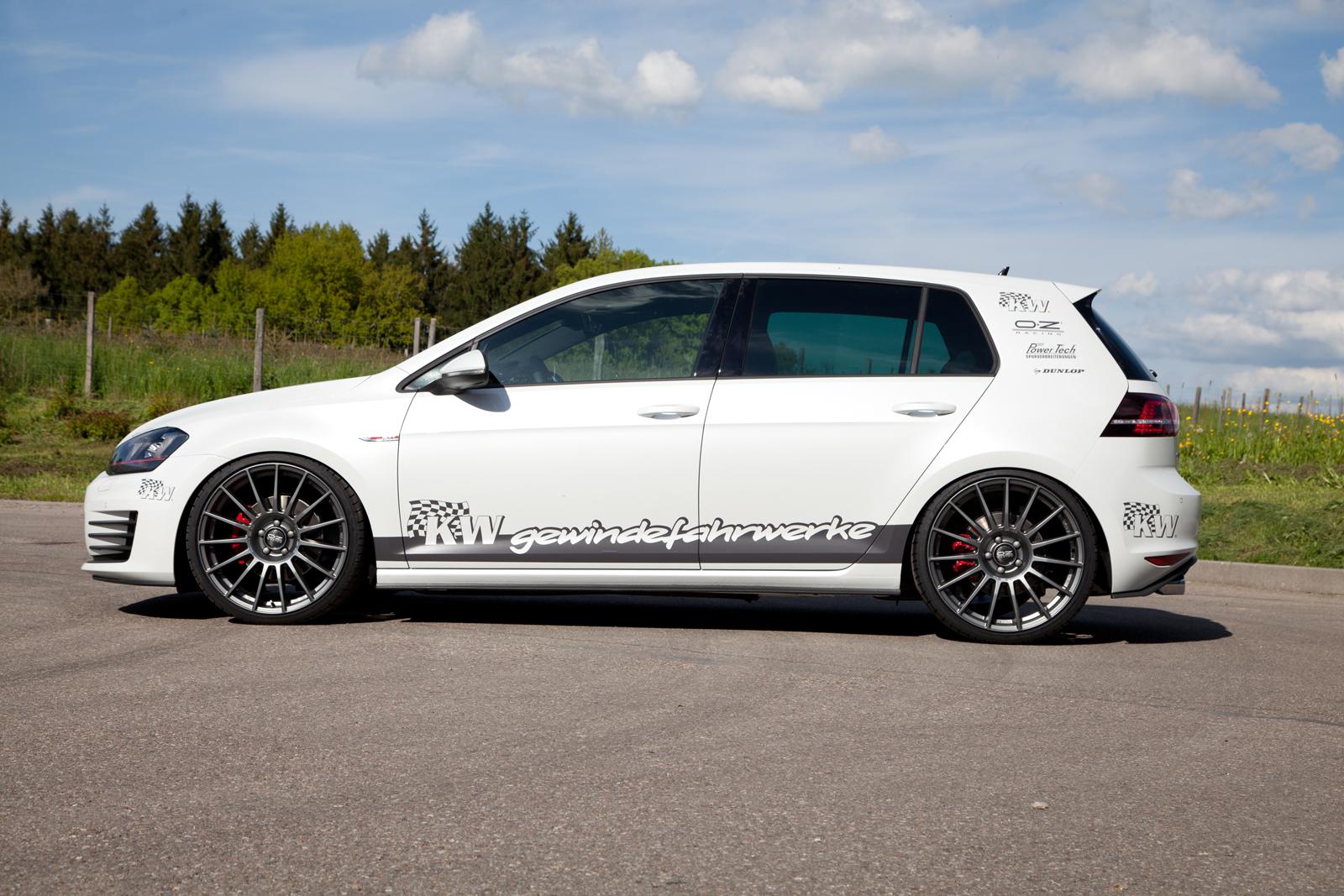

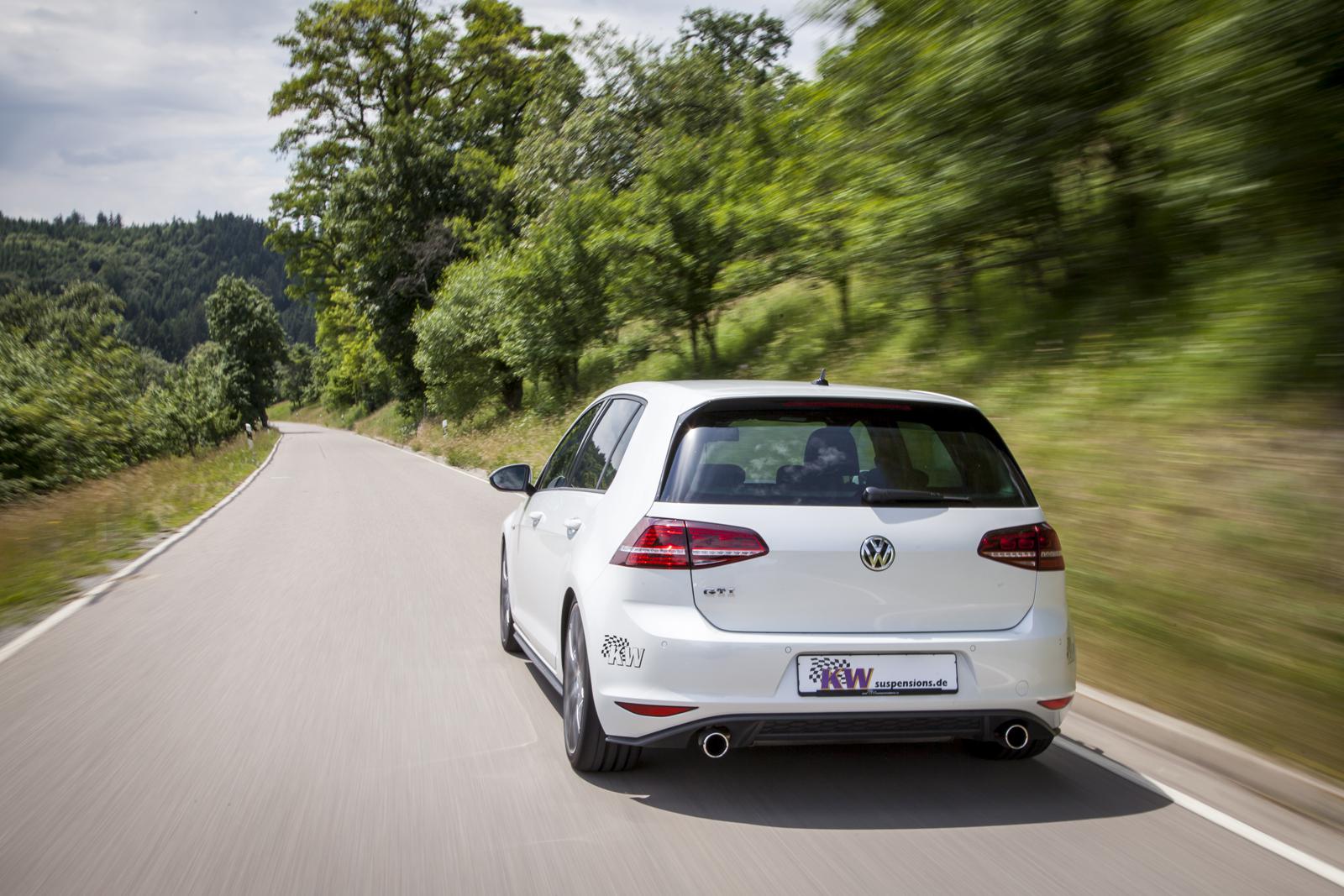

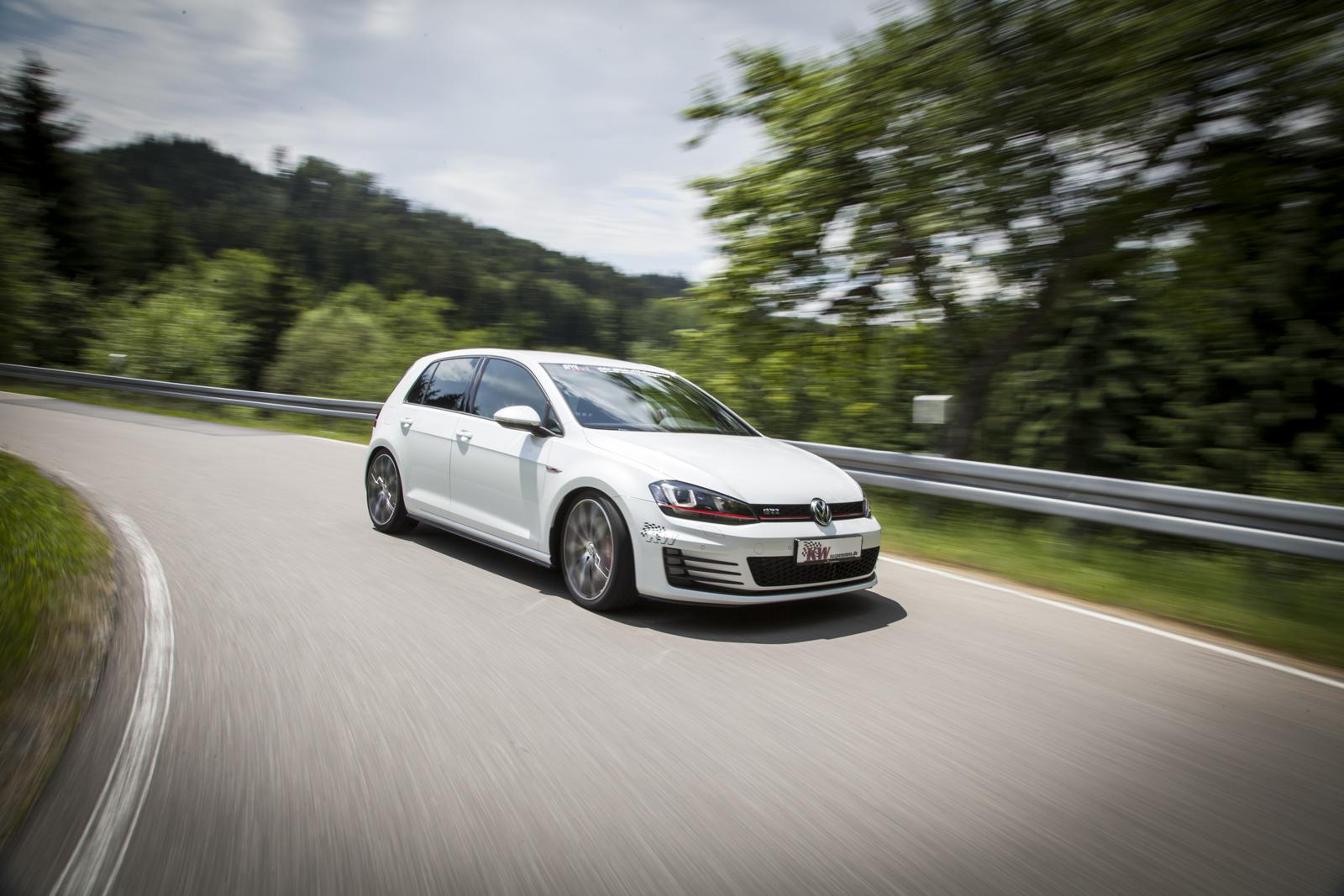

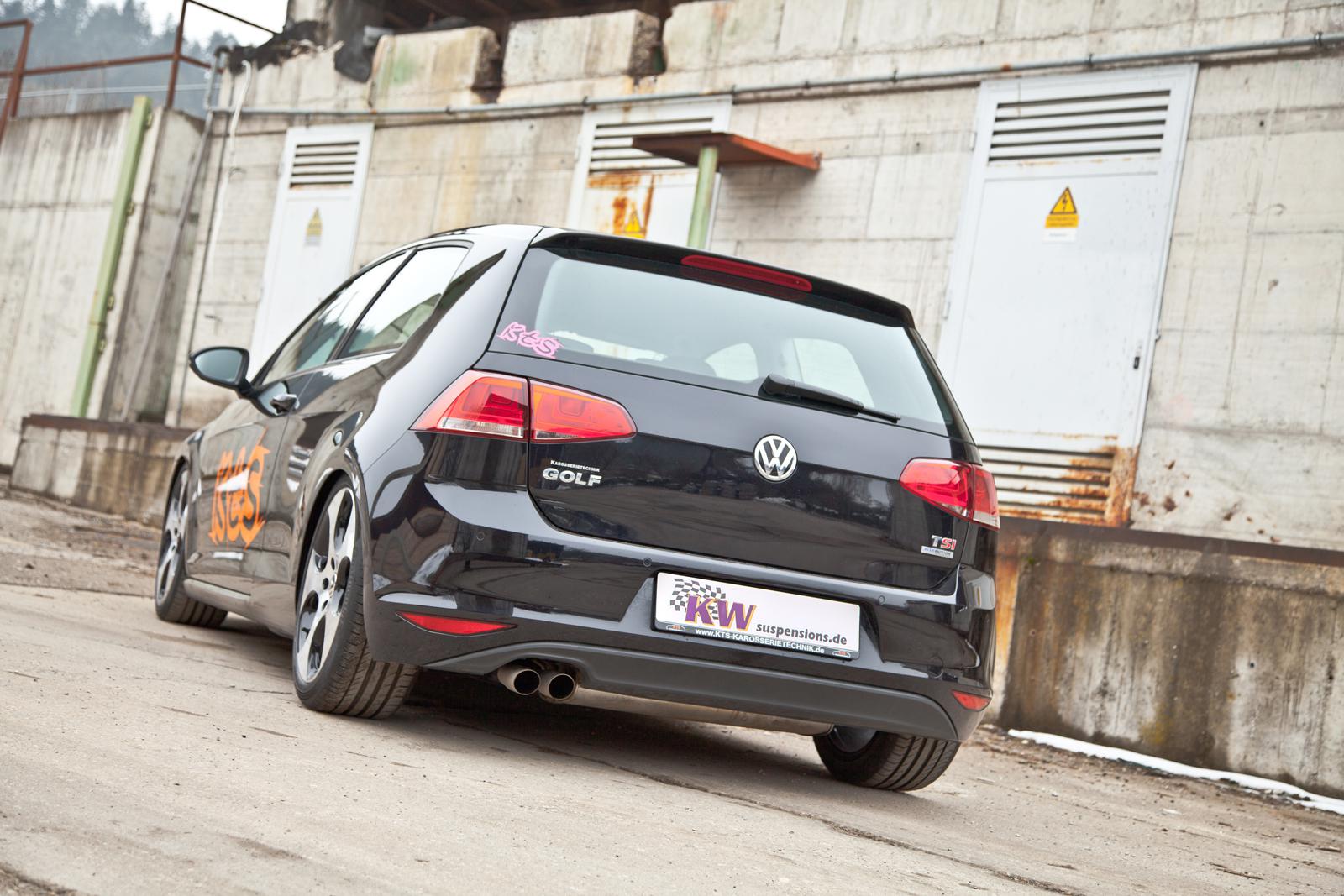

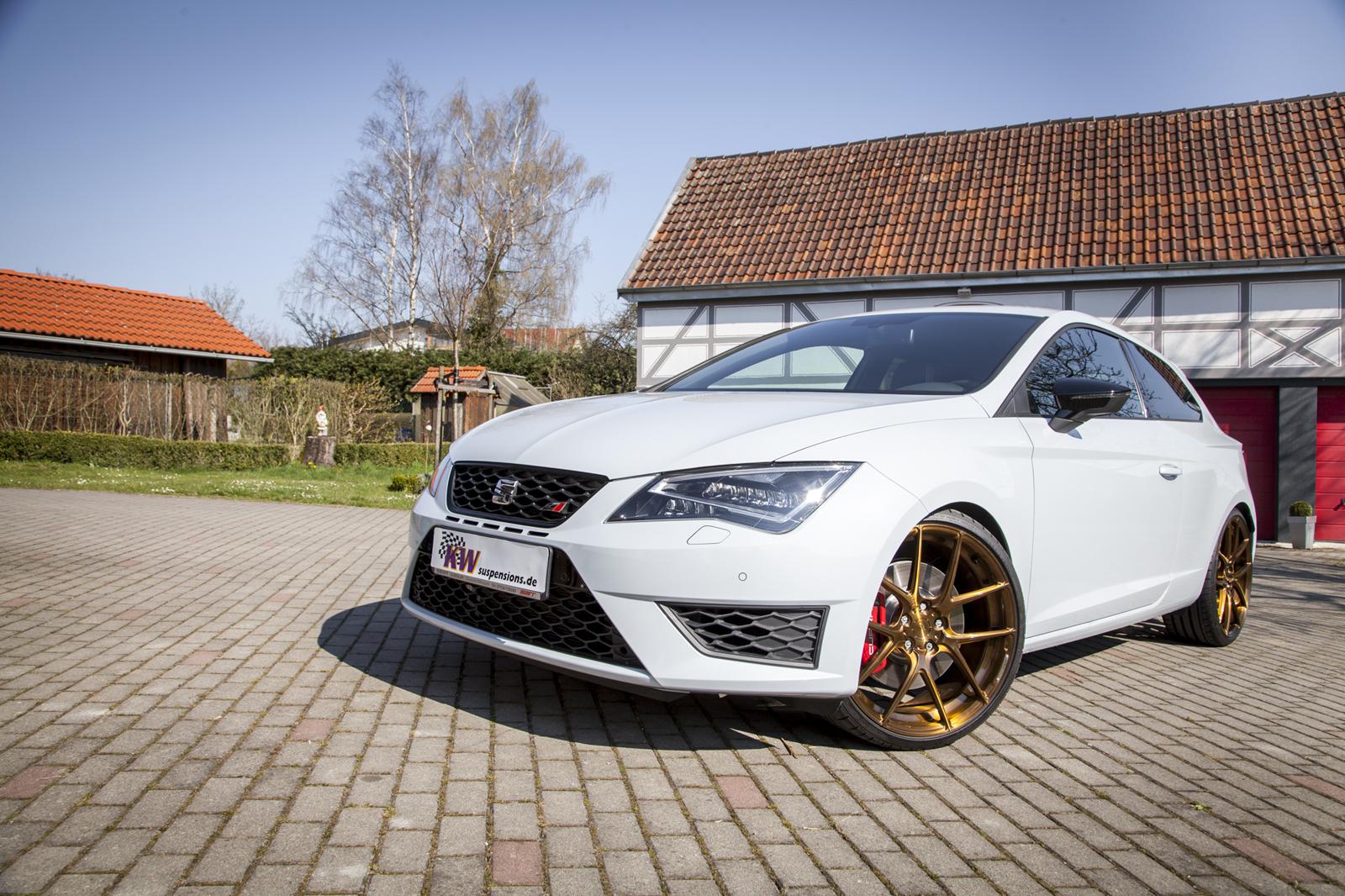

KW Coilover Kit V2 for VW (MK7) Golf GTI / Clubsport / TCR / Seat (5F) Leon Cupra

SKU: 1528000N
Sale price$3,267.06 Regular price$3,439.00
Save $171.94

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V2 adds adjustable rebound damping to KW's height-adjustable coilover platform. The twin-tube dampers offer 16 clicks of rebound adjustment, so the setup can be made firmer or more comfortable without changing the compression damping. As with all KW coilovers, the base setting is developed for each vehicle on KW's 7-post rig and in road testing, including the Nürburgring Nordschleife. This kit is developed for the VW Golf GTI / Clubsport / TCR (MK7) / Seat Leon Cupra (5F).

Key Features

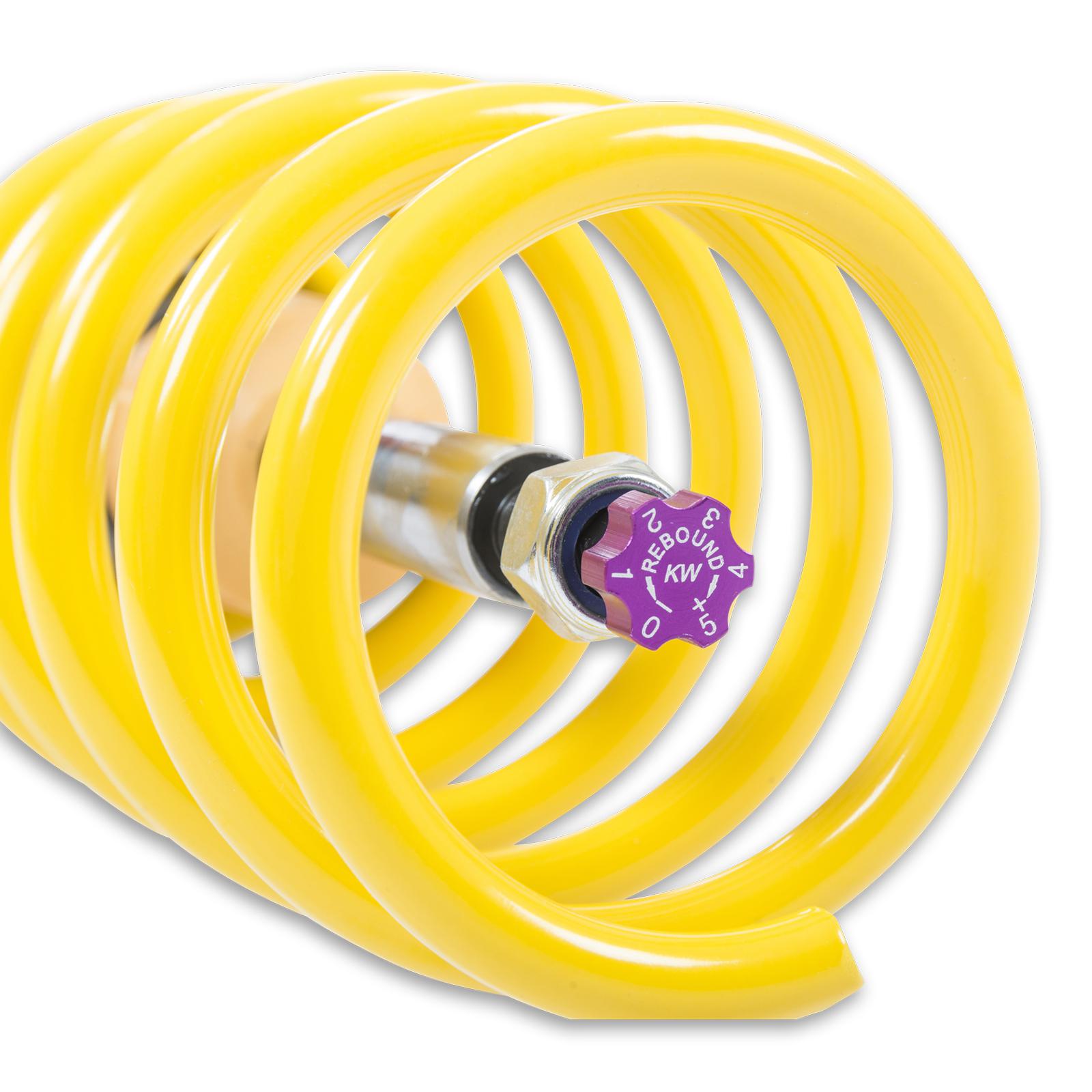

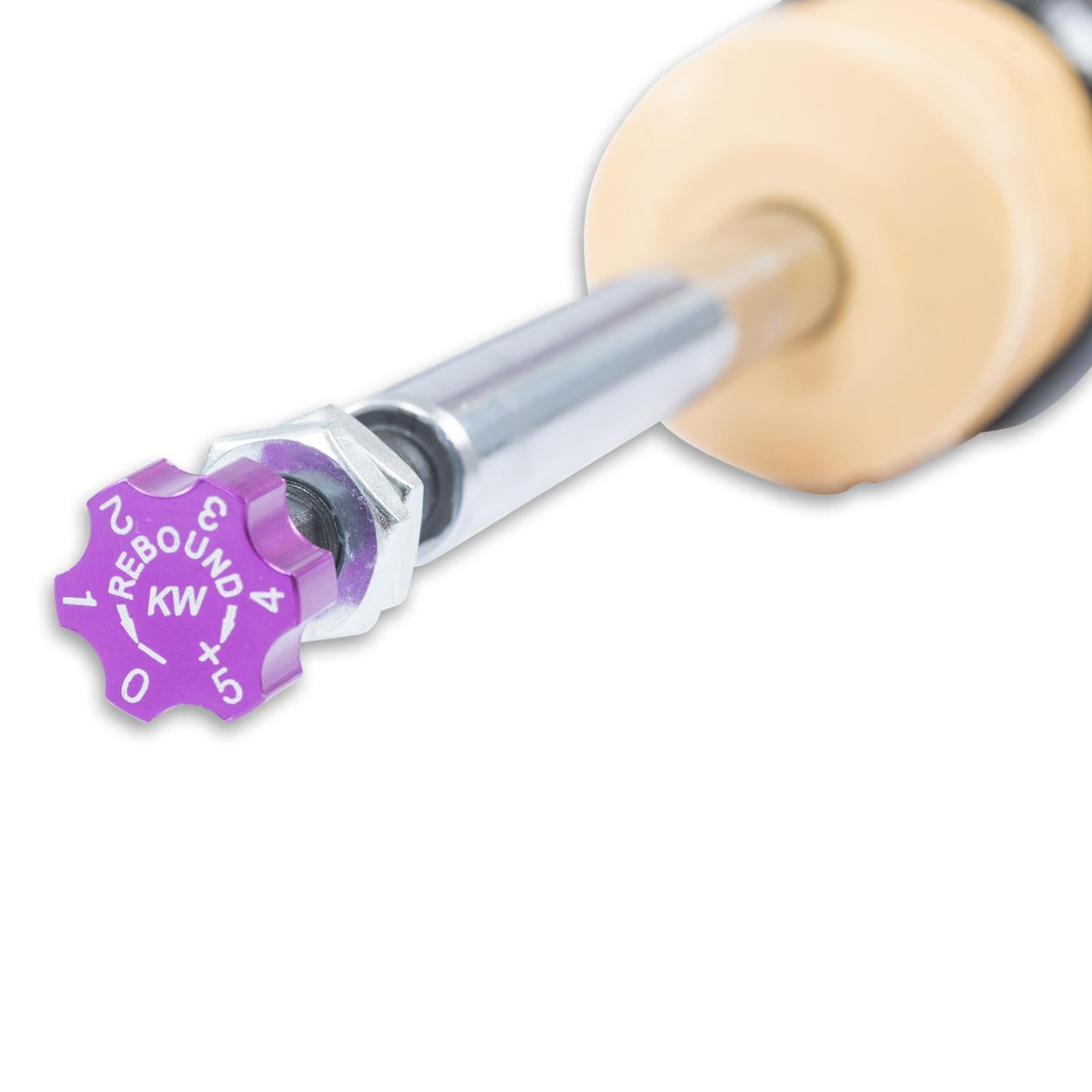

  • Rebound damping adjustable in 16 clicks
  • Vehicle-specific base damper setting
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V2
  • Damping: Adjustable rebound
  • Material: Stainless steel
  • Front lowering: 15–45 mm
  • Rear lowering: 10–35 mm
  • Front axle load: up to 1,090 kg
  • Rear axle load: up to 1,010 kg
  • Front strut diameter (vehicle): 55 mm

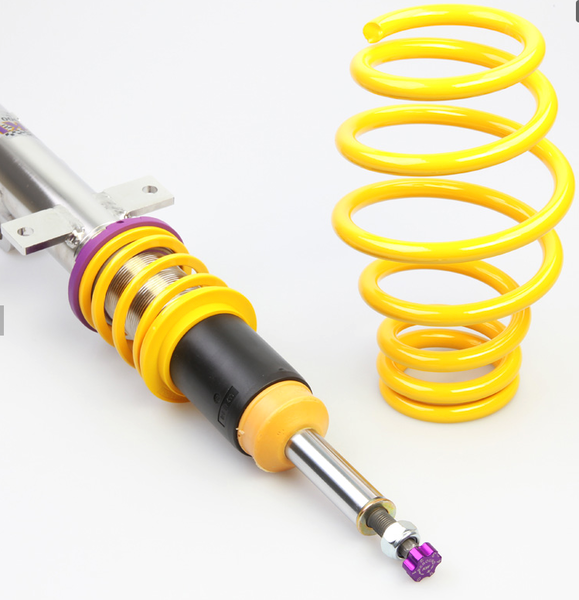

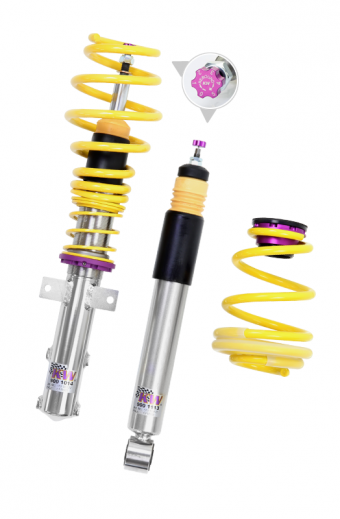

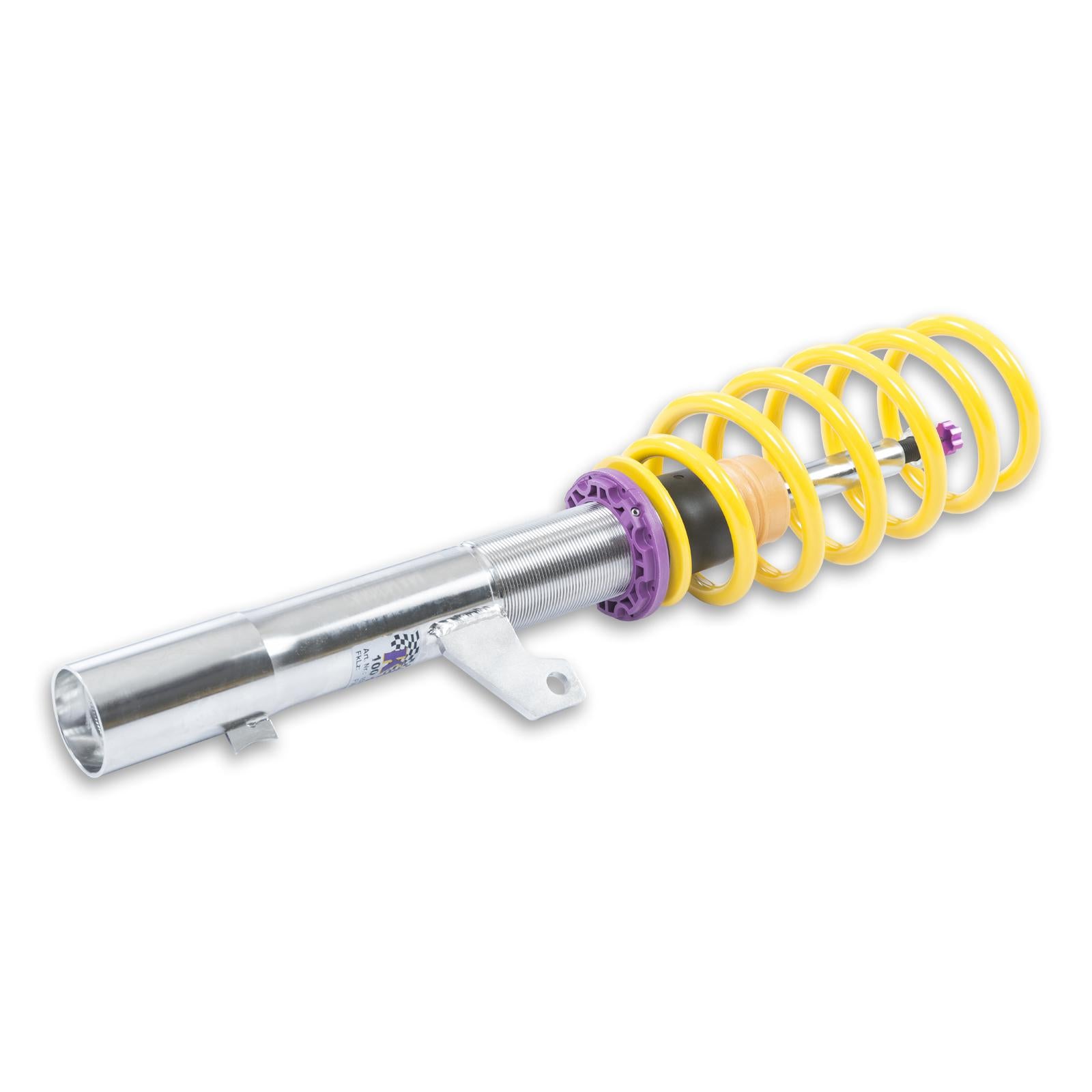

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 1,090 kg; Rear axle load up to 1,010 kg.

For vehicles without electronic damper control.

References 2, 37, 57, 67. See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveNotesRefs
2012–2021SeatLeon (5F1)1.0 TSIPetrol · 85 kW · 1.0L · 3-cylFront-Wheel Drive2, 37, 57, 67
2012–2021SeatLeon (5F1)1.0 TSiPetrol · 63 kW · 1.0L · 3-cylFront-Wheel Drive2, 37, 57, 67
2012–2021SeatLeon (5F1)1.2 TSIPetrol · 63 kW · 1.2L · 4-cylFront-Wheel Drive2, 37, 57, 67
2012–2021SeatLeon (5F1)1.2 TSIPetrol · 77 kW · 1.2L · 4-cylFront-Wheel Drive2, 37, 57, 67
2012–2021SeatLeon (5F1)1.2 TSIPetrol · 81 kW · 1.2L · 4-cylFront-Wheel Drive2, 37, 57, 67
2012–2021SeatLeon (5F1)1.4 TSIPetrol · 90 kW · 1.4L · 4-cylFront-Wheel Drive2, 37, 57, 67
2012–2021SeatLeon (5F1)1.4 TSIPetrol · 92 kW · 1.4L · 4-cylFront-Wheel Drive2, 37, 57, 67
2012–2021SeatLeon (5F1)1.4 TSIPetrol · 103 kW · 1.4L · 4-cylFront-Wheel Drive2, 37, 57, 67
2012–2021SeatLeon (5F1)1.4 TSIPetrol · 110 kW · 1.4L · 4-cylFront-Wheel Drive2, 37, 57, 67
2012–2021SeatLeon (5F1)1.5 TSIPetrol · 96 kW · 1.5L · 4-cylFront-Wheel Drive2, 37, 57, 67
2012–2021SeatLeon (5F1)1.5 TSIPetrol · 110 kW · 1.5L · 4-cylFront-Wheel Drive2, 37, 57, 67
2012–2021SeatLeon (5F1)1.6 TDIDiesel · 66 kW · 1.6L · 4-cylFront-Wheel Drive2, 37, 57, 67
2012–2021SeatLeon (5F1)1.6 TDIDiesel · 77 kW · 1.6L · 4-cylFront-Wheel Drive2, 37, 57, 67
2012–2021SeatLeon (5F1)1.6 TDIDiesel · 81 kW · 1.6L · 4-cylFront-Wheel Drive2, 37, 57, 67
2012–2021SeatLeon (5F1)1.6 TDIDiesel · 85 kW · 1.6L · 4-cylFront-Wheel Drive2, 37, 57, 67
2012–2021SeatLeon (5F1)1.8 TSIPetrol · 132 kW · 1.8L · 4-cylFront-Wheel Drive2, 37, 57, 67
2012–2021SeatLeon (5F1)2.0 CupraPetrol · 195 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 57, 67
2012–2021SeatLeon (5F1)2.0 CupraPetrol · 206 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 57, 67
2012–2021SeatLeon (5F1)2.0 CupraPetrol · 213 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 57, 67
2012–2021SeatLeon (5F1)2.0 CupraPetrol · 221 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 57, 67
2012–2021SeatLeon (5F1)2.0 Cupra RPetrol · 228 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 57, 67
2012–2021SeatLeon (5F1)2.0 TDIDiesel · 81 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 57, 67
2012–2021SeatLeon (5F1)2.0 TDIDiesel · 105 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 57, 67
2012–2021SeatLeon (5F1)2.0 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 57, 67
2012–2021SeatLeon (5F1)2.0 TDIDiesel · 135 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 57, 67
2012–2021SeatLeon (5F1)2.0 TSIPetrol · 140 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 57, 67
2013–2018SeatLeon SC (5F5)1.0 TSIPetrol · 85 kW · 1.0L · 3-cylFront-Wheel Drive2, 37, 57, 67
2013–2018SeatLeon SC (5F5)1.2 TSIPetrol · 63 kW · 1.2L · 4-cylFront-Wheel Drive2, 37, 57, 67
2013–2018SeatLeon SC (5F5)1.2 TSIPetrol · 77 kW · 1.2L · 4-cylFront-Wheel Drive2, 37, 57, 67
2013–2018SeatLeon SC (5F5)1.2 TSIPetrol · 81 kW · 1.2L · 4-cylFront-Wheel Drive2, 37, 57, 67
2013–2018SeatLeon SC (5F5)1.4 TSIPetrol · 90 kW · 1.4L · 4-cylFront-Wheel Drive2, 37, 57, 67
2013–2018SeatLeon SC (5F5)1.4 TSIPetrol · 92 kW · 1.4L · 4-cylFront-Wheel Drive2, 37, 57, 67
2013–2018SeatLeon SC (5F5)1.4 TSIPetrol · 103 kW · 1.4L · 4-cylFront-Wheel Drive2, 37, 57, 67
2013–2018SeatLeon SC (5F5)1.4 TSIPetrol · 110 kW · 1.4L · 4-cylFront-Wheel Drive2, 37, 57, 67
2013–2018SeatLeon SC (5F5)1.6 TDIDiesel · 66 kW · 1.6L · 4-cylFront-Wheel Drive2, 37, 57, 67
2013–2018SeatLeon SC (5F5)1.6 TDIDiesel · 77 kW · 1.6L · 4-cylFront-Wheel Drive2, 37, 57, 67
2013–2018SeatLeon SC (5F5)1.6 TDIDiesel · 81 kW · 1.6L · 4-cylFront-Wheel Drive2, 37, 57, 67
2013–2018SeatLeon SC (5F5)1.6 TDIDiesel · 85 kW · 1.6L · 4-cylFront-Wheel Drive2, 37, 57, 67
2013–2018SeatLeon SC (5F5)1.8 TSIPetrol · 132 kW · 1.8L · 4-cylFront-Wheel Drive2, 37, 57, 67
2013–2018SeatLeon SC (5F5)2.0 CupraPetrol · 195 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 57, 67
2013–2018SeatLeon SC (5F5)2.0 CupraPetrol · 206 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 57, 67
2013–2018SeatLeon SC (5F5)2.0 CupraPetrol · 213 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 57, 67
2013–2018SeatLeon SC (5F5)2.0 CupraPetrol · 221 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 57, 67
2013–2018SeatLeon SC (5F5)2.0 TDIDiesel · 81 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 57, 67
2013–2018SeatLeon SC (5F5)2.0 TDIDiesel · 105 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 57, 67
2013–2018SeatLeon SC (5F5)2.0 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 57, 67
2013–2018SeatLeon SC (5F5)2.0 TDIDiesel · 135 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 57, 67
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)1.0 TSIPetrol · 63 kW · 1.0L · 3-cylFront-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)1.0 TSIPetrol · 81 kW · 1.0L · 3-cylFront-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)1.0 TSIPetrol · 85 kW · 1.0L · 3-cylFront-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)1.2 TSIPetrol · 63 kW · 1.2L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)1.2 TSIPetrol · 77 kW · 1.2L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)1.2 TSIPetrol · 81 kW · 1.2L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)1.4 TSIPetrol · 90 kW · 1.4L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)1.4 TSIPetrol · 92 kW · 1.4L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)1.4 TSIPetrol · 103 kW · 1.4L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)1.4 TSIPetrol · 110 kW · 1.4L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)1.5 TSIPetrol · 96 kW · 1.5L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)1.5 TSIPetrol · 110 kW · 1.5L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)1.6Petrol · 81 kW · 1.6L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)1.6 TDIDiesel · 66 kW · 1.6L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)1.6 TDIDiesel · 77 kW · 1.6L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)1.6 TDIDiesel · 81 kW · 1.6L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)1.6 TDIDiesel · 85 kW · 1.6L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)1.6 TDI 4motionDiesel · 77 kW · 1.6L · 4-cylAll-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)1.6 TDI 4motionDiesel · 81 kW · 1.6L · 4-cylAll-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)1.8 TSIPetrol · 125 kW · 1.8L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)2.0 GTDDiesel · 130 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)2.0 GTDDiesel · 135 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)2.0 GTIPetrol · 155 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)2.0 GTIPetrol · 162 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)2.0 GTIPetrol · 169 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)2.0 GTIPetrol · 180 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)2.0 GTI ClubsportPetrol · 195 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)2.0 GTI Clubsport SPetrol · 228 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)2.0 GTI TCRPetrol · 213 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)2.0 TDIDiesel · 81 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)2.0 TDIDiesel · 105 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)2.0 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)2.0 TDI 4motionDiesel · 110 kW · 2.0L · 4-cylAll-Wheel DriveFor cars without DCC2, 37, 57, 67
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
  • Note 57: Only for cars with a clamp diameter of 55mm on the front axle.
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
