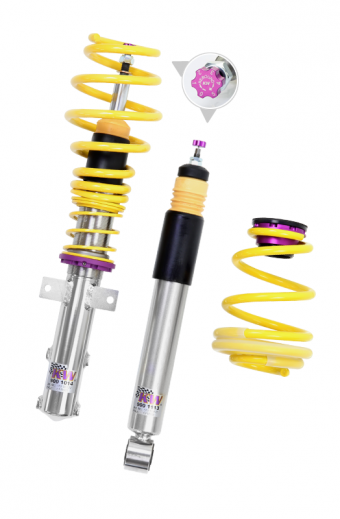

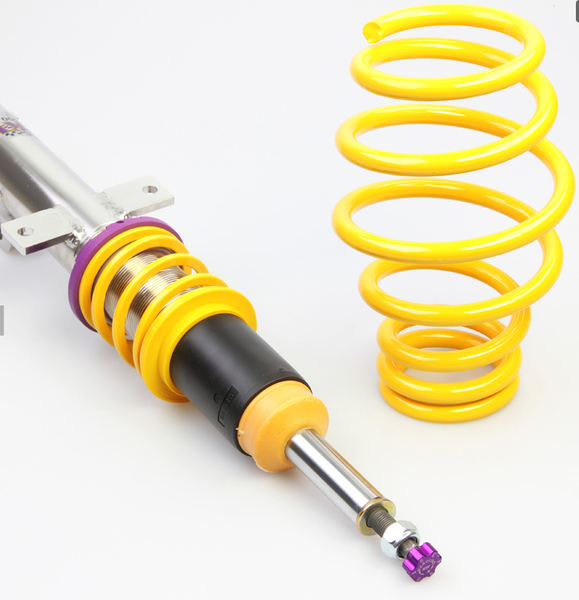

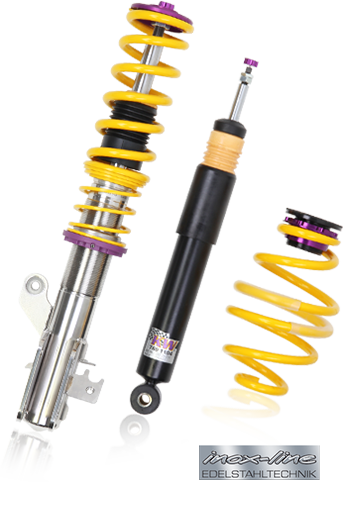

KW Coilover Kit V2 for Smart (452) Roadster

SKU: 15226001
Sale price$3,162.56 Regular price$3,329.00
Save $166.44

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V2 adds adjustable rebound damping to KW's height-adjustable coilover platform. The twin-tube dampers offer 16 clicks of rebound adjustment, so the setup can be made firmer or more comfortable without changing the compression damping. As with all KW coilovers, the base setting is developed for each vehicle on KW's 7-post rig and in road testing, including the Nürburgring Nordschleife. This kit is developed for the Smart Roadster (452).

Key Features

  • Rebound damping adjustable in 16 clicks
  • Vehicle-specific base damper setting
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V2
  • Damping: Adjustable rebound
  • Material: Stainless steel
  • Front lowering: 20–50 mm
  • Rear lowering: 20–50 mm
  • Front axle load: up to 465 kg
  • Rear axle load: up to 610 kg

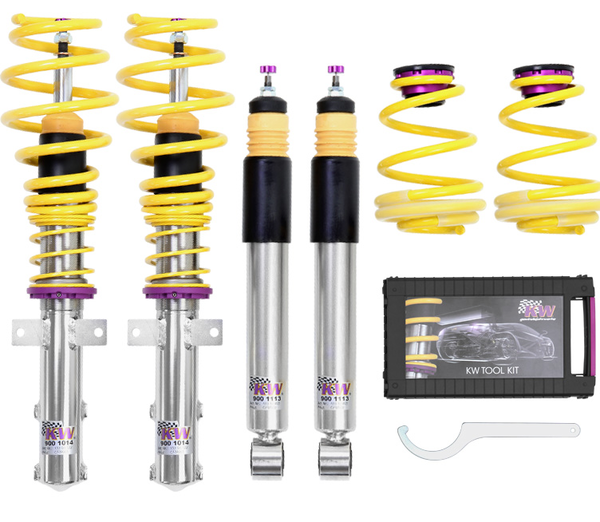

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 465 kg; Rear axle load up to 610 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2003–2005SmartRoadster (452)0.7 (452.434)Petrol · 60 kW · 0.7L · 3-cylRear-Wheel Drive2, 6
2003–2005SmartRoadster Coupe (452)0.7 (452.334)Petrol · 60 kW · 0.7L · 3-cylRear-Wheel Drive2, 6
2003–2005SmartRoadster (452)0.7 (452.432)Petrol · 45 kW · 0.7L · 3-cylRear-Wheel Drive2, 6
2003–2005SmartRoadster Coupe (452)0.7 (452.332)Petrol · 45 kW · 0.7L · 3-cylRear-Wheel Drive2, 6
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 6: When using original tyres, wheel offset spacers may be required.
