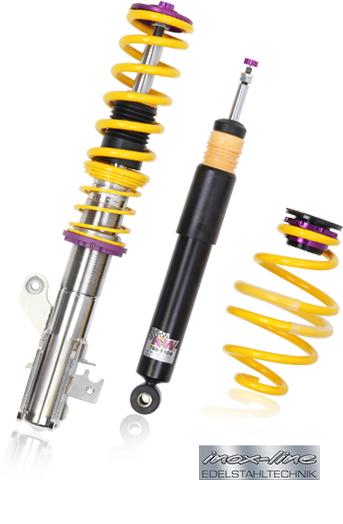

KW Coilover Kit V2 for Volvo (384) S60 T5 / (184) S80 T6

SKU: 15267007
Sale price$3,827.55 Regular price$4,029.00
Save $201.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V2 adds adjustable rebound damping to KW's height-adjustable coilover platform. The twin-tube dampers offer 16 clicks of rebound adjustment, so the setup can be made firmer or more comfortable without changing the compression damping. As with all KW coilovers, the base setting is developed for each vehicle on KW's 7-post rig and in road testing, including the Nürburgring Nordschleife. This kit is developed for the Volvo S60 T5 (384) / S80 T6 (184).

Key Features

  • Rebound damping adjustable in 16 clicks
  • Vehicle-specific base damper setting
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V2
  • Damping: Adjustable rebound
  • Material: Stainless steel
  • Front lowering: 25–60 mm
  • Rear lowering: Approx. 40 mm
  • Front axle load: up to 1,200 kg
  • Rear axle load: up to 1,090 kg

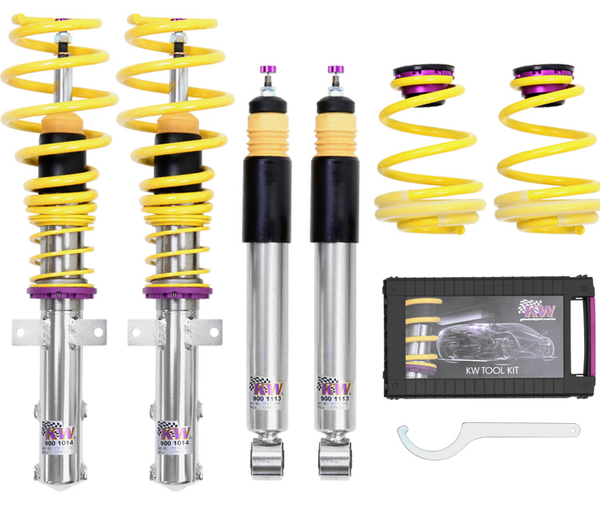

  • Supplied as: Front axle coilover struts, rear axle springs + dampers

Front axle load up to 1,200 kg; Rear axle load up to 1,090 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2000–2010VolvoS60 I (384, H, R)2.0 TPetrol · 132 kW · 2.0L · 5-cylFront-Wheel Drive3, 62
2000–2010VolvoS60 I (384, H, R)2.4Petrol · 103 kW · 2.4L · 5-cylFront-Wheel Drive3, 62
2000–2010VolvoS60 I (384, H, R)2.4Petrol · 125 kW · 2.4L · 5-cylFront-Wheel Drive3, 62
2000–2010VolvoS60 I (384, H, R)2.4Petrol · 132 kW · 2.4L · 5-cylFront-Wheel Drive3, 62
2000–2010VolvoS60 I (384, H, R)2.4 CDIDiesel · 85 kW · 2.4L · 5-cylFront-Wheel Drive3, 62
2000–2010VolvoS60 I (384, H, R)2.4 DDiesel · 90 kW · 2.4L · 5-cylFront-Wheel Drive3, 62
2000–2010VolvoS60 I (384, H, R)2.4 DDiesel · 93 kW · 2.4L · 5-cylFront-Wheel Drive3, 62
2000–2010VolvoS60 I (384, H, R)2.4 DDiesel · 96 kW · 2.4L · 5-cylFront-Wheel Drive3, 62
2000–2010VolvoS60 I (384, H, R)2.4 DDiesel · 120 kW · 2.4L · 5-cylFront-Wheel Drive3, 62
2000–2010VolvoS60 I (384, H, R)2.4 TPetrol · 147 kW · 2.4L · 5-cylFront-Wheel Drive3, 62
2000–2010VolvoS60 I (384, H, R)2.5 TPetrol · 154 kW · 2.5L · 5-cylFront-Wheel Drive3, 62
2000–2010VolvoS60 I (384, H, R)D5Diesel · 120 kW · 2.4L · 5-cylFront-Wheel Drive3, 62
2000–2010VolvoS60 I (384, H, R)D5Diesel · 136 kW · 2.4L · 5-cylFront-Wheel Drive3, 62
2000–2010VolvoS60 I (384, H, R)T5Petrol · 176 kW · 2.3L · 5-cylFront-Wheel Drive3, 62
2000–2010VolvoS60 I (384, H, R)T5Petrol · 184 kW · 2.3L · 5-cylFront-Wheel Drive3, 62
2000–2010VolvoS60 I (384, H, R)T5Petrol · 191 kW · 2.4L · 5-cylFront-Wheel Drive3, 62
2000–2010VolvoS60 I (384, H, R)T5Petrol · 195 kW · 2.3L · 5-cylFront-Wheel Drive3, 62
1998–2008VolvoS80 I (184, K, KV, T)2.0Petrol · 120 kW · 2.0L · 5-cylFront-Wheel Drive3, 62
1998–2008VolvoS80 I (184, K, KV, T)2.0 TPetrol · 132 kW · 2.0L · 5-cylFront-Wheel Drive3, 62
1998–2008VolvoS80 I (184, K, KV, T)2.0 TPetrol · 166 kW · 2.0L · 5-cylFront-Wheel Drive3, 62
1998–2008VolvoS80 I (184, K, KV, T)2.3 RPetrol · 195 kW · 2.3L · 5-cylFront-Wheel Drive3, 62
1998–2008VolvoS80 I (184, K, KV, T)2.4Petrol · 103 kW · 2.4L · 5-cylFront-Wheel Drive3, 62
1998–2008VolvoS80 I (184, K, KV, T)2.4Petrol · 125 kW · 2.4L · 5-cylFront-Wheel Drive3, 62
1998–2008VolvoS80 I (184, K, KV, T)2.4 DDiesel · 96 kW · 2.4L · 5-cylFront-Wheel Drive3, 62
1998–2008VolvoS80 I (184, K, KV, T)2.4 TPetrol · 147 kW · 2.4L · 5-cylFront-Wheel Drive3, 62
1998–2008VolvoS80 I (184, K, KV, T)2.5 TPetrol · 154 kW · 2.5L · 5-cylFront-Wheel Drive3, 62
1998–2008VolvoS80 I (184, K, KV, T)2.5 TDIDiesel · 103 kW · 2.5L · 5-cylFront-Wheel Drive3, 62
1998–2008VolvoS80 I (184, K, KV, T)2.9Petrol · 144 kW · 2.9L · 6-cylFront-Wheel Drive3, 62
1998–2008VolvoS80 I (184, K, KV, T)2.9Petrol · 147 kW · 2.9L · 6-cylFront-Wheel Drive3, 62
1998–2008VolvoS80 I (184, K, KV, T)2.9Petrol · 150 kW · 2.9L · 6-cylFront-Wheel Drive3, 62
1998–2008VolvoS80 I (184, K, KV, T)3.0Petrol · 144 kW · 2.9L · 6-cylFront-Wheel Drive3, 62
1998–2008VolvoS80 I (184, K, KV, T)D5Diesel · 120 kW · 2.4L · 5-cylFront-Wheel Drive3, 62
1998–2008VolvoS80 I (184, K, KV, T)T6Petrol · 200 kW · 2.8L · 6-cylFront-Wheel Drive3, 62
1998–2008VolvoS80 I (184, K, KV, T)T6Petrol · 200 kW · 2.9L · 6-cylFront-Wheel Drive3, 62
  • Note 3: Only height adjustable on the front axle (threaded strut housings, springs + dampers for the rear axle).
  • Note 59: The following part has to be used for cars which have the standard rear axle self levelling system: Volvo rear axle top mount # 306 66 271 has to be used.
  • Note 62: Not for cars with electronic damping.
