KW Coilover Kit V2 for Volvo (544) S40 T5 / (545) V50 T5 - FWD
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW Coilover Kit V2 for Volvo (544) S40 T5 / (545) V50 T5 - FWD
Sale price$3,580.56
Regular price$3,769.00 (/)
KW's V2 adds adjustable rebound damping to KW's height-adjustable coilover platform. The twin-tube dampers offer 16 clicks of rebound adjustment, so the setup can be made firmer or more comfortable without changing the compression damping. As with all KW coilovers, the base setting is developed for each vehicle on KW's 7-post rig and in road testing, including the Nürburgring Nordschleife. This kit is developed for the Volvo S40 T5 (544) / V50 T5 (545).
Key Features
- Rebound damping adjustable in 16 clicks
- Vehicle-specific base damper setting
- Continuous ride height adjustment within the tested range
Specifications
- Version: V2
- Damping: Adjustable rebound
- Material: Stainless steel
- Front lowering: 25–55 mm
- Rear lowering: 25–55 mm
- Front axle load: up to 1,100 kg
- Rear axle load: up to 1,030 kg

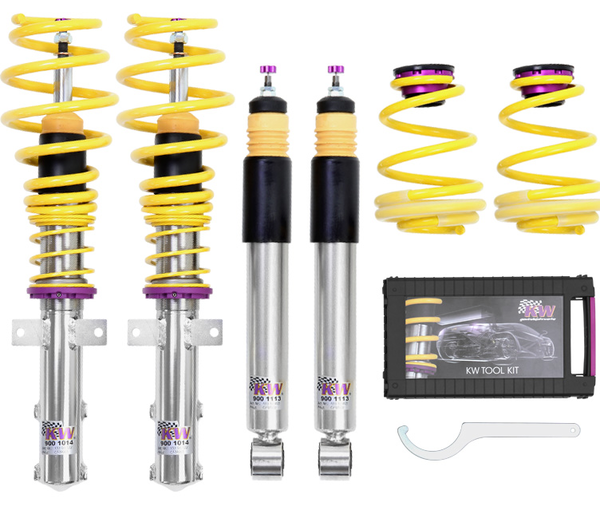

- Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Front axle load up to 1,100 kg; Rear axle load up to 1,030 kg.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 2003–2012 | Volvo | V50 (545, M) | 2.0 CDI | Diesel · 98 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2 |
| 2003–2012 | Volvo | S40 II (544, M) | 2.0 CDI | Diesel · 98 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2 |
| 2003–2012 | Volvo | S40 II (544, M) | 2.4 CDI | Diesel · 120 kW · 2.4L · 5-cyl | Front-Wheel Drive | 2 |
| 2003–2012 | Volvo | V50 (545, M) | 1.6 D | Diesel · 80 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2 |
| 2003–2012 | Volvo | V50 (545, M) | 2.0 D4 | Diesel · 96 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2 |
| 2003–2012 | Volvo | S40 II (544, M) | 2.4 | Petrol · 103 kW · 2.4L · 5-cyl | Front-Wheel Drive | 2 |
| 2003–2012 | Volvo | V50 (545, M) | 2.4 | Petrol · 103 kW · 2.4L · 5-cyl | Front-Wheel Drive | 2 |
| 2003–2012 | Volvo | V50 (545, M) | 2.4 | Petrol · 125 kW · 2.4L · 5-cyl | Front-Wheel Drive | 2 |
| 2003–2012 | Volvo | S40 II (544, M) | 2.4 | Petrol · 125 kW · 2.4L · 5-cyl | Front-Wheel Drive | 2 |
| 2003–2012 | Volvo | S40 II (544, M) | T5 | Petrol · 162 kW · 2.5L · 5-cyl | Front-Wheel Drive | 2 |
| 2003–2012 | Volvo | V50 (545, M) | T5 | Petrol · 162 kW · 2.5L · 5-cyl | Front-Wheel Drive | 2 |
| 2003–2012 | Volvo | S40 II (544, M) | 2.0 D | Diesel · 100 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2 |
| 2003–2012 | Volvo | V50 (545, M) | 2.0 D | Diesel · 100 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2 |
| 2003–2012 | Volvo | S40 II (544, M) | 1.8 | Petrol · 92 kW · 1.8L · 4-cyl | Front-Wheel Drive | 2 |
| 2003–2012 | Volvo | V50 (545, M) | 1.8 | Petrol · 92 kW · 1.8L · 4-cyl | Front-Wheel Drive | 2 |
| 2003–2012 | Volvo | S40 II (544, M) | 1.6 | Petrol · 74 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2 |
| 2003–2012 | Volvo | S40 II (544, M) | 1.6 D | Diesel · 81 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2 |
| 2003–2012 | Volvo | V50 (545, M) | 1.6 | Petrol · 74 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2 |
| 2003–2012 | Volvo | V50 (545, M) | 1.6 D | Diesel · 81 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2 |
| 2003–2012 | Volvo | S40 II (544, M) | 2.0 | Petrol · 107 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2 |
| 2003–2012 | Volvo | V50 (545, M) | 2.0 | Petrol · 107 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2 |
| 2003–2012 | Volvo | S40 II (544, M) | D5 | Diesel · 132 kW · 2.4L · 5-cyl | Front-Wheel Drive | 2 |
| 2003–2012 | Volvo | V50 (545, M) | D5 | Diesel · 132 kW · 2.4L · 5-cyl | Front-Wheel Drive | 2 |
| 2003–2012 | Volvo | S40 II (544, M) | T5 | Petrol · 169 kW · 2.5L · 5-cyl | Front-Wheel Drive | 2 |
| 2003–2012 | Volvo | V50 (545, M) | T5 | Petrol · 169 kW · 2.5L · 5-cyl | Front-Wheel Drive | 2 |
| 2003–2012 | Volvo | S40 II (544, M) | D4 | Diesel · 96 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2 |
| 2003–2012 | Volvo | V50 (545, M) | 2.4 Tdi | Diesel · 120 kW · 2.4L · 5-cyl | Front-Wheel Drive | 2 |
| 2003–2012 | Volvo | V50 (545, M) | D2 | Diesel · 84 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2 |
| 2003–2012 | Volvo | S40 II (544, M) | 1.9 | Petrol · 127 kW · 1.9L · 4-cyl | Front-Wheel Drive | 2 |
| 2003–2012 | Volvo | S40 II (544, M) | D3 | Diesel · 110 kW · 2.0L · 5-cyl | Front-Wheel Drive | 2 |
| 2003–2012 | Volvo | S40 II (544, M) | D4 | Diesel · 130 kW · 2.0L · 5-cyl | Front-Wheel Drive | 2 |
| 2003–2012 | Volvo | S40 II (544, M) | D2 | Diesel · 84 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2 |
| 2003–2012 | Volvo | V50 (545, M) | D4 | Diesel · 130 kW · 2.0L · 5-cyl | Front-Wheel Drive | 2 |
| 2003–2012 | Volvo | V50 (545, M) | D3 | Diesel · 110 kW · 2.0L · 5-cyl | Front-Wheel Drive | 2 |
- Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
