KW Coilover Kit V2 for VW (1Y) New Beetle
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW Coilover Kit V2 for VW (1Y) New Beetle
Sale price$2,744.56
Regular price$2,889.00 (/)
KW's V2 adds adjustable rebound damping to KW's height-adjustable coilover platform. The twin-tube dampers offer 16 clicks of rebound adjustment, so the setup can be made firmer or more comfortable without changing the compression damping. As with all KW coilovers, the base setting is developed for each vehicle on KW's 7-post rig and in road testing, including the Nürburgring Nordschleife. This kit is developed for the VW New Beetle Convertible (1Y).
Key Features
- Rebound damping adjustable in 16 clicks
- Vehicle-specific base damper setting
- Continuous ride height adjustment within the tested range
Specifications
- Version: V2
- Damping: Adjustable rebound
- Material: Stainless steel
- Front lowering: 25–55 mm
- Rear lowering: 25–55 mm
- Front axle load: up to 1,030 kg
- Rear axle load: up to 850 kg

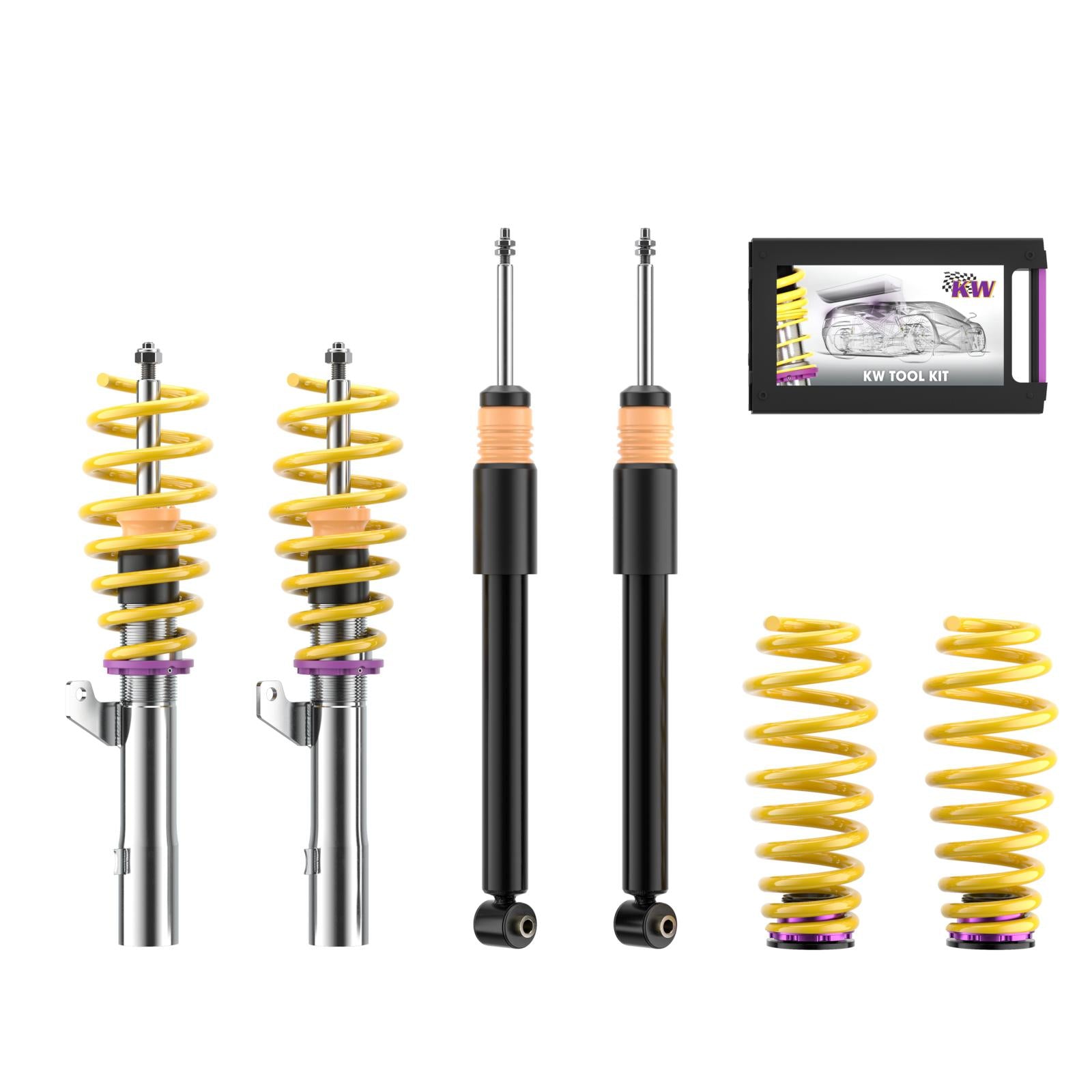

- Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Front axle load up to 1,030 kg; Rear axle load up to 850 kg.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 2002–2012 | VW | New Beetle Convertible (1Y_) | 1.6 | Petrol · 75 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 6, 7, 39 |
| 2002–2012 | VW | New Beetle Convertible (1Y_) | 2.0 | Petrol · 85 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 6, 7, 39 |
| 2002–2012 | VW | New Beetle Convertible (1Y_) | 1.9 TDI | Diesel · 74 kW · 1.9L · 4-cyl | Front-Wheel Drive | 2, 6, 7, 39 |
| 2002–2012 | VW | New Beetle Convertible (1Y_) | 1.4 | Petrol · 55 kW · 1.4L · 4-cyl | Front-Wheel Drive | 2, 6, 7, 39 |
| 2002–2012 | VW | New Beetle Convertible (1Y_) | 1.8 T | Petrol · 110 kW · 1.8L · 4-cyl | Front-Wheel Drive | 2, 6, 7, 39 |
| 2002–2012 | VW | New Beetle Convertible (1Y_) | 1.9 TDI | Diesel · 77 kW · 1.9L · 4-cyl | Front-Wheel Drive | 2, 6, 7, 39 |
| 2002–2012 | VW | New Beetle Convertible (1Y_) | 2.5 | Petrol · 110 kW · 2.5L · 5-cyl | Front-Wheel Drive | 2, 6, 7, 39 |
| 2002–2012 | VW | New Beetle Convertible (1Y_) | 1.9 TDI | Diesel · 66 kW · 1.9L · 4-cyl | Front-Wheel Drive | 2, 6, 7, 39 |
- Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
- Note 6: When using original tyres, wheel offset spacers may be required.
- Note 7: When lowering more than 40 mm, the anti-sway bar must be retrofitted. Anti-sway bar conversion set without Xenon headlights: KW Part No. 685 50 000 Anti-sway bar conversion set for vehicles with Xenon headlights: KW Part No. 685 50 005.
- Note 39: For vehicles with a right drive shaft diameter of more than 42 mm, the maximum lowering tested (German technical inspection association) is reduced by 15 mm.
