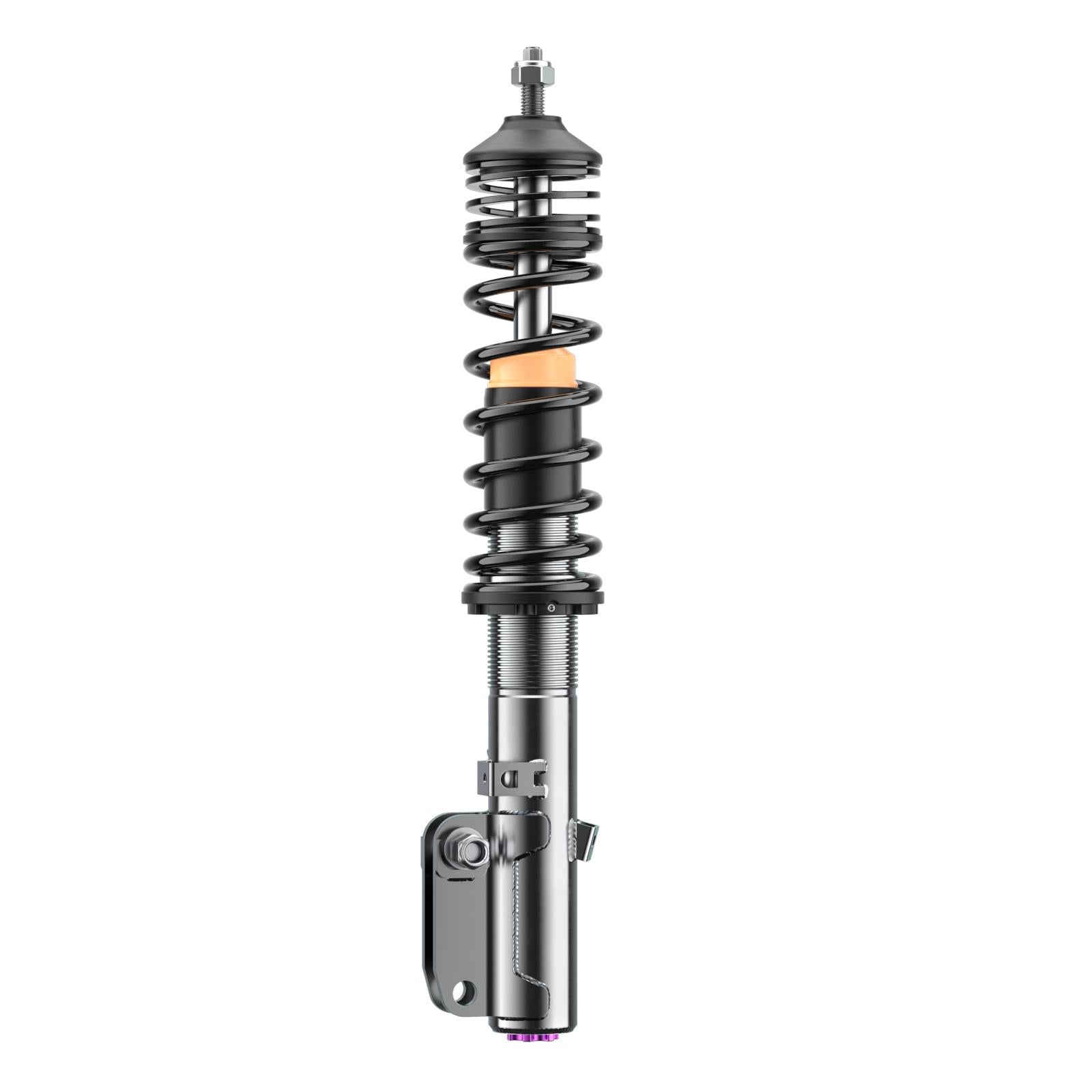

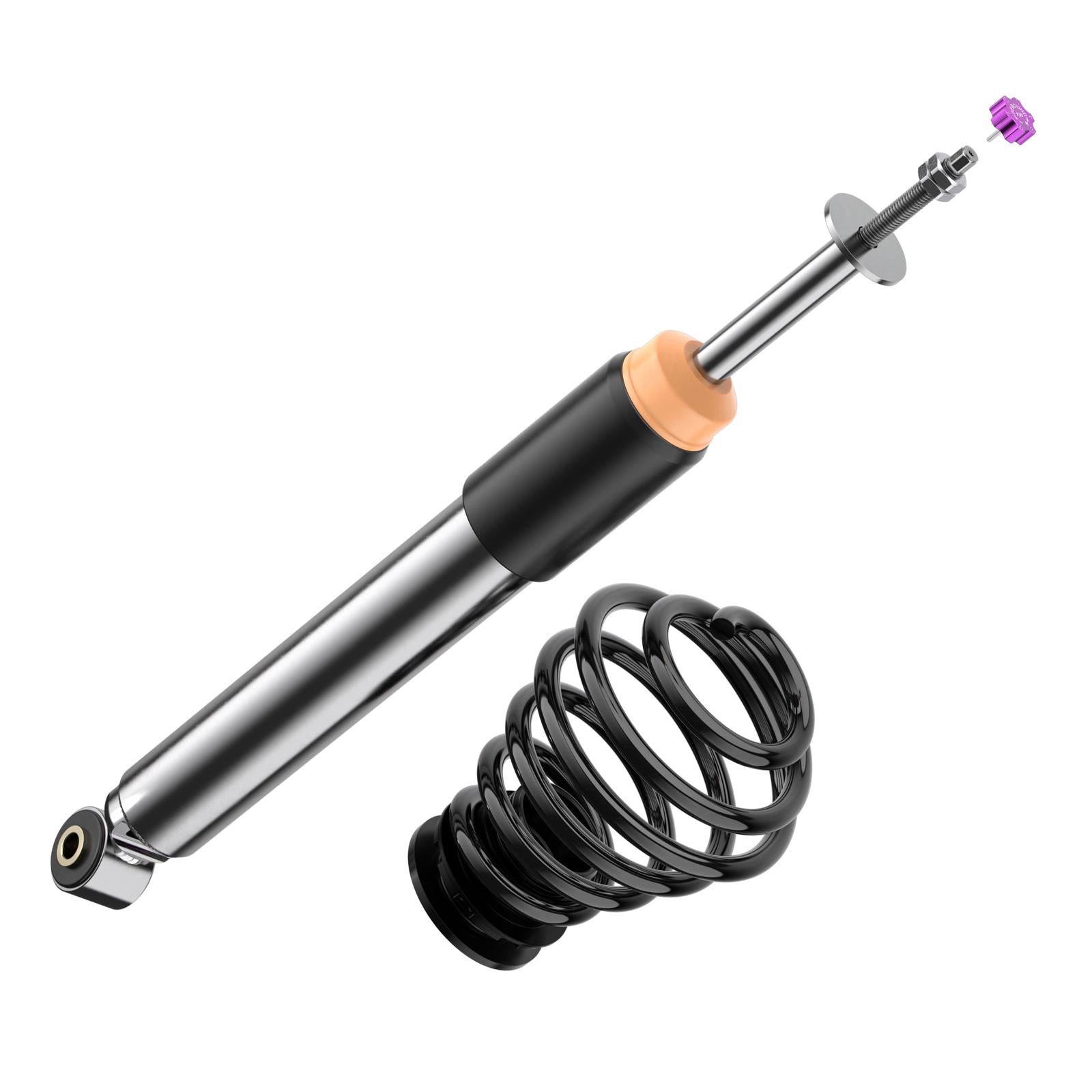

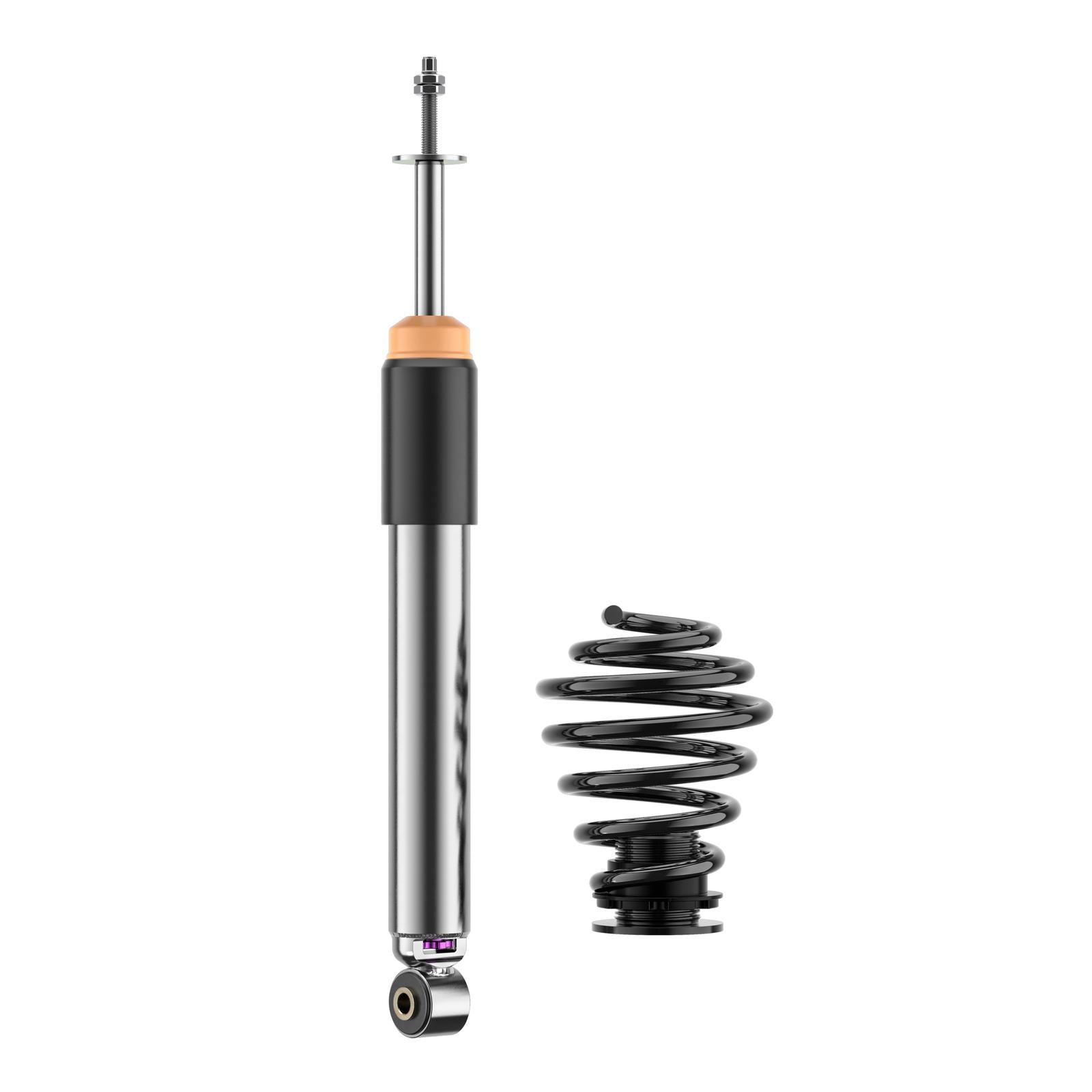

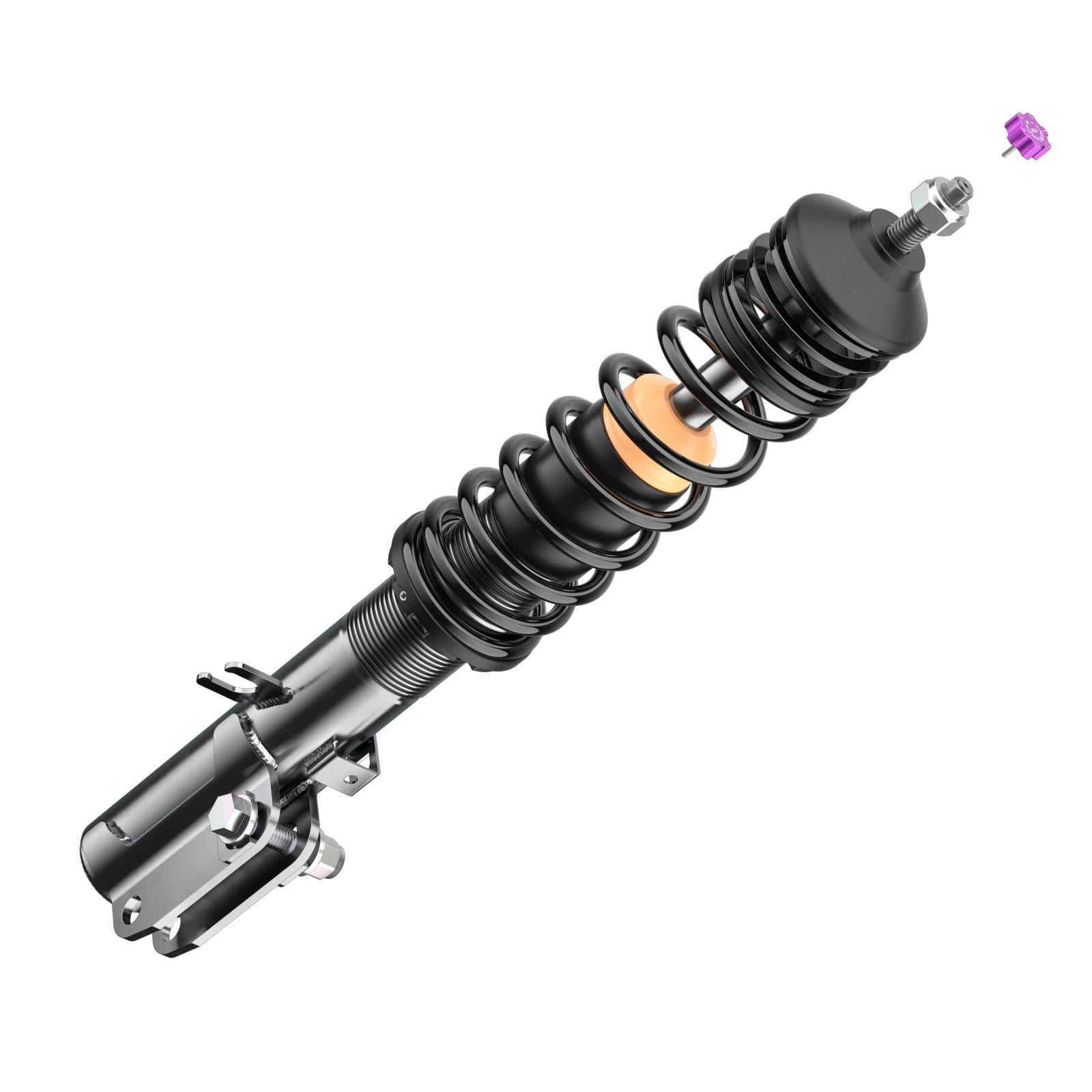

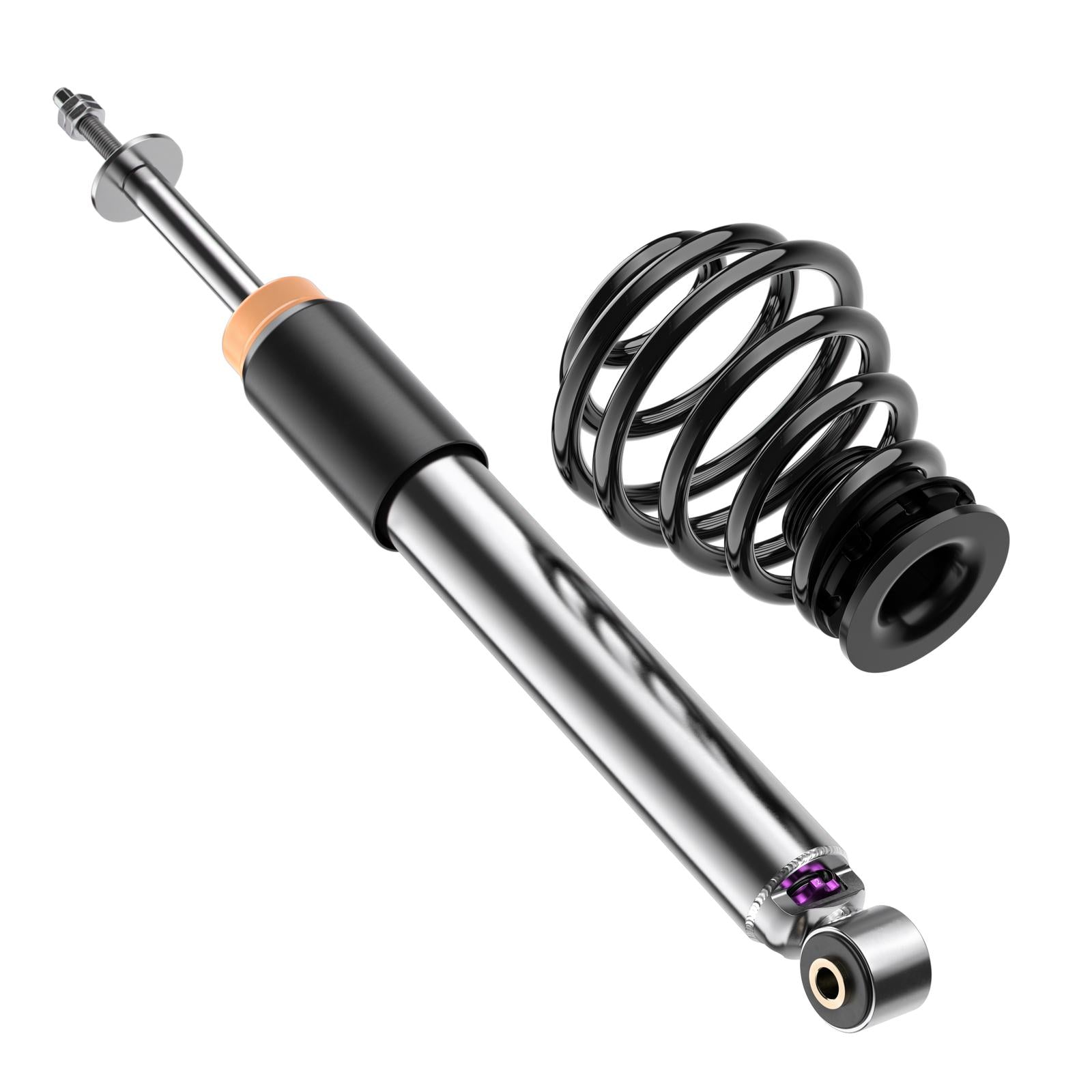

KW Coilover Kit V3 Classic Line for Audi (B3) 80 / 90 / (89) Coupe - M14 Front and Rear Strut Bolts

SKU: 35210013-B
Sale price$4,530.55 Regular price$4,769.00
Save $238.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Audi 80 2.3 quattro / 90 quattro / Coupe quattro (B3).

Key Features

  • Rebound damping adjustable in 16 clicks
  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3 classic line
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 30–60 mm
  • Rear lowering: 30–60 mm
  • Front axle load: up to 950 kg
  • Rear axle load: up to 950 kg
  • Supplied as: Front axle + rear axle coilover struts
Note For cars with M14 screw at the front axle + rear axle strut.

Front axle load up to 950 kg; Rear axle load up to 950 kg.

For cars with M14 screw at the FA + RA strut.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
1986–1991Audi80 (B3) 89, 89Q, 8A, SF21.8 E quattroPetrol · 82 kW · 1.8L · 4-cylAll-Wheel Drive1, 6, 12
1986–1991Audi80 (B3) 89, 89Q, 8A, SF21.8 S quattroPetrol · 65 kW · 1.8L · 4-cylAll-Wheel Drive1, 6, 12
1986–1991Audi80 (B3) 89, 89Q, 8A, SF21.8 S quattroPetrol · 66 kW · 1.8L · 4-cylAll-Wheel Drive1, 6, 12
1986–1991Audi80 (B3) 89, 89Q, 8A, SF21.8 quattroPetrol · 83 kW · 1.8L · 4-cylAll-Wheel Drive1, 6, 12
1986–1991Audi80 (B3) 89, 89Q, 8A, SF22.0 E 16V quattroPetrol · 101 kW · 2.0L · 4-cylAll-Wheel Drive1, 6, 12
1986–1991Audi80 (B3) 89, 89Q, 8A, SF22.0 E quattroPetrol · 83 kW · 2.0L · 4-cylAll-Wheel Drive1, 6, 12
1986–1991Audi80 (B3) 89, 89Q, 8A, SF22.0 quattroPetrol · 82 kW · 2.0L · 4-cylAll-Wheel Drive1, 6, 12
1986–1991Audi80 (B3) 89, 89Q, 8A, SF22.0 quattroPetrol · 85 kW · 2.0L · 4-cylAll-Wheel Drive1, 6, 12
1986–1991Audi80 (B3) 89, 89Q, 8A, SF22.3 quattroPetrol · 98 kW · 2.3L · 5-cylAll-Wheel Drive1, 6, 12
1987–1991Audi90 (B3) 89, 89Q, 8A2.0 20 V quattroPetrol · 118 kW · 2.0L · 5-cylAll-Wheel Drive1, 6, 12
1987–1991Audi90 (B3) 89, 89Q, 8A2.0 quattroPetrol · 101 kW · 2.0L · 4-cylAll-Wheel Drive1, 6, 12
1987–1991Audi90 (B3) 89, 89Q, 8A2.2 E quattroPetrol · 100 kW · 2.2L · 5-cylAll-Wheel Drive1, 6, 12
1987–1991Audi90 (B3) 89, 89Q, 8A2.3 E 20V quattroPetrol · 123 kW · 2.3L · 5-cylAll-Wheel Drive1, 6, 12
1987–1991Audi90 (B3) 89, 89Q, 8A2.3 E 20V quattroPetrol · 125 kW · 2.3L · 5-cylAll-Wheel Drive1, 6, 12
1987–1991Audi90 (B3) 89, 89Q, 8A2.3 E quattroPetrol · 98 kW · 2.3L · 5-cylAll-Wheel Drive1, 6, 12
1987–1991Audi90 (B3) 89, 89Q, 8A2.3 E quattroPetrol · 100 kW · 2.3L · 5-cylAll-Wheel Drive1, 6, 12
1988–1996AudiCoupe (89) 8B, 89Q2.0 20 V quattroPetrol · 118 kW · 2.0L · 5-cylAll-Wheel Drive1, 6, 12
1988–1996AudiCoupe (89) 8B, 89Q2.2 quattroPetrol · 100 kW · 2.2L · 5-cylAll-Wheel Drive1, 6, 12
1988–1996AudiCoupe (89) 8B, 89Q2.3 20V quattroPetrol · 123 kW · 2.3L · 5-cylAll-Wheel Drive1, 6, 12
1988–1996AudiCoupe (89) 8B, 89Q2.3 20V quattroPetrol · 125 kW · 2.3L · 5-cylAll-Wheel Drive1, 6, 12
1988–1996AudiCoupe (89) 8B, 89Q2.3 quattroPetrol · 98 kW · 2.3L · 5-cylAll-Wheel Drive1, 6, 12
1988–1996AudiCoupe (89) 8B, 89Q2.3 quattroPetrol · 100 kW · 2.3L · 5-cylAll-Wheel Drive1, 6, 12
  • Note 1: Height adjustable on the front and rear axles (threaded strut housings).
  • Note 6: When using original tyres, wheel offset spacers may be required.
  • Note 12: To identify the suspension struts, measure the diameter of the strut mounting screw at the steering knuckle. Screw diameter either M12 or M14.
