KW Coilover Kit V3 Classic Line for Mercedes (W201) 190E 2.5-16 / 190E 2.3-16

SKU: 3522500T-B
Sale price$4,768.05 Regular price$5,019.00
Save $250.95

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Mercedes 190 E 2.5-16 / 190 E 2.3-16 (W201).

Key Features

  • Rebound damping adjustable in 16 clicks
  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3 classic line
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 10–35 mm
  • Rear lowering: 25–50 mm
  • Front axle load: up to 900 kg
  • Rear axle load: up to 940 kg

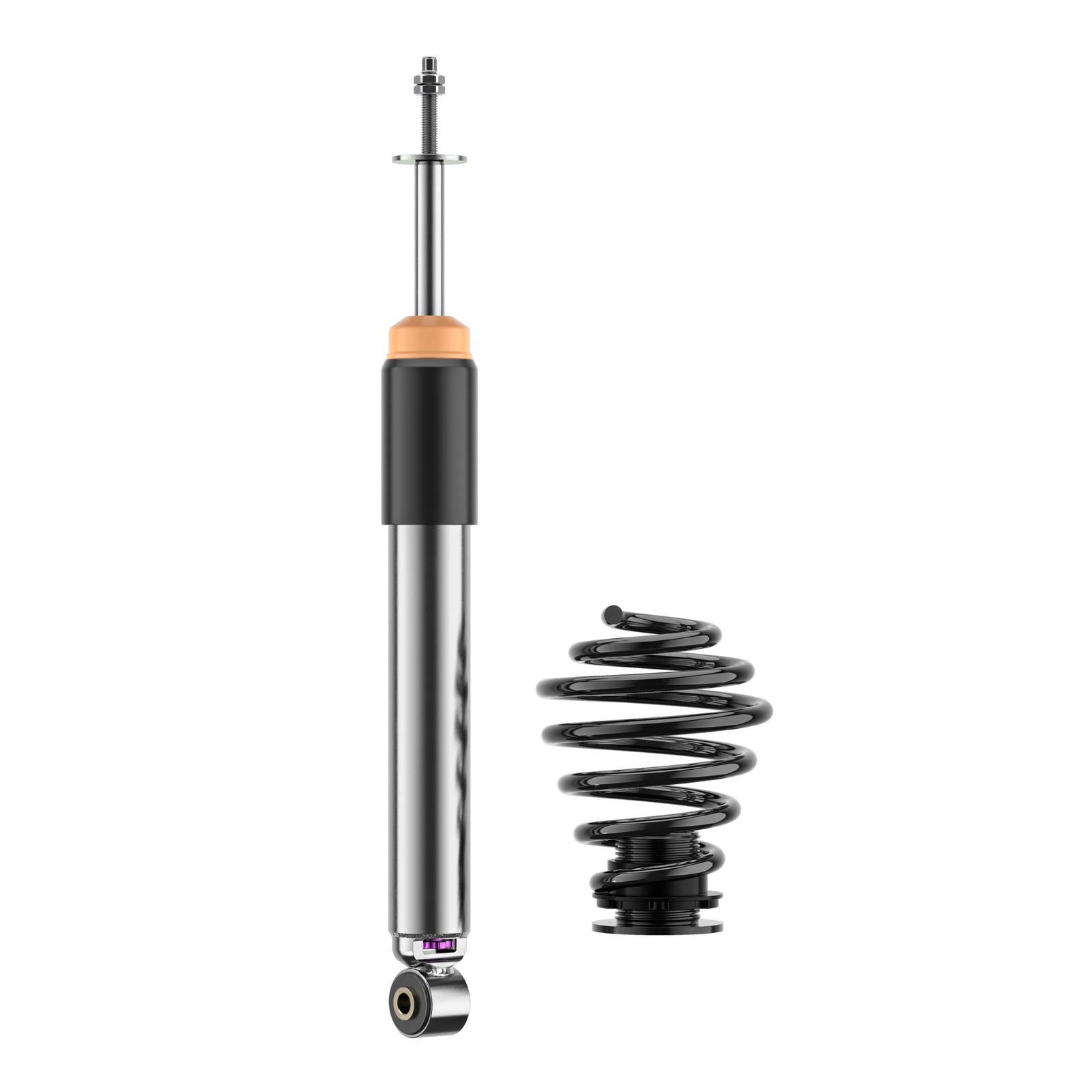

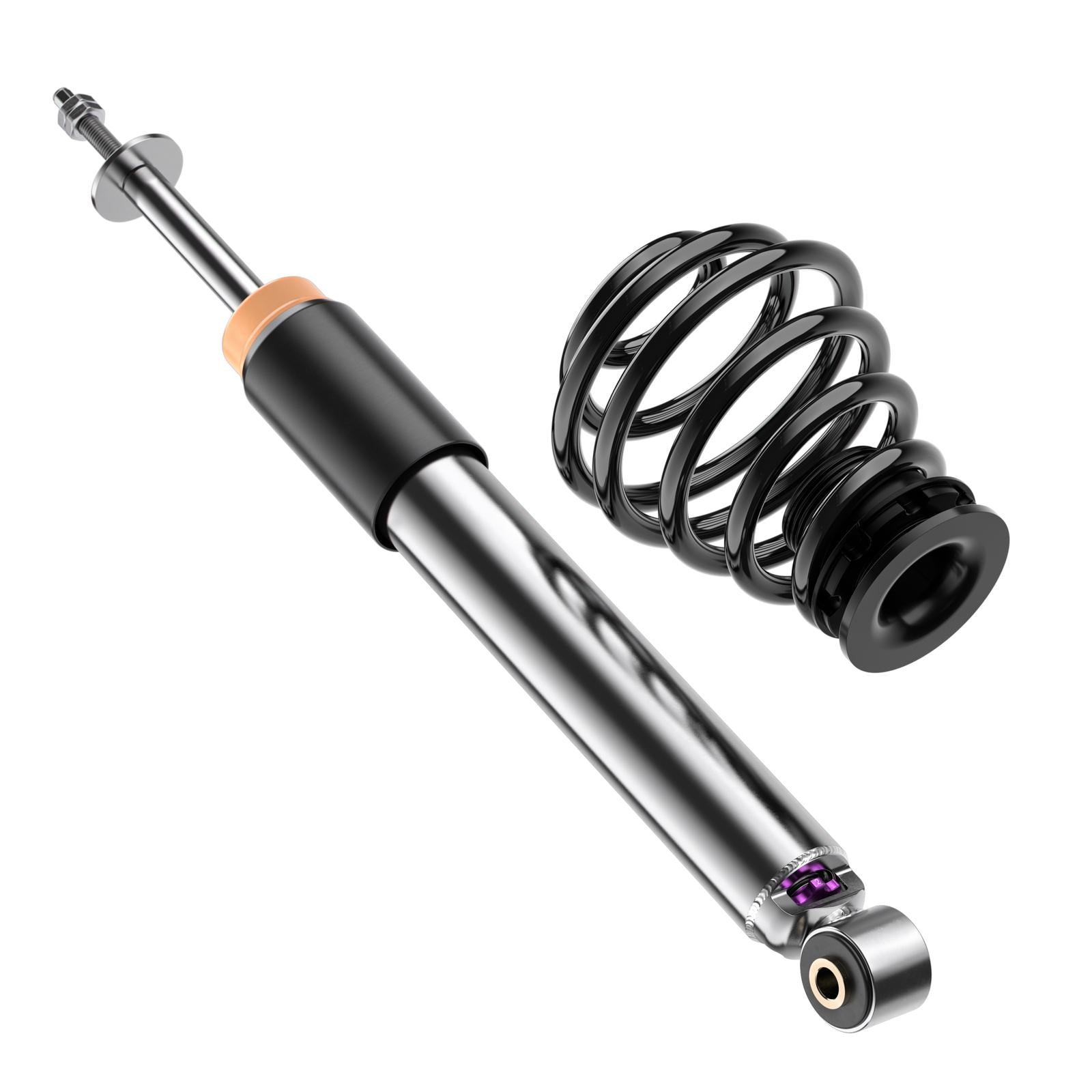

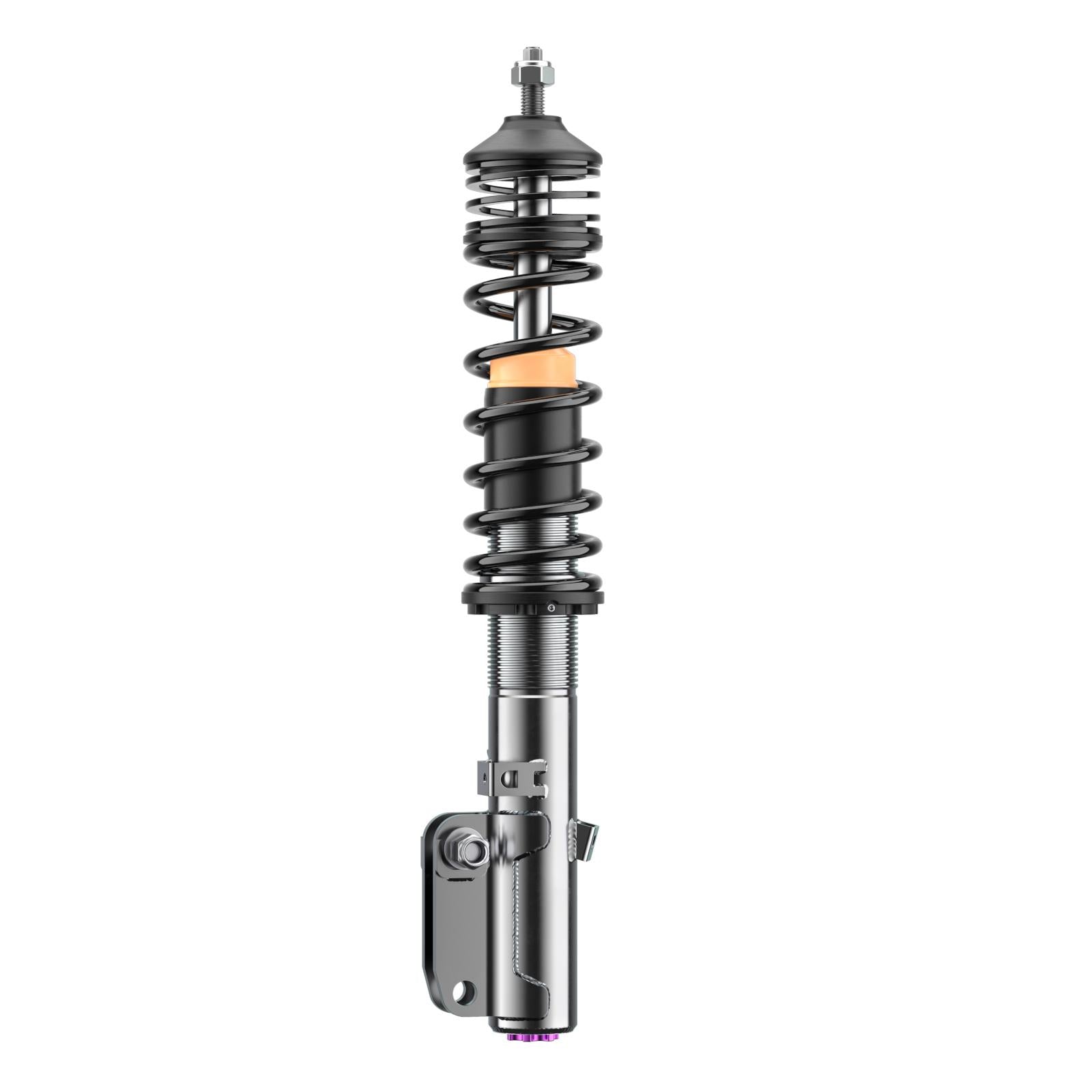

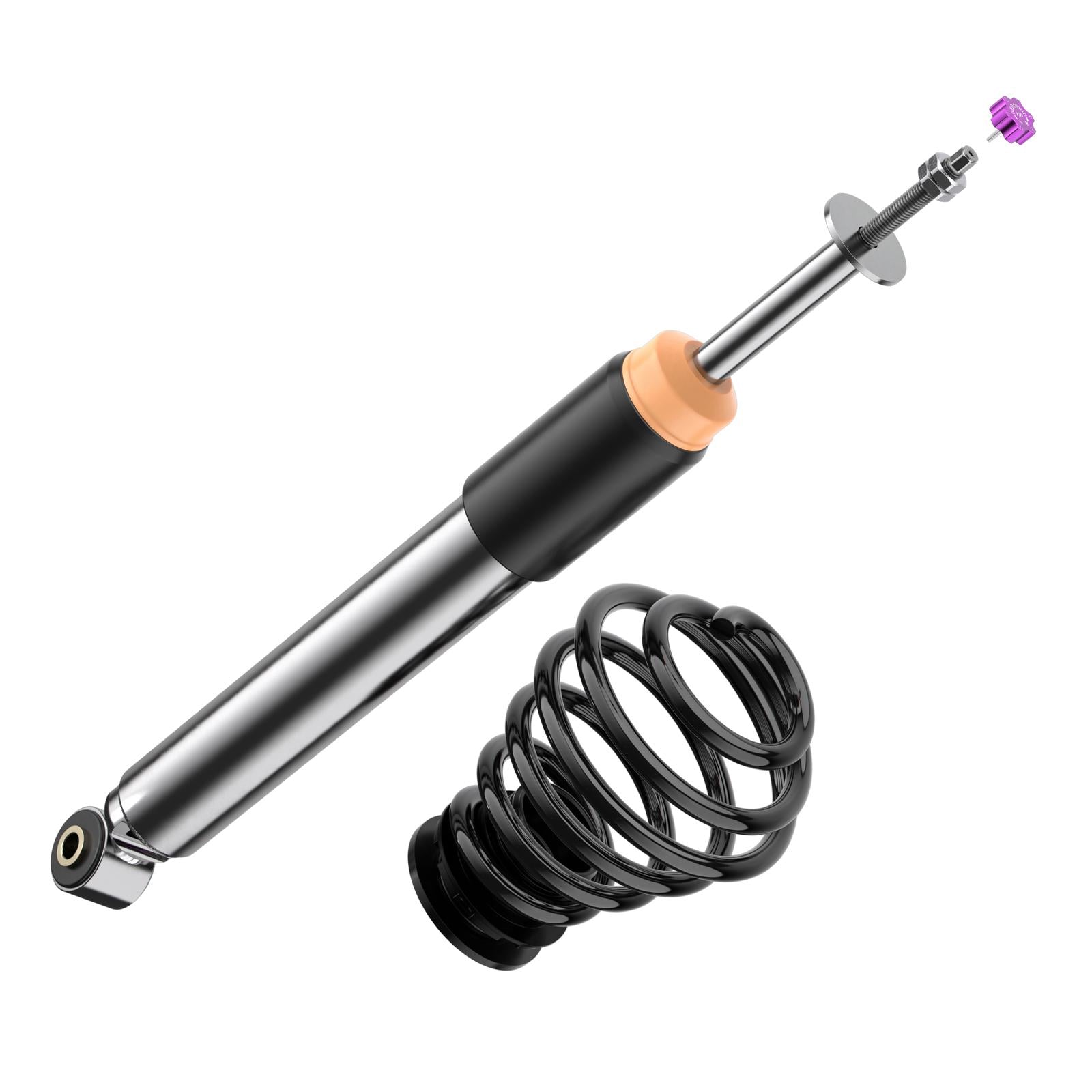

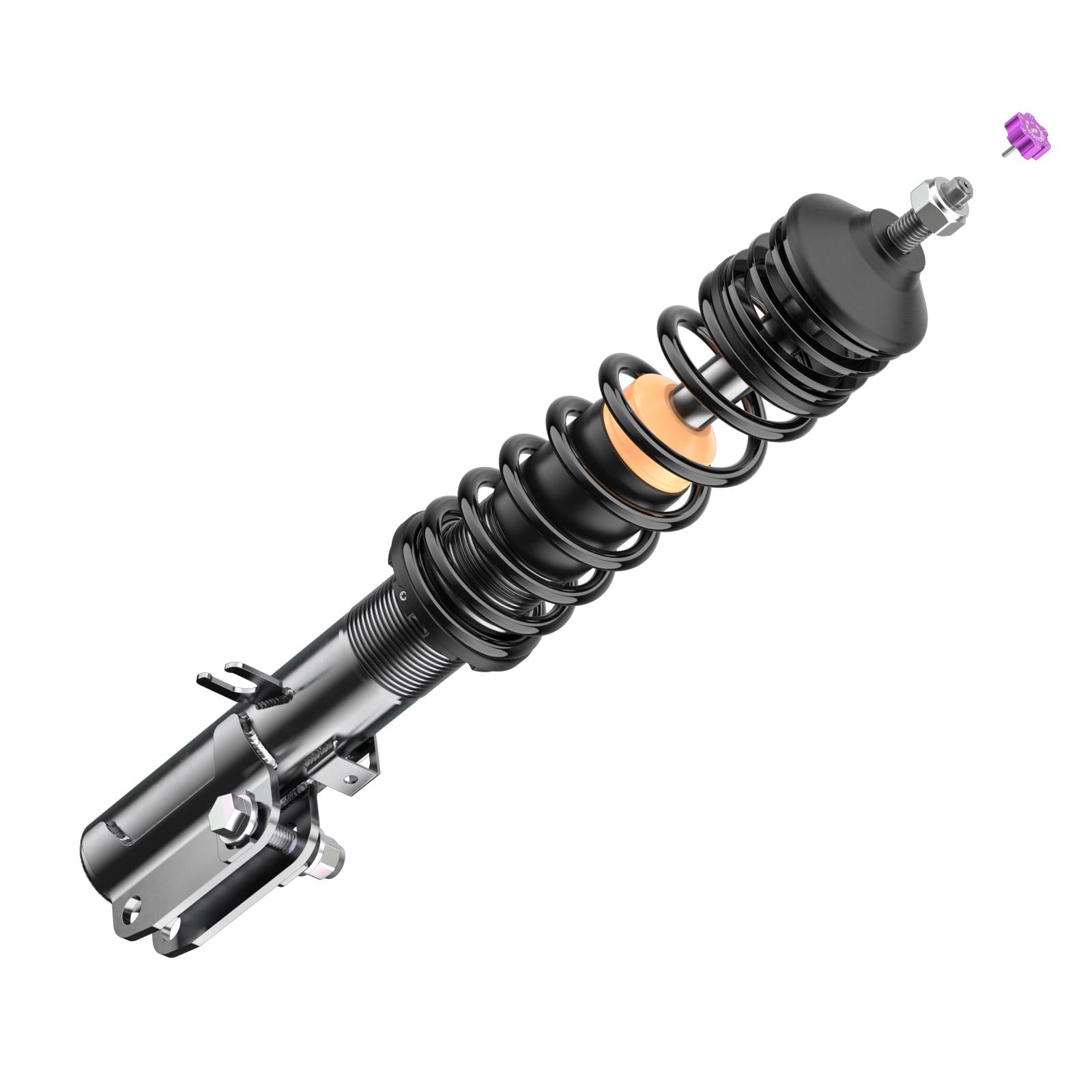

  • Supplied as: Front axle + rear axle springs with height adjustment + dampers

Front axle load up to 900 kg; Rear axle load up to 940 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
1982–1993Mercedes190 (W201)E 2.5-16 (201.035)Petrol · 143 kW · 2.5L · 4-cylRear-Wheel Drive0, 67
1982–1993Mercedes190 (W201)E 2.3-16Petrol · 125 kW · 2.3L · 4-cylRear-Wheel Drive0, 67
1982–1993Mercedes190 (W201)E 2.3-16Petrol · 130 kW · 2.3L · 4-cylRear-Wheel Drive0, 67
1982–1993Mercedes190 (W201)E 2.3-16 (201.034)Petrol · 136 kW · 2.3L · 4-cylRear-Wheel Drive0, 67
1982–1993Mercedes190 (W201)E 2.5-16 (201.035)Petrol · 150 kW · 2.5L · 4-cylRear-Wheel Drive0, 67
  • Note 0: Front and rear height-adjustable (front and rear springs with height adjustment + shock absorbers).
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
