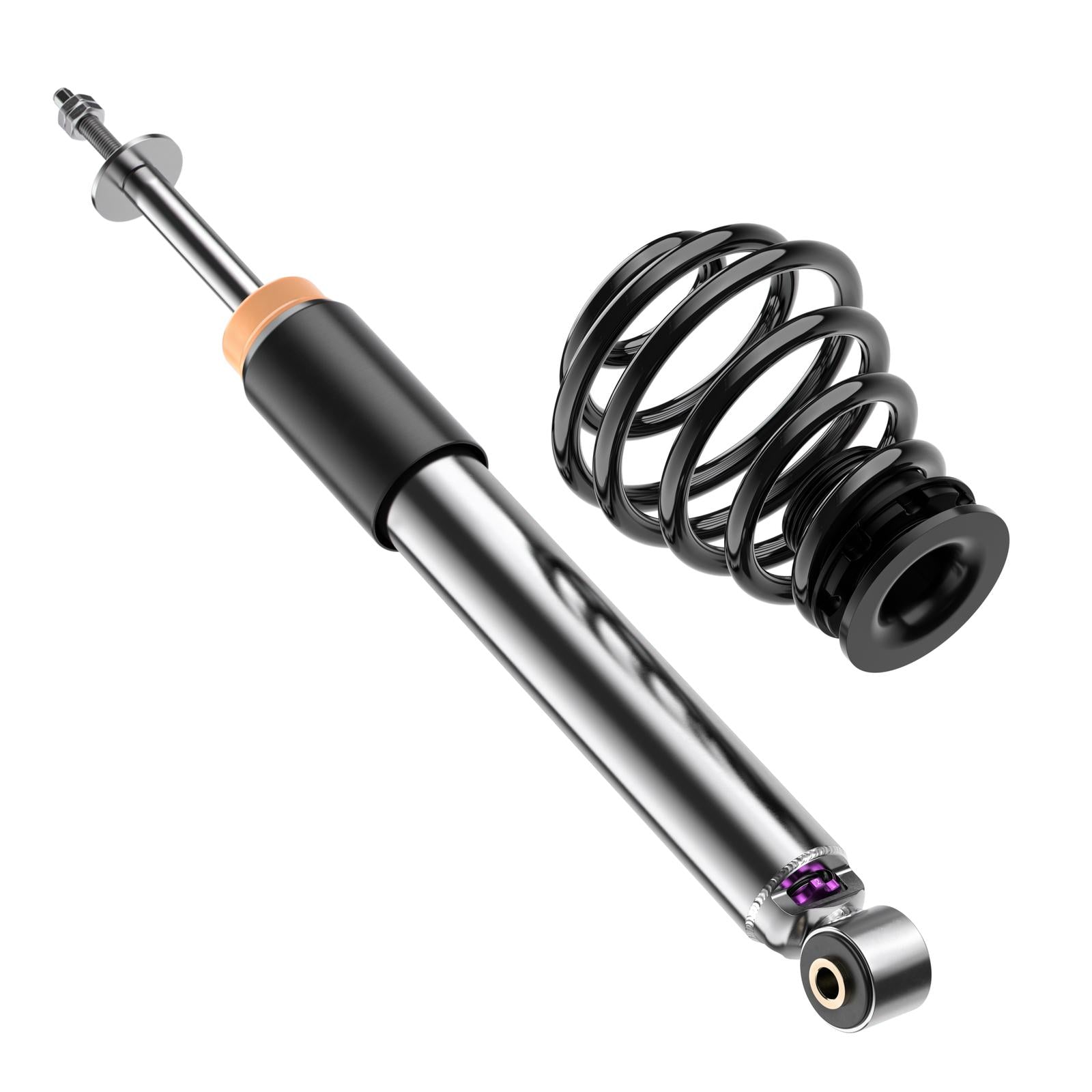

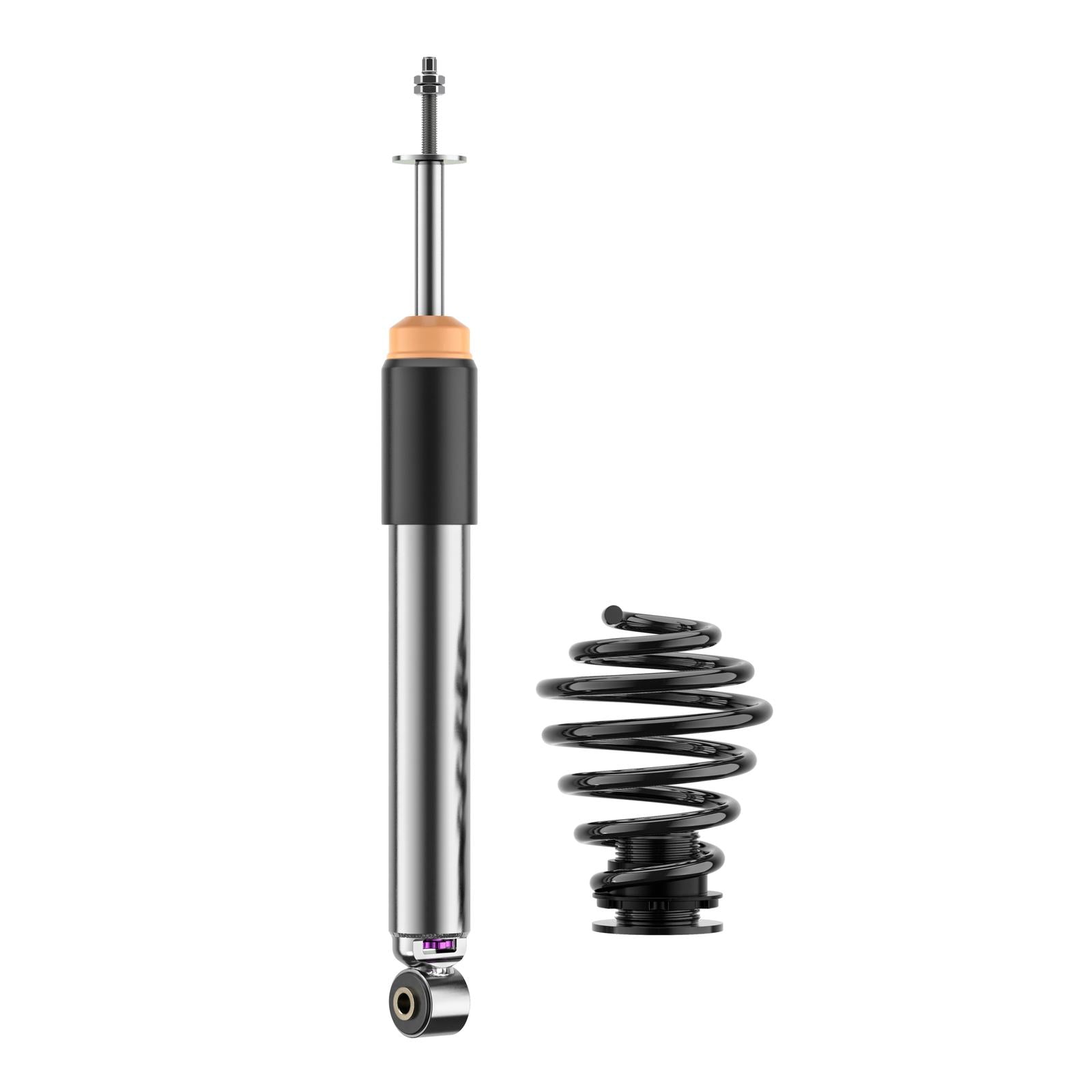

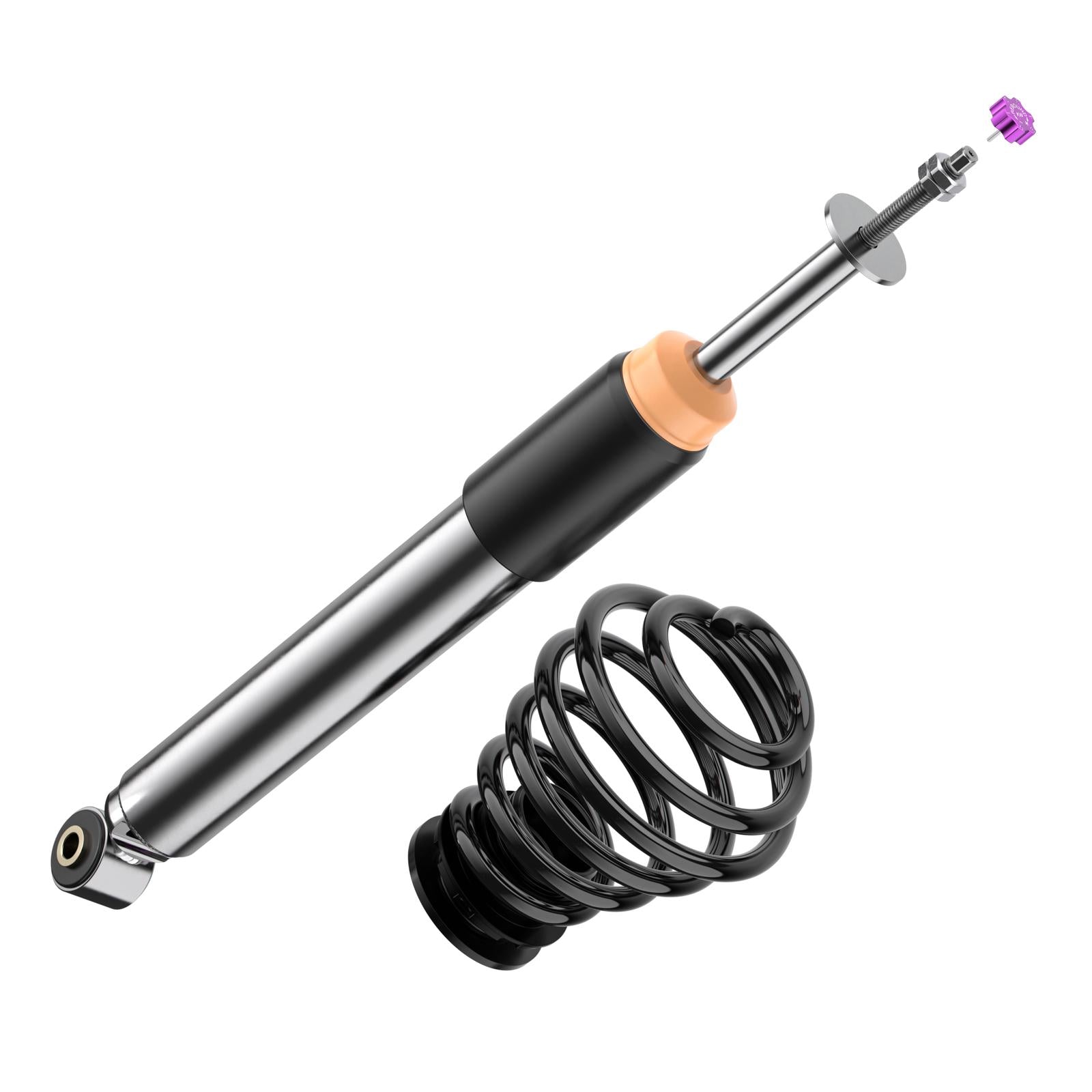

KW Coilover Kit V3 Classic Line for BMW (E30) M3 - Front Struts w/ KW Spindles

SKU: 35204200DB
Sale price$5,708.55 Regular price$6,009.00
Save $300.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the BMW M3 (E30).

Key Features

  • Rebound damping adjustable in 16 clicks
  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3 classic line
  • Damping: Adjustable rebound and compression
  • Material: Galvanised steel
  • Front lowering: 25–55 mm
  • Rear lowering: 25–55 mm
  • Front axle load: up to 865 kg
  • Rear axle load: up to 1,000 kg

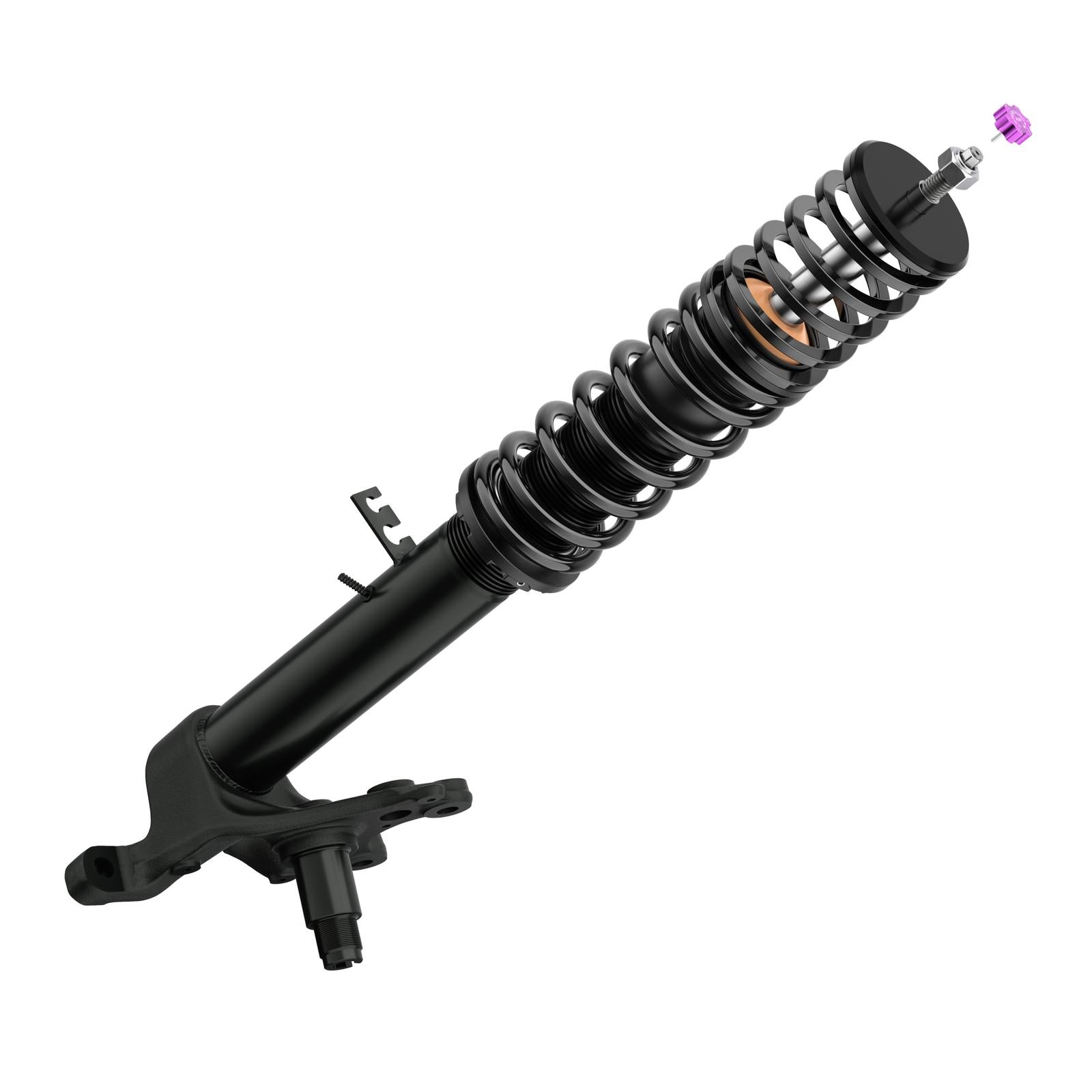

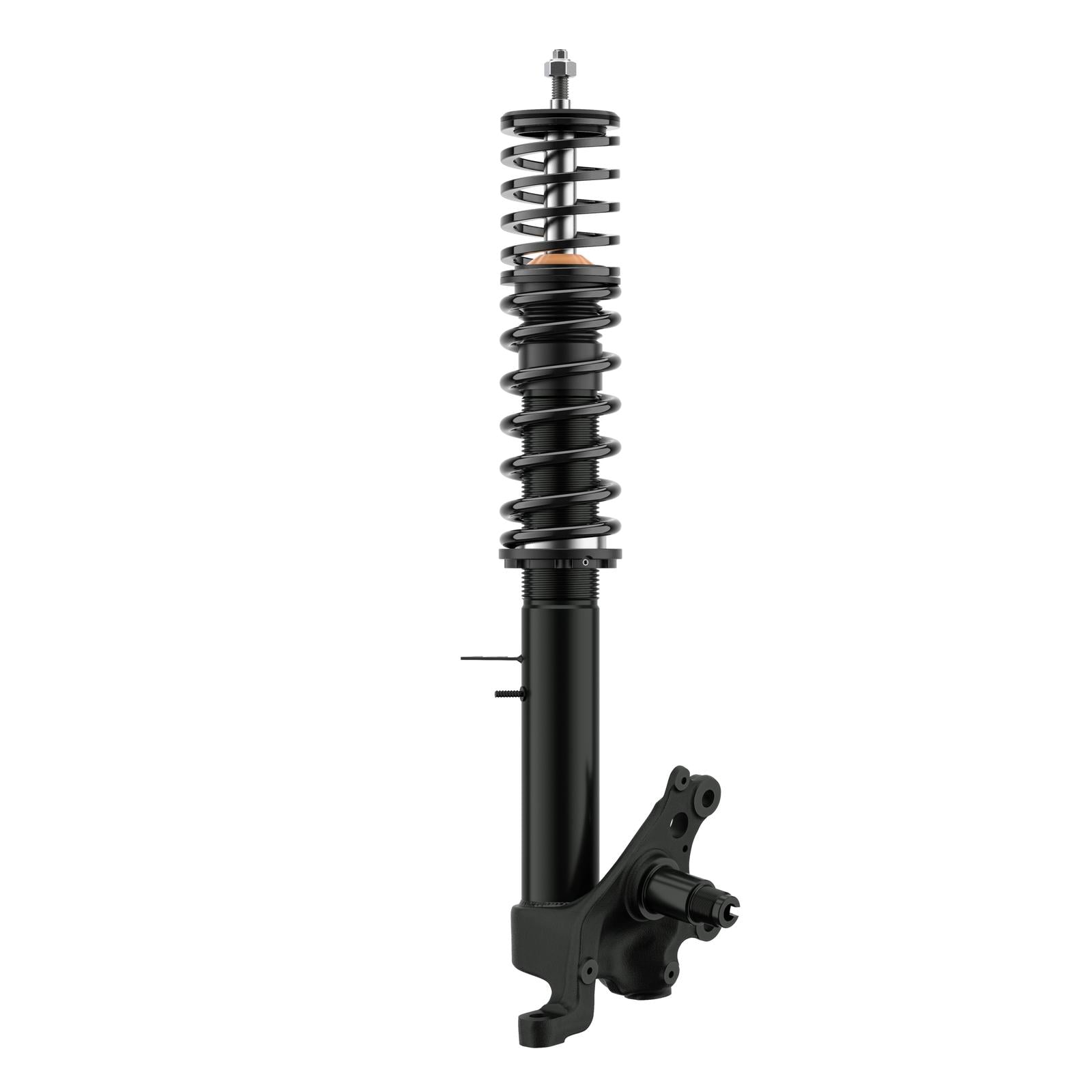

  • Supplied as: Front axle coilover struts (including KW spindles), rear axle springs with height adjustment + dampers
Note Inclusive spindles (including front axle spindles).

Front axle load up to 865 kg; Rear axle load up to 1,000 kg.

For vehicles without electronic damper control.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
1982–1993BMW3 Convertible (E30) 3/RM3 2.3Petrol · 147 kW · 2.3L · 4-cylRear-Wheel Drive2, 6, 62, 408
1982–1993BMW3 Convertible (E30) 3/RM3 2.3Petrol · 158 kW · 2.3L · 4-cylRear-Wheel Drive2, 6, 62, 408
1982–1992BMW3 (E30) 3/1, 3/A, M3M3 2.3Petrol · 143 kW · 2.3L · 4-cylRear-Wheel Drive2, 6, 62, 408
1982–1992BMW3 (E30) 3/1, 3/A, M3M3 2.3Petrol · 147 kW · 2.3L · 4-cylRear-Wheel Drive2, 6, 62, 408
1982–1992BMW3 (E30) 3/1, 3/A, M3M3 2.3Petrol · 158 kW · 2.3L · 4-cylRear-Wheel Drive2, 6, 62, 408
1982–1992BMW3 (E30) 3/1, 3/A, M3M3 EVO II 2.5Petrol · 175 kW · 2.5L · 4-cylRear-Wheel Drive2, 6, 62, 408
1982–1992BMW3 (E30) 3/1, 3/A, M3M3 EVO I 2.3Petrol · 162 kW · 2.3L · 4-cylRear-Wheel Drive2, 6, 62, 408
1982–1993BMW3 Convertible (E30) 3/RM3 2.3Petrol · 143 kW · 2.3L · 4-cylRear-Wheel Drive2, 6, 62, 408
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 6: When using original tyres, wheel offset spacers may be required.
  • Note 62: Not for cars with electronic damping.
  • Note 408: Front axle coilovers incl. Knuckle in galvanised steel.
