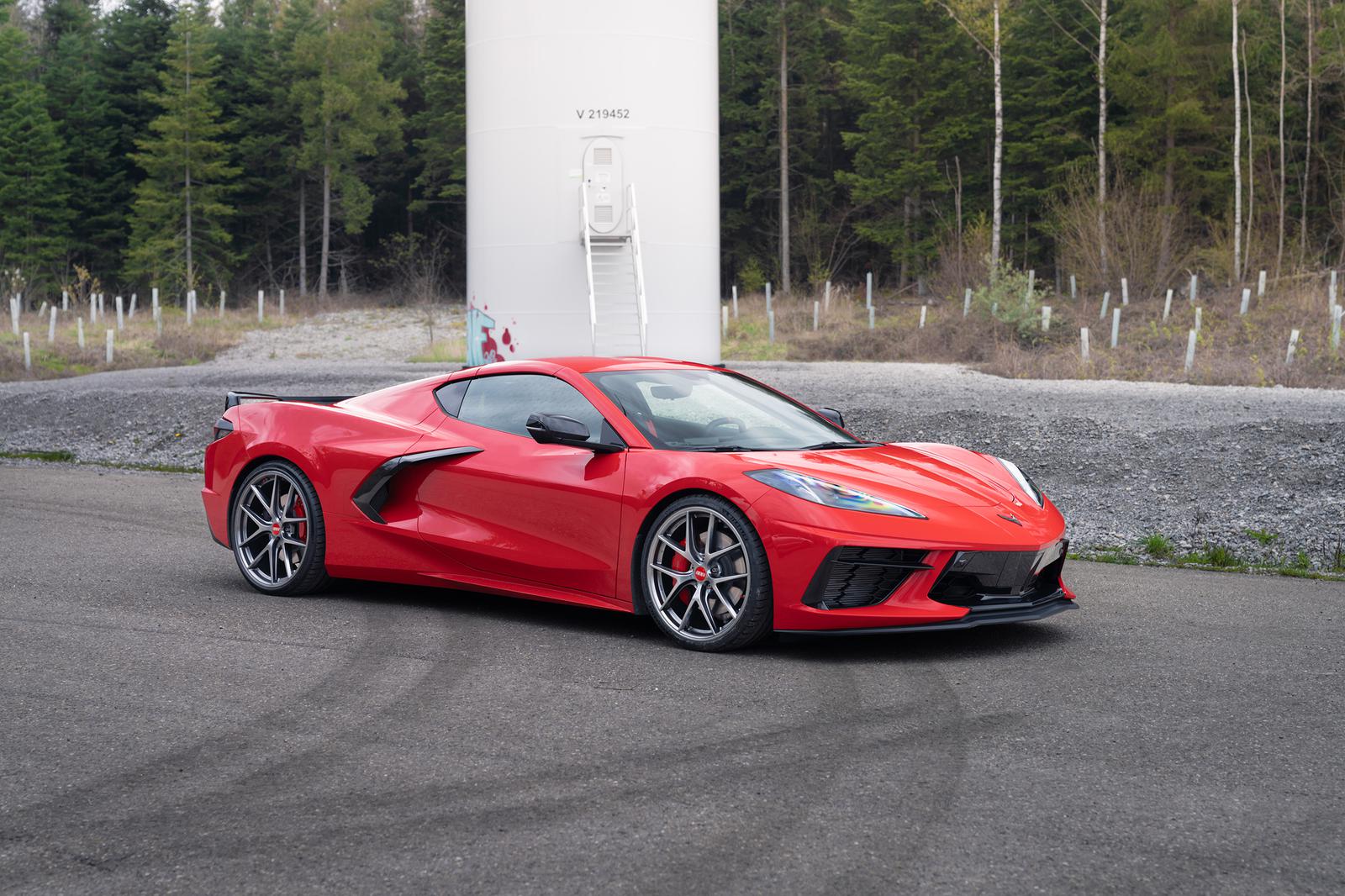

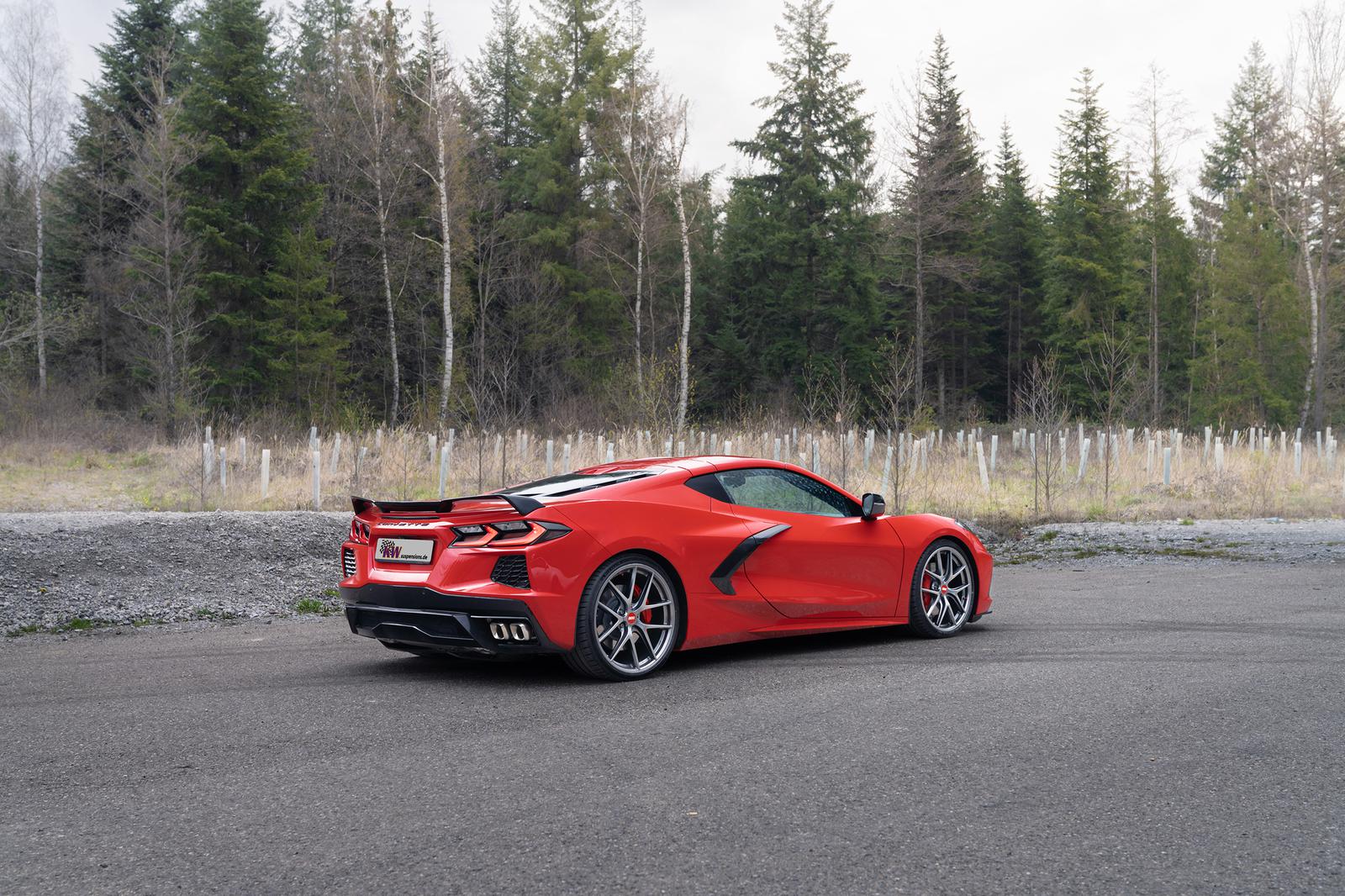

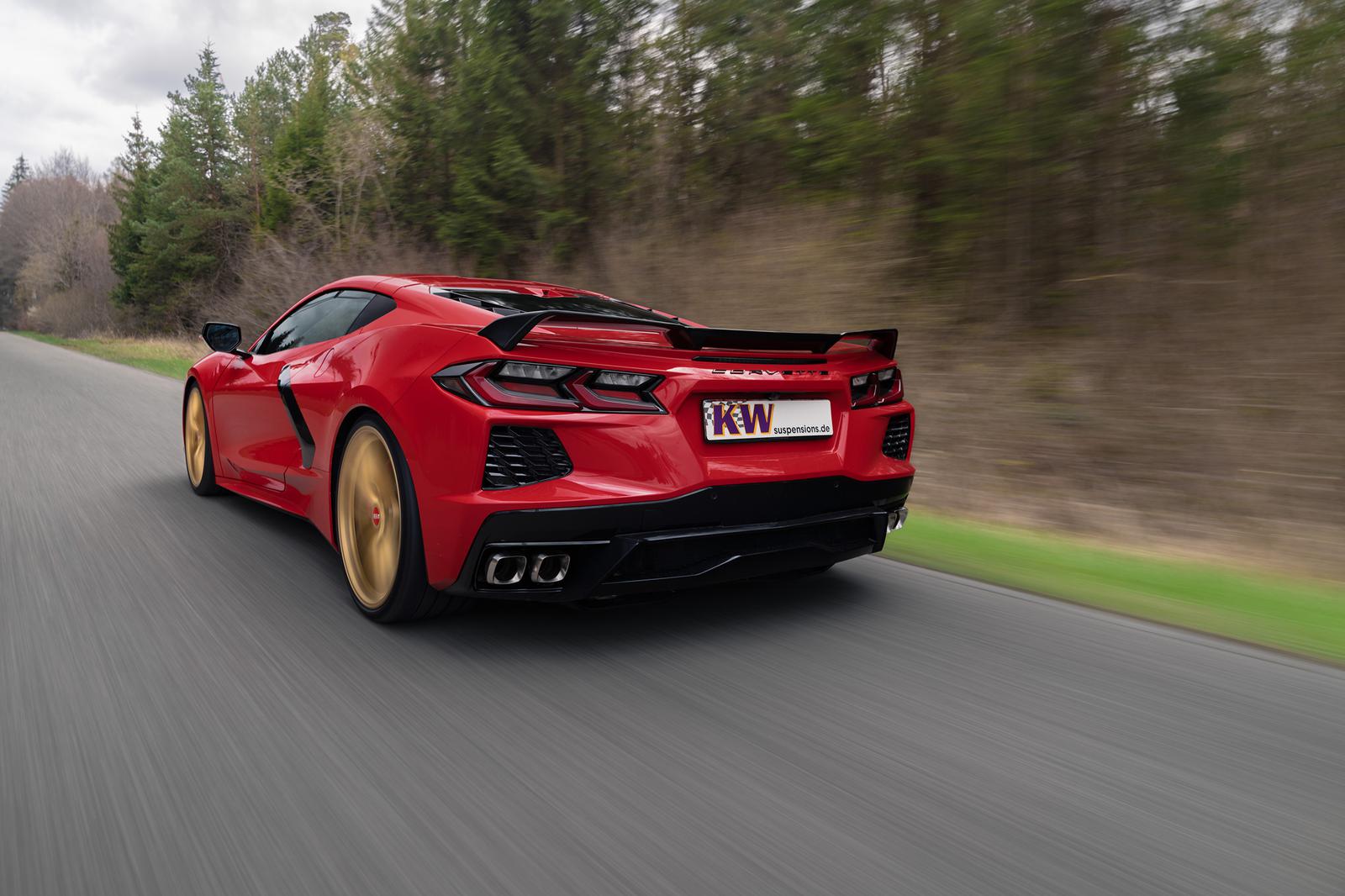

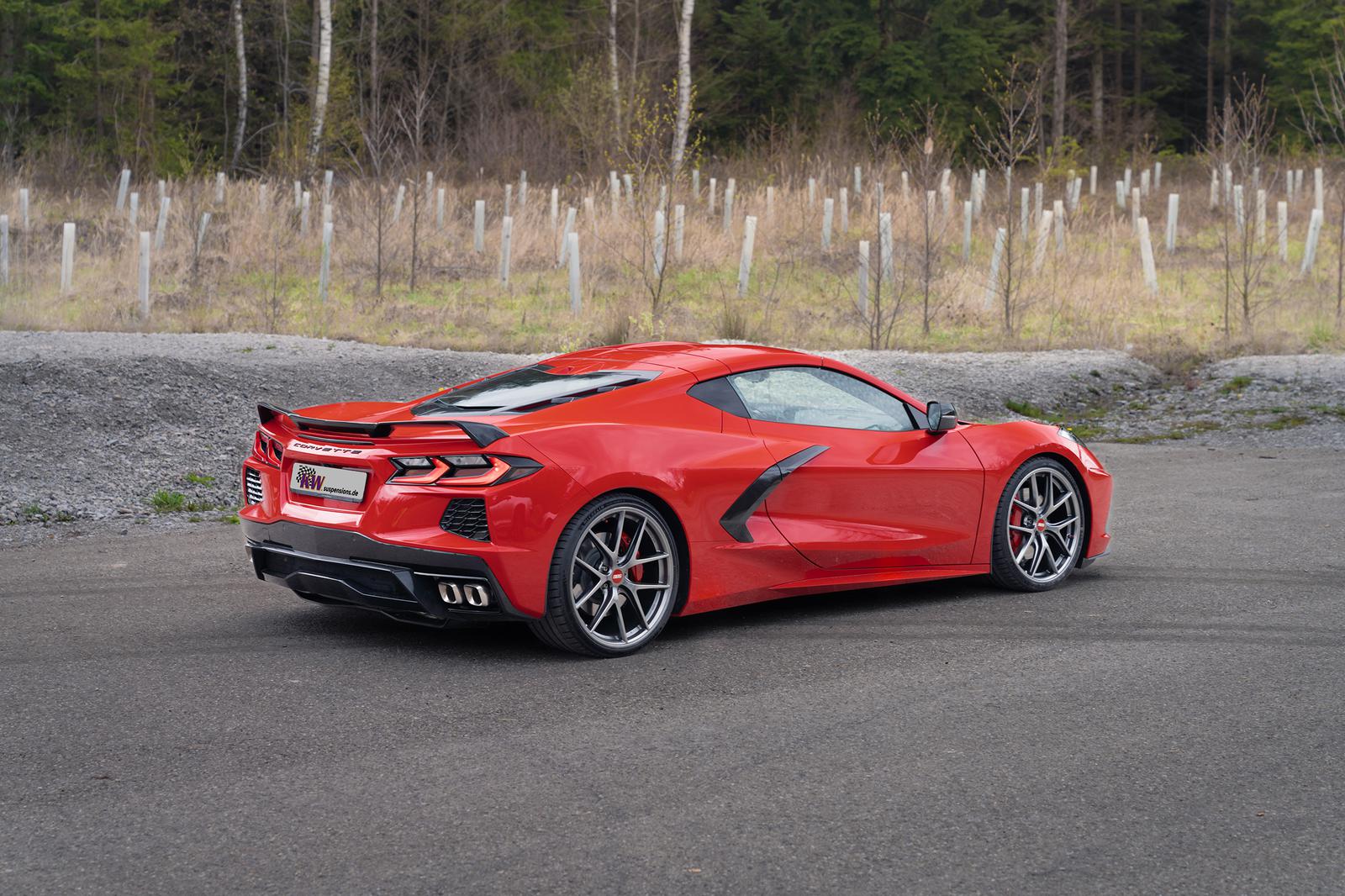

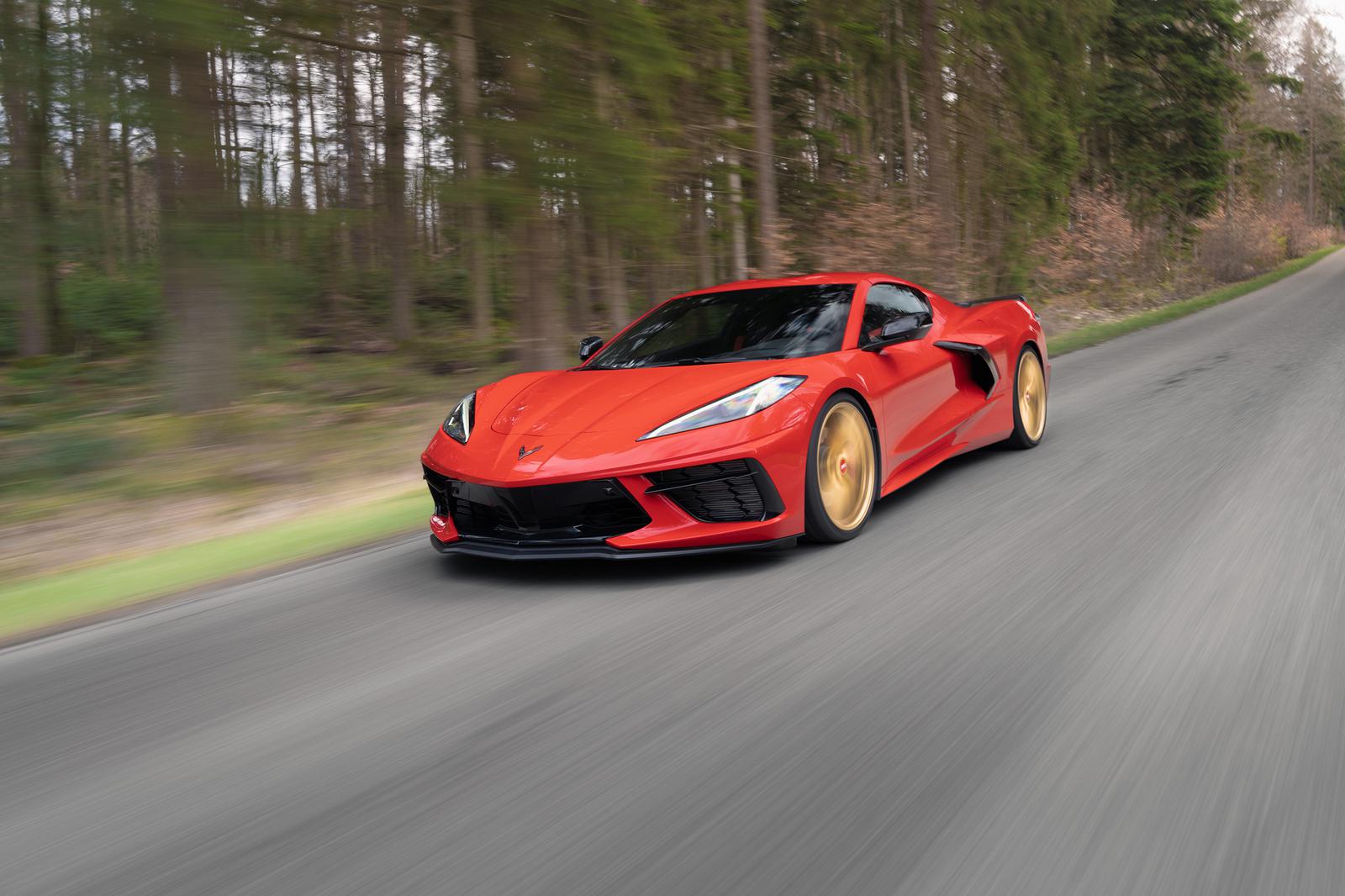

KW Coilover Kit V3 for Chevrolet (C8) Corvette - w/o Lift System

SKU: 35261031
Sale price$6,696.55 Regular price$7,049.00
Save $352.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Chevrolet Corvette (C8).

Key Features

  • Rebound damping adjustable in 16 clicks
  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 20–40 mm
  • Rear lowering: 20–40 mm
  • Front axle load: up to 820 kg
  • Rear axle load: up to 1,225 kg
  • Supplied as: Front axle + rear axle coilover struts
Note For cars without original lift system.

Front axle load up to 820 kg; Rear axle load up to 1,225 kg.

For vehicles without electronic damper control.

For cars without original lift system.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2019+ChevroletCorvette (C8)6.2Petrol · 369 kW · 6.2L · 8-cylRear-Wheel Drive1, 37, 67, 403
2019+ChevroletCorvette (C8)6.2Petrol · 365 kW · 6.2L · 8-cylRear-Wheel Drive1, 37, 67, 403
2019+ChevroletCorvette (C8)6.2Petrol · 354 kW · 6.2L · 8-cylRear-Wheel Drive1, 37, 67, 403
  • Note 1: Height adjustable on the front and rear axles (threaded strut housings).
  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
  • Note 403: Not for cars with original lift system.
