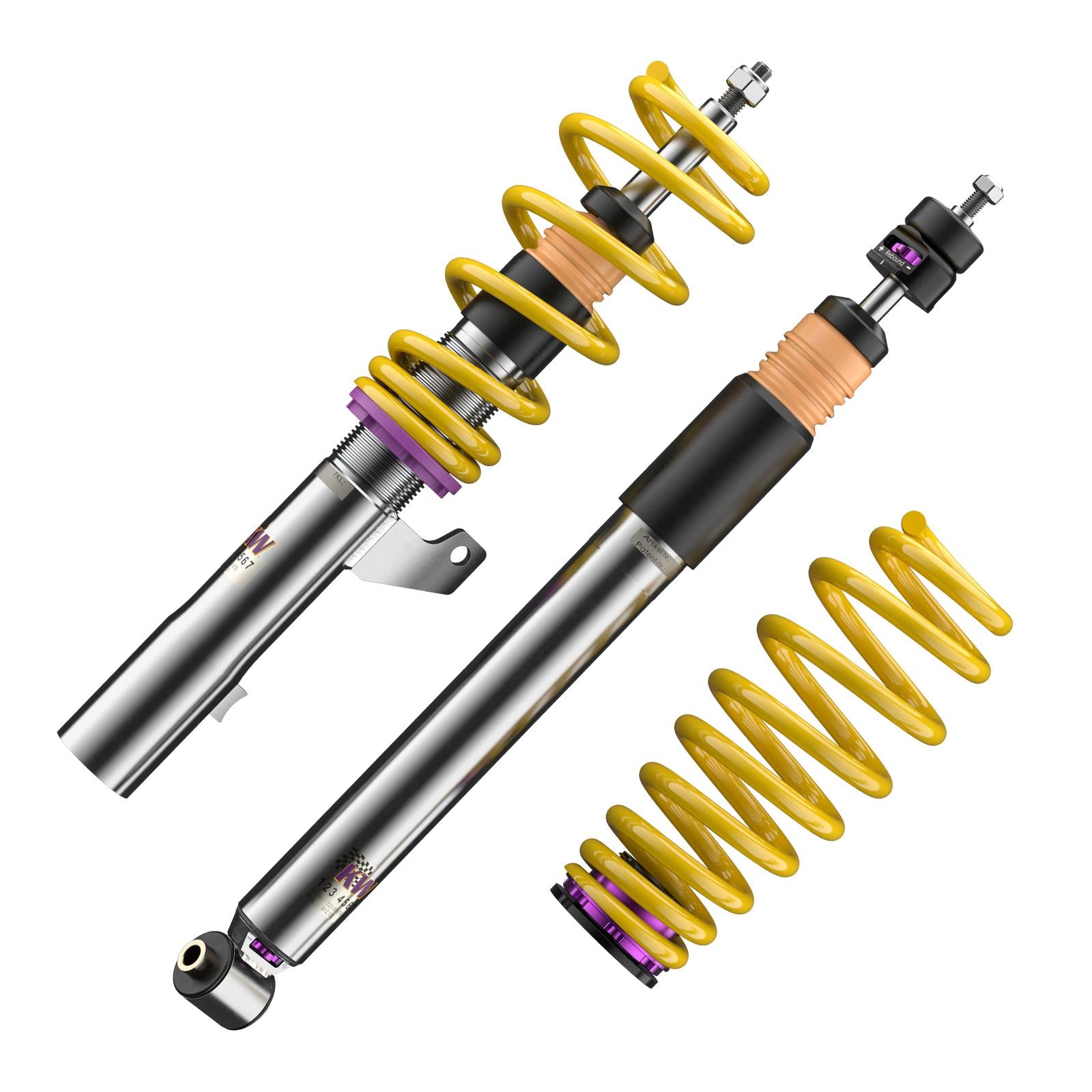

KW Coilover Kit V3 for Audi (B5) A4 2.5L TDI / A4 1.8L Turbo / A4 Avant

SKU: 35210038
Sale price$3,751.55 Regular price$3,949.00
Save $197.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Audi A4 2.5 TDI / A4 1.8 T / A4 Avant (B5).

Key Features

  • Rebound damping adjustable in 16 clicks
  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 40–75 mm
  • Rear lowering: 40–75 mm
  • Front axle load: 1,081–1,150 kg
  • Rear axle load: up to 1,070 kg

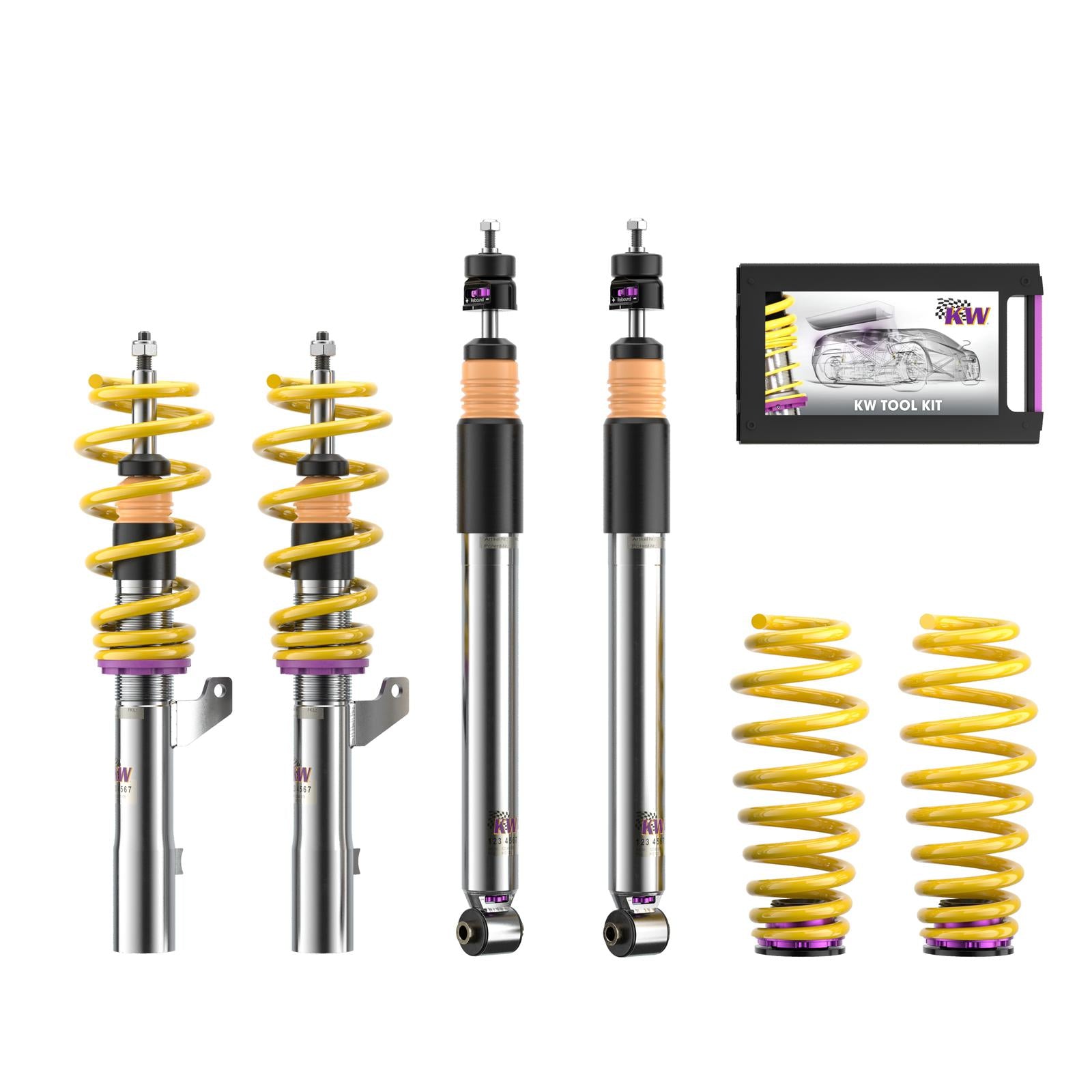

  • Supplied as: Front axle + rear axle coilover struts
Note For vehicles from chassis number 8D*X 200000.

Front axle load 1,081–1,150 kg; Rear axle load up to 1,070 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveNotesRefs
1994–2001AudiA4 (B5) 8D21.8Petrol · 85 kW · 1.8L · 4-cylFront-Wheel DriveFor vehicles from chassis number 8D*X 2000001, 10
1994–2002AudiA4 Avant (B5) 8D5, B511.8Petrol · 85 kW · 1.8L · 4-cylFront-Wheel DriveFor vehicles from chassis number 8D*X 2000001, 10
1994–2001AudiA4 (B5) 8D22.4Petrol · 120 kW · 2.4L · 6-cylFront-Wheel DriveFor vehicles from chassis number 8D*X 2000001, 10
1994–2002AudiA4 Avant (B5) 8D5, B512.4Petrol · 120 kW · 2.4L · 6-cylFront-Wheel DriveFor vehicles from chassis number 8D*X 2000001, 10
1994–2001AudiA4 (B5) 8D21.8 TPetrol · 125 kW · 1.8L · 4-cylFront-Wheel DriveFor vehicles from chassis number 8D*X 2000001, 10
1994–2002AudiA4 Avant (B5) 8D5, B512.8Petrol · 140 kW · 2.8L · 6-cylFront-Wheel DriveFor vehicles from chassis number 8D*X 2000001, 10
1994–2001AudiA4 (B5) 8D22.8Petrol · 140 kW · 2.8L · 6-cylFront-Wheel DriveFor vehicles from chassis number 8D*X 2000001, 10
1994–2001AudiA4 (B5) 8D22.8Petrol · 142 kW · 2.8L · 6-cylFront-Wheel DriveFor vehicles from chassis number 8D*X 2000001, 10
1994–2002AudiA4 Avant (B5) 8D5, B512.8Petrol · 142 kW · 2.8L · 6-cylFront-Wheel DriveFor vehicles from chassis number 8D*X 2000001, 10
1994–2001AudiA4 (B5) 8D22.4Petrol · 121 kW · 2.4L · 6-cylFront-Wheel DriveFor vehicles from chassis number 8D*X 2000001, 10
1994–2002AudiA4 Avant (B5) 8D5, B512.4Petrol · 121 kW · 2.4L · 6-cylFront-Wheel DriveFor vehicles from chassis number 8D*X 2000001, 10
1994–2001AudiA4 (B5) 8D22.5 TDIDiesel · 110 kW · 2.5L · 6-cylFront-Wheel DriveFor vehicles from chassis number 8D*X 2000001, 10
1994–2002AudiA4 Avant (B5) 8D5, B512.5 TDIDiesel · 110 kW · 2.5L · 6-cylFront-Wheel DriveFor vehicles from chassis number 8D*X 2000001, 10
  • Note 1: Height adjustable on the front and rear axles (threaded strut housings).
  • Note 10: In Variant 2, hardness adjustment for front axle only in not installed condition possible.
